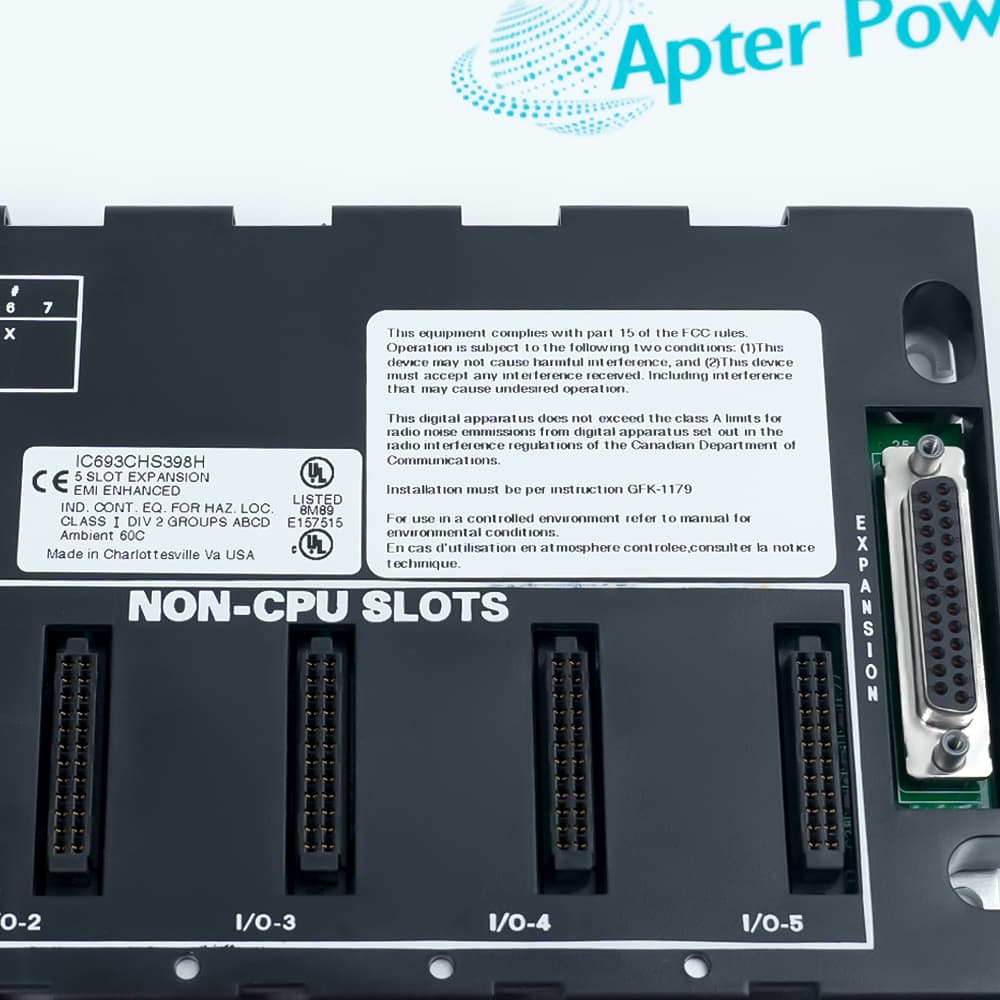

GE Fanuc IC693CHS398 is a Series 90-30 five-slot expansion baseplate for extending an approved PLC installation from a CPU baseplate.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IC693CHS398
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC693CHS398

  • Manufacturer:
    General Electric
  • Part Number:
    IC693CHS398
  • Product Family:
    GE 90-30 Series PLC
  • Product Type:
    5-Slot Expansion Baseplate
  • Stock:
    1
  • Baseplate Type:
    Expansion baseplate
  • I/O Slots:
    5
  • Expansion Connector:
    25-pin female D-type
  • Maximum Cable Length:
    15 m (50 ft) total
  • Maximum Expansion Baseplates:
    4 with CPUs 331, 340 or 341
  • Extended Baseplate Capacity:
    7 with CPU 350 or higher
  • System Requirement:
    Requires a Series 90-30 CPU baseplate
  • Grounding Requirement:
    Common ground with the system
  • Weight:
    0.56 kg
  • Estimated shipping dimensions:
    26.4 x 13 x 1.8 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Expansion Layout Grounding Review Ordering Review

Features:

  • Five slots: Five I/O slots in an expansion baseplate.
  • Expansion connector: 25-pin female D-type connection.
  • Cable limit: Maximum total expansion cable length of 15 m (50 ft).

IC693CHS398 extends a Series 90-30 installation from a required CPU baseplate.

The allowable number of expansion baseplates depends on the installed CPU generation.

Grounding, cable routing and module-location restrictions should be reviewed before installation.

Availability is subject to Apter Power's current inventory and sourcing confirmation.

Verified resources for General Electric IC693CHS398:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • ManufacturerGeneral Electric
  • ModelIC693CHS398
  • ConditionNew Original ready stock
  • Product FamilySeries 90-30 Baseplates

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Expansion Layout

  • CPU dependency: The baseplate cannot operate as a stand-alone rack.
  • Baseplate count: Apply the limit specified for the installed CPU.
  • Cable route: Keep the complete expansion path within 15 m.

Grounding Review

  • Common ground: Maintain the documented system ground.
  • Connector: Inspect the 25-pin expansion connection.
  • Module placement: Keep CPU-only modules in the CPU baseplate.

Ordering Review

  • Slot count: Confirm the five-slot layout.
  • CPU record: Identify the installed Series 90-30 CPU.
  • Cable plan: Verify the required expansion cable and connectors.
Description
The IC693CHS398 is a GE Fanuc Series 90-30 five-slot expansion baseplate that operates as part of a system containing a CPU baseplate.

Official documentation for IC693CHS398 specifies a 25-pin female D-type expansion connector and a maximum combined expansion-cable length of 15 m (50 ft).

Before ordering IC693CHS398, verify the CPU type, number of expansion baseplates, grounding arrangement, and permitted module locations in the installed Series 90-30 system.
Alternative Names
GE Fanuc IC693CHS398 GE IC693CHS398 GE Series 90-30 IC693CHS398 expansion baseplate IC693-CHS398 IC693 CHS398 IC693CHS398 five-slot expansion baseplate Series 90-30 IC693CHS398
Technical notes
IC693CHS398 is a five-slot Series 90-30 expansion baseplate that requires connection to a CPU baseplate through the documented expansion interface. Verify the approved 25-pin cable, total cable length, grounding, module-location restrictions, and number of expansion bases before installation; an unsuitable cable path or unsupported module placement can disrupt the system.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How is the 25-pin expansion interface on IC693CHS398 connected correctly?
Use the approved Series 90-30 expansion cable at the female D-type connector and preserve the documented baseplate sequence from the CPU rack to each expansion rack.
Why can IC693CHS398 not operate as a stand-alone PLC baseplate?
It is a five-slot expansion baseplate and depends on a Series 90-30 CPU baseplate for system control and the approved expansion path.
Which CPU generation sets the permitted number of IC693CHS398 baseplates?
CPUs 331, 340, and 341 support up to four expansion baseplates, while CPU 350 or higher supports up to seven. Confirm the installed CPU before extending the system.
Which Series 90-30 modules require location review before using IC693CHS398?
CPU-only and other location-restricted modules must remain in positions allowed by the GE hardware documentation; an empty expansion slot does not prove that every module type is permitted.
How is the 15 m cable limit calculated for an IC693CHS398 expansion path?
Add every expansion-cable segment in the chain from the CPU baseplate through the connected expansion bases. The combined documented length must not exceed 15 m.
What grounding arrangement is required when adding IC693CHS398?
Keep the expansion baseplate on the documented common system ground, inspect bonding points, and verify connector engagement before energizing the extended rack.
What should be checked when IC693CHS398 communication becomes intermittent?
Inspect the 25-pin connector seating, total cable length, cable damage, routing, common grounding, baseplate sequence, and CPU diagnostics before replacing the baseplate.
