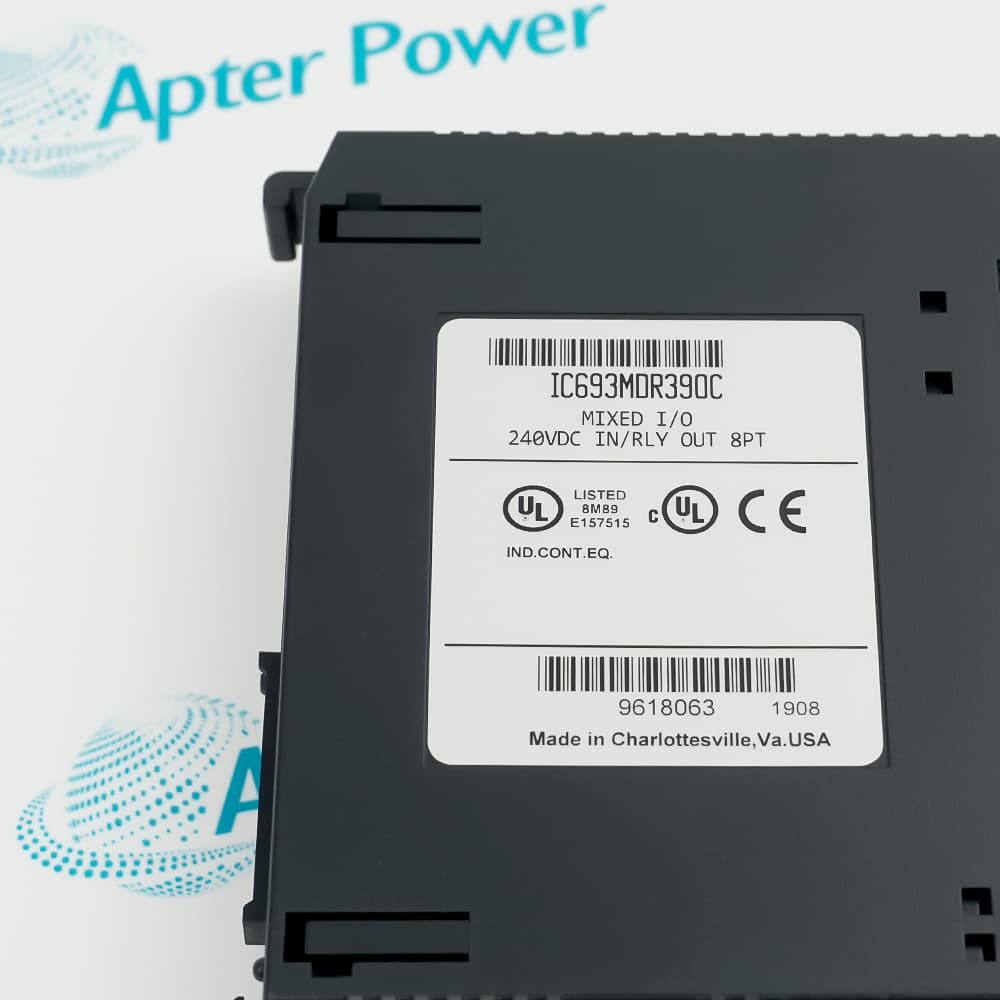

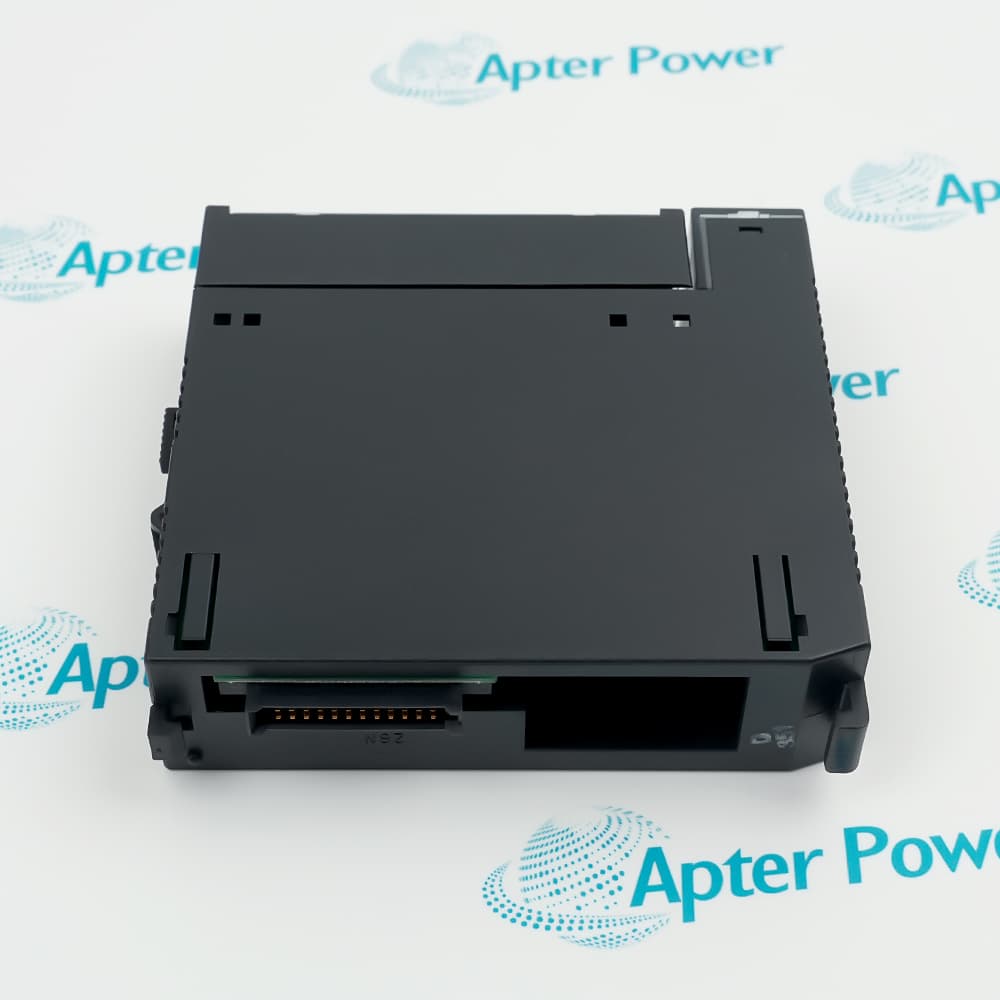

        IC693MDR390
        IC693MDR390
        IC693MDR390
        IC693MDR390
        IC693MDR390
        IC693MDR390
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Discontinued / Obsolete by OEM
          Apter Power supports quotation, documentation, procurement, and migration review for this legacy module.

        IC693MDR390

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        GE Fanuc IC693MDR390 is a Series 90-30 24 VDC input and relay output combination module with eight inputs and eight normally open outputs.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for IC693MDR390
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for IC693MDR390

        • Manufacturer:
          General Electric
        • Part Number:
          IC693MDR390
        • Product Family:
          GE 90-30 Series PLC
        • Product Type:
          Discrete Combination Module
        • Stock:
          1
        • Input points:
          8, one group of eight
        • Nominal input voltage:
          24 VDC
        • Input voltage range:
          -30 to +32 VDC
        • Typical input current:
          7.5 mA at nominal voltage
        • Guaranteed on-state voltage:
          15 to 32 VDC
        • Guaranteed off-state voltage:
          0 to +5 VDC
        • Guaranteed on-state current:
          4 mA minimum
        • Guaranteed off-state current:
          1.5 mA maximum
        • Input response:
          1 ms typical on; 1 ms typical off
        • Output points:
          8, two groups of four
        • Nominal output voltage:
          24 VDC or 120/240 VAC
        • Output operating voltage:
          5 to 30 VDC; 5 to 250 VAC, 50/60 Hz
        • Maximum load:
          2 A per output; 4 A per common
        • Minimum load:
          10 mA
        • Maximum inrush current:
          5 A
        • Output response:
          15 ms maximum on; 15 ms maximum off
        • Field-to-logic isolation:
          1500 V RMS
        • Isolation between output groups:
          500 V RMS
        • Backplane current:
          80 mA from 5 V bus with all I/O active; 70 mA from relay 24 V bus with all outputs active
        • Weight:
          0.295 kg
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Inputs Relay Outputs Installation

        Features:

        • Eight 24 VDC inputs in one common group
        • Eight normally open relay outputs in two groups of four
        • Single-slot Series 90-30 combination module
        IC693MDR390 combines sensing and switching functions where a Series 90-30 application needs eight discrete inputs together with eight relay-controlled loads.

        Input circuits can be wired for positive or negative logic, while the relay side supports both low-voltage DC and 120/240 VAC load circuits within the documented ratings.

        Before replacement, verify baseplate compatibility, field-power sources, common wiring, load current, and external fuse or breaker protection because the module contains no internal fuses.

        The GE Fanuc IC693MDR390 24 VDC Input and Relay Output Combination Module is listed as Discontinued / Obsolete by OEM. Apter Power can assist with quotation, documentation, and migration review.
        GE Fanuc IC693MDR390 24 VDC Input and Relay Output Combination Module Manuals, Datasheets, Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        GE Fanuc IC693MDR390 24 VDC Input and Relay Output Combination Module Specs

        General

        • ManufacturerGE Fanuc
        • ModelIC693MDR390
        • ConditionNew Original
        • Product FamilySeries 90-30
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        Discrete input characteristics

        • Point count: Eight input circuits share one common power input terminal.
        • Logic wiring: The inputs support either positive-logic or negative-logic field connections.
        • Thresholds: Guaranteed on-state voltage is 15 to 32 VDC and off-state voltage is 0 to +5 VDC.
        • Response: Typical input turn-on and turn-off time is 1 ms.

        Load switching arrangement

        • Grouping: Eight normally open outputs are divided into two groups of four circuits.
        • Voltage range: Relay contacts switch 5 to 30 VDC or 5 to 250 VAC at 50/60 Hz.
        • Current limit: The maximum rating is 2 A per output and 4 A per common.
        • Timing: Maximum relay turn-on and turn-off time is 15 ms.

        Baseplate and field checks

        • Slot use: Install the module in an I/O slot of a compatible Series 90-30 baseplate.
        • Field power: Provide the required AC or DC source for field devices and relay loads.
        • Indicators: Two rows of eight green LEDs show the on or off state of every point.
        • Protection: No internal fuses are provided, so protect output loads externally.
        Description
        The IC693MDR390 is a GE Fanuc Series 90-30 discrete combination module that places eight 24 VDC inputs and eight normally open relay outputs in one baseplate slot. One common power input serves the eight input points, while the relay outputs are arranged as two groups of four circuits.

        Input circuits on IC693MDR390 accept positive- or negative-logic connections within a -30 to +32 VDC range. The official module specification lists 7.5 mA typical input current at 24 VDC, guaranteed on-state operation from 15 to 32 VDC, and typical 1 ms on and off response times.

        The eight outputs of IC693MDR390 switch 5 to 30 VDC or 5 to 250 VAC at 50/60 Hz. Each output supports up to 2 A, each common supports up to 4 A, and the relay circuits have a 15 ms maximum turn-on and turn-off time.

        Install IC693MDR390 in an I/O slot of a Series 90-30 baseplate and provide field power for connected devices. The module has point-status LEDs but no internal fuses, so output-load protection and replacement compatibility must be confirmed from the official hardware documentation.
        Revisions

        Revision Part #

        Also known as

        IC693MDR390B
        IC693MDR390-B, Series B, Rev B
        Get Parts Quote
        IC693MDR390C
        IC693MDR390-C, Series C, Rev C
        Get Parts Quote
        IC693MDR390D
        IC693MDR390-D, Series D, Rev D
        Get Parts Quote
        Alternative Names
        IC693MDR39O IC 693 MDR 390 IC693 MDR390 IC693-MDR390 GE IC693MDR390 GE Fanuc IC693MDR390 General Electric IC693MDR390 Series 90-30 IC693MDR390
        Technical notes
        GE Fanuc IC693MDR390 is a Series 90-30 mixed discrete I/O module with eight 24 VDC inputs and eight normally open relay outputs. It occupies one baseplate slot.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How many points are provided by GE Fanuc IC693MDR390?
        GE Fanuc IC693MDR390 provides eight 24 VDC input points and eight normally open relay output points.
        What input range does GE Fanuc IC693MDR390 accept?
        GE Fanuc IC693MDR390 accepts -30 to +32 VDC, with guaranteed on-state operation from 15 to 32 VDC.
        What loads can GE Fanuc IC693MDR390 switch?
        GE Fanuc IC693MDR390 switches 5 to 30 VDC or 5 to 250 VAC loads, subject to official current limits.
        Where is GE Fanuc IC693MDR390 installed?
        GE Fanuc IC693MDR390 installs in an I/O slot of a compatible Series 90-30 baseplate.
        Does GE Fanuc IC693MDR390 include output fuses?
        GE Fanuc IC693MDR390 has no internal output fuses, so the application must provide suitable external circuit protection.
        What should be checked when troubleshooting GE Fanuc IC693MDR390?
        For GE Fanuc IC693MDR390, check point LEDs, field power, commons, terminal wiring, load current, external protection, and PLC diagnostics.
        What is the lifecycle and replacement approach for GE Fanuc IC693MDR390?
        GE Fanuc IC693MDR390 belongs to the obsolete Series 90-30 platform; confirm the complete configuration before planning migration or replacement.
