        IC693ALG442
        IC693ALG442
        IC693ALG442
        IC693ALG442
        IC693ALG442
        IC693ALG442
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power supports quotations, channel-range review, documentation, and Series 90-30 matching for IC693ALG442.

        IC693ALG442

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

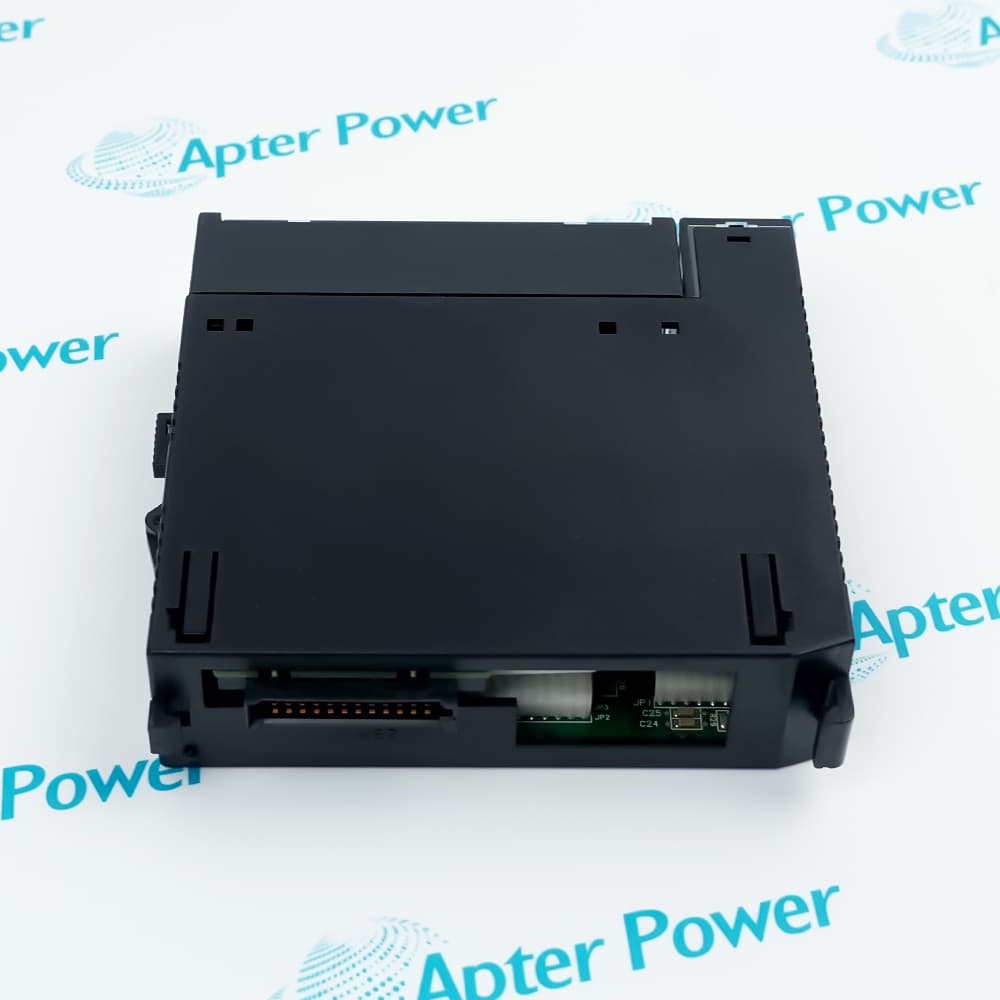

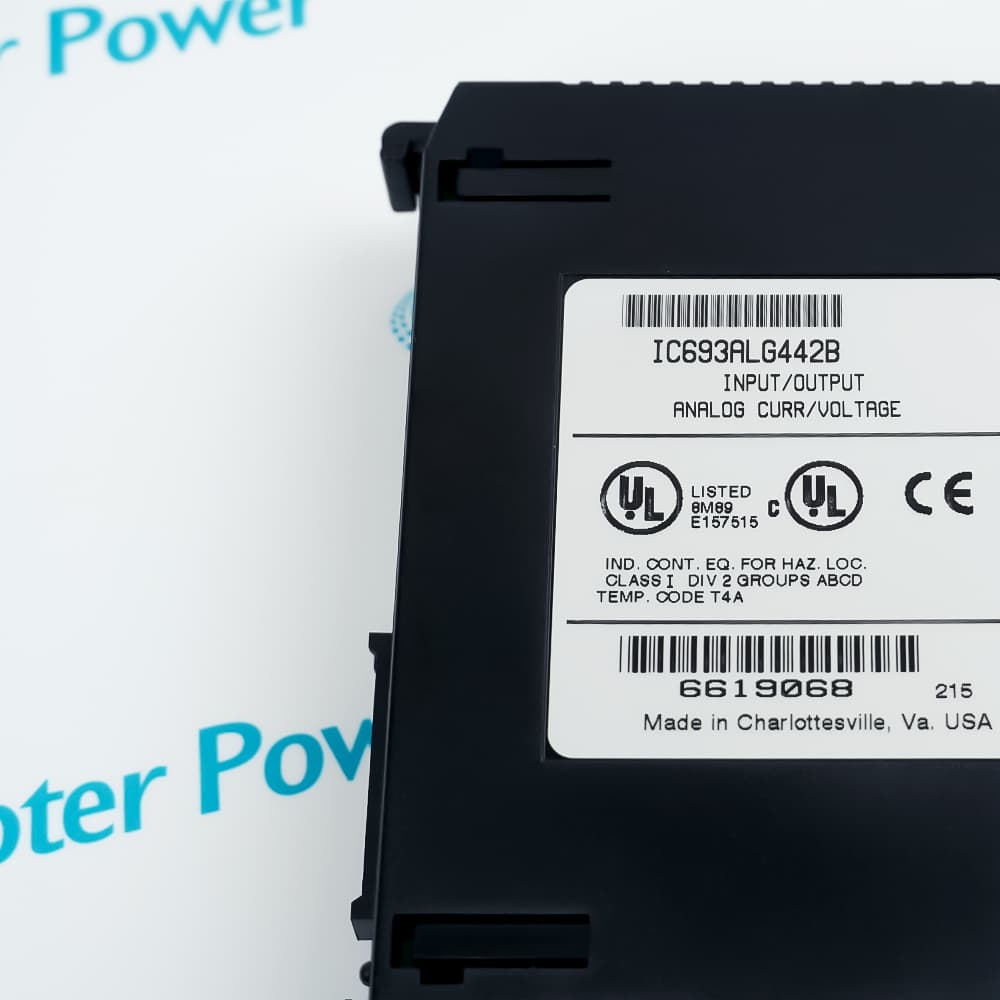

        GE IC693ALG442 is a Series 90-30 analog current/voltage module with four differential inputs and two single-ended outputs.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for IC693ALG442
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for IC693ALG442

        • Manufacturer:
          General Electric
        • Part Number:
          IC693ALG442
        • Product Family:
          GE 90-30 Series PLC
        • Product Type:
          Analog Current/Voltage I/O Module
        • Stock:
          1
        • Input Channels:
          Four differential
        • Output Channels:
          Two single-ended
        • Current Input Ranges:
          0–20 mA, 4–20 mA, and 4–20 mA Enhanced
        • Voltage Input Ranges:
          0–10 V and -10 to +10 V
        • Current Output Ranges:
          0–20 mA and 4–20 mA
        • Voltage Output Ranges:
          0–10 V and -10 to +10 V
        • Update Rate:
          3 ms
        • External Supply Range:
          20–30 V DC; 24 V DC typical
        • Internal Power Consumption:
          95 mA from +5 V DC
        • External Power Consumption:
          150 mA plus loop currents from +24 V DC
        • Field-to-Backplane Isolation:
          250 V AC continuous; 1500 V AC for one minute
        • Current Input Resolution:
          5 µA
        • Voltage Input Resolution:
          2.5 mV unipolar; 5 mV bipolar
        • Current Input Accuracy:
          ±0.25% full scale at 25 °C; ±0.5% over temperature
        • Voltage Input Accuracy:
          ±0.25% full scale at 25 °C; ±0.5% over temperature
        • Current Input Impedance:
          250 ohm
        • Input Filter Response:
          38 Hz
        • Current Output Resolution:
          0.6 µA at 0–20 mA; 0.5 µA at 4–20 mA
        • Voltage Output Resolution:
          0.3125 mV
        • Current Output Accuracy:
          ±0.25% full scale maximum at 25 °C; ±0.5% over temperature
        • Voltage Output Accuracy:
          ±0.5% full scale maximum at 25 °C; ±1.0% over temperature
        • Voltage Output Loading:
          5 mA; 2 kohm minimum
        • Stop Modes:
          Hold last state or Default Low
        • Output Ramp Mode:
          Configurable
        • Input Alarms:
          Configurable high and low limits
        • Output Open-Wire Status:
          Available in current-output modes
        • Configuration Software:
          Machine Edition
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Channel Setup Wiring Review Configuration Review

        Features:

        • Four inputs and two outputs: The module combines differential inputs with single-ended outputs.
        • Current or voltage per channel: Machine Edition selects the documented signal ranges.
        • Configurable output behavior: Hold, Default Low, and ramp functions support controlled operation.

        IC693ALG442 consolidates mixed analog acquisition and command signals in one Series 90-30 module.

        Each channel is configured for current or voltage, while alarms, stop behavior, ramping, and status data are managed through the controller project.

        Service planning should preserve terminal wiring, channel ranges, scaling, external supply, alarm limits, scan set, and output behavior.

        Availability is subject to Apter Power's current inventory and sourcing confirmation.

        General Electric IC693ALG442 Analog Current/Voltage I/O Module Manuals, Datasheets, Links

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        General Electric IC693ALG442 Analog Current/Voltage I/O Module Specs

        General

        • ManufacturerGeneral Electric
        • ModelIC693ALG442
        • ConditionNew and factory sealed
        • Product FamilySeries 90-30 Analog I/O Modules

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        Analog range planning

        • Inputs: Configure four differential channels independently.
        • Outputs: Configure two single-ended channels independently.
        • Current ranges: Use only the documented 0–20 mA or 4–20 mA modes.
        • Voltage ranges: Use 0–10 V or -10 to +10 V as required.

        Field connection checks

        • External supply: Provide 20–30 V DC and include output loop current.
        • Current inputs: Use the documented jumper and 250 ohm sense-resistor arrangement.
        • Returns: Keep voltage-output and current-output returns correctly identified.
        • Shield: Use the frame-ground terminal according to the installation manual.

        Controller project checks

        • Stop mode: Record Hold or Default Low for each application.
        • Ramp mode: Preserve the configured output transition behavior.
        • Alarms: Retain high and low input alarm limits.
        • Status mapping: Preserve the %AI, %AQ, and %I references before replacement.
        Description

        The GE IC693ALG442 is a Series 90-30 analog current/voltage I/O module with four differential inputs and two single-ended outputs.

        Official documentation for IC693ALG442 specifies independently configurable current or voltage ranges, a 3 ms update rate, external 20–30 V DC supply, channel alarms, output ramping, and selectable stop behavior.

        Before ordering IC693ALG442, verify the Series 90-30 slot with serial connector, field wiring, input and output ranges, scaling, external supply, alarm settings, and output stop mode.

        Revisions

        Revision Part #

        Also known as

        IC693ALG442-DA
        IC693ALG442-DA, Series -DA, Rev -DA
        Get Parts Quote
        IC693ALG442-EB
        IC693ALG442-EB, Series -EB, Rev -EB
        Get Parts Quote
        Alternative Names
        General Electric IC693ALG442 GE IC693ALG442 IC693ALG442 IC693 ALG442 GE Fanuc IC693ALG442 Series 90-30 IC693ALG442 IC693ALG442 Analog I/O Module ALG442 Four Input Two Output Module
        Technical notes
        GE IC693ALG442 provides four independently configurable differential analog inputs and two single-ended outputs for current or voltage signals. Verify the Series 90-30 serial-connector slot, 24 V DC supply, channel ranges, wiring, scaling, alarms, and stop mode.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What is GE IC693ALG442 used for?
        It provides four analog inputs and two analog outputs for current or voltage signals in a Series 90-30 PLC system.
        Which product family includes IC693ALG442?
        IC693ALG442 belongs to GE Series 90-30 analog I/O modules. It requires an I/O slot with the serial connector.
        Which signal ranges can IC693ALG442 use?
        Inputs support 0–20 mA, 4–20 mA, enhanced 4–20 mA, 0–10 V, and -10 to +10 V; outputs support the corresponding standard current and voltage ranges.
        How do I verify the correct IC693ALG442?
        Check the exact catalog number, terminal wiring, channel ranges, scaling, 24 V DC supply, alarms, stop mode, and controller references.
        Is IC693ALG442 active or discontinued?
        The reviewed official module sheet does not state that IC693ALG442 is discontinued. Current supply still requires sourcing confirmation.
        Is IC694ALG442 a direct replacement for IC693ALG442?
        No direct replacement is claimed here. IC694ALG442 is the RX3i variant, while IC693ALG442 is identified for Series 90-30 installation.
        Where can I get the IC693ALG442 datasheet and price?
        Open the verified PDF in Manuals, then send Apter Power the PLC rack, quantity, destination, condition, and required date.
