IC697CPX772

/ 4.9
1001 reviews | Need a Specific Revision?

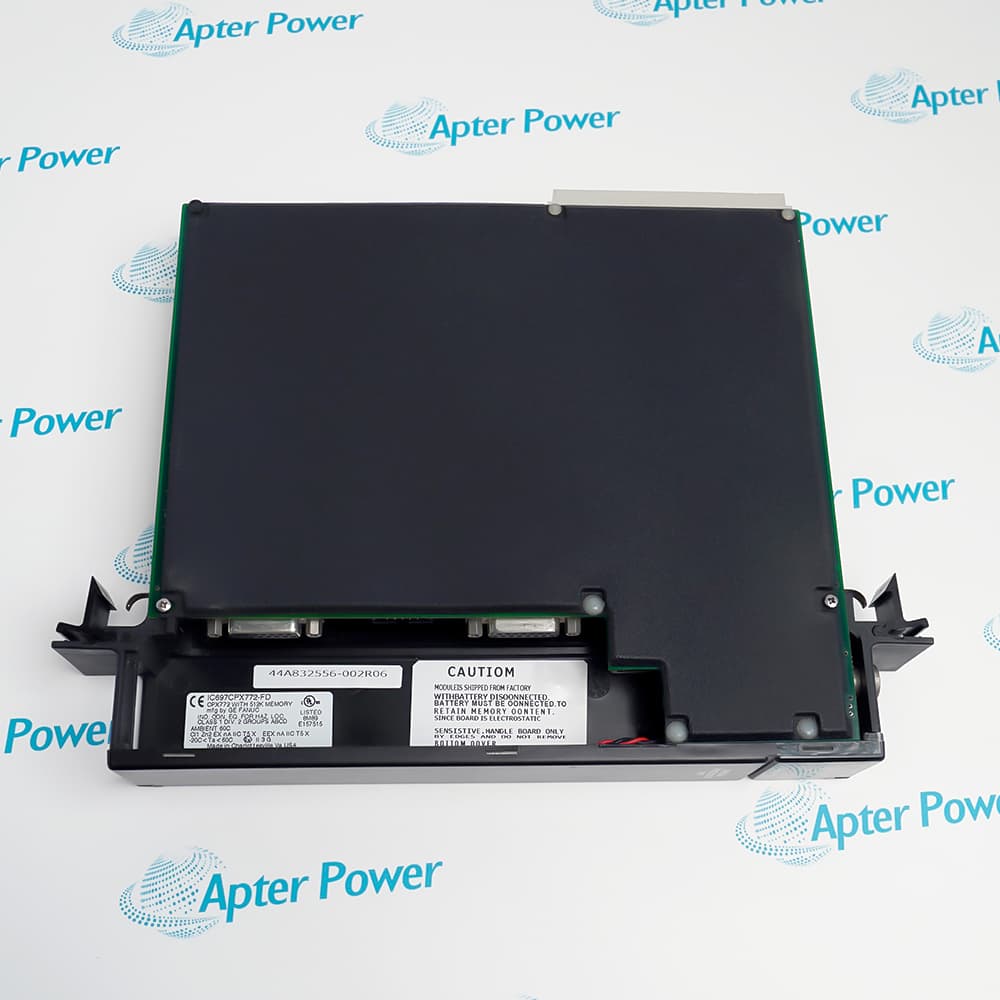

General Electric IC697CPX772 is a 96 MHz Series 90-70 single-slot CPU for real-time machine, process, and material-handling control.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IC697CPX772
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC697CPX772

  • Manufacturer:
    General Electric
  • Part Number:
    IC697CPX772
  • Product Family:
    GE 90-70 Series PLC
  • Product Type:
    Series 90-70 Single-Slot CPU
  • Stock:
    1
  • Processor:
    96 MHz 80486DX4
  • Boolean Speed:
    0.4 µs per function
  • Battery-Backed RAM:
    512 KB
  • User Flash:
    256 KB nonvolatile
  • Discrete I/O Capacity:
    2K points, any mix
  • Analog I/O Capacity:
    Up to 8K points
  • Serial Interfaces:
    1 x RS-232; 2 x RS-485
  • Serial protocol:
    SNP slave
  • 5 VDC backplane current:
    3.1 A
  • Operating temperature:
    0 to 60 °C
  • Battery shelf life:
    5 years at 20 °C
  • Memory retention:
    6 months without applied power
  • Rack interface:
    VME C.1, slot 1
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Memory & Execution Serial Interfaces Rack Integration Control & Security

Features:

  • Runs Series 90-70 control logic on a 96 MHz 80486DX4 processor.
  • Combines 512 KB battery-backed RAM with 256 KB user flash memory.
  • Provides three serial ports and support for IC66 and IC697 I/O.
IC697CPX772 executes Boolean logic in about 0.4 microseconds while retaining hardware support for floating-point calculations.

Its I/O capacity combines as many as 2K discrete points with up to 8K analog points through the Series 90-70 backplane.

The front switches and indicators expose run state, output enablement, memory protection, and serial activity without opening the rack.

The General Electric IC697CPX772 Series 90-70 Single-Slot CPU may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IC697CPX772 Series 90-70 Single-Slot CPU Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Program and calculation resources

  • Processor Core: The 96 MHz 80486DX4 executes one Boolean function in approximately 0.4 microseconds.
  • Working Memory: A 512 KB battery-backed area stores program, configuration, and register data.
  • Flash Storage: The CPU adds 256 KB of nonvolatile user flash for retained application content.
  • Math Support: Floating-point calculations are handled directly by the processor hardware.

Three independent front ports

  • Port 1: An RS-232 interface supports programming attachment or another compatible serial device.
  • Port 2: The first RS-485 channel includes optical isolation from the remaining serial circuitry.
  • Port 3: A second RS-485 channel is available without the optocoupler isolation used on Port 2.
  • Protocol Boundary: The three interfaces operate as SNP slave ports rather than general multi-protocol channels.

Backplane and option-module reach

  • Slot Assignment: The single-width CPU is installed in slot 1 of rack 0.
  • Bus Format: Exchanges with I/O and smart modules use the rack-mounted VME C.1 backplane.
  • Discrete Capacity: Up to 2K input and output points may be arranged in any mix.
  • Option Support: LAN, coprocessor, Genius bus, communications, and I/O Link modules can share the system.

Operating-state safeguards

  • Mode Switch: Hardware selection covers stop, run with outputs disabled, and run with outputs enabled.
  • Memory Key: A remote-programmer keyswitch prevents unauthorized program or configuration changes.
  • Password Access: Software passwords add a second control layer around CPU access.
  • Status Display: Seven LEDs distinguish processor, run, enable, protection, and serial-port activity states.
Description
At the center of a Series 90-70 rack, General Electric IC697CPX772 executes real-time control logic with a 96 MHz 80486DX4 processor. Boolean instructions complete in approximately 0.4 microseconds, and hardware floating-point support serves calculations beyond discrete sequencing.

Program, configuration, and register data share the 512 KB battery-backed RAM built into General Electric IC697CPX772. A separate 256 KB nonvolatile user flash area provides another storage path, while the calendar clock retains time information from the battery circuit.

Through the VME C.1 backplane, General Electric IC697CPX772 exchanges data with IC660/IC661 Genius I/O, IC697 discrete and analog modules, LAN interfaces, coprocessors, communications modules, and I/O Link interfaces. The CPU handles up to 2K discrete inputs and outputs in any mix plus as many as 8K analog points.

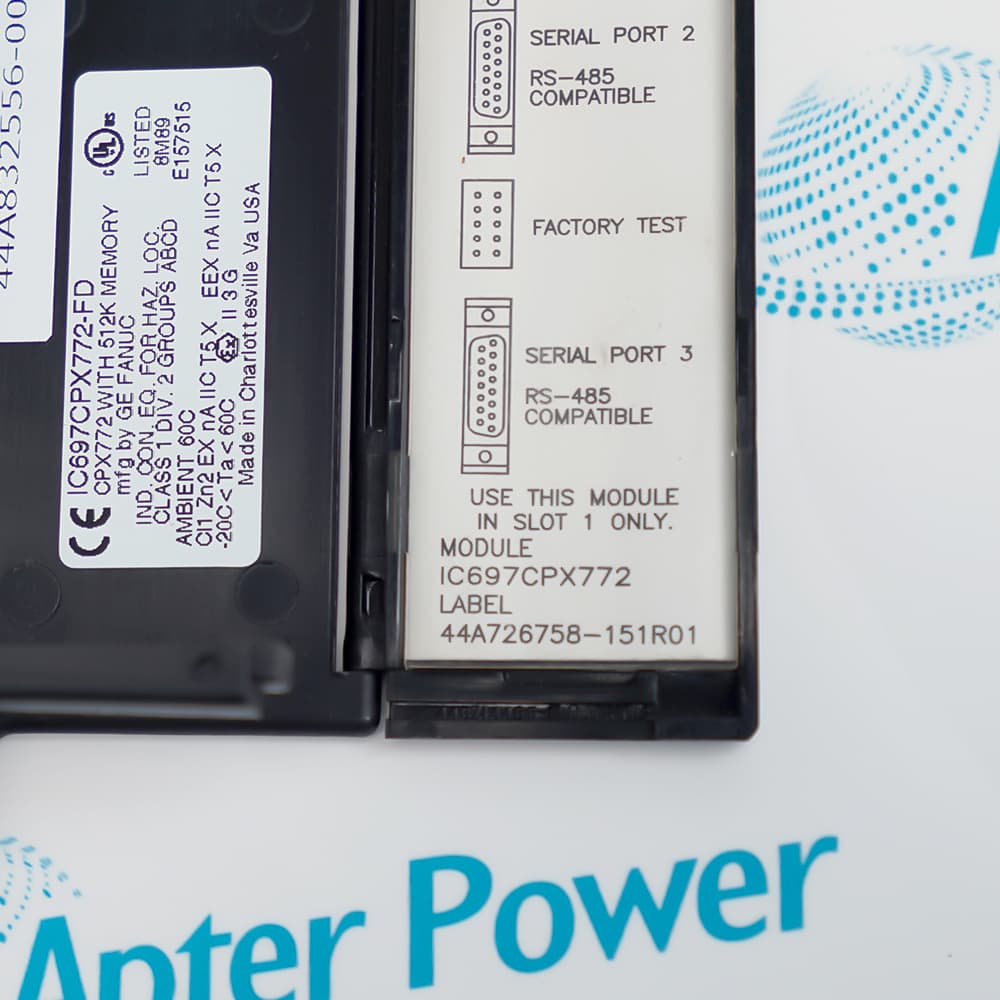

Three front serial interfaces give General Electric IC697CPX772 one RS-232 port, one isolated RS-485 port, and one non-isolated RS-485 port. A three-position run switch, remote memory-protect keyswitch, password control, seven status LEDs, and software-only configuration govern access and operating mode.
Revisions

Revision Part #

Also known as

IC697CPX772JD
IC697CPX772-JD, Series JD, Rev JD
IC697CPX772BA
IC697CPX772-BA, Series BA, Rev BA
IC697CPX772CB
IC697CPX772-CB, Series CB, Rev CB
IC697CPX772CC
IC697CPX772-CC, Series CC, Rev CC
IC697CPX772CD
IC697CPX772-CD, Series CD, Rev CD
IC697CPX772ED
IC697CPX772-ED, Series ED, Rev ED
IC697CPX772FD
IC697CPX772-FD, Series FD, Rev FD
IC697CPX772GD
IC697CPX772-GD, Series GD, Rev GD
IC697CPX772HD
IC697CPX772-HD, Series HD, Rev HD
Alternative Names
General Electric IC697CPX772 GE IC697CPX772 IC697-CPX772 IC697 CPX772 GE Fanuc IC697CPX772 Series 90-70 CPX772 CPU IC697CPX772 PLC Processor IC697CPX772 CPU Module
Technical notes
General Electric IC697CPX772 is a 96 MHz, 32-bit Series 90-70 CPU with 512 KB battery-backed RAM, 256 KB user flash, three serial ports, and VME C.1 backplane support.
