    Apter Power supports IC697MDL250 quotation, English technical information, and input-bank matching.

IC697MDL250

/ 4.9
1001 reviews | Need a Specific Revision?

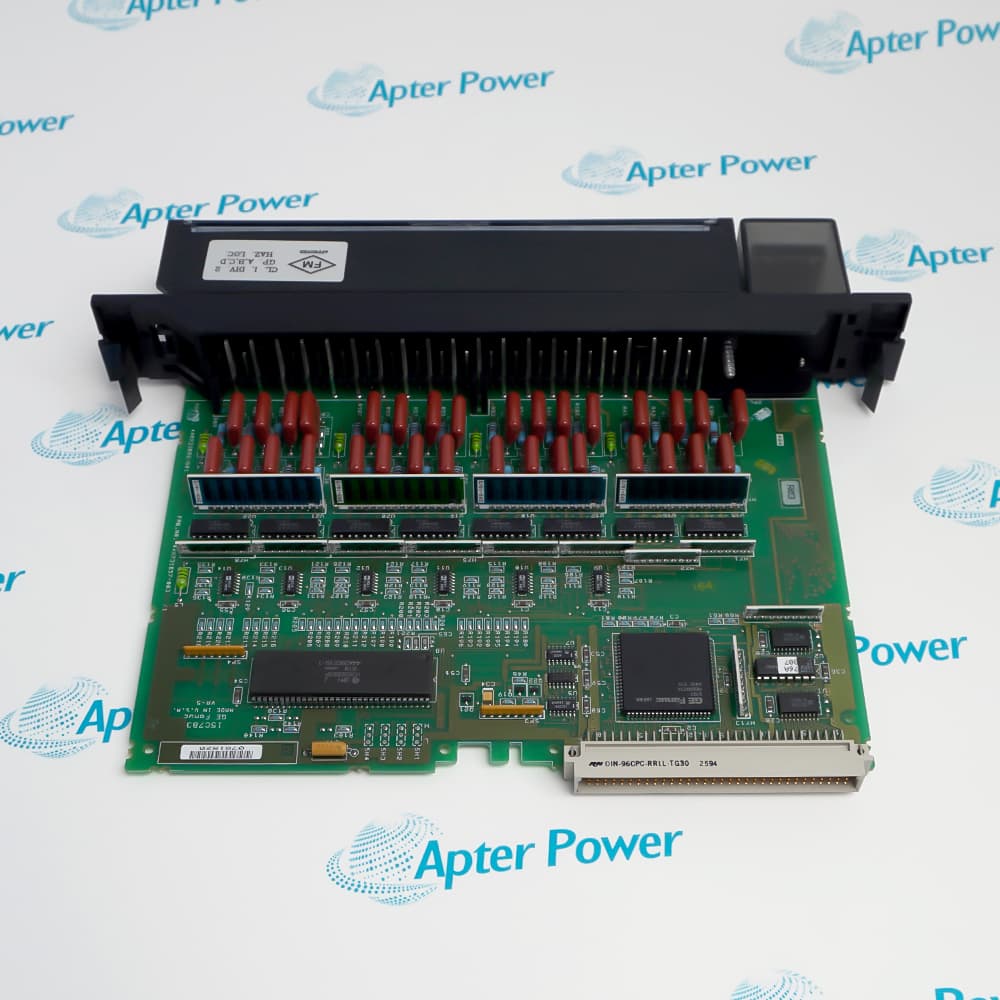

General Electric IC697MDL250 is a 32-point Series 90-70 120 VAC input module for receiving isolated discrete field signals.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IC697MDL250
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC697MDL250

  • Manufacturer:
    General Electric
  • Part Number:
    IC697MDL250
  • Product Family:
    GE 90-70 Series PLC
  • Product Type:
    Series 90-70 120 VAC Input Module
  • Stock:
    1
  • Input Count:
    32
  • Input Grouping:
    Four isolated groups of 8
  • Rated Voltage:
    120 VAC, 47 to 63 Hz
  • On-State Range:
    75 to 132 VAC
  • Off-State Range:
    0 to 25 VAC
  • Typical Input Current:
    10 mA at rated voltage
  • Filter Delay:
    20 ms typical
  • Field-to-Backplane Isolation:
    1500 V RMS
  • Group-to-Group Isolation:
    500 V RMS
  • 5 V Bus Current:
    0.35 A
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Phase Grouping Proximity Inputs Signal Thresholds Wiring & Isolation

Features:

  • Receives thirty-two 120 VAC inputs in four isolated groups of eight.
  • Applies a 20 ms filter to each discrete field signal.
  • Accepts compatible two-wire and three-wire proximity switches.
IC697MDL250 lets separate AC phases feed independent eight-point banks while one module reports all thirty-two signals to the PLC.

Its resistor-capacitor input network follows IEC type 2 behavior, balancing field current with defined ON and OFF thresholds.

Point indicators at the module face show the logic-side state, so the PLC reading can be compared with the connected field circuit.

The General Electric IC697MDL250 Series 90-70 Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IC697MDL250 Series 90-70 120 VAC Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Independent eight-point banks

  • Four Sections: The thirty-two inputs are divided evenly into banks A, B, C, and D.
  • Separate Commons: Each bank has its own AC line and neutral connection rather than sharing one module-wide common.
  • Phase Flexibility: Different supply phases can be assigned to separate banks when the field design requires it.
  • Logic Transfer: Every bank passes eight conditioned states through the module interface to the PLC backplane.

Reactive sensor interface

  • IEC Behavior: The resistor-capacitor input presents type 2 current-voltage characteristics to the field device.
  • Two-Wire Sensors: Compatible proximity switches may power through the same conductors used for state sensing.
  • Three-Wire Sensors: Separately powered proximity outputs can drive a module point within the specified load line.
  • Leakage Limit: OFF-state sensor current must remain below the module's permitted 2.2 mA boundary.

Defined AC state recognition

  • ON Voltage: A valid high state lies between 75 and 132 VAC at 47 to 63 Hz.
  • OFF Voltage: The low-state region extends from zero through 25 VAC at the same frequency range.
  • Current Window: ON-state current spans 6 to 15 mA, with about 10 mA typical at rated voltage.
  • Filter Interval: A 20 ms delay prevents short AC disturbances from appearing as valid PLC transitions.

Field separation and terminal layout

  • Backplane Barrier: The complete field section withstands 1500 V RMS relative to the PLC bus.
  • Bank Separation: Adjacent eight-point groups are isolated from one another at 500 V RMS.

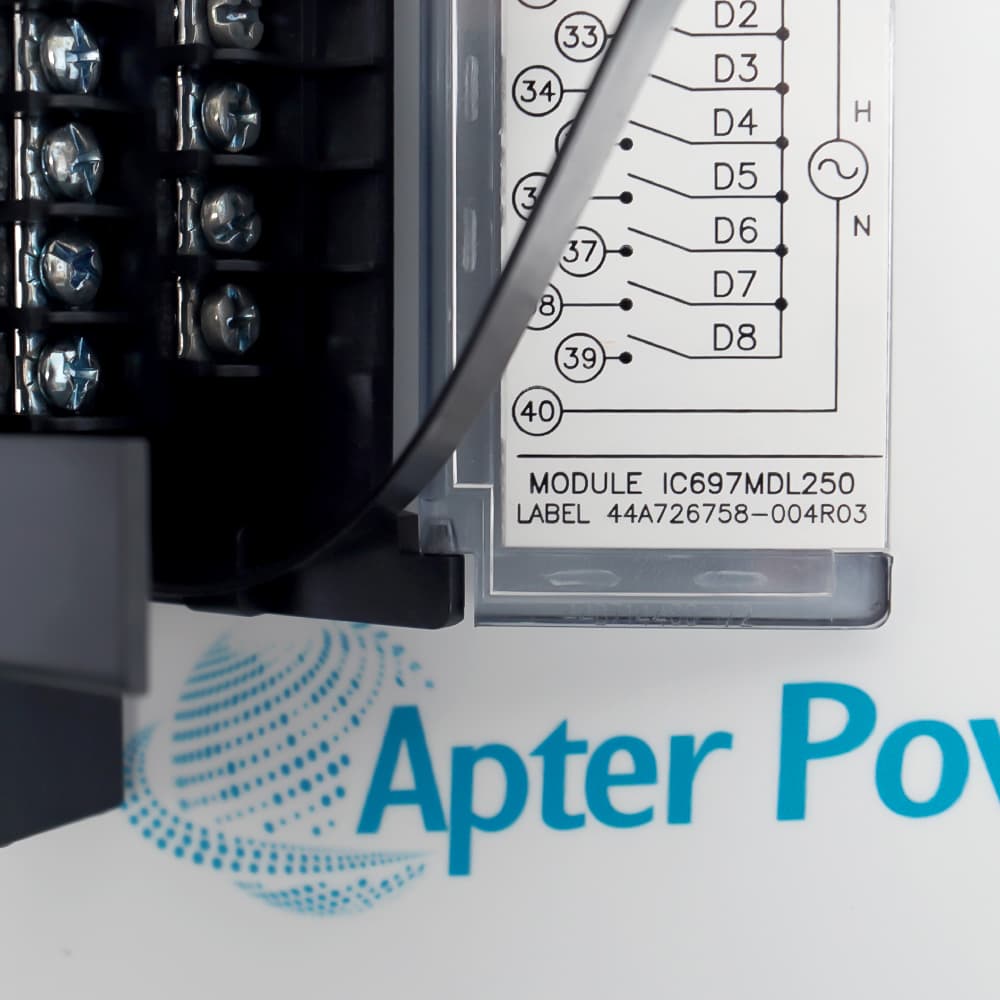

  • Terminal Pattern: Forty screw positions carry thirty-two signals plus four line and four neutral connections.
  • Cable Restraint: The removable terminal assembly includes a cleat for securing the field-wire bundle.
Description
Thirty-two field inputs enter a Series 90-70 controller through General Electric IC697MDL250. The module accepts 120 VAC switching signals and reports each point's logic-side state with a dedicated front indicator.

General Electric IC697MDL250 divides those inputs into four electrically isolated banks of eight. Each bank can reference a different AC-supply phase, allowing one rack position to collect signals from separately powered field sections.

A reactive resistor-capacitor input network gives General Electric IC697MDL250 IEC type 2 current-voltage behavior and compatibility with a broad range of two-wire and three-wire proximity switches. The 20 ms filter rejects short transitions before the PLC receives the point state.

General Electric IC697MDL250 separates field inputs from the backplane at 1500 V RMS and adjacent input groups at 500 V RMS. It draws 0.35 A from the 5 VDC backplane bus and uses software-assigned I/O references without onboard jumpers or DIP switches.
Revisions

Revision Part #

Also known as

IC697MDL250F
IC697MDL250-F, Series F, Rev F
IC697MDL250E
IC697MDL250-E, Series E, Rev E
IC697MDL250D
IC697MDL250-D, Series D, Rev D
IC697MDL250C
IC697MDL250-C, Series C, Rev C
IC697MDL250 Ser 0
IC697MDL250/0, Series 0, Rev 0
IC697MDL250H
IC697MDL250-H, Series H, Rev H
IC697MDL250K
IC697MDL250-K, Series K, Rev K
IC697MDL250O
IC697MDL250-O, Series O, Rev O
Alternative Names
General Electric IC697MDL250 GE IC697MDL250 IC697-MDL250 IC697 MDL250 GE Fanuc IC697MDL250 Series 90-70 120 VAC Input IC697MDL250 Input Module IC697MDL25O
Technical notes
General Electric IC697MDL250 accepts thirty-two 120 VAC inputs in four isolated groups, using IEC type 2 input behavior and a 20 ms filter for proximity-switch and contact signals.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does General Electric IC697MDL250 use four input groups?
The four isolated eight-point banks on General Electric IC697MDL250 allow separate AC-supply phases or field-power sections to share one module.
Are proximity switches compatible with General Electric IC697MDL250?
Yes. General Electric IC697MDL250 uses an IEC type 2 reactive input designed for many two-wire and three-wire proximity switches.
What signal delay should be expected from General Electric IC697MDL250?
General Electric IC697MDL250 applies a typical 20 ms input filter before a field transition reaches PLC logic.
How much isolation separates General Electric IC697MDL250 from the rack?
The field inputs of General Electric IC697MDL250 are isolated from the backplane at 1500 V RMS, with 500 V RMS between groups.
Which voltages count as ON for General Electric IC697MDL250?
An input on General Electric IC697MDL250 is within its stated ON range from 75 to 132 VAC at 47 to 63 Hz.
Does General Electric IC697MDL250 need hardware jumpers for I/O references?
No. General Electric IC697MDL250 receives its I/O reference assignment through programming-software configuration.
How are field states viewed on General Electric IC697MDL250?
Thirty-two front indicators on General Electric IC697MDL250 show the ON or OFF logic state of the corresponding input points.
