IC660BBA104

/ 4.9
1001 reviews | Need a Specific Revision?

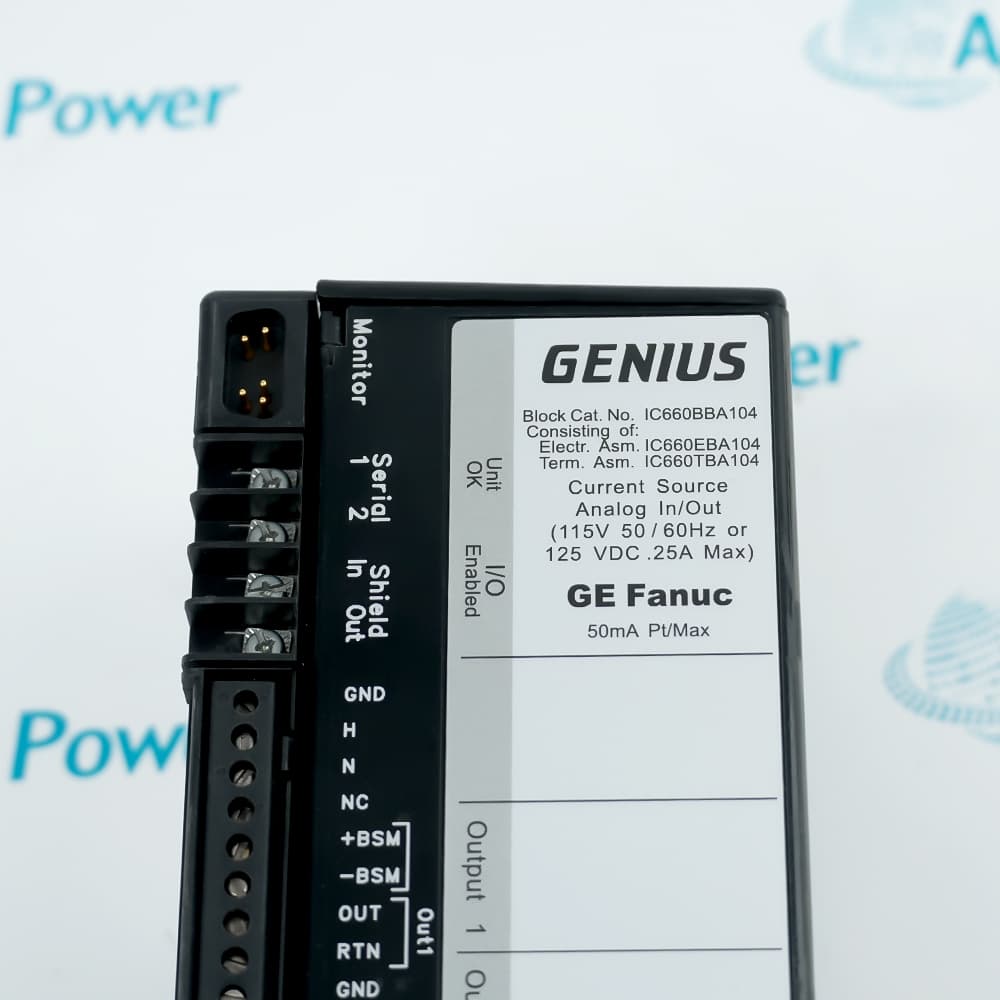

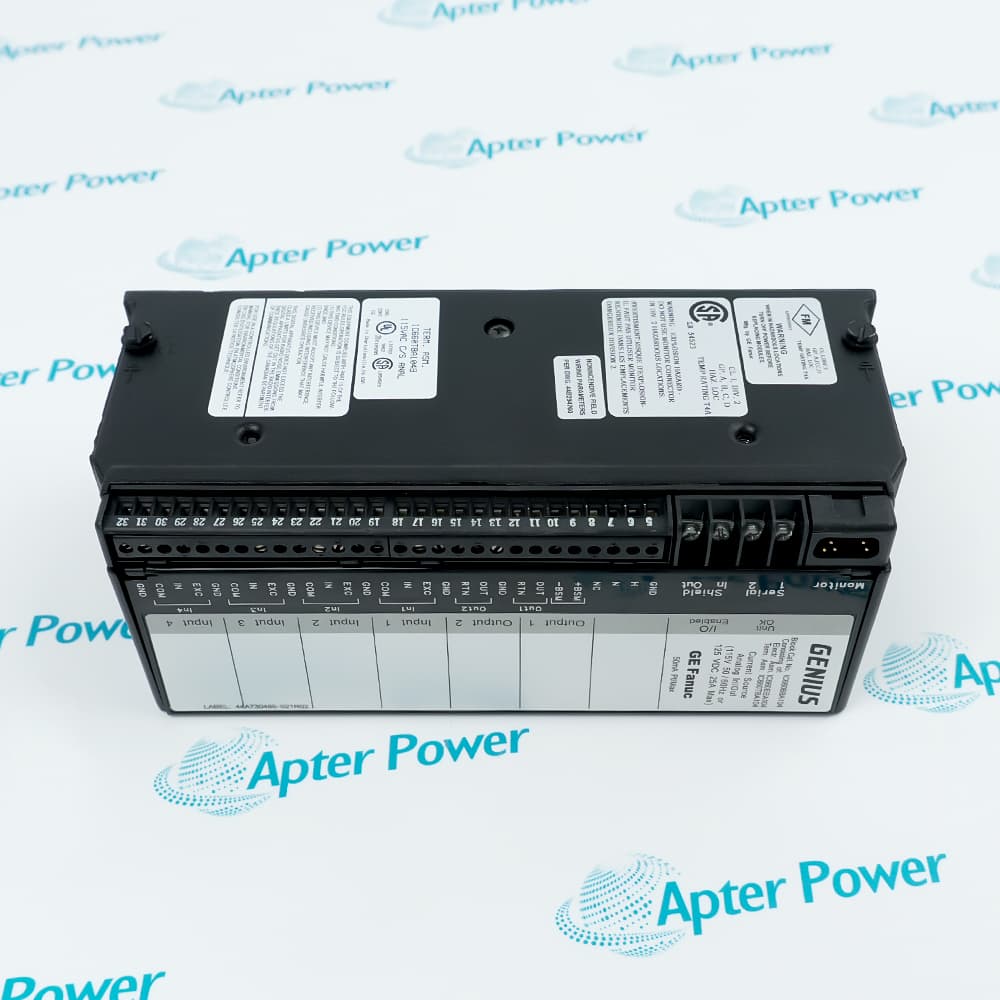

General Electric IC660BBA104 is a Genius I/O 115 VAC/125 VDC current-source analog block with four input circuits and two output circuits for 4–20 mA field signals.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IC660BBA104
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC660BBA104

  • Manufacturer:
    General Electric
  • Part Number:
    IC660BBA104
  • Product Family:
    GE Genius I/O
  • Product Type:
    Analog Current Source Module
  • Stock:
    1
  • Input signal:
    4-20 mA
  • Input signal Resolution:
    1 µA
  • Input conversion time:
    16.6ms to 400ms (user selectable)
  • Output resolution:
    6 µA
  • Block Power, nominal:
    115 VAC / 125 VDC
  • Block Power, input range:
    93-132 VAC / 105-145 VDC
  • Weight:
    3.97 lbs (1.8 kg)
  • Estimated shipping dimensions:
    22.44 x 9.04 x 11.23 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Diagnostics Environmental Ratings

Features:

  • Provides four 4-20 mA analog input circuits.
  • Provides two 4-20 mA analog output circuits.
  • Accepts 115 VAC or 125 VDC block power.
The current ordering configuration is IC660BBA104, the Genius current-source analog I/O block with four inputs and two outputs.

It interfaces a compatible controller with field devices that provide or accept 4-20 mA signals and reports circuit diagnostic conditions over the Genius bus.

Before installation, verify the IC660TBA104 terminal assembly, supply voltage, bus address, scaling, field-loop polarity, and host compatibility.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for General Electric IC660BBA104: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • ManufacturerGeneral Electric
  • ModelIC660BBA104
  • ConditionNew Original ready stock
  • Product FamilyGE Genius I/O
  • Connect four 4-20 mA transmitters through the isolated input circuits.
  • Control two compatible 4-20 mA field devices through the output circuits.
  • Use the block in a supported Genius distributed I/O architecture.
  • Input diagnostics report high alarm, low alarm, open wire, overrange, and underrange conditions.
  • Output diagnostics report overrange, underrange, and feedback errors.
  • Internal faults are reported to the connected Genius control system.
  • The documented operating temperature is 0 to +60 degrees C.
  • The documented storage temperature is -40 to +100 degrees C.
  • The documented humidity range is 5 to 95 percent non-condensing.
Description
General Electric IC660BBA104 is a Genius current-source analog I/O block with four isolated 4-20 mA inputs and two 4-20 mA outputs.

The block accepts 115 VAC or 125 VDC power and provides software configuration, circuit diagnostics, and dedicated Bus Switching Module control. Confirm the terminal assembly, power source, bus controller, and loop wiring before installation.
Revisions

Revision Part #

Also known as

IC660BBA104C
IC660BBA104-C, Series C, Rev C
IC660BBA104C-K
IC660BBA104-C-K, Series C-K, Rev C-K
IC660BBA104D-K
IC660BBA104-D-K, Series D-K, Rev D-K
IC660BBA104E
IC660BBA104-E, Series E, Rev E
IC660BBA104F
IC660BBA104-F, Series F, Rev F
IC660BBA104K
IC660BBA104-K, Series K, Rev K
IC660BBA104L
IC660BBA104-L, Series L, Rev L
IC660BBA104M
IC660BBA104-M, Series M, Rev M
IC660BBA104N
IC660BBA104-N, Series N, Rev N
IC660BBA104N1
IC660BBA104-N1, Series N1, Rev N1
IC660BBA104P
IC660BBA104-P, Series P, Rev P
IC660BBA104P1
IC660BBA104-P1, Series P1, Rev P1
IC660BBA104Q1
IC660BBA104-Q1, Series Q1, Rev Q1
Alternative Names
IC660BBA104 IC660 BBA104 IC660-BBA104 GE IC660BBA104 GE Fanuc IC660BBA104 GE Genius 115 VAC/125 VDC Analog I/O Block
Technical notes
IC660BBA104 combines four isolated current inputs and two current outputs in the 115 VAC/125 VDC Genius block configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How many analog circuits does IC660BBA104 provide?
It provides four input circuits and two output circuits.
What field signal range is used by IC660BBA104?
The analog circuits are designed for 4–20 mA current signals.
What block power is required?
The documented block accepts 115 VAC or 125 VDC power.
Can IC660BBA104 communicate through a Genius gateway?
Yes. It is supported in documented Genius bus architectures, including use with a compatible Genius Communications Gateway.
What should be verified before replacing the block?
Confirm supply voltage, bus address, circuit configuration, grounding, and the connected current loops.
Where should the wiring details be checked?
Use the matching Genius analog block and host-controller documentation for terminal assignments and configuration.
