IC670PBI001

/ 4.9
1001 reviews | Need a Specific Revision?

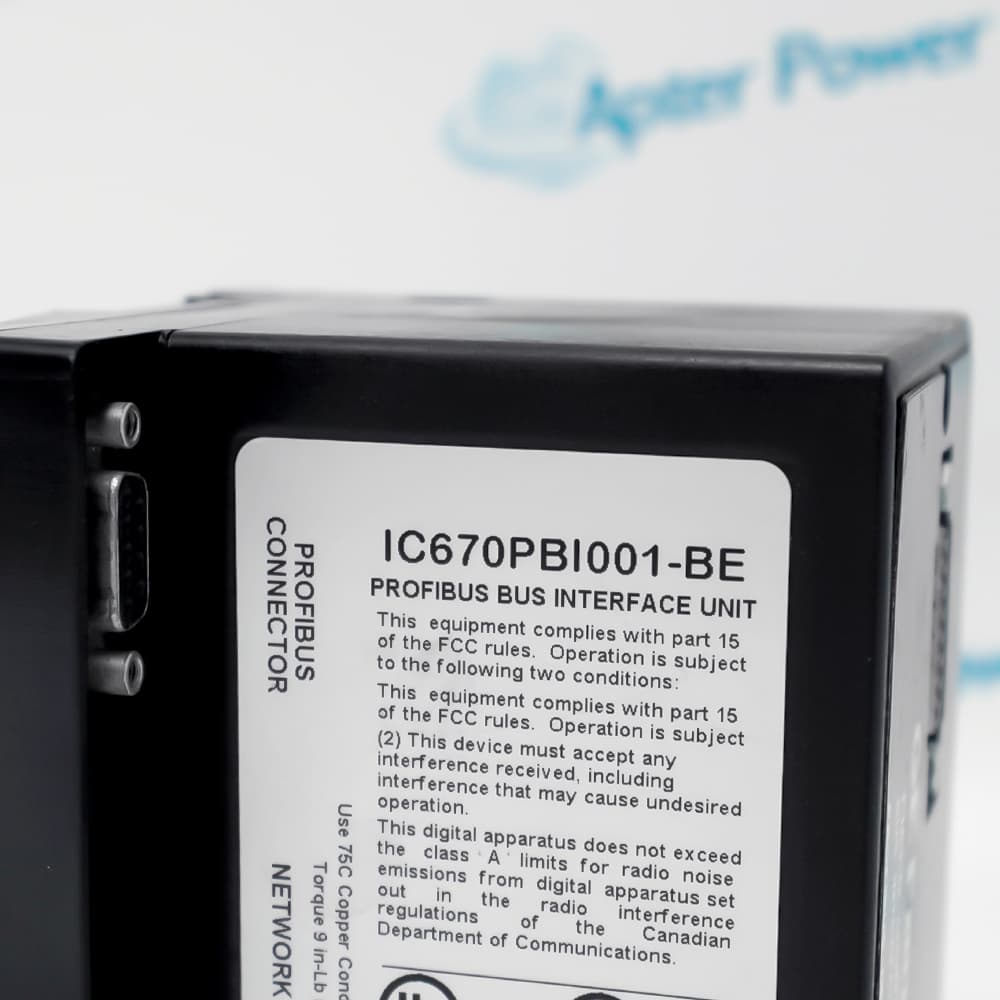

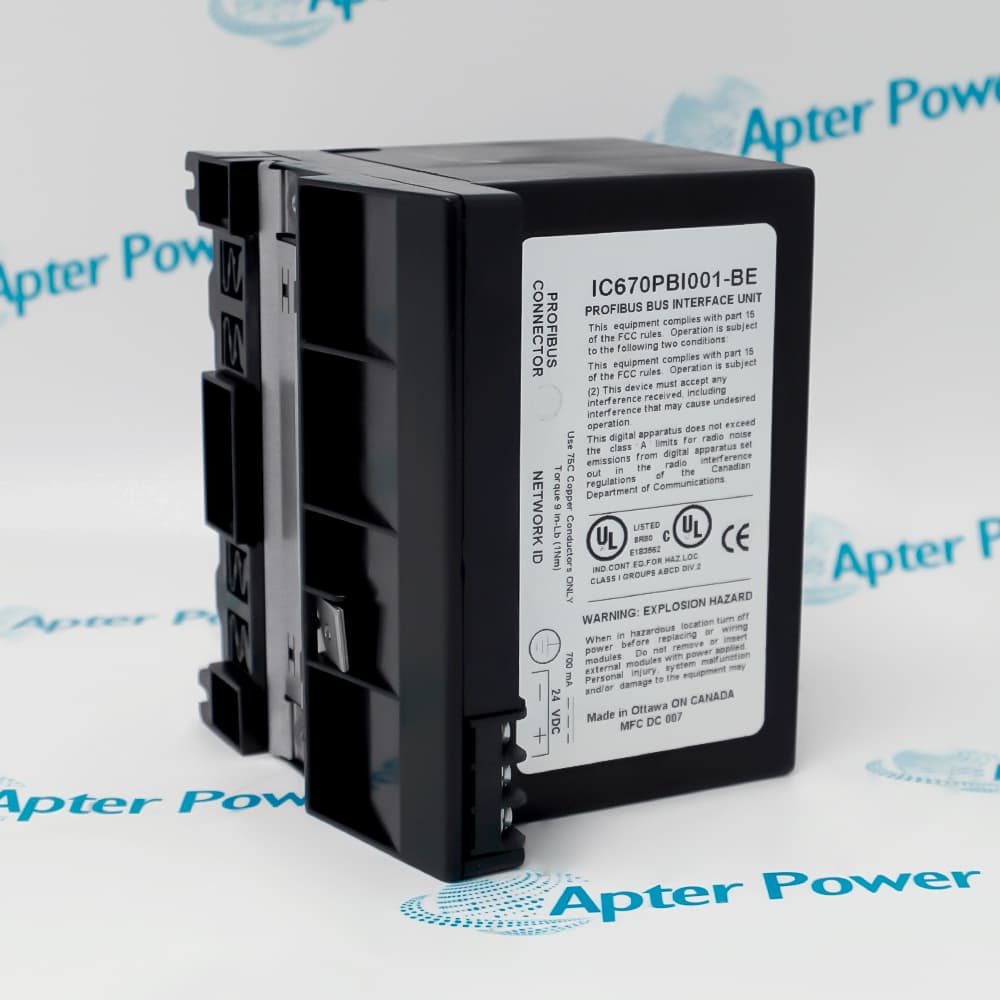

General Electric IC670PBI001 is a PROFIBUS-DP Bus Interface Unit that connects a Field Control I/O station to a PROFIBUS master.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IC670PBI001
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC670PBI001

  • Manufacturer:
    General Electric
  • Part Number:
    IC670PBI001
  • Product Family:
    GE Genius I/O
  • Product Type:
    PROFIBUS-DP Bus Interface Unit
  • Stock:
    1
  • Network:
    PROFIBUS-DP
  • Maximum I/O Modules:
    Up to 8 per station
  • External Supply:
    24 VDC nominal; 18 to 30 VDC
  • Logic Output:
    6.5 VDC for station modules
  • Configuration Resource:
    GEF_0534.GSD
  • Local Interface:
    Compatible hand-held programmer connection
  • Hold-up Time:
    10 ms
  • Terminal Assembly:
    Separate Bus Interface Unit terminal block
  • Tariff Code:
    8517623990
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications PROFIBUS-DP Station Power Installation

Features:

  • Connects one Field Control I/O station to a PROFIBUS-DP master.
  • Accommodates as many as eight I/O modules in the station.
  • Uses the GEF_0534.GSD resource for PROFIBUS master configuration.
The IC670PBI001 station definition begins with the interface status-and-control entry in slot 0. Configured I/O modules then follow their installed physical order, and empty positions between them are not permitted.

A nominal 24 VDC source supplies the interface across its specified 18 to 30 VDC range. Its internal 6.5 VDC output powers the attached module logic, so the combined station load must remain within the available current budget.

The DG product update corrected earlier operation and required replacement of previous units, while the EG release preserved the same function and added the documented ATEX approval. The complete catalog suffix therefore matters when maintaining an installed station.

Quotation and legacy-documentation assistance remains available through Apter Power for the General Electric IC670PBI001 PROFIBUS-DP Bus Interface Unit.
General Electric IC670PBI001 PROFIBUS-DP Bus Interface Unit Manuals, Datasheets, Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IC670PBI001 PROFIBUS-DP Bus Interface Unit Specs

General

  • ManufacturerGeneral Electric
  • ModelIC670PBI001
  • ConditionNew Original ready stock
  • Product FamilyGE Genius I/O
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Network media and distance limits

  • Topology: Use a linear PROFIBUS bus terminated at both ends; short stubs are permitted within the documented limits.
  • Type A cable: Select shielded twisted pair rated at 135 to 165 ohms with less than 30 pF per meter capacitance.
  • Transfer rates: The supported PROFIBUS-DP range extends from 9.6 kbit/s to 12 Mbit/s.
  • Bus length: Maximum electrical distance decreases from 1,200 m at lower rates to 100 m at 12 Mbit/s.

Electrical and reliability data

  • Inrush demand: Allow for a 15 to 50 A peak lasting no more than 3 ms under the documented installation conditions.
  • Hold-up time: The interface supports a maximum 10 ms interruption from nominal input voltage.
  • Interface reliability: Calculated mean time between failures exceeds 183,000 operating hours.
  • Terminal block load: The BIU terminal block requires no more than 16 mA and has a calculated MTBF above 600,000 hours.

Local connections and setup resources

  • Bus connector: Connect the PROFIBUS cable to the front 9-pin interface using the published signal assignments.
  • Address setting: Set the PROFIBUS address with the interface DIP switches or through the supported BIU configuration procedure.
  • Hand-held access: The portable programmer can monitor data, force and unforce I/O, and display station diagnostics.
  • Power wiring: Terminate the external supply on the BIU terminal block and keep field wiring on the removable base assembly.
Description
The removable electronics of IC670PBI001 attach to a dedicated Bus Interface Unit terminal base. The base preserves field wiring when the interface electronics are removed, supporting service work without disturbing station conductors.

Status indicators on IC670PBI001 report interface, network, and module conditions, while the local hand-held programmer connection provides access to station information. These local resources help separate communication faults from I/O or supply problems during commissioning.

IC670PBI001 exchanges cyclic status, control, and I/O data between a PROFIBUS-DP master and the installed Field Control modules. Station diagnostic information can be returned through the same network interface for controller-level fault handling.
Revisions

Revision Part #

Also known as

IC670PBI001 Ser EG
IC670PBI001-EG, Series EG, Rev EG
IC670PBI001 Ser DG
IC670PBI001-DG, Series DG, Rev DG
Alternative Names
IC 670 PBI 001 IC-670-PBI-001 GE IC670PBI001 GE Fanuc IC670PBI001 General Electric IC670PBI001 IC670 PBI001 IC670PBI 001 IC670PBI001 PROFIBUS-DP Bus Interface Unit
Technical notes
IC670PBI001 defaults to Motorola byte order; Intel-format masters require the documented data-format parameter so multi-byte values are interpreted correctly.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why might a PROFIBUS master reject the IC670PBI001 station configuration?
A PROFIBUS master can reject IC670PBI001 when the applicable GSD data, physical module order, or configured slot data does not match the installed station.
How many I/O modules can be arranged with IC670PBI001?
IC670PBI001 supports a Field Control station containing up to eight I/O modules, subject to the available logic-power budget.
Which supply should be checked for IC670PBI001?
IC670PBI001 uses a nominal 24 VDC external source and is specified for an 18 to 30 VDC input range.
Why does the GSD revision matter for IC670PBI001?
The PROFIBUS master configuration for IC670PBI001 must use the applicable GEF_0534.GSD data so slot order and module data are interpreted correctly.
Can an IC670PBI001 configuration contain an empty module slot?
No. The IC670PBI001 product update states that configured modules must follow physical slot order without empty slots between them.
What should be verified after replacing IC670PBI001?
After replacing IC670PBI001, verify the PROFIBUS address, GSD configuration, module order, station power load, LEDs, and I/O data exchange.
Why can IC670PBI001 restart during a brief supply disturbance?
IC670PBI001 has a 10 ms hold-up time; a longer or deeper 24 VDC interruption can reset the interface and interrupt PROFIBUS data exchange.
