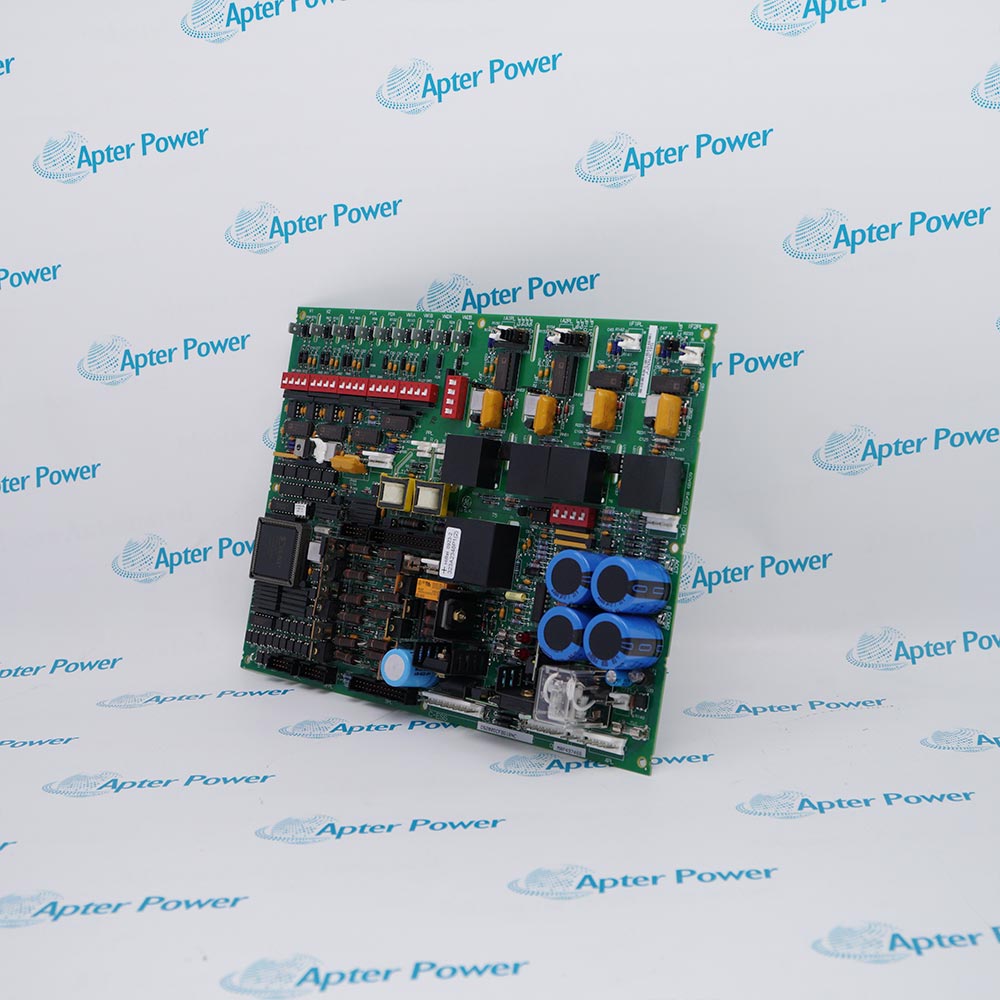

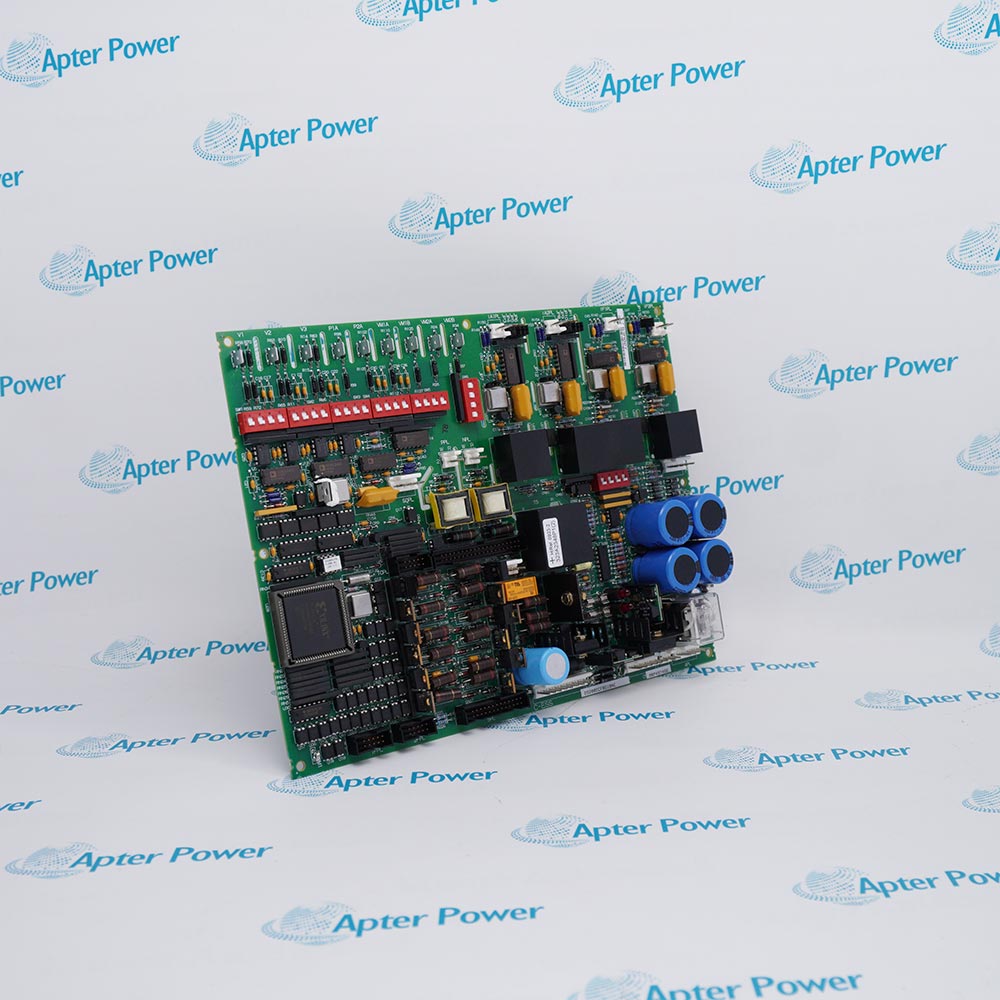

General Electric DS200DCFBG1BNC is a multi-functional power supply board for drives, delivering regulated DC power, field control, and signal monitoring with robust protection.
Get a quick price for DS200DCFBG1BNC
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DS200DCFBG1BNC

  • Manufacturer:
    General Electric
  • Part Number:
    DS200DCFBG1BNC
  • Product Family:
    GE Mark V/VI Driver Board
  • AC Input:
    38 – 115 VAC
  • Fan Output:
    +24 Vdc switched
  • Isolation:
    2.5 kVac input-to-output
  • Operating Temperature:
    –40 °C … +70 °C
  • Storage Temperature:
    –40 °C … +80 °C
  • Humidity:
    95 % RH non-condensing
  • Interface:
    PSEN signal indicates +5 V regulation and can reset SDCC/LDCC
  • Weight:
    0.8 kg
  • Estimated shipping dimensions:
    27.8x21.2x4cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.
Description
The DS200DCFBG1BNC Power Supply Board is a key component of GE’s Innovation Series drive control systems, delivering reliable control-level power to the drive and 115 V AC power to enclosure fans. It supports motor field circuits (excluding the SCR module) and drives SCR gate pulse generators for precise excitation control.

The board accepts a wide AC input range (38–115 VAC) and 24 VDC input from the CPT, with 2.5 kVac input-to-output isolation to safeguard against electrical interference and ensure operator safety. It features multiple regulated DC power supplies: ±24 VDC (3 A for +24 VDC, 1 A for –24 VDC) derived from full-wave rectified and filtered input, ±15 VDC (0.8 A each, 0.25 A available for external loading) regulated from ±24 VDC, and a +5 VDC 4 A output. These voltages power the drive’s control circuits, armature current feedback systems, and external components, with isolated +5 VDC and ±15 VDC supplies dedicated to feedback circuits for signal integrity. Additionally, the board provides +24 VDC switched power for enclosure fans and 115 VAC (NA) output, supporting auxiliary system operations.

Beyond power conversion, the DS200DCFBG1BNC integrates motor field power circuits (excluding the SCR module) and driver circuits for motor field SCR gate pulse generators, enabling precise control of motor field operations. It also monitors a range of critical signals, including armature currents/voltages (NA), motor field currents (NA), AC line current, and AC line voltage magnitude/phase sequence—providing real-time data to the drive control system for fault detection and performance optimization. A key interface feature is the /PSEN signal, which goes TTL low when the +5 VDC supply is in regulation and high if it drifts out of regulation, triggering a microprocessor reset on the Drive Control Card (SDCC/LDCC) to prevent system damage.
Revisions

Revision Part #

Also known as

DS200DCFBG1BNC
DS200DCFBG1BNC, Series -NC, Rev -NC
Alternative Names
DS2OODCFBG1BNC DS200DCFBGIBNC DS200DCF8BG18NC DS200LDCCH1AKA
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What input power does the board accept?
38 V AC – 115 V AC and 24 V DC from the control power transformer (CPT).
What DC output voltages does the DCFB board provide?
+24 V DC (3 A), –24 V DC (1 A), ±15 V DC (0.8 A each, 0.25 A external), and +5 V DC (4 A).
How is the board protected against overcurrent or faults?
Fuses FU2/FU3 protect ±15 V/+5 V outputs with LED indicators; FU1 protects 115 V AC output with neon indicator.
What signals are monitored by the DS200DCFBG1BN
Armature currents and voltages, motor field currents, AC line current, AC voltage magnitude and phase sequence.
What are the operating and storage temperature ranges?
Operating: –40 °C to +70 °C; Storage: –40 °C to +80 °C.
