DS200LDCCH1ALA

/ 4.9
1001 reviews | Need a Specific Revision?

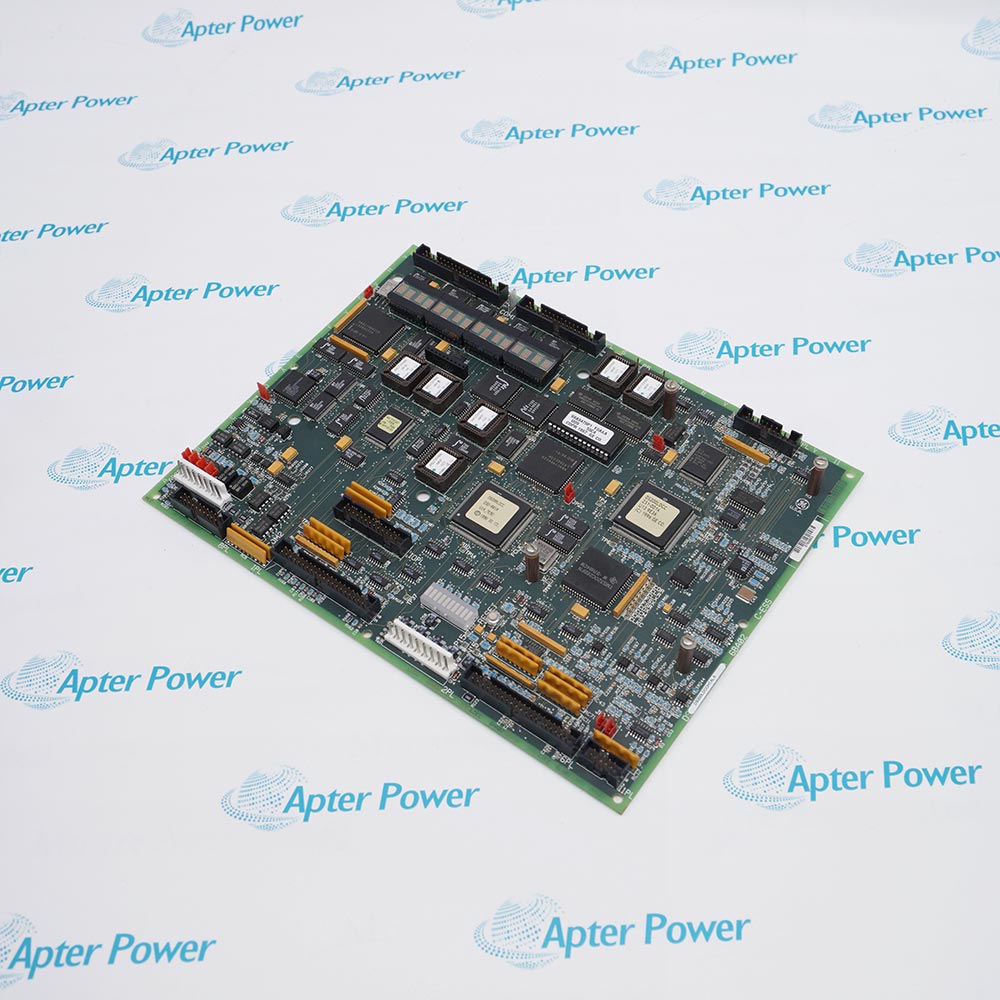

The GE DS200LDCCH1ALA is a LAN communication module for Mark V drives, enabling motor and drive control, LAN connectivity, and efficient peripheral I/O management in industrial automation.
Get a quick price for DS200LDCCH1ALA
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DS200LDCCH1ALA

  • Manufacturer:
    General Electric
  • Part Number:
    DS200LDCCH1ALA
  • Product Family:
    GE Mark V/VI Driver Board
  • Product Numbers:
    DS200LDCCH1ALA
  • Product Type:
    Drive Control LAN Communications Board
  • Series:
    Mark V
  • Function:
    LAN CARD
  • Input Voltage:
    12V DC
  • Card Interface:
    PCI Express
  • Power Consumption:
    5 Wa
  • Operating Temperature Range:
    -20 to 70°C
  • Network Support:
    IEEE 802.3
  • Reliability Rating:
    Class A
  • Communication Protocol:
    Ethernet
  • Weight:
    0.4 kg
  • Estimated shipping dimensions:
    27.8x21.3x3cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.
Description
The GE DS200LDCCH1ALA Drive Control LAN Communications Board is an industrial-grade LAN communication module designed specifically for General Electric Speedtronic Mark V series drives and excitation boards. Belonging to the DIRECTO-MATIC 2000 series drives, this board provides an operating interface, LAN connectivity, drive and motor processing, and drive reset functionality. The board integrates four microprocessors to support various interfaces and control methods, including LAN bus control, peripheral I/O management, and complex mathematical operations.

The board includes a Local Area Network Control Processor (LCP) and a Drive Control Processor (DCP). The LCP supports a five-bus system, and the DCP manages integrated peripheral I/O, such as timers and decoders. It also integrates a Motor Control Processor (MCP) and an Auxiliary Motor Processor (CMP). The MCP handles motor control circuitry and I/O communication, while the CMP provides additional processing power for complex calculations, ensuring stable system operation.

This module operates at 12V DC, consumes as little as 5W, connects to the host system via a PCI Express interface, supports the IEEE 802.3 Ethernet protocol, operates stably in industrial environments ranging from -20°C to 70°C, and has a Class A reliability rating. It is suitable for power plants, factories, and various industrial automation drive control systems, providing efficient and secure data transmission and control functions.
Revisions

Revision Part #

Also known as

DS200LDCCH1AHA
DS200LDCCH1A-HA, Series -HA, Rev -HA
DS200LDCCH1AKA
DS200LDCCH1A-KA, Series -KA, Rev -KA
DS200LDCCH1AMA
DS200LDCCH1A-MA, Series -MA, Rev -MA
Alternative Names
DS2OOLDCCH1ALA DS200LDCCHIALA DS2OOLDCCHIALA
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does the DS200LDCCH1ALA come with a warranty?
Yes, the DS200LDCCH1ALA includes a free 1-year Apter Power warranty.
Is DS200LDCCH1ALA 100% brand new?
Yes. New and original.
Which drive systems is this board compatible with?
Compatible with GE Speedtronic Mark V series drives and excitation boards.
What are the board's operating voltage and power consumption?
Input voltage is 12V DC, power consumption is only 5 watts.
What is the board's operating temperature range?
It can operate stably in industrial environments ranging from -20°C to 70°C.
