IS200TRPGH1B

/ 4.9
1001 reviews | Need a Specific Revision?

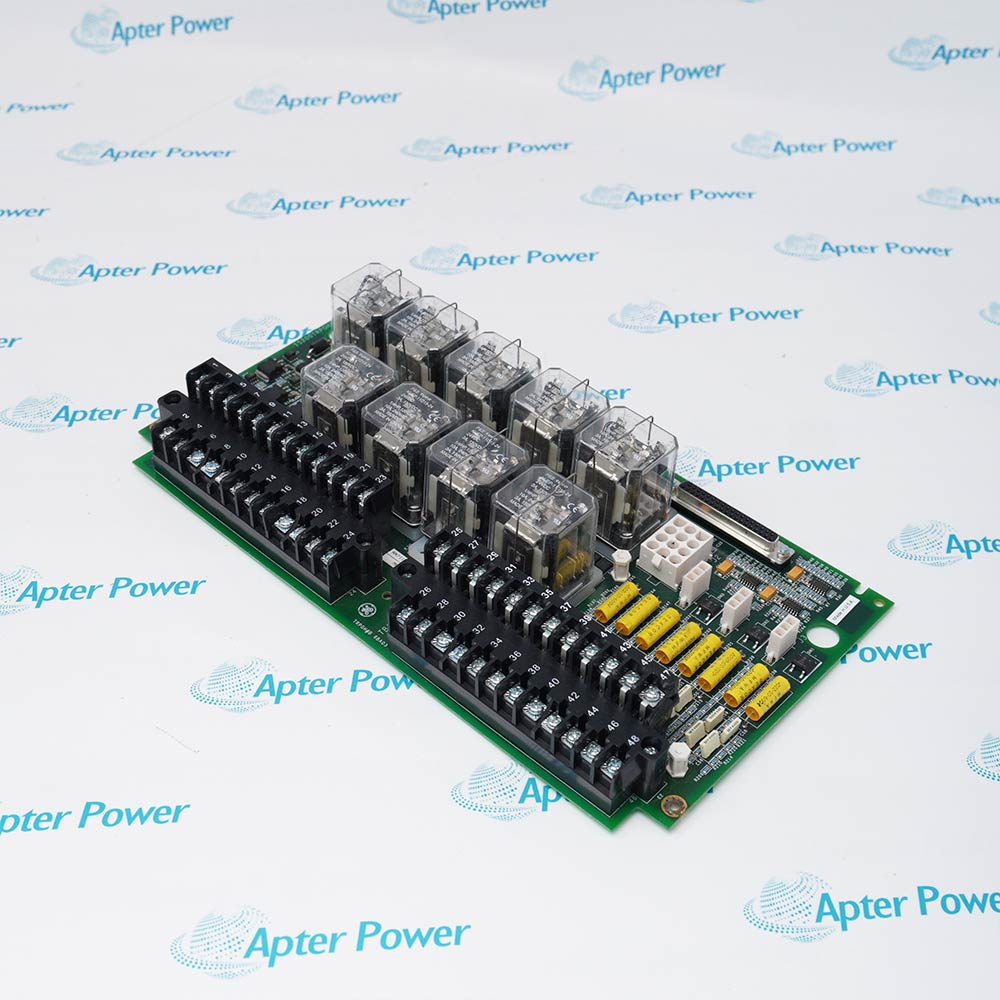

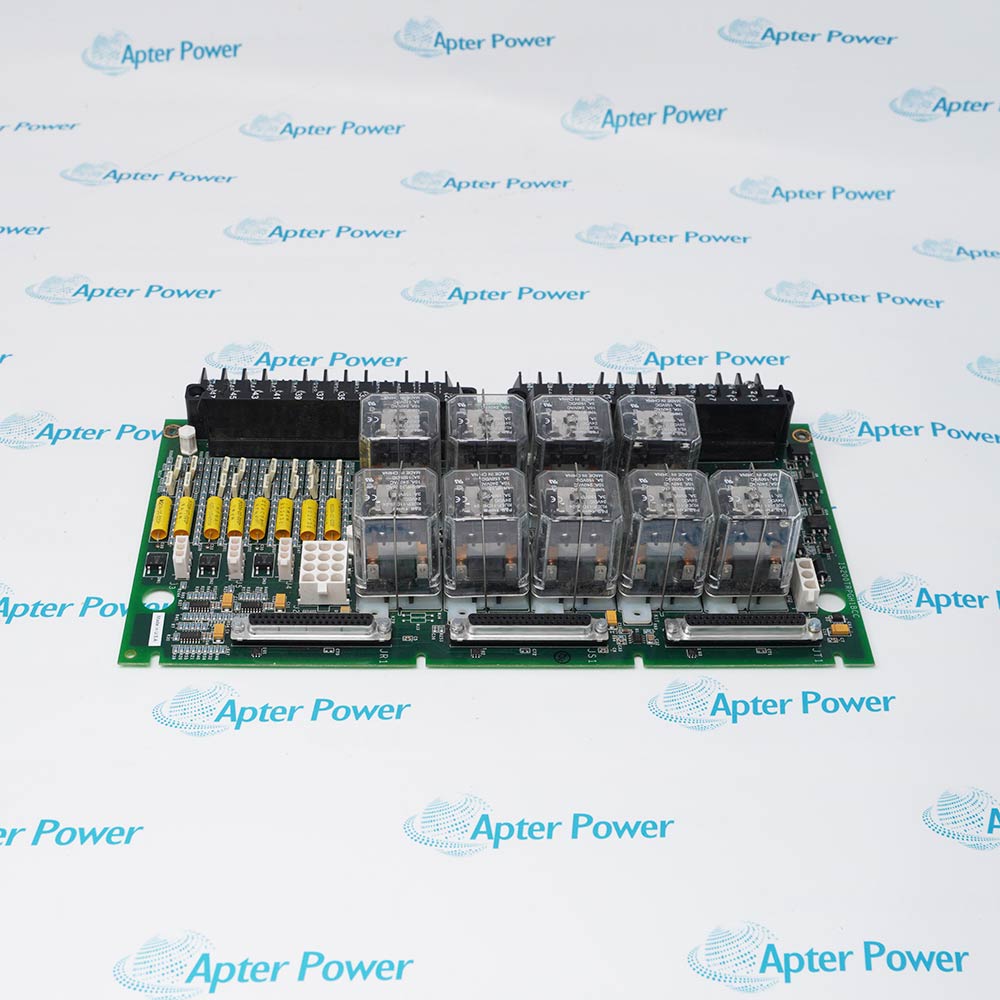

The IS200TRPGH1B by GE is a Mark VI gas turbine trip board with three voting circuits, nine relays for ETDs, supporting TMR/simplex setups, interfacing with TREG and flame detectors via VTUR (Mark VI) or PTUR/TTURH1C (Mark VIe).
Get a quick price for IS200TRPGH1B
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS200TRPGH1B

  • Manufacturer:
    General Electric
  • Part Number:
    IS200TRPGH1B
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Series:
    Mark VI
  • Product Type:
    Terminal Board
  • Trip Solenoids:
    3
  • Solenoid Rated Voltage/Current:
    125 V dc
  • Solenoid Response Time:
    L/R time constant is 0.1 sec
  • Current Suppression:
    Metal oxide varistor
  • Control Relay Coil Voltage Supply:
    28 V
  • Flame Detector Supply Voltage/Current:
    335 V dc
  • Flame Detectors:
    8
  • Weight:
    1.42 kg
  • Estimated shipping dimensions:
    33x17.8x5.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.
Description
The IS200TRPGH1B is a Primary Trip Terminal Board designed and manufactured by General Electric, belonging to the Mark VI series, for gas turbine control systems. This board is regulated by an I/O controller that manages the operation of the TRPG terminal board. The IS200TRPGH1B's three voting circuits contain nine magnetic relays, which can be connected to three trigger solenoid valves or Electrically Triggered Devices (ETDs) for emergency and master control functions. The TRPG works in conjunction with the TREG to form a complete interface to the ETD, and the IS200TRPGH1B can also accept input from eight Geiger-Mueller flame detectors. The IS200TRPGH1B is available in two versions: H1A and H1B, with three voting relays built into each trigger solenoid valve for TMR applications; and H2A and H2B, with one relay per trigger solenoid valve for simplex applications.

In the Mark VI system, the IS200TRPGH1B interfaces with the TRPG terminal board via a VTUR board. The TRPG connects to the VME rack, which houses the VTUR board, and the connection is made via a cable with a molded plug. The IS200TRPGH1B supports both simplex and TMR system configurations in the Mark VI system, ensuring flexible application to different control requirements.

In the Mark VIe system, the IS200TRPGH1B interface is implemented via a PTUR mount on the TTURH1C controlling the TRPG. The D-type connector on the TTURH1C is used to connect the TRPG and accepts I/O packets as input. The IS200TRPGH1B also supports simplex and TMR systems in the Mark VIe system, ensuring compatibility and reliability in different system environments.
Revisions

Revision Part #

Also known as

IS200TRPGH1BCC
IS200TRPGH1BCC, Series -CC, Rev -CC
IS200TRPGH1BDE
IS200TRPGH1BDE, Series -DE, Rev -DE
IS200TRPGH1BDD
IS200TRPGH1BDD, Series -DD, Rev -DD
Alternative Names
IS200 TRPGH1B IS200STCIH6ADD IS200STCIH1ADD IS200STAIH2ADC IS200STAIH2ABA
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the IS200TRPGH1B?
The IS200TRPGH1B is a Primary Trip Terminal Board designed and manufactured by General Electric. It belongs to the Mark VI series and is used in gas turbine control systems.
How is the IS200TRPGH1B controlled?
The board is regulated by an I/O controller, which manages the operation of the TRPG terminal board.
What are the key features of its trip circuits?
The IS200TRPGH1B has three voting circuits containing nine magnetic relays. These relays can connect to three trip solenoids or Electrical Trip Devices (ETDs) to provide both emergency and primary control functions.
How does the IS200TRPGH1B interface with other components?
It works in conjunction with the TREG board to form a complete interface to the ETDs. It can also receive inputs from up to eight Geiger-Mueller flame detectors.
