IS200VAICH1DAB

/ 4.9
1001 reviews | Need a Specific Revision?

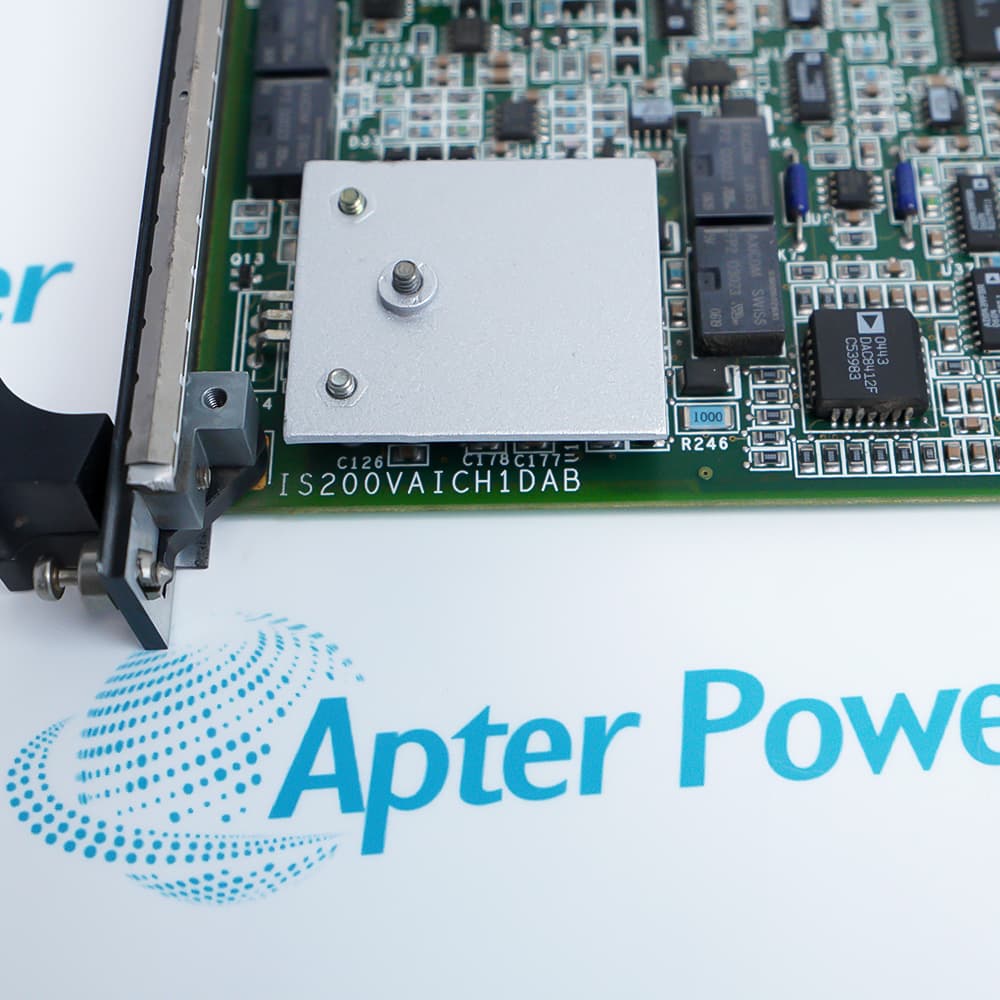

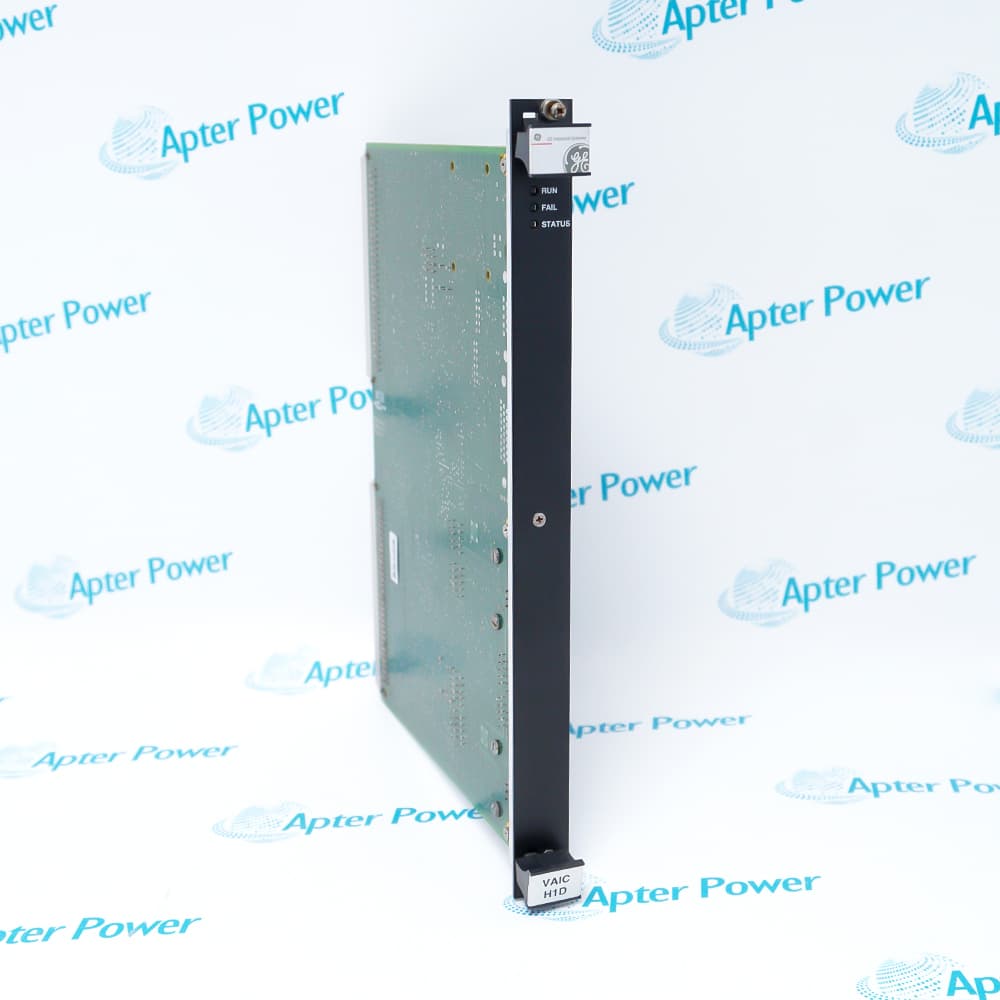

General Electric IS200VAICH1DAB is a VAIC VME analog I/O board for the Mark VI turbine control system. It processes field analog inputs and outputs through compatible terminal boards.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS200VAICH1DAB
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS200VAICH1DAB

  • Manufacturer:
    General Electric
  • Part Number:
    IS200VAICH1DAB
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Product Type:
    VME Analog Input/Output Board
  • Stock:
    1
  • Analog Input Circuits:
    20
  • Analog Output Circuits:
    4
  • Supported Input Types:
    4-20 mA, 1 mA, 5 V DC, or 10 V DC
  • Input Impedance at 4-20 mA:
    250 ohm
  • Input Impedance at 1 mA:
    5 kohm
  • Voltage Input Impedance:
    500 kohm
  • A/D Converter:
    16-bit
  • A/D Resolution:
    14-bit resolution
  • Normal Scan Rate:
    10 ms at 100 Hz
  • Fast-Scan Channels:
    Inputs 1-4 available at 200 Hz
  • Measurement Accuracy:
    Better than 0.1% full scale
  • J3 Input Filter:
    Single-pole, 500 rad/s cutoff
  • J4 Input Filter:
    Two-pole, 72 and 500 rad/s cutoffs
  • Software Filter Choices:
    0, 0.75, 1.5, 3, 6, or 12 Hz
  • AC Common-Mode Rejection:
    60 dB at 60 Hz, up to 5 V common mode
  • DC Common-Mode Rejection:
    80 dB, -5 to +7 V peak common mode
  • D/A Converter:
    12-bit D/A
  • Analog Output Accuracy:
    0.5%
  • Analog Output Modes:
    Two outputs 4-20 mA; two selectable 4-20 mA or 0-200 mA
  • Revision-D Output Load:
    800 ohm current-output load with TBAIH1C or STAI terminal board
  • Weight:
    0.7937 lbs (0.36 kg)
  • Estimated shipping dimensions:
    2 x 18.8 x 26.1 cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Diagnostics Compatibility & Interoperability Applications

Features:

  • Processes field analog signals through a VAIC VME board.
  • Uses associated terminal-board jumpers to select supported input modes.
  • Transfers converted input data through the Mark VI VME backplane.
The current configuration is a revision-D VAIC board for the GE Mark VI control platform. The board operates with compatible analog terminal boards that connect field circuits to the VME rack.

The VAIC conditions and converts analog input values for controller use and drives configured analog outputs through the terminal-board path. The documented architecture supports turbine-control measurements and command signals.

Before replacing the board, match its complete code and revision to the terminal-board model, wiring, output-load requirement, and simplex or TMR design. Confirm jumper settings and application configuration before re-energizing field circuits.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for General Electric IS200VAICH1DAB:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS200VAICH1DAB VAIC VME Analog I/O Board Specs

General

  • ManufacturerGeneral Electric
  • ModelIS200VAICH1DAB
  • ConditionNew & Unused
  • Product FamilyGE Mark VI Speedtronic Turbine Control System

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Input limit checks identify analog values outside configured engineering limits.
  • Output diagnostics monitor output current and the associated suicide-relay status.
  • The system compares TMR input signals with voted values and checks configured difference limits.
  • The board communicates with Mark VI controller hardware through the VME backplane.
  • Confirm the connected analog terminal-board model and matching cabling before substituting a VAIC board.
  • Revision-D 4-20 mA output-load requirements differ from earlier board revisions and require the documented compatible terminal board.
  • Collects analog measurements used by gas- and steam-turbine control applications.
  • Supports controller monitoring of process values such as pressure and flow when assigned by the application.
  • Provides configured analog output signals for connected turbine-control circuits.
Description
GE IS200VAICH1DAB is a VME analog input/output board for the Mark VI turbine-control platform. It provides twenty analog input circuits and four analog output circuits through the associated terminal interface used by the installed control cabinet.

The board digitizes current or voltage measurements for the controller and generates commanded current outputs for field devices. Normal and fast scan paths, selectable software filtering, and diagnostic processing support control applications that require stable acquisition together with timely channel updates.

The DAB revision must be checked with the terminal board, output-load requirement, connector allocation, and Mark VI software configuration. Replacement planning should preserve calibration data and field-loop polarity, then validate every input and output through the controller diagnostics before service is restored.
Revisions

Revision Part #

Also known as

IS200VAICH1DA
IS200VAICH1D-A, Series A, Rev A
IS200VAICH1DAA
IS200VAICH1D-AA, Series AA, Rev AA
IS200VAICH1DBC
IS200VAICH1D-BC, Series BC, Rev BC
Alternative Names
IS200VAICH1DAB GE IS200VAICH1DAB IS200-VAICH1DAB IS200 VAICH1DAB GE VAIC IS200VAICH1DAB IS200VAICH1DAB VAIC board IS200 VAIC H1DAB General Electric IS200VAICH1DAB
Technical notes
IS200VAICH1DAB revision-D outputs must be checked against the installed TBAIH1C or STAI terminal interface and field load; isolate loop power before board exchange.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How are the analog input modes selected on GE IS200VAICH1DAB?
GE documentation places current/voltage input selection at the associated terminal-board jumpers. Confirm each channel configuration from the site wiring record before reconnecting signals.
Can GE IS200VAICH1DAB be used in a simplex or TMR architecture?
Yes. The VAIC is documented for simplex and TMR system arrangements; confirm the number of terminal boards, rack assignment, and application configuration for the existing system.
Which terminal board should be checked with GE IS200VAICH1DAB revision D current outputs?
The GE hardware notes associate revision-D 4-20 mA current outputs with a TBAIH1C or STAI terminal board for the stated 800-ohm load condition. Verify the complete terminal-board label and load.
Does GE IS200VAICH1DAB provide a direct Ethernet connection?
No. The VAIC board exchanges data through the VME backplane and controller architecture; the product documentation does not identify onboard Ethernet as its interface.
Can an earlier VAIC revision replace GE IS200VAICH1DAB without checking the terminal board?
Do not assume interchangeability. Compare board revision, output-load requirements, terminal-board code, jumpers, and redundancy arrangement before selecting a replacement.
Where can I request the GE IS200VAICH1DAB system guide and a quotation?
Apter Power can help locate Mark VI documentation and prepare a quote. Send the exact IS200VAICH1DAB code, terminal-board code, and quantity.
