IS200BICLH1AED

/ 4.9
1001 reviews | Need a Specific Revision?
The GE IS200BICLH1AED is a IGBT driver/source bridge interface board that serves as a critical communication and control bridge between IGBT drivers and high-power modules.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS200BICLH1AED
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS200BICLH1AED

  • Manufacturer:
    General Electric
  • Part Number:
    IS200BICLH1AED
  • Product Family:
    GE Mark VI Gas Turbine Control
  • Product Type:
    Bridge Interface Board
  • Stock:
    1
  • Power requirements::
    +5V DC, 6A
  • Technology:
    Surface mount
  • Operating temperature:
    -40℃ to +70℃
  • Connectors:
    Two P1 and P2 pin connectors (right edge of board)
  • Memory:
    1024-bit serial memory (stores revision and identification information)
  • Control Interface:
    PWM speed control interface
  • Mounting:
    VME type rack, Slot 5 only
  • Weight:
    0.8 kg
  • Estimated shipping dimensions:
    18 cm × 12 cm × 3 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Temperature & Humidity Range Performance & Efficiency

Features:

  • Connection Between the Innovation Series Drive Main Control Board and Bridge Personality Interface Board
  • Integrates Capability of Fault String Monitoring with RTD Temperature Sensing and PWM Fan Speed Control
  • Works in Coordination with the EX2100 Excitation Control System and Mark VI Series
The General Electric IS200BICLH1AED Bridge Interface Board continuously monitors bridge and ambient temperatures via four RTD sensor inputs (single and dual mode) and manages fan speed through an isolated open collector PWM output. The longer the pulse-width-modulated output is increased, the higher the fan's actual speed will be.

The General Electric IS200BICLH1AED Bridge Interface Board provides essential interfacing functions common to the entire drive assembly, and is a critical component of the control path, directly affecting the proper, normal operation of the overall excitation system. One IS200BICLH1AED board is required per drive assembly. The IS200BICLH1AED occupies a single slot in the VME type rack and is always located in Slot 5 (the dedicated bridge interface slot), as indicated by the faceplate label "Install in Slot 5 Only."

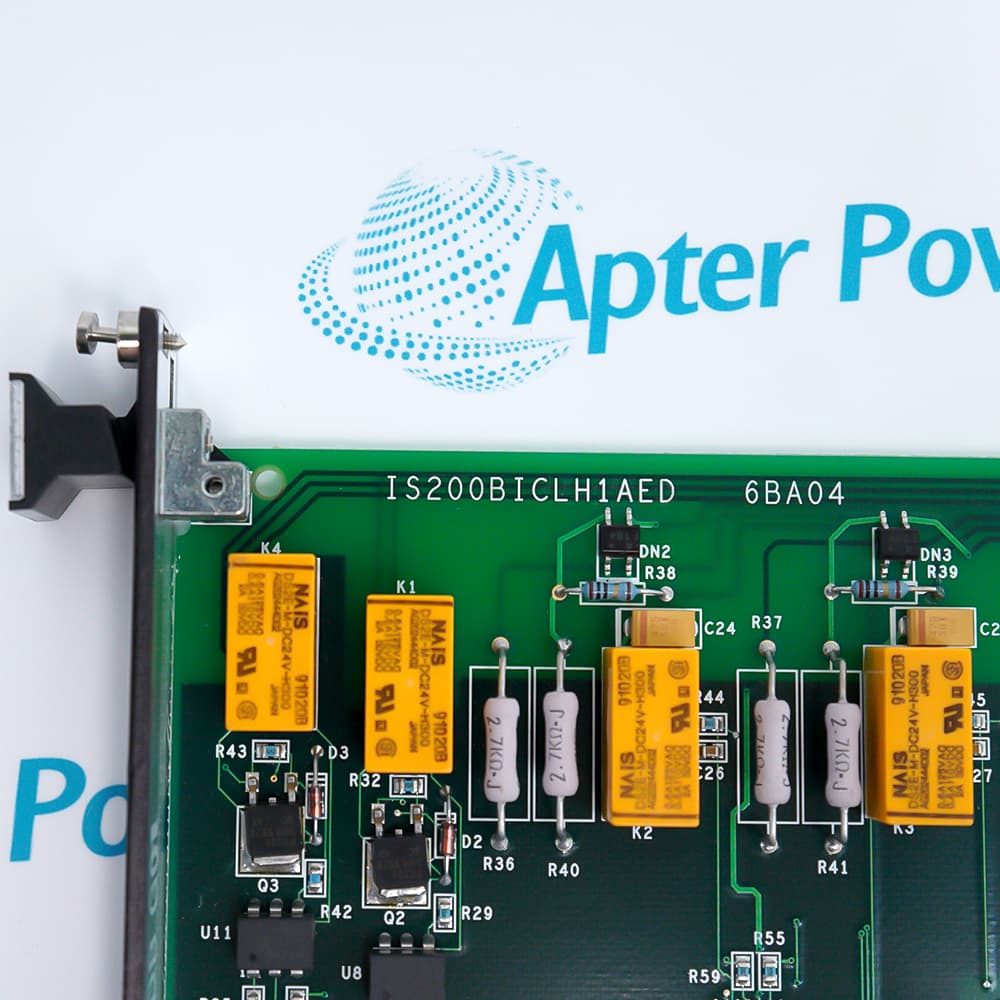

For proper installation, the General Electric IS200BICLH1AED Bridge Interface Board must be inserted into the correct slot to avoid potential damage from incorrect connections. The board connects via two P1 and P2 pin connectors on the right edge that interface with the card rack assembly. In addition to standard interfacing operation, the board's 1024-bit serial memory device is programmed at the factory with board identification and revision information for traceability. The IS200BICLH1AED board features 73 resistors, 31 capacitors, three diodes, fifteen integrated circuits, four relays, one metal oxide varistor, and three transistors on its PCB.

The IS200BICLH1AED General Electric Bridge Interface Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS200BICLH1AED Bridge Interface Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS200BICLH1AED Bridge Interface Board Specs

General

  • Manufacturer General Electric
  • Model IS200BICLH1AED
  • Condition New Original ready stock
  • Product Family IS200DAMCG1A,IS200ECTBG1ABB
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • GE Innovation Series Drives: Functions as a core module for signal management within these motor drive assemblies.
  • Excitation Control Systems: Applied in power generation control to manage generator excitation and regulator functions.
  • Power Conversion Equipment: Integrates with high-power modules like inverters and converters.
  • Thermal Management Control: Deployed in speed control architectures utilizing pulse width modulation (PWM) to regulate hardware cooling fans.
  • Operating Temperature: Typically rated to maintain reliable performance between -30°C and +65°C.
  • Storage Temperature: Rated for standard subassembly storage from -40°C to +85°C.
  • Relative Humidity: Operates safely between 5% to 95% non-condensing relative humidity.
  • Environmental Protection: Features a protective conformal coating on the PCB to safeguard electronics against atmospheric moisture, dust, and light industrial contaminants.
  • Dynamic Cooling Efficiency: Uses a PWM fan speed output via an isolated open collector transistor. It dynamically scales cooling fan speeds up or down based on real-time temperature demand, cutting energy waste.
  • Thermal Monitoring: Equipped with four Resistance Temperature Detector (RTD) inputs. These handle single or dual-mode monitoring to continuously track ambient and bridge heatsink temperatures.
  • Electrical Safety & Isolation: Provides an isolated interface between low-voltage control signals and high-power IGBT modules, protecting sensitive electronics from voltage transients and noise.
  • System Redundancy: Features dual fault string inputs that continuously check system status and execute a controlled shutdown if signal disruption occurs.
  • Digital Traceability: Includes a 1024-bit onboard serial memory device. This stores hardware tracking data and revision states directly on the board to facilitate fast maintenance diagnostics.
Description
The IS200BICLH1AED is an IGBT Drive/Source Bridge Interface Board developed by General Electric. It is a part of the Drive Control series. An interface board is a circuit board that is used to interface between an insulated-gate bipolar transistor driver and a power module. The driver provides the necessary control signals to turn the IGBT on and off, while the power module provides the high-current switching capability. The IGBT drive/source bridge interface board typically includes level-shifting circuits that convert the signals from the driver to the appropriate voltage levels for the power module. It may also include additional circuits for overvoltage and overcurrent protection, as well as temperature sensing and feedback.

This IS200BICLH1AED board is specifically designed for industrial motor control and power conversion applications, addressing the critical need for reliable signal interfacing between IGBT drivers and high-power modules in variable frequency drives and servo systems. It solves the fundamental challenge of safely bridging low-voltage control logic with high-voltage, high-current power switching environments, ensuring precise timing and electrical isolation that prevents catastrophic failures in demanding operational conditions. The board finds extensive application across power generation facilities, oil and gas processing plants, steel and metal manufacturing operations, water treatment facilities, and heavy industrial automation systems where robust motor control and inverter performance are essential.

The IS200BICLH1AED board is typically mounted in close proximity to the power module to minimize the length of the high-current traces, which can reduce noise and improve overall system performance. The interface board may be designed for use in a variety of applications, such as motor control, power supplies, and inverters. This IS200BICLH1AED board can monitor both the ambient and bridge temperatures. It has a PWM speed control interface as well as a system fault display. This IS200BICLH1AED board has a 1024-bit serial memory, which is usually filled with information about the revision and identification of the board.
Revisions

Revision Part #

Also known as

IS200BICLH1AED
IS200BICLH1A-ED, Series ED, Rev ED
IS200BICLH1AAA
IS200BICLH1A-AA, Series AA, Rev AA
IS200BICLH1AEC
IS200BICLH1A-EC, Series EC, Rev EC
Alternative Names
1S200BICLH1AED IS200B1CLH1AED IS2OOBICLH1AED IS200BPPBH2BJD IS200DAMCG1A IS200ECTBG1ABB
Technical notes
The driver generates the main control signals used to manage the switching states of the IGBTs, while the power modules provide the high-current switching capabilities required for heavy industrial applications. The IS200BICLH1AED achieves seamless connectivity using integrated level-shifting circuitry. This circuitry accurately converts the low-voltage control signals from the driver into the precise high-voltage levels required to trigger the power modules, thus safely and efficiently driving them.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary function of the IS200BICLH1AED board?
The IS200BICLH1AED serves as a bridge interface board that enables reliable communication between digital control circuits and high-power switching devices. It helps maintain signal integrity, improve switching performance, and protect critical power electronics.
What problems does the IS200BICLH1AED help prevent?
The IS200BICLH1AED is designed to address voltage mismatches, signal degradation, electromagnetic interference, and improper switching conditions that could otherwise lead to IGBT failures or reduced system reliability.
How does the IS200BICLH1AED improve system protection?
The board incorporates overvoltage protection, overcurrent protection, and temperature monitoring functions. These features help detect abnormal operating conditions and provide enhanced protection for connected power modules.
Why is the IS200BICLH1AED mounted close to the power module?
Installing the IS200BICLH1AED near the power module reduces the length of high-current signal paths, minimizes electromagnetic noise, and improves overall system stability during demanding operating conditions.
