IS210BPPCH1ACA

/ 4.9
1001 reviews | Need a Specific Revision?

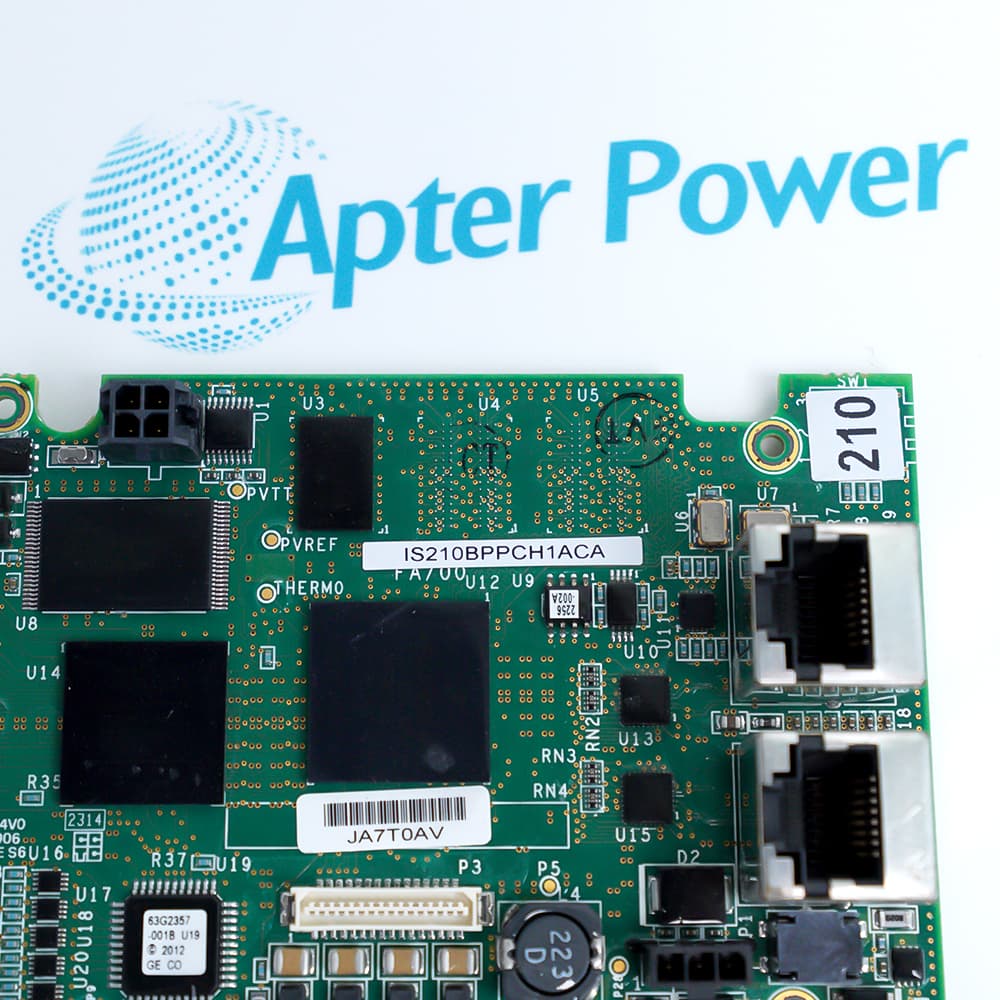

The GE IS210BPPCH1ACA is an I/O packaged processor daughterboard employing double-sided surface mount technology (SMT) and a small form factor to optimize space utilization and signal integrity.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS210BPPCH1ACA
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS210BPPCH1ACA

  • Manufacturer:
    General Electric
  • Part Number:
    IS210BPPCH1ACA
  • Product Family:
    GE Mark VIe Distributed I/O
  • Product Type:
    Printed Circuit Board
  • Stock:
    1
  • Redundancy Support:
    Compatible with TMR (Triple Modular Redundancy) and Dual terminal board configurations
  • Backward Compatibility:
    Can be mixed and used alongside older BPPB components
  • Board Design:
    Small form factor with two ports located on one board edge
  • Mounting:
    Factory-drilled holes ringed with conductive material
  • Diagnostic Features:
    Test points (TP) for diagnostics and troubleshooting
  • Protective Coating:
    Conformal coating
  • Input Power:
    32 watts
  • Voltage Range:
    +28 VDC
  • Input Current:
    15 mA
  • Serial Interface:
    Accepts serial interfaces at nominal 12 VDC
  • Weight:
    0.06 kg
  • Estimated shipping dimensions:
    11x7.5x2.2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Configuration & Programming Installation & Integration

Features:

  • Processor Daughterboard for Mark VIe I/O Pack Signal Processing
  • Integrates Updated Components with Expanded Processing Capabilities
  • Compatible with Both TMR and Dual Terminal Board Configurations
The IS210BPPCH1ACA features seamless integration as standard, enabling automatic reconfiguration when replacing older processors with this upgraded unit, especially when used with older BPPB I/O components. The IS210BPPCH1ACA improves upon previous BPPB processor designs in several ways and integrates newer integrated circuits and expanded functionality into the Mark VIe rack.

The IS210BPPCH1ACA provides essential processing functions common to the entire I/O pack, and is a critical component of the control path, directly affecting the proper, normal operation of the overall turbine monitoring system. One IS210BPPCH1ACA processor board is required per I/O pack, and it occupies the dedicated processor slot within the pack assembly. The IS210BPPCH1ACA is always located in the processor position of the I/O pack (the dedicated processor daughterboard slot).

For systems requiring enhanced reliability, the Mark VIe architecture supports TMR (Triple Modular Redundancy) or Dual configurations using terminal boards that work in conjunction with the IS210BPPCH1ACA. In addition to standard single I/O pack operation, the redundant configuration also performs automatic monitoring. The Mark VIe dual and TMR configurations execute health checks using the internal circuitry specified in the I/O pack options.

The IS210BPPCH1ACA General Electric Printed Circuit Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS210BPPCH1ACA Printed Circuit Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS210BPPCH1ACA Printed Circuit Board Specs

General

  • Manufacturer General Electric
  • Model IS210BPPCH1ACA
  • Condition New Original ready stock
  • Product Family IS210AEBIH3BED,IS210AEDBH4AGD
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Steam turbine control system: mainly used to manage steam and gas turbines on a utility scale.
  • Redundant Environments: Deployed in Dual or Triple Modular Redundant (TMR) safety systems.
  • Industrial Automation: Applied in heavy manufacturing and power generation industries.
  • ToolboxST Software: Configured via the proprietary GE ToolboxST Application Suite.
  • Safety Loops: Supports strict logic branding for safety instrumented functions (SIF).
  • IEC 61511 Standards: Must comply with functional safety regulations during setup.
  • Plug-and-Play Firmware: Features automatic reconfiguration when replacing older card models.
  • Daughterboard Design: Mounts directly onto primary Mark VIe terminal boards.
  • Backward Compatibility: Fits alongside older BPPB boards in existing racks.
  • System Exclusion: Absolutely not compatible with Mark VIeS safety systems.
  • Physical Connectors: Includes two primary edge plugs, custom jumpers, and diagnostic test points.
  • Vibration Resistance: Uses reinforced factory-drilled grounding holes for secure physical mounting.
Description
The IS210BPPCH1ACA is specifically designed for deployment in the Mark VIe control architecture, serving as a processor card for I/O (Input/Output) packs. Compared to previous BPPB-style I/O packs, the IS210BPPCH1ACA integrates newer components with expanded capabilities, making it a functional upgrade within the Mark VIe ecosystem. The IS210BPPCH1ACA is a small-sized board featuring two ports located along one board edge, with components mounted on both sides of the PCB using Surface Mount Technology (SMT). The board includes multiple integrated circuits, transistors, resistors, capacitors, chokes, diodes, a fuse, several jumpers, and TP test points for diagnostic purposes. Each component on the IS210BPPCH1ACA carries a reference designator for simplified identification, and the board is finished with a conformal coating for environmental protection.

The IS210BPPCH1ACA solves the problem of outdated I/O pack processing by offering enhanced capabilities that support modern control requirements, including compatibility with both TMR (Triple Modular Redundancy) and Dual configurations. The IS210BPPCH1ACA can be mixed and used alongside older BPPB components, and auto-reconfiguration is typically supported when replacing a BPPB with a BPPC unit like the IS210BPPCH1ACA. This flexibility allows operators to upgrade their systems incrementally without requiring a complete overhaul of existing infrastructure. The IS210BPPCH1ACA also supports branding through the ToolboxST application, enabling users to mark specific code sets as acceptable for particular purposes—a configuration that falls under SIF (Safety Instrumented Functions) and must be certified per IEC 61511 for functional safety before use.

The IS210BPPCH1ACA serves in safety-related turbine control functions, supporting critical operations such as speed control, load control, valve interface management, vibration protection, and emergency overspeed protection. In industrial settings, the IS210BPPCH1ACA contributes to auxiliary system controls including condenser level control, lube oil temperature control, steam seal pressure control, and hydraulic fluid pump motor control. The IS210BPPCH1ACA is also utilized in power plant Distributed Control Systems (DCS) integration, providing communication links via Ethernet TCP/IP, Modbus, and other industrial protocols.
Revisions

Revision Part #

Also known as

IS210BPPCH1ACA
IS210BPPCH1A-CA, Series CA, Rev CA
IS210BPPCH1AC
IS210BPPCH1A-C, Series C, Rev C
IS210BPPCH1AD
IS210BPPCH1A-D, Series D, Rev D
IS210BPPCH1AEC
IS210BPPCH1A-EC, Series EC, Rev EC
Alternative Names
1S210BPPCH1ACA IS2I0BPPCH1ACA IS210BPPCHIACA IS21OBPPCH1ACA IS210AEBIH3BED IS210AEDBH4AGD IS210AEPSG1AFC
Technical notes
The IS210BPPCH1ACA operates from a standard 24 Vdc power supply, and its ACA version ensures higher reliability for critical system operation. Equipped with dual high-speed Ethernet ports, status diagnostic LEDs, an active hardware watchdog timer, built-in test points, and dedicated surface mount replacement fuses, the IS210BPPCH1ACA provides robust data streaming and real-time fault monitoring capabilities.
