IS220PPDAH1B

/ 4.9
1001 reviews | Need a Specific Revision?

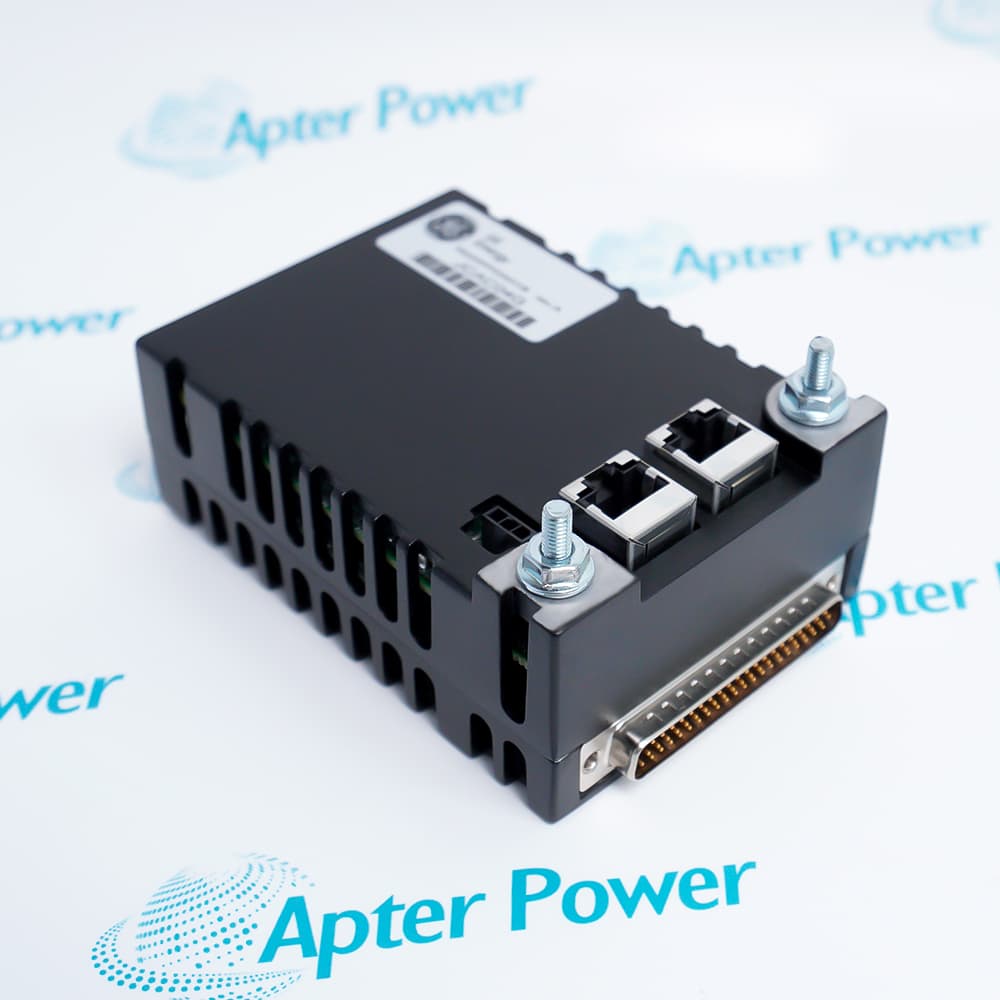

General Electric IS220PPDAH1B power distribution feedback I/O pack provides continuous monitoring of power distribution conditions and transmits diagnostic information to the controller through the IONet network.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS220PPDAH1B
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS220PPDAH1B

  • Manufacturer:
    General Electric
  • Part Number:
    IS220PPDAH1B
  • Product Family:
    GE Mark VIe Distributed I/O
  • Product Type:
    Power Distribution Feedback I/O Pack
  • Stock:
    1
  • Voltage:
    28 V DC
  • Self-test:
    Built-in 5 advanced self-diagnostic programs
  • Network Port:
    Dual-redundant Ethernet (IONet)
  • Monitoring:
    2 AC analog signals + 6 fuse signals
  • Main Board:
    Direct connection to JPDS/JPDC/JPDM board
  • Temperature:
    -30°C to +65°C (with conformal coating)
  • Explosion-proof:
    Class 1, Division 2
  • Weight:
    0.36 kg
  • Estimated shipping dimensions:
    6x12.8x8.2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Scenarios Protection Compliance

Features:

  • Processes two AC analog channels and six fused AC inputs to provide real-time visibility of power distribution conditions.
  • Five built-in self-test programs enhance reliability and support early fault identification.
  • Dual Ethernet interfaces on IONet ensure secure transmission of status information to the controller.
General Electric IS220PPDAH1B serves an important role in industrial power management applications where continuous feedback from distribution circuits is required. By mounting directly onto JPDS, JPDC, or JPDM boards, the module becomes part of the power distribution infrastructure without requiring additional interface hardware. Electronic identification further streamlines installation and replacement procedures. Real-time reporting helps maintain safe and efficient operation of critical assets.

In normal operation, IS220PPDAH1B acquires information from two AC analog signals and six fused AC circuits. Diagnostic data is transferred through dual-redundant Ethernet connections using the IONet architecture. Internal self-testing functions continuously verify module health, reducing the possibility of undetected failures. When connected with a JPDE board, additional ground fault detection capability strengthens overall system protection.

General Electric IS220PPDAH1B is suitable for applications requiring dependable monitoring and high availability. The combination of network redundancy and advanced diagnostics supports power systems used in demanding industrial environments. Conformal coating protects the electronics, while the Class 1, Division 2 rating expands installation possibilities in hazardous areas. With an operating temperature range from -30°C to +65°C, IS220PPDAH1B can maintain stable performance under varying environmental conditions.

The IS220PPDAH1B General Electric Power Distribution Feedback I/O Pack may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS220PPDAH1B Power Distribution Feedback I/O Pack Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS220PPDAH1B Power Distribution Feedback I/O Pack Specs

General

  • Manufacturer General Electric
  • Model IS220PPDAH1B
  • Condition New Original ready stock
  • Product Family IS220PPDAH1A
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Steam Turbine Control: Power circuit monitoring deployed in the Mark VIeS safety system.
  • Gas ​​Turbine Assurance: Used for diagnostics of power distribution panels in large, heavy-duty gas turbines.
  • Power Plant Distribution: Embedded in JPDS or JPDM motherboards to monitor critical control power supplies throughout the plant.
  • Intelligent Diagnostics: Suitable for systems in industrial sites requiring 24/7 power supply health analysis.
  • Fuse Monitoring: Real-time monitoring of the status of 6 AC circuits with fuses.
  • Insulation Monitoring: Precise grounding fault detection in conjunction with the JPDE terminal block.
  • Over-Temperature Warning: Internal sensors provide active hardware over-temperature protection.
  • Coating Protection: Equipped with an industrial-grade conformal coating to resist harsh environmental corrosion.
  • Area Certification: Complies with Class 1, Division 2 hazardous area safety standards.
  • Dual Redundancy: Strictly meets IONet dual-path Ethernet industrial design specifications.
  • Electrical Safety: Designed to comply with limited power source environments.
  • Identification and Traceability: Hardware-integrated electronic ID complies with automated asset traceability standards.
Description
General Electric IS220PPDAH1B is a power distribution feedback I/O pack used to collect and report operating information from power distribution assemblies. Operating from a 28 V DC supply, the pack connects directly to JPDS, JPDC, or JPDM boards and communicates through dual-redundant Ethernet on IONet. Electronic identification allows automatic model recognition after installation, simplifying integration into the control system.

IS220PPDAH1B continuously monitors the condition of the electrical distribution network by processing two AC analog feedback signals and six fused AC signals. Diagnostic information is transmitted in real time to the main controller, allowing operators to maintain visibility of power system conditions. Five built-in advanced self-test routines provide additional verification of module health and contribute to dependable operation.

Ground fault detection capability becomes available when IS220PPDAH1B is used together with the JPDE board. The module supports protection of important power circuits while enhancing redundancy through industrial Ethernet communication. With conformal coating and a Class 1, Division 2 rating, IS220PPDAH1B can operate in demanding industrial environments across a temperature range from -30°C to +65°C.
Revisions

Revision Part #

Also known as

IS220PPDAH1BA
IS220PPDAH1B-A, Series A, Rev A
IS220PPDAH1BC
IS220PPDAH1B-C, Series C, Rev C
IS220PPDAH1BE
IS220PPDAH1B-E, Series E, Rev E
Alternative Names
IS22OPPDAH1B IS220PPDAHIB IS220PPDAH1A IS220PAOCH1A IS220PAOCH1B IS220PAICH2A IS220PAICH2B IS220PAICH1A
Technical notes
The General Electric IS220PPDAH1B power feedback pack optimizes system reliability by executing 5 advanced self-diagnostic tests across Mark VIe distribution networks.
