        IS420PUAAH1A

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

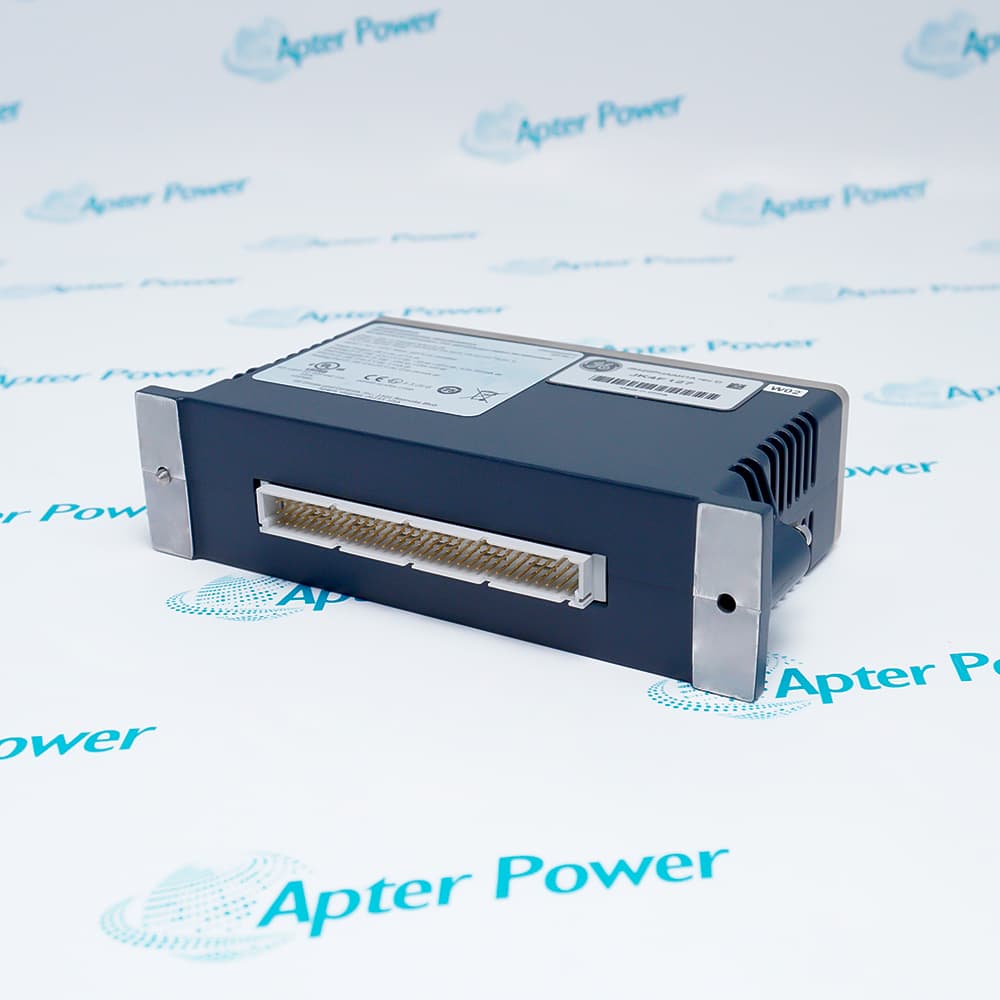

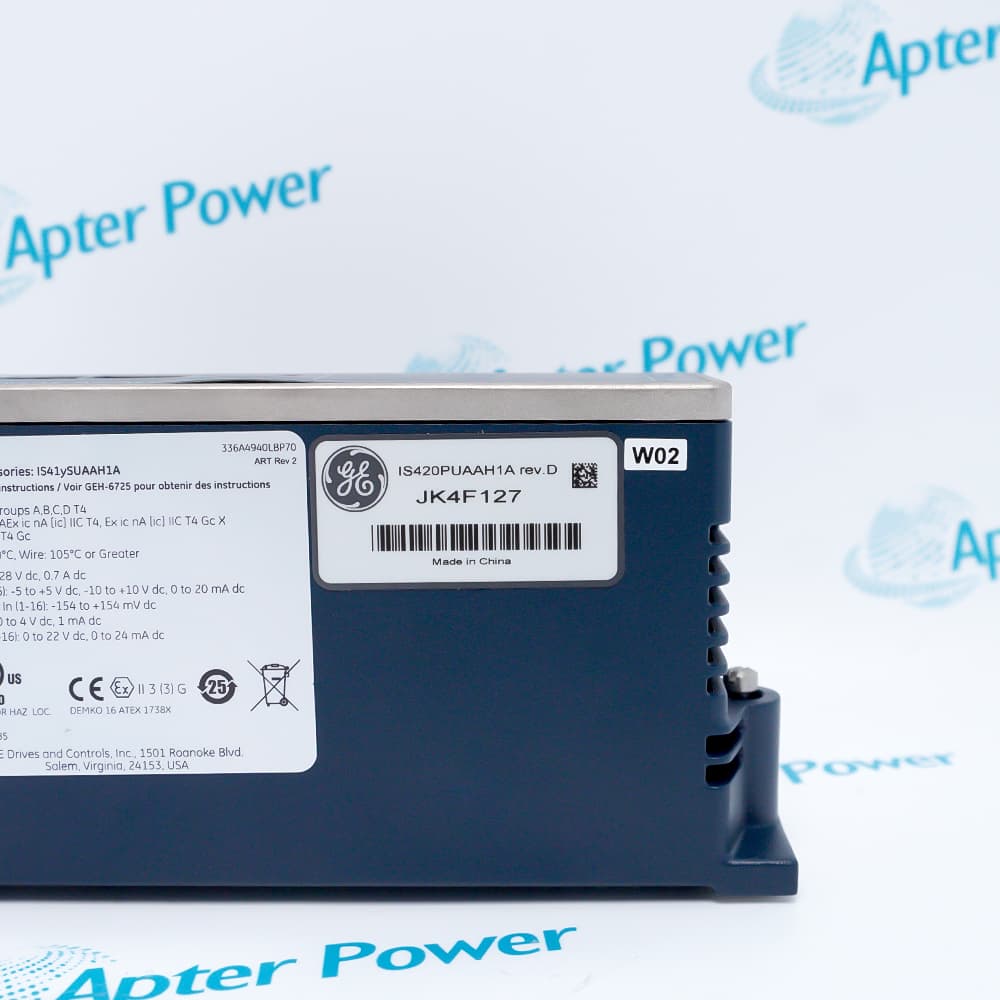

        The General Electric IS420PUAAH1A is a 16-channel, intrinsically safe universal analog I/O module for GE Mark VIe turbine control systems, directly accepting thermocouple, RTD, voltage, and current signals without external signal conditioners.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for IS420PUAAH1A
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for IS420PUAAH1A

        • Manufacturer:
          General Electric
        • Part Number:
          IS420PUAAH1A
        • Product Family:
          GE Mark VIe Distributed I/O
        • Product Type:
          Universal Input-Output Module
        • Stock:
          1
        • Memory:
          512 MB DDR3 RAM + 1 GB Flash
        • Isolation:
          1500 VAC
        • Power Consumption:
          8W
        • Resolution:
          16-bit ADC / 14-bit DAC
        • Accuracy:
          ±0.05% FSR (voltage/current)
        • Sampling Rate:
          100 ms/channel
        • RTD Excitation:
          1 mA constant current
        • Power Supply Voltage:
          25.2 – 30.8 V dc (Nominal 28.0 V dc)
        • Typical Current Draw:
          0.7 A dc
        • Analog Input (Voltage):
          ±5V dc, ±10V dc ranges
        • Analog Input (Current):
          0 – 24 mA dc (including 4-20mA)
        • RTD Input:
          0 – 4V dc with 1 mA excitation (PT100, Ni100)
        • Analog Output:
          0 – 22V dc or 0 – 24 mA dc
        • Weight:
          0.55 kg
        • Estimated shipping dimensions:
          16.6x9x4.2cm
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Applications Monitoring & Control Environmental Ratings

        Features:

        • Universal Channel Programmability – Eliminates Multiple Card Types
        • Entity-Parameter Intrinsic Safety "ic" for Direct Zone 2 Wiring
        • Extended Temperature Operation Without Derating
        Each of the 16 channels on the General Electric IS420PUAAH1A can be independently software-configured for thermocouple, RTD, ±10V analog input, 4-20mA input, 0-20mA output, or discrete input modes. This flexibility allows engineering teams to handle last-minute loop changes without hardware swaps and reduces spare part inventory by 75% compared to dedicated I/O architectures.

        Unlike standard industrial I/O that requires external safety barriers, the General Electric IS420PUAAH1A provides published Voc, Isc, Po, Ca, and La entity parameters for each signal type. Field engineers can directly connect simple apparatus (thermocouples, RTDs, dry contacts, passive transmitters) to the module in Zone 2 areas without calculating barrier loop resistance or installing additional hardware, saving significant cabinet space and installation labor.

        Certified for operation from -40°C to +70°C, the General Electric IS420PUAAH1A eliminates the need for climate-controlled enclosures in extreme environments. Whether installed inside a gas turbine compartment in the Sahara desert or on an offshore platform in the North Sea, this module maintains full I/O accuracy and response time without forced-air cooling or supplemental heating, reducing overall system lifecycle cost.

        The IS420PUAAH1A General Electric Mark VIe Universal Input-Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        General Electric IS420PUAAH1A Mark VIe Universal Input-Output Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        General Electric IS420PUAAH1A Mark VIe Universal Input-Output Module

        General

        • Manufacturer General Electric
        • Model IS420PUAAH1A
        • Condition New Original ready stock
        • Product Family IS420ESWAH1A,IS420UCSBH3A,IS420ESWBH3A
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Gas Turbine Exhaust Temperature Monitoring (Thermocouples): The General Electric IS420PUAAH1A directly reads up to 16 thermocouples in the exhaust diffuser, providing critical data for exhaust temperature spread (ETS) and firing control to prevent bucket overtemperature.
        • Steam Turbine Bearing & Seal Monitoring (RTDs): The General Electric IS420PUAAH1A monitors PT100 RTDs on journal bearings, thrust bearings, and labyrinth seals, enabling predictive maintenance by detecting early oil starvation or rub events.
        • Compressor Surge Prevention (4-20mA Pressure Transmitters): The General Electric IS420PUAAH1A reads suction/discharge pressure and differential flow signals, feeding anti-surge calculations that modulate recycle valves to keep compressors within safe operating limits.
        • Hydraulic Control Feedback (±10V Position Transducers): The General Electric IS420PUAAH1A accepts ±10V signals from LVDTs on fuel control valves, IGVs, and bypass valves, delivering high-resolution position feedback for closed-loop electro-hydraulic control.
        • High-Speed Transient Sampling (5ms IONet Sync): The General Electric IS420PUAAH1A delivers timestamped analog data at 5ms frame rates, capturing startup transients, load rejections, and trip sequences for sequence-of-events (SOE) analysis without external recorders.
        • On-Module Loop Diagnostics (Open/Short & Out-of-Range): The General Electric IS420PUAAH1A continuously checks thermocouples for open circuit, RTDs for open/short, and 4-20mA loops for high (>21.5mA) or low (<3.6mA) faults, immediately flagging sensor failures to ToolboxST.
        • Built-In TC Linearization & CJC: The General Electric IS420PUAAH1A stores NIST polynomials for all common TC types (J,K,T,E,N,R,S,B) and applies automatic cold junction compensation using an on-board sensor, outputting direct °C/°F readings without user programming.
        • Output Current Loop Back-Read for Actuator Validation: In analog output mode, the General Electric IS420PUAAH1A internally reads back actual delivered current, allowing the controller to verify commands reached I/P converters or positioners and detect open-wire or shorted-loop failures.
        • Extreme Temperature Operation (-40°C to +70°C): The General Electric IS420PUAAH1A operates without derating across this full range, eliminating cabinet heaters for arctic sites and forced-air cooling for desert installations, reducing auxiliary power and maintenance.
        • Hazardous Location "ic" Certification (ATEX Zone 2 / Class I Div 2): The General Electric IS420PUAAH1A installs directly in Division 2 areas without explosion-proof enclosures. The "ic" non-incendive level permits live hot-swap maintenance when the area is confirmed gas-free.
        • Conformal Coating Option for Corrosive Environments: While the base IS420PUAAH1A offers standard humidity protection, its official replacement (IS42yPUAAH1A with y=1) includes conformal coating to resist salt spray, H₂S, SO₂, and high-humidity condensation on offshore platforms and chemical plants.
        • Vibration & Shock Resistance (1g / 5g): The General Electric IS420PUAAH1A withstands continuous 1g vibration (10-60 Hz) and 5g shock, with captive screw terminals that prevent loosening adjacent to rotating machinery, ensuring reliable connections over a 20-year design life.
        Description
        The General Electric IS420PUAAH1A represents a paradigm shift in I/O consolidation for the Mark VIe platform. Traditionally, gas and steam turbine control systems required separate dedicated modules for thermocouples, RTDs, 4-20mA transmitters, and voltage inputs. This universal I/O pack eliminates that complexity. Each of its 16 channels can be independently software-configured for a wide array of signal types, including TC Types J/K/T/E, PT100/Ni100 RTDs, ±10V, 0-24mA, and even pulse accumulator inputs. For plant operators, this drastically reduces spare parts inventory—one General Electric IS420PUAAH1A replaces up to four traditional card types while simplifying engineering design and loop checkout.

        Engineered for the harshest power generation environments, the General Electric IS420PUAAH1A carries full hazardous location certifications including ATEX Zone 2 and Class I Division 2, Groups A, B, C, D. It operates continuously across a -40°C to +70°C ambient temperature range without derating, making it suitable for outdoor turbine enclosures in arctic LNG plants or desert solar-thermal hybrid power stations. The module communicates over GE's proprietary IONet deterministic dual-redundant Ethernet bus, ensuring synchronized data acquisition at 5ms frame rates—critical for real-time turbine protection algorithms.

        When paired with its dedicated terminal board (IS41ySUAAH1A), the General Electric IS420PUAAH1A provides "ic" level intrinsic safety for Zone 2 hazardous areas. This energy-limited interface allows direct connection of simple field apparatus—thermocouples, RTDs, switch contacts, and passive transmitters—without requiring external Zener barriers or galvanic isolators. Field wiring capacitance and inductance limits are clearly defined in the entity parameters (Ca/Co values), giving engineers a straightforward compliance path for IEC 60079-11 installations. The module also features on-board cold junction compensation for thermocouples, eliminating the need for external reference junction devices.
        Alternative Names
        1S420PUAAH1A IS420PUAAHIA IS42OPUAAH1A IS420ESWAH1A IS420UCSBH3A IS420ESWBH3A IS420PPNGH1A IS420UCECH1B
        Technical notes
        The General Electric IS420PUAAH1A requires mandatory use of terminal board IS41ySUAAH1A for hazardous location compliance. No other terminal board is certified for use with this module in ATEX Zone 2 or Class I Division 2 installations, per GEH-6725R Appendix A.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Does the General Electric IS420PUAAH1A support HART communication pass-through on 4-20mA loops?
        No. The General Electric IS420PUAAH1A does not include HART modulation/demodulation hardware. For HART-enabled smart transmitters, GE recommends the dedicated IS220PHRAH1B HART analog I/O module, which provides FSK communication pass-through to the controller.
        How does the General Electric IS420PUAAH1A handle cold junction compensation for thermocouple inputs?
        The General Electric IS420PUAAH1A incorporates an on-board ambient temperature sensor located near the terminal block connection points. This sensor automatically compensates for temperature variations at the cold junction (the point where thermocouple wires connect to the copper terminals). No external CJC device or ice bath reference is required.
        What software version is required to configure the General Electric IS420PUAAH1A within ToolboxST?
        The General Electric IS420PUAAH1A requires ToolboxST version V07.00.00C or higher. Earlier versions do not recognize the universal I/O channel configuration blocks. Always verify firmware compatibility using the "System Inspector" utility before downloading the configuration to the controller.
        What are the environmental installation limits for the General Electric IS420PUAAH1A regarding pollution degree and ingress protection?
