IC695ETM001

/ 4.9
1001 reviews | Need a Specific Revision?

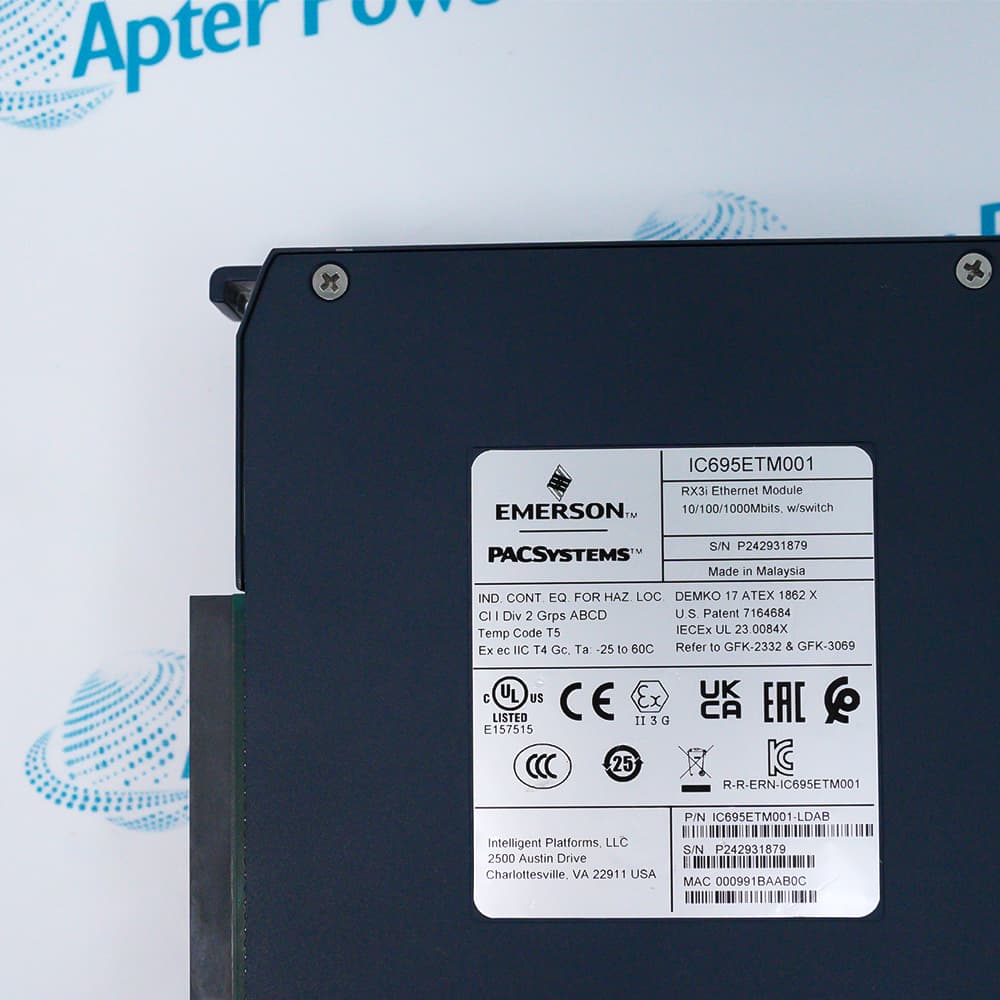

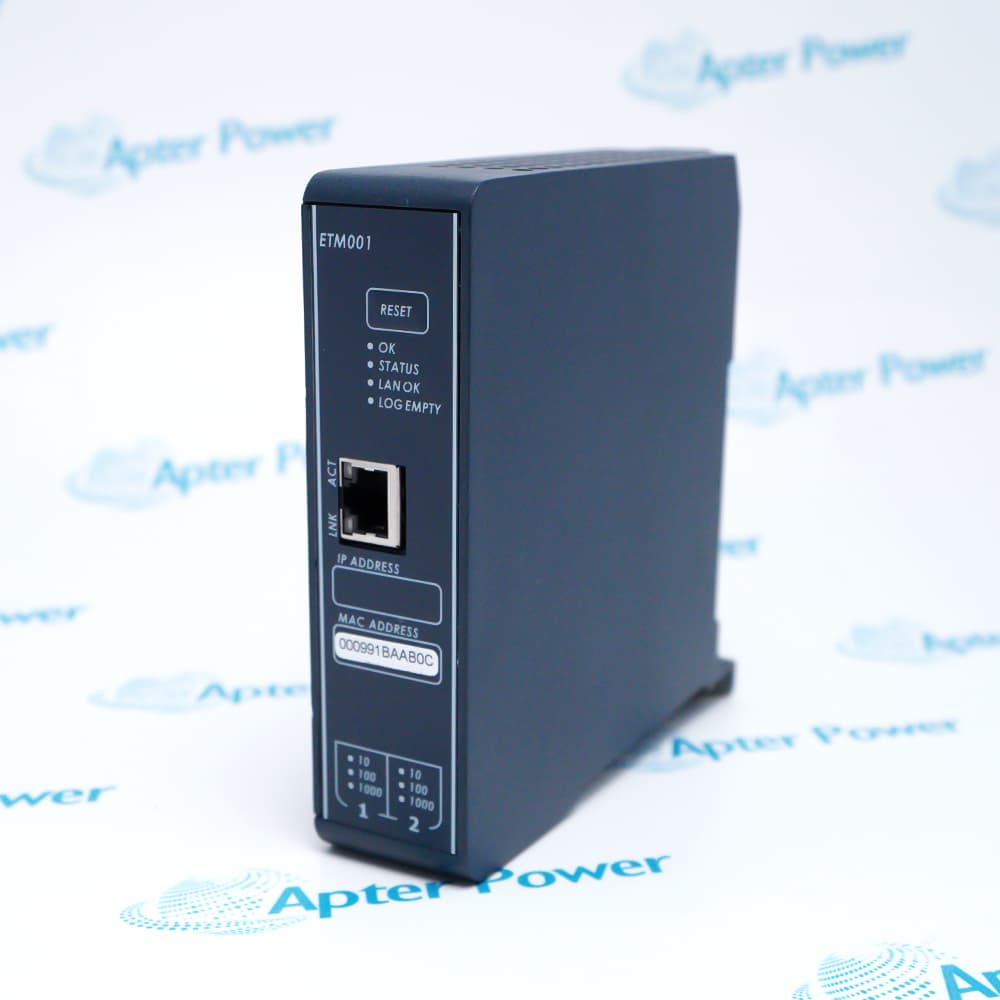

General Electric IC695ETM001 is a two-port PACSystems RX3i Ethernet interface for controller, HMI, host, and EGD communications.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IC695ETM001
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC695ETM001

  • Manufacturer:
    General Electric
  • Part Number:
    IC695ETM001
  • Product Family:
    GE PACSystems RX3i
  • Product Type:
    PACSystems RX3i Ethernet Interface Module
  • Stock:
    1
  • Copper ports:
    Two RJ-45 Ethernet ports
  • Standard data rates:
    10BASE-T and 100BASE-TX
  • Network address:
    One IP address shared by the two switch ports
  • Cabling:
    Shielded or unshielded Category 5 twisted-pair cable
  • Topology:
    Tree topology; do not create a ring through the two switch ports
  • Controller data:
    Supports Ethernet Global Data produce/consume exchange
  • Run Mode Store:
    EGD Run Mode Store requires ETM001 firmware 6.00 or later
  • Tariff Code:
    8517623990
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Addressing Topology Data Application
  • Jx and earlier hardware provides two 10/100 Mbit/s switched LAN ports under one IP address
  • KAAA and later hardware provides three 10/100/1000BASE-T ports and two IP addresses
  • Ethernet Global Data supports scheduled controller-to-controller information exchange

IC695ETM001 is a General Electric PACSystems RX3i Ethernet Interface Module for industrial controller communications.

Hardware capabilities depend on the catalog suffix. Jx and earlier modules use two switched LAN ports plus an RS-232 Station Manager interface; KAAA and later modules use a separate front-panel Ethernet port plus two switched LAN1 ports.

Before installation or replacement, verify the complete catalog suffix, firmware revision, RX3i controller compatibility, port arrangement, IP-address configuration, network topology, and saved controller project.

Availability, condition, price, and shipping time for IC695ETM001 are confirmed during quotation.

General Electric IC695ETM001 PACSystems RX3i Ethernet Interface Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Jx and earlier hardware uses one IP address across the two switched LAN ports
  • KAAA and later hardware uses one IP address for the front-panel port and a second IP address for the two LAN1 switch ports
  • IP parameters and enabled services must match the installed catalog suffix, firmware revision, and RX3i configuration
  • Jx and earlier hardware provides two switched LAN ports for documented line or tree arrangements
  • KAAA and later hardware provides a separate front-panel port plus two switched LAN1 ports
  • Do not create an uncontrolled ring through the embedded switch ports because duplicated packets can overload the network
  • Ethernet Global Data can be produced and consumed by the RX3i control application
  • Run Mode Store of EGD configuration requires IC695ETM001 firmware 6.00 or later
  • The host CPU project defines the Ethernet services and exchange configuration used by the module
  • PACSystems RX3i controller-to-controller Ethernet Global Data exchange
  • RX3i communication with industrial HMIs and engineering workstations
  • Ethernet connectivity between RX3i controllers and compatible supervisory host systems
Description
IC695ETM001 is a General Electric PACSystems RX3i Ethernet Interface Module for controller and industrial-network communications.

The interface count and addressing structure depend on the hardware suffix. Jx and earlier modules provide two switched 10/100 Mbit/s LAN ports and one RS-232 Station Manager port under one IP address. KAAA and later modules provide three 10/100/1000BASE-T RJ45 ports and use two IP addresses.

Before installation or replacement, confirm the complete catalog suffix, firmware revision, RX3i rack and controller compatibility, port mapping, IP-address configuration, enabled services, network topology, and saved controller project.
Revisions

Revision Part #

Also known as

IC695ETM001A
IC695ETM001-A, Series A, Rev A
IC695ETM001C
IC695ETM001-C, Series C, Rev C
IC695ETM001D
IC695ETM001-D, Series D, Rev D
IC695ETM001E
IC695ETM001-E, Series E, Rev E
IC695ETM001F
IC695ETM001-F, Series F, Rev F
IC695ETM001H
IC695ETM001-H, Series H, Rev H
IC695ETM001J
IC695ETM001-J, Series J, Rev J
IC695ETM001K
IC695ETM001-K, Series K, Rev K
IC695ETM001L
IC695ETM001-L, Series L, Rev L
Alternative Names
IC695ETM001 IC695 ETM001 GE IC695ETM001 General Electric IC695ETM001 PACSystems RX3i IC695ETM001
Technical notes
IC695ETM001 replacement requires the exact hardware suffix and firmware, host CPU support, IP parameters, EGD exchanges, enabled services, cabling, duplex settings, topology, and saved RX3i project to be verified.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Do both ports on General Electric IC695ETM001 need separate IP addresses?
No. The two connectors are switch ports of one interface and share one IP address. Preserve the module address, subnet, gateway, and enabled services during replacement.
Can every General Electric IC695ETM001 operate at 1 Gbit/s?
No. Emerson documents 1000BASE-T capability only for supported Kxxx hardware. Verify the complete suffix and connected switch before specifying Gigabit operation.
Can the two ports of General Electric IC695ETM001 be connected as a ring?
Not as an uncontrolled ring. Emerson warns that a ring through the embedded switch can duplicate packets and overload the network; use the documented tree topology or an approved redundancy design.
What firmware is required to store EGD changes in Run Mode on General Electric IC695ETM001?
Emerson specifies IC695ETM001 firmware 6.00 or later for Run Mode Store of Ethernet Global Data configuration.
What should be recorded before replacing General Electric IC695ETM001?
Record the complete suffix, firmware, IP settings, Ethernet services, EGD exchanges, port connections, switch configuration, and the validated RX3i project.
Should fixed duplex be forced on General Electric IC695ETM001?
Use auto-negotiation unless the complete link has been intentionally engineered for matching fixed settings. Mismatched duplex configuration can cause poor performance and communication errors.
What information should accompany an inquiry for General Electric IC695ETM001?
Provide the full hardware suffix, firmware, host CPU and release, required data rate, protocol use, EGD configuration, IP plan, cable type, and connected-switch details.
