IC695PSD040

/ 4.9
1001 reviews | Need a Specific Revision?

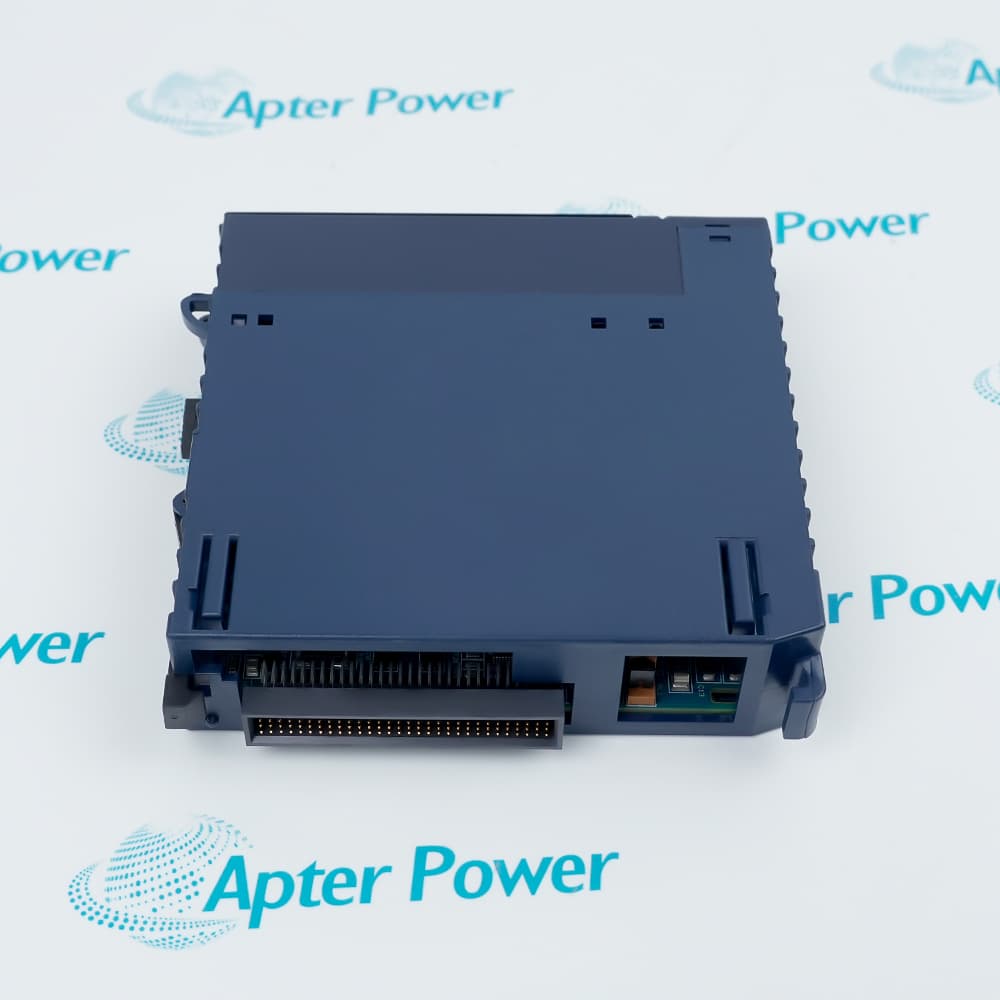

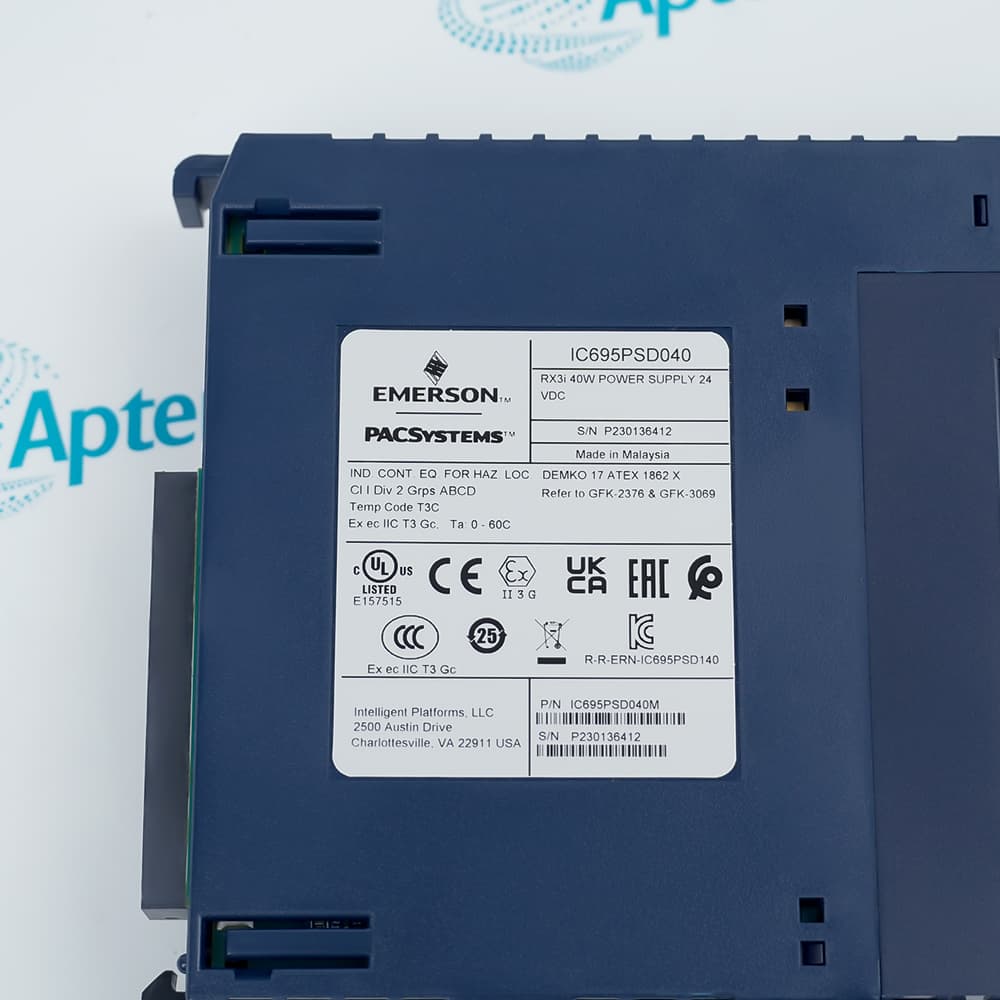

Emerson IC695PSD040 is a PACSystems RX3i 40 W DC power supply that accepts 18–30 VDC input and powers one universal-backplane slot.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IC695PSD040
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC695PSD040

  • Manufacturer:
    General Electric
  • Part Number:
    IC695PSD040
  • Product Family:
    GE PACSystems RX3i
  • Product Type:
    Power Supply
  • Stock:
    1
  • Input Voltage:
    18 to 30 VDC; 24 VDC nominal
  • Power Rating:
    40 W
  • Backplane Slots:
    1
  • Load Sharing:
    Not supported
  • Redundancy:
    Not supported
  • Operating Temperature:
    0 to 60 °C
  • Storage Temperature:
    -40 to 85 °C
  • Relative Humidity:
    5% to 95%, non-condensing
  • Field Wiring:
    14 to 22 AWG
  • Weight:
    0.57 lbs (0.26 kg)
  • Estimated shipping dimensions:
    3.5x13.3x13.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Diagnostics Installation

Features:

  • Provides 40 W total output power.
  • Accepts an 18-30 VDC input source.
  • Occupies one RX3i universal-backplane slot.
The current ordering configuration is IC695PSD040, the 24 VDC-input 40 W supply for a PACSystems RX3i universal backplane.

It powers supported backplane loads through the documented 5.1 VDC, 3.3 VDC, and relay-output rails.

Before installation, calculate the backplane load, verify input wiring, and confirm that the application does not require load sharing or redundancy.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Emerson IC695PSD040: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • ManufacturerEmerson
  • ModelIC695PSD040
  • ConditionNew Original ready stock
  • Product FamilyPACSystems RX3i
  • Power a supported PACSystems RX3i universal backplane from a 24 VDC source.
  • Supply backplane loads whose combined demand stays within 40 W.
  • Use one IC695PSD040 in the universal backplane.
  • The Power LED indicates supply operation.
  • The P/S Fault LED reports a detected power-supply fault.
  • Dedicated indications report overload and overtemperature conditions.
  • Connect one 14-22 AWG conductor at each input terminal.
  • Verify the 18-30 VDC source before applying power.
  • Do not design IC695PSD040 for load-sharing or redundant operation.
Description
Emerson IC695PSD040 is a 40 W DC power supply for a PACSystems RX3i universal backplane. It operates from an 18-30 VDC source and occupies one backplane slot.

The supply provides 5.1 VDC, 3.3 VDC, and 24 VDC relay outputs. It does not support load sharing or redundancy, so confirm the backplane power budget and exact PSD040 suffix before installation.
Revisions

Revision Part #

Also known as

IC695PSD040A
IC695PSD040-A, Series A, Rev A
IC695PSD040B
IC695PSD040-B, Series B, Rev B
IC695PSD040F
IC695PSD040-F, Series F, Rev F
IC695PSD040G
IC695PSD040-G, Series G, Rev G
IC695PSD040H
IC695PSD040-H, Series H, Rev H
IC695PSD040J
IC695PSD040-J, Series J, Rev J
IC695PSD040K
IC695PSD040-K, Series K, Rev
IC695PSD040L
IC695PSD040-L, Series L, Rev
IC695PSD040LTH
IC695PSD040-LTH, Series LTH, Rev LTH
IC695PSD040M
IC695PSD040-M, Series M, Rev M
Alternative Names
IC695PSD040 IC695 PSD040 IC695-PSD040 GE IC695PSD040 GE Fanuc IC695PSD040 Emerson PACSystems RX3i 40 W DC Power Supply
Technical notes
IC695PSD040 is a one-slot 40 W RX3i supply and does not support load sharing or redundancy.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What input range does IC695PSD040 accept?
It operates from 18 to 30 VDC, with 24 VDC as the nominal input.
What is the rated output capacity?
The module provides up to 40 W of power to the RX3i universal backplane.
How many backplane slots does it occupy?
IC695PSD040 occupies one universal-backplane slot.
Can two IC695PSD040 modules share a load?
No. The product specification states that load sharing and redundancy are not supported.
Which status indicators are provided?
Front-panel LEDs indicate power, power-supply fault, overload, and overtemperature conditions.
What should be checked before replacement?
Verify the DC source, conductor size, backplane power budget, slot arrangement, and required environmental option.
