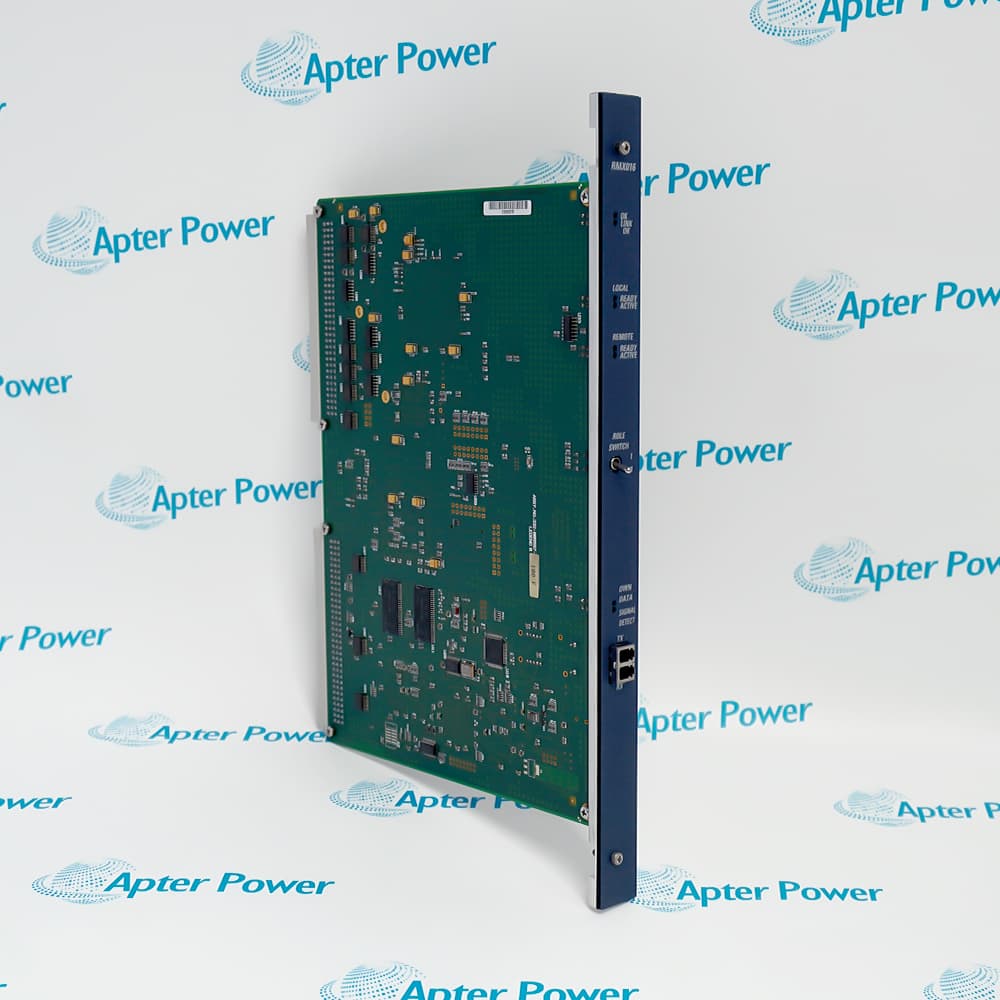

General Electric IC698RMX016 is a PACSystems RX7i Sixteen-Megabyte Reflective Memory Module for fiber-ring data sharing and controller redundancy.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IC698RMX016
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC698RMX016

  • Manufacturer:
    General Electric
  • Part Number:
    IC698RMX016
  • Product Family:
    GE PACSystems RX7i
  • Product Type:
    PACSystems RX7i Sixteen-Megabyte Reflective Memory Module
  • Stock:
    1
  • Memory:
    16 MB SDRAM
  • Network Rate:
    2.12 Gbaud
  • Topology:
    Fiber-optic ring
  • Functions:
    Reflective memory or redundancy link
  • Packet Size:
    Dynamic
  • Node Address:
    Hardware/configuration selected
  • Network Interrupts:
    Supported
  • Error Detection:
    Network faults monitored
  • Rack Location:
    RX7i main rack
  • ESD:
    Grounded handling required
  • Dynamic packet size:
    4 to 64 bytes
  • Transfer rate with 4-byte packets:
    43 MB/s
  • Transfer rate with 64-byte packets:
    174 MB/s
  • Reflective-memory network capacity:
    Up to 256 nodes
  • Maximum fiber connection distance:
    Up to 300 m / 984.25 ft
  • Operating voltage:
    +5 VDC from the rack power supply
  • Current requirement:
    1.8 A
  • Connector temperature range:
    −20°C to +85°C
  • Data carried with each network interrupt:
    32 bits
  • Return loss:
    −30 dB
  • Fiber medium:
    Multimode fiber
  • PCB size:
    6.299 in W × 9.187 in H
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Compatibility Monitoring & Control Installation

Features:

  • Shares 16 MB of reflective SDRAM across a fiber ring.
  • Transfers network data at 2.12 Gbaud.
  • Supports reflective-memory and redundancy-link applications.
Hardware replication makes selected memory available at every configured node without message-by-message application handling.

Dynamic packet sizing and network-error detection support deterministic multi-node transfers.

The module belongs in the RX7i main rack, with grounded ESD precautions used around its optical interface.

General Electric IC698RMX016 PACSystems RX7i Sixteen-Megabyte Reflective Memory Module is available for quotation and official technical-file access.
General Electric IC698RMX016 PACSystems RX7i Sixteen-Megabyte Reflective Memory Module Manuals, Datasheets, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Provides a high-speed fiber-optic link for data synchronization between primary and backup RX7i CPUs.
  • Enables deterministic, real-time data sharing among PLCs and industrial computers.
  • Connects up to 256 compatible controllers and computing devices through a fiber-optic ring.
  • Compatible with PACSystems RX7i CPUs using firmware version 2.00 or later.
  • Supports VMIC 5565-family reflective-memory devices on fiber-optic networks.
  • Supports a dedicated redundancy link between primary and secondary RX7i controllers.
  • Eight LEDs indicate module, link, controller, data, and optical-signal status.
  • The role switch enables manual transfer from the active controller to the backup unit.
  • Network-error detection, configurable interrupts, and parity monitoring improve reliability.
  • Install the IC698RMX016 only in RX7i main rack 0; slots 3 and 4 are recommended.
  • Switch off rack power before installing, removing, or securing the module.
  • Connect each TX port to the next node’s RX port to complete the fiber-optic ring.
Description
GE IC698RMX016 maintains a common data image across a PACSystems RX7i reflective-memory network. Information written by one node is distributed automatically to the other participating nodes, allowing controllers and compatible computing devices to exchange time-sensitive control data without conventional message polling.

In an RX7i redundant control architecture, the module carries synchronization information between the active and backup controllers. The synchronized data path keeps the secondary controller aligned with the current machine or process state, supporting controlled transfer of operation when the active controller can no longer continue.

The front panel provides separate indications for link condition, local and remote readiness, active-controller state, returned network data, and optical signal detection. A guarded role switch permits a deliberate manual transfer request during redundancy service, while network diagnostics help commissioning personnel confirm communication health.
Revisions

Revision Part #

Also known as

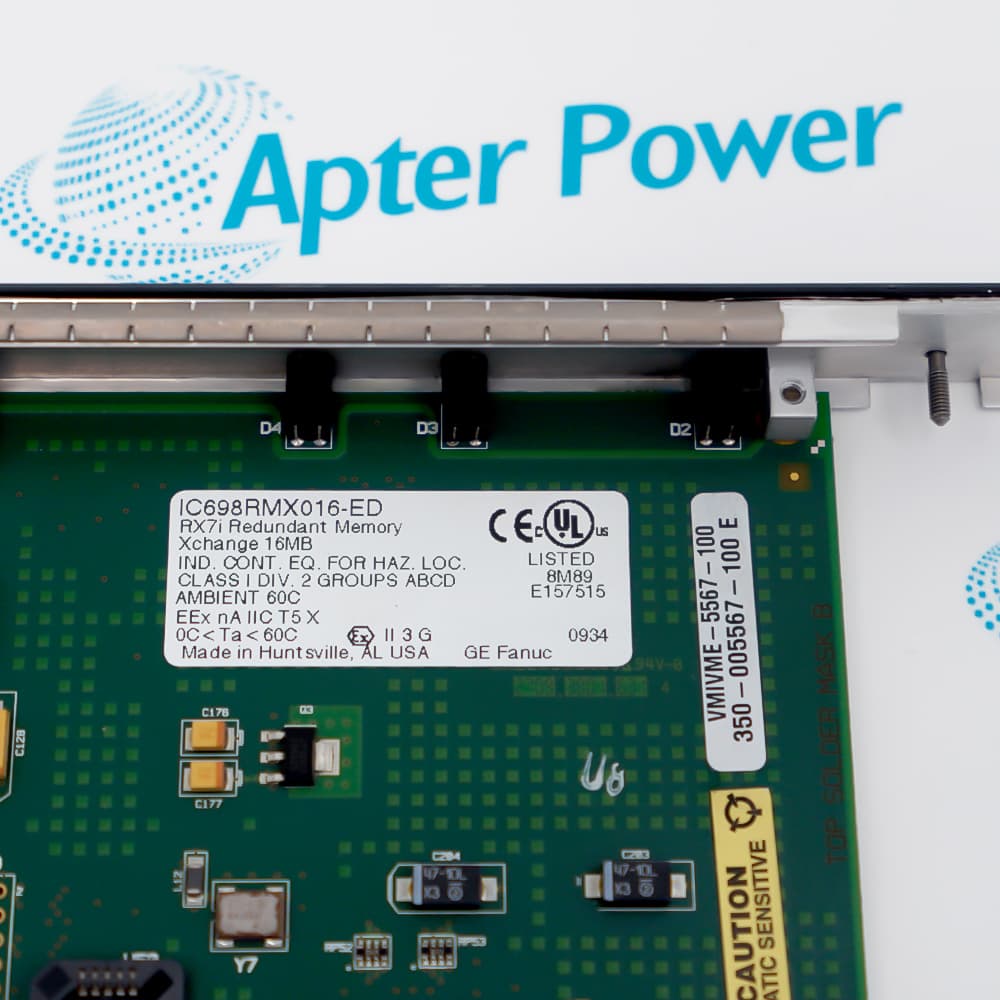

IC698RMX016ED
IC698RMX016-ED, Series ED, Rev ED
IC698RMX016DC
IC698RMX016-DC, Series DC, Rev DC
IC698RMX016CB
IC698RMX016-CB, Series CB, Rev CB
IC698RMX016BA
IC698RMX016-BA, Series BA, Rev BA
IC698RMX016AA
IC698RMX016-AA, Series AA, Rev AA
IC698RMX016E
IC698RMX016-E, Series E, Rev E
Alternative Names
IC698 RMX016 IC698-RMX016 IC698RMX 016 GE IC698RMX016 GE Fanuc IC698RMX016 General Electric IC698RMX016 PACSystems RX7i IC698RMX016 IC698RMX016 Reflective Memory Module
Technical notes
IC698RMX016 has 16 MB of reflective memory, not 128 MB; its 2.12-Gbaud fiber ring automatically propagates writes to every configured node.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does the IC698RMX016 ring remain open after cabling?
Check transmit-to-receive direction, fiber type, connector cleanliness, node order, powered neighbors, node address, and module status indicators.
Why do IC698RMX016 nodes report duplicate identities?
Inspect every node-address setting and configuration; each active module on the reflective-memory ring needs a unique valid identity.
What should be checked after touching the IC698RMX016 optical housing?
If communication was disturbed by electrostatic discharge, inspect status, use a grounded strap, and power-cycle only under the approved service procedure.
Why does IC698RMX016 memory update only at some nodes?
Trace the ring segment by segment, review error counters and interrupts, confirm address ranges, and verify that all nodes use compatible settings.
Can IC698RMX016 replace a 128 MB memory module directly?
No. The 16 MB address capacity, optical hardware, network configuration, and controller compatibility must match the existing architecture.
What should be archived before replacing IC698RMX016?
Record node address, memory map, interrupt settings, ring order, fiber details, firmware, complete revision, and redundancy configuration.
