General Electric IC698CRE030
General Electric IC698CRE030
General Electric IC698CRE030
General Electric IC698CRE030
General Electric IC698CRE030
General Electric IC698CRE030
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Discontinued / Obsolete by OEM
    Apter Power supports IC698CRE030 quotations, documentation, legacy sourcing, and hot-standby compatibility review.

IC698CRE030

/ 4.9
1001 reviews | Need a Specific Revision?

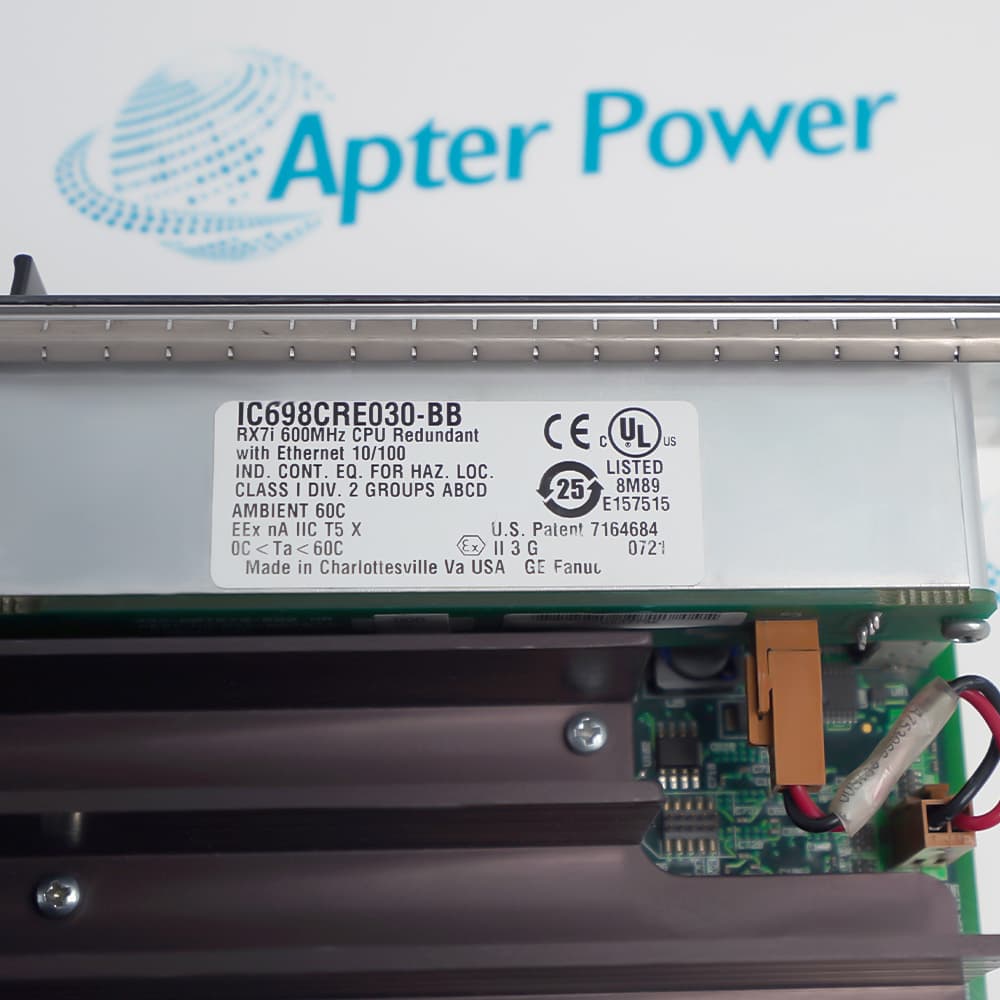

General Electric IC698CRE030 is a PACSystems RX7i 600 MHz redundancy CPU with 64 MB user memory for hot-standby control systems.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for IC698CRE030
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC698CRE030

  • Manufacturer:
    General Electric
  • Part Number:
    IC698CRE030
  • Product Family:
    GE PACSystems RX7i
  • Product Type:
    PACSystems RX7i 600 MHz Redundancy CPU
  • Stock:
    1
  • Processor:
    600 MHz Pentium-M
  • User Memory:
    64 MB
  • Ethernet:
    Embedded 10/100 Mbps
  • Serial Ports:
    RS-232 and RS-485 services
  • Backplane:
    VME64 RX7i rack
  • Memory Retention:
    Battery backed
  • Redundancy:
    Hot-standby capable
  • Cooling:
    Per RX7i rack limits
  • Programming:
    PAC Machine Edition
  • Diagnostics:
    Status LEDs and controller fault tables
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Compatibility Diagnostics Monitoring

Features:

  • Runs control logic on a 600 MHz Pentium-M processor within PACSystems RX7i racks.
  • Uses 64 MB of ECC-protected user memory for application logic and retained process data.
  • Supports synchronized hot-standby roles for high-availability controller architectures.
The current configuration is IC698CRE030, a PACSystems RX7i redundancy CPU with embedded Ethernet and serial communication services.

In its intended system role, one controller operates actively while the matched standby unit receives designated application state for controlled takeover.

Before commissioning, confirm both CPU revisions, firmware levels, rack hardware, transfer definitions, network addresses, and redundancy diagnostics.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for General Electric IC698CRE030:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Provides primary-and-standby control for continuous processes where controller availability is a central operating requirement.
  • Supports installed RX7i automation in material handling, utilities, packaging, and other coordinated machine systems.
  • Enables engineered maintenance of legacy VME64 rack installations when project, I/O, and redundancy compatibility are retained.
  • Installs in the PACSystems RX7i VME64 rack architecture with compatible power, backplane, and communications hardware.
  • Requires the same CPU model and compatible firmware on both sides of a normal hot-standby controller pair.
  • Uses PAC Machine Edition projects whose memory map, Ethernet settings, serial services, and redundancy configuration must match the installed system.
  • Controller LEDs and PACSystems fault tables identify rack, communications, application, and startup conditions that require investigation.
  • ECC monitoring detects memory errors that could affect retained application data or synchronized redundancy operation.
  • Standby-ready, synchronization, and role information helps isolate configuration or transfer faults before a controlled switchover test.
  • Tracks active and standby roles together with synchronization state during normal hot-standby operation.
  • Makes controller status and fault information available to PAC Machine Edition through the configured service connections.
  • Supports post-maintenance checks of role transfer, application continuity, and Ethernet or serial communications before release to production.
Description
GE IC698CRE030 is a PACSystems RX7i redundancy CPU built around a 600 MHz Pentium-M processor with 64 MB of ECC-protected user memory. It operates in VME64 racks and combines controller execution with embedded Ethernet and serial communication services.

Within a hot-standby architecture, the CPU runs the control application while exchanging designated operating state with a matched standby controller. This synchronized design supports controlled takeover when the active unit or its assigned control path becomes unavailable.

Status indicators, fault records, protected memory, and coordinated redundancy functions help operators diagnose the controller pair and maintain dependable system operation. The module is suited to installed RX7i platforms where continuous control and planned maintenance are important.
Revisions

Revision Part #

Also known as

IC698CRE030BB
IC698CRE030-BB, Series BB, Rev BB
IC698CRE030AB
IC698CRE030-AB, Series AB, Rev AB
IC698CRE030AA
IC698CRE030-AA, Series AA, Rev AA
IC698CRE030DC
IC698CRE030-DC, Series DC, Rev DC
IC698CRE030DE
IC698CRE030-DE, Series DE, Rev DE
IC698CRE030EE
IC698CRE030-EE, Series EE, Rev EE
IC698CRE030FM
IC698CRE030-FM, Series FM, Rev FM
IC698CRE030GM
IC698CRE030-GM, Series GM, Rev GM
IC698CRE030JP
IC698CRE030-JP, Series JP, Rev JP
Alternative Names
IC698CRE030 IC698 CRE030 IC698-CRE030 GE IC698CRE030 GE Fanuc IC698CRE030 General Electric IC698CRE030 PACSystems RX7i IC698CRE030 IC698CRE030 Redundancy CPU
Technical notes
For IC698CRE030 replacement, match both redundancy CPUs by model and firmware, preserve the transfer list, and verify synchronization before returning the pair to service.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What control role is GE IC698CRE030 designed to perform?
It operates as the primary or standby CPU in a PACSystems RX7i hot-standby architecture for continuous industrial control.
What must be matched when pairing GE IC698CRE030 controllers?
Match the CPU model, firmware, rack hardware, redundancy link, application project, transferred-memory definition, and network configuration.
Which applications commonly use GE IC698CRE030?
It is suited to installed RX7i systems that require controller redundancy for process, material-handling, and continuous machine operation.
What is the OEM lifecycle status of GE IC698CRE030?
Emerson identifies the applicable IC698CRE030 revisions as discontinued; Apter Power confirms available condition and lead time during quotation.
Can GE IC698CRE030 replace another RX7i CPU without engineering review?
No. Verify the rack, firmware, memory requirements, redundancy hardware, communications, power budget, and project target before substitution.
Which documentation and details support a GE IC698CRE030 quotation?
Use the PACSystems CPU and redundancy manuals, and provide the nameplate revision, firmware, rack configuration, quantity, and required condition.
