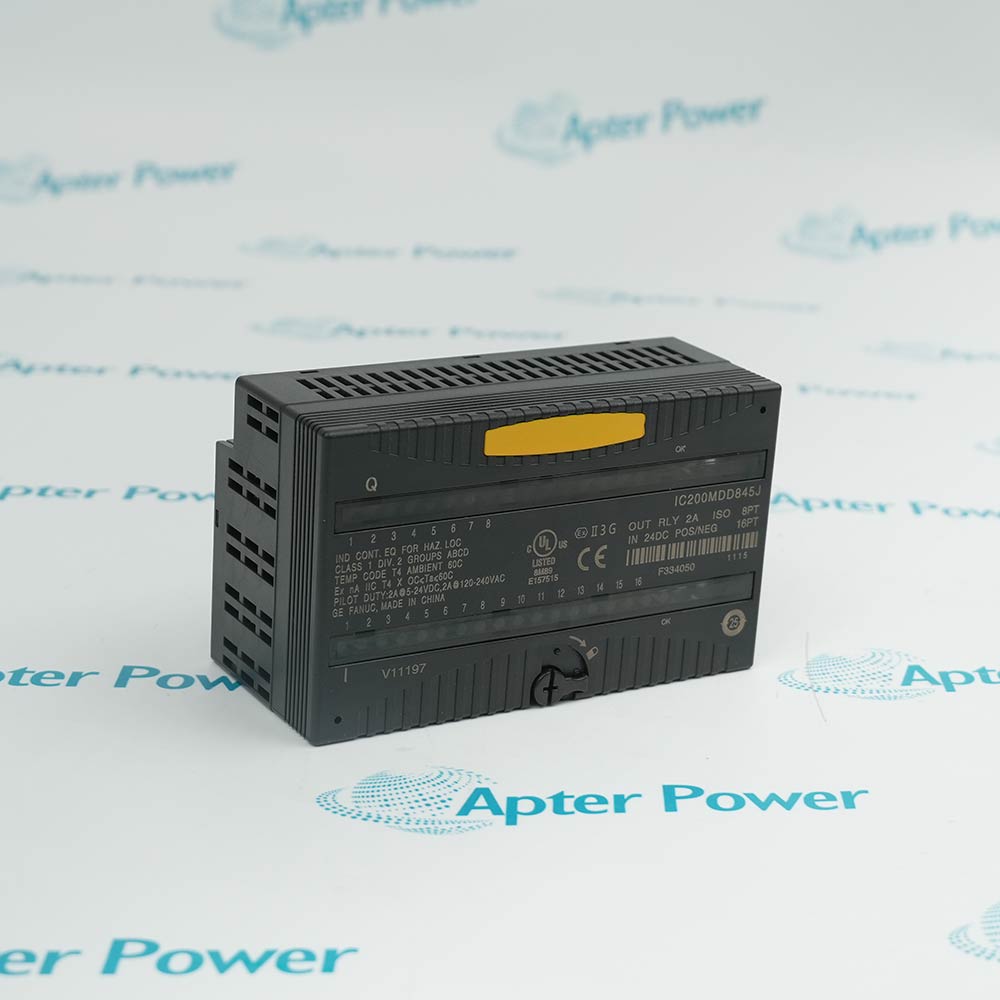

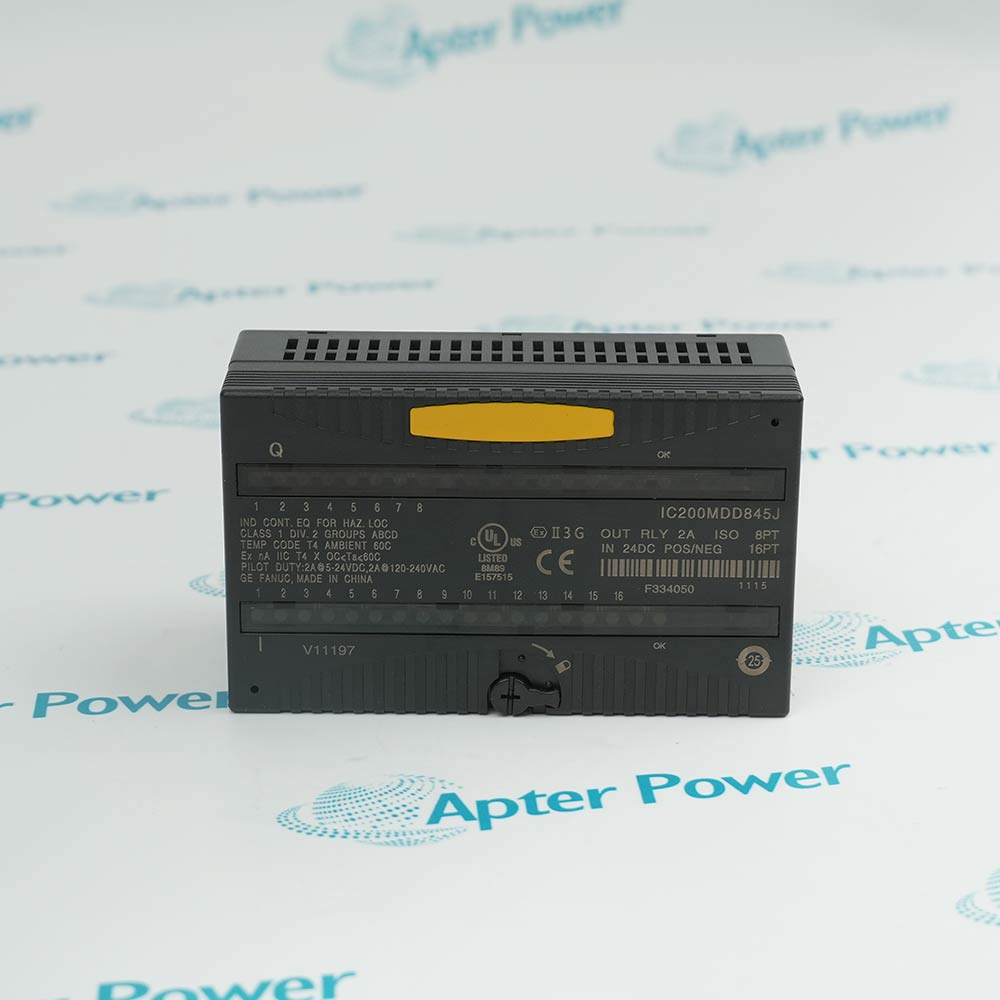

The GE/Emerson IC200MDD845 is a versatile mixed discrete input/output (I/O) module from the VersaMax I/O series, designed to integrate discrete field signals with programmable logic controller (PLC) systems in industrial automation environments.
Get a quick price for IC200MDD845
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC200MDD845

  • Manufacturer:
    General Electric
  • Part Number:
    IC200MDD845
  • Product Family:
    GE VersaMax
  • Series:
    VersaMax I/O Series
  • Module Type:
    24-point combination discrete I/O module
  • I/O Configuration:
    16 x 24 VDC Positive Logic inputs + 8 x Form A relay contact outputs
  • Mounting Requirement:
    Requires IC200CHS series carrier base
  • Backplane Current Consumption:
    Maximum 270 mA
  • Input Type:
    24 VDC Positive Logic (sinking)
  • Input Voltage Range:
    10.2-30 VDC (nominal 24 VDC)
  • Input Impedance:
    Maximum 10 kOhms
  • Input Current:
    5 mA typical at 24 VDC
  • Weight:
    0.26 kg
  • Estimated shipping dimensions:
    15.5x15x8.3cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.
Description
The GE/Emerson IC200MDD845 is a versatile mixed discrete input/output (I/O) module from the VersaMax I/O series, designed to integrate discrete field signals with programmable logic controller (PLC) systems in industrial automation environments.

This compact module combines sixteen (16) 24 V DC positive logic input channels with eight (8) individually isolated Form A relay output contacts, providing a total of 24 I/O points in a single unit that simplifies wiring and saves panel space in distributed control systems. The input section accepts standard 18–30 V DC signals from sensors, switches, and other binary devices with typical on‑state current between 2.0–5.5 mA and minimal off‑state leakage, ensuring reliable detection of field conditions.

The output section delivers robust switching capability for both AC and DC loads, with each relay contact rated for up to 2.0 A resistive load at 5–30 V DC or 5–265 V AC, and a minimum load requirement of 10 mA per point, enabling control of actuators, indicators, and small contactors directly from the module. Built‑in status LEDs for each input and output channel, along with a dedicated “OK” LED for backplane power indication, facilitate quick visual diagnostics during commissioning and maintenance.

Designed for use on standard IC200CHS series carrier bases, the IC200MDD845 draws power from the VersaMax backplane and requires external power for driving field loads, while individual channel isolation minimizes electrical interference and enhances system resilience. With typical response times of approximately 0.5 ms for ON transitions and 10 ms for OFF, this module supports responsive discrete signal processing in manufacturing, process control, and automation applications where reliable hybrid I/O functionality is needed.
