IC200MDL640M

/ 4.9
1001 reviews | Need a Specific Revision?

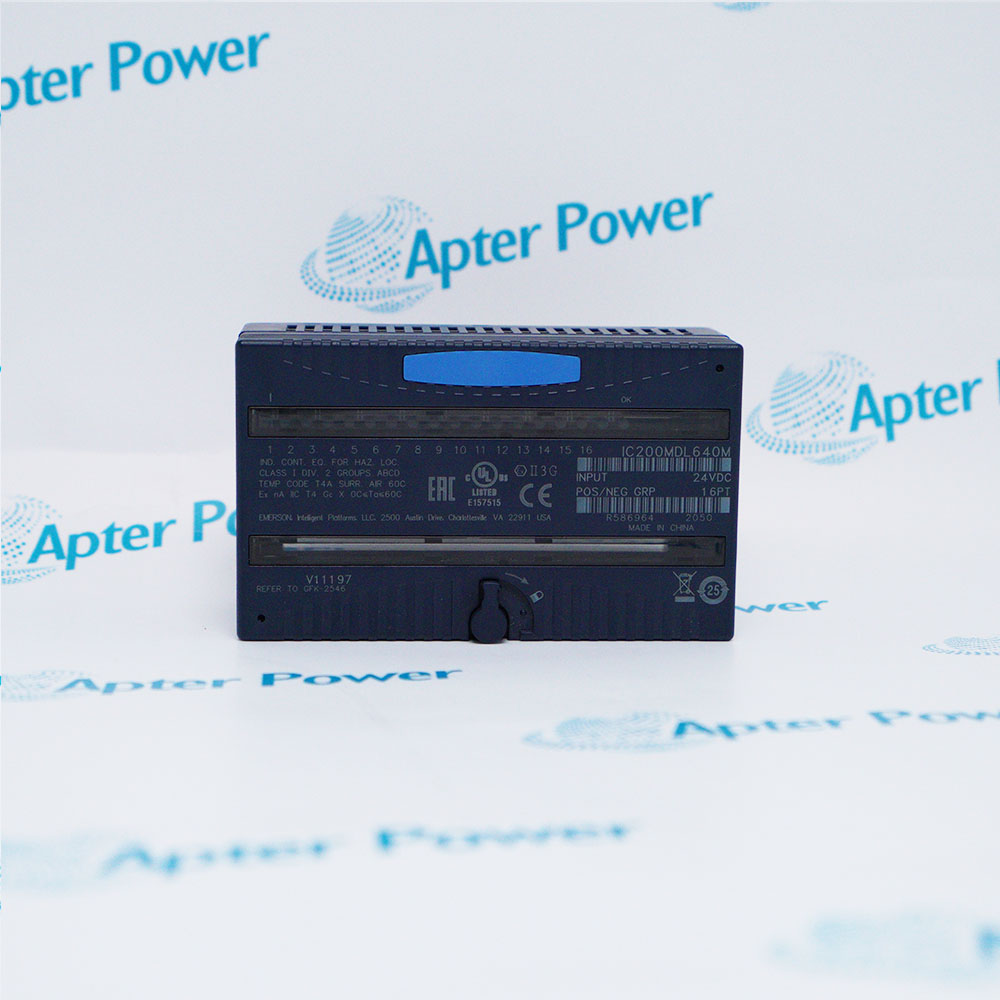

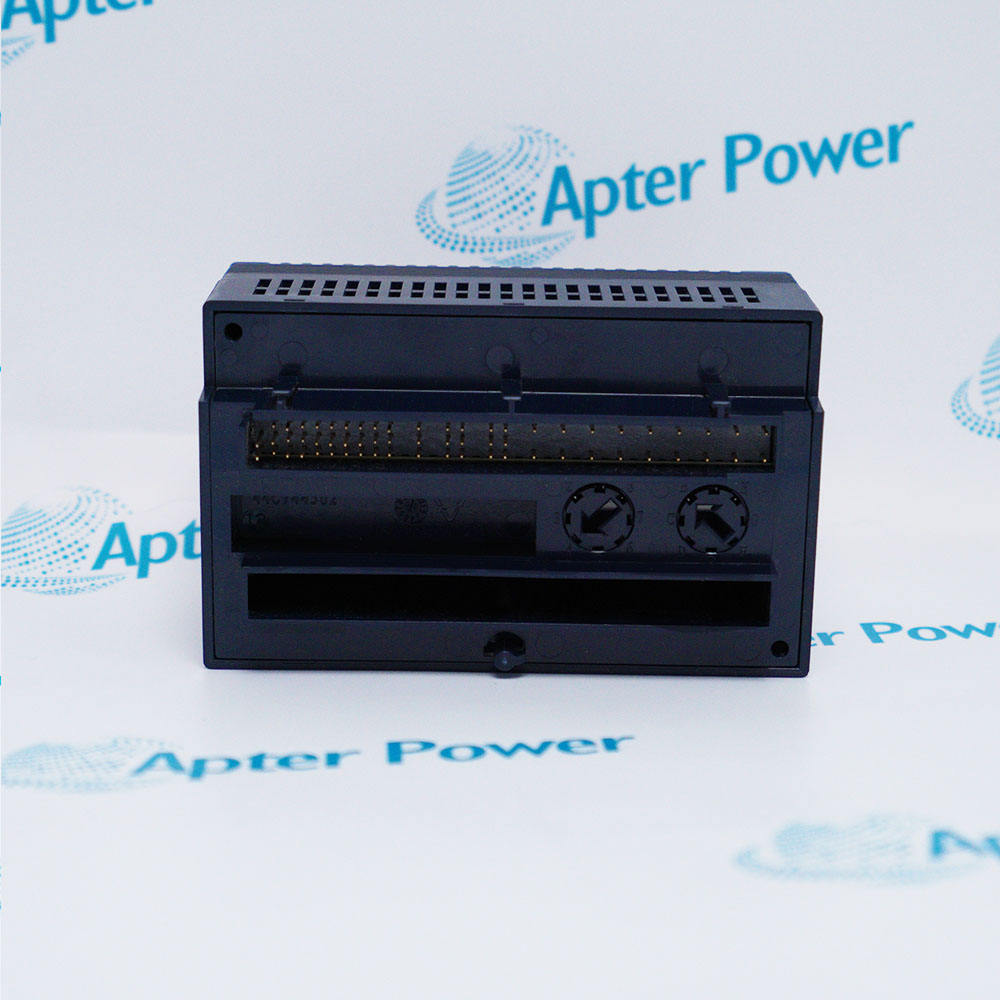

The General Electric IC200MDL640M is a VersaMax 24VDC discrete input module designed with 16 input points arranged in positive/negative groups. It supports reliable signal acquisition with configurable response filtering and optical isolation for stable backplane-based operation.
Get a quick price for IC200MDL640M
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC200MDL640M

  • Manufacturer:
    General Electric
  • Part Number:
    IC200MDL640M
  • Product Family:
    GE VersaMax
  • Product Type:
    VersaMax 24VDC Input Module
  • Pos/Neg Grp:
    16PT
  • Input voltage:
    0 to +30VDC,+24VDC nominal
  • On state voltage:
    +15 to +30VDC
  • Off state voltage:
    0 to +5VDC
  • On state current:
    2.0 to 5.5mA
  • Off state current:
    0 to 0.5mA
  • On response time ,Off response time:
    0.5 ms maximum
  • Configurable filter time:
    0 ms, 1.0ms (default), or 7.0ms
  • Input impedance:
    10 kOhms maximum
  • Isolation:
    User input to logic (optical) and frame ground: 250VAC continuous; 1500VAC for 1 minute Group to Group: 250VAC continuous; 1500VAC for 1 minute
  • Point to point:
    None
  • Configuration parameters:
    Input response times
  • Weight:
    0.45 kg
  • Estimated shipping dimensions:
    11x6.68x5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Diagnostics Installation Application Scenarios

Features:

  • Provides 16 discrete 24VDC input channels with flexible positive/negative logic grouping
  • Offers configurable filtering options to optimize signal stability in noisy environments
  • Ensures high-level electrical isolation with optical separation and robust safety design
The General Electric IC200MDL640M is designed as a compact and flexible input solution for industrial automation systems requiring reliable 24VDC signal acquisition. It integrates 16 discrete input points arranged in two independent groups, allowing structured signal organization in control architectures. The module supports both positive and negative logic configurations, giving engineers flexibility in wiring design. With backplane-powered operation, it eliminates the need for external input power supply wiring. The IC200MDL640M is widely used in control systems where stable digital signal reading is essential.

In industrial environments, the IC200MDL640M provides stable signal handling with fast response characteristics and configurable filtering options. The ability to adjust response timing allows it to adapt to different noise conditions and switching behaviors in field devices. Its optical isolation design ensures that input signals are safely separated from internal logic circuits, reducing electrical interference risks. This makes the module suitable for systems requiring reliable data integrity in electrically harsh environments. The IC200MDL640M supports consistent performance across varied automation applications.

From an application perspective, the IC200MDL640M is well-suited for machine control systems, process monitoring, and distributed I/O architectures. Its LED indicators provide clear real-time diagnostics for maintenance and troubleshooting efficiency. The module’s compatibility with hazardous location standards further extends its usability in demanding industrial sectors. With its structured design and configurable response behavior, the IC200MDL640M delivers dependable digital input handling across a wide range of automation environments.

The IC200MDL640M General Electric VersaMax 24VDC Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IC200MDL640M VersaMax 24VDC Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IC200MDL640M VersaMax 24VDC Input Module Specs

General

  • Manufacturer GE / Bently Nevada
  • Model IC200MDL640M
  • Condition New Original ready stock
  • Product Family IC200MDL640,IC200MDL640C,IC200MDL640D
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Channel Status Indication: The module panel is equipped with 16 green LEDs corresponding to each input point, intuitively displaying the signal's on/off status.
  • Power Self-Test Indication: Integrates an "OK" LED to indicate whether the backplane power supply is normally supplied to the module's internal logic circuitry.
  • Intelligent Diagnostic Integration: Supports reporting the module's presence status via the CPU or Network Interface Unit (NIU). If the module is lost or damaged, the controller will trigger corresponding system diagnostic information.
  • Troubleshooting Ease: Combined with PAC Machine Edition software, input image registers can be monitored in real time, quickly locating field wiring or sensor faults.
  • Tool-Free Assembly: The module adopts a "snap-on" design, allowing direct installation on the I/O carrier without additional tools.
  • Standard Rail Support: The system supports installation on standard 35mm DIN rails. Steel rails are recommended to ensure good electromagnetic compatibility (EMC) grounding.
  • Hot-Swap Function: Modules can be replaced without powering off during system operation (requires a specific carrier), reducing equipment downtime.
  • Compact Layout: The module depth after connection to the carrier is only approximately 70mm, suitable for installation in space-constrained control cabinets.
  • Basic Mechanical Control: Used for button and limit switch signal acquisition in simple machines such as small packaging machines and labeling machines.
  • Distributed I/O System: Serves as a remote I/O node in large production lines, communicating with the main controller via a Network Interface Unit (NIU).
  • Logic Level Conversion: Utilizes its support for positive/negative logic, compatible with mixed input of different sensor output types.
  • High-Speed ​​Signal Response: Suitable for industrial scenarios with strict response time requirements; its basic switching response time is only 0.5ms.
Description
The General Electric IC200MDL640M is a 24VDC input module within the VersaMax series, offering 16 discrete input points divided into two groups of eight. It is designed to handle input voltage ranges from 0 to +30VDC with a nominal 24VDC rating, ensuring compatibility with standard industrial control signals. The module supports both positive and negative logic configurations depending on system requirements. Each input point is directly connected between input and common terminals for flexible wiring. This makes the IC200MDL640M suitable for varied digital signal environments.

In terms of electrical performance, the IC200MDL640M operates with on-state voltage between +15 to +30VDC and off-state voltage from 0 to +5VDC. The on-state current ranges from 2.0 to 5.5mA, while off-state current is maintained between 0 to 0.5mA. Input impedance is specified at a maximum of 10kOhms, ensuring consistent signal interpretation. The module response time is 0.5ms, which can be extended through configurable filtering options. These characteristics allow the IC200MDL640M to maintain stable and precise digital input processing.

The configuration flexibility of the IC200MDL640M includes selectable input filter times of 0ms, 1.0ms (default), and 7.0ms, resulting in total response times up to 7.5ms depending on settings. This allows adaptation to environments where noise spikes or contact bounce may occur. The module’s intelligent processing is handled by the CPU or NIU through the backplane system. Power is supplied directly from the backplane, simplifying installation and integration. As a result, the IC200MDL640M provides flexible configuration without hardware modification.

Isolation performance is a key feature of the IC200MDL640M, offering optical isolation between user input, logic, and frame ground rated at 250VAC continuous and 1500VAC for 1 minute. Group-to-group isolation follows the same specification, ensuring safe electrical separation across input channels. This enhances system protection and signal integrity in industrial environments. LED indicators provide real-time status monitoring for each input point as well as module power presence. These visual diagnostics improve maintenance efficiency when using the IC200MDL640M.

The module also includes hazardous location compliance features, supporting Class I, Division 2 environments with appropriate safety warnings for installation and operation. No thermal derating is required for 16-point configurations at 24VDC in any orientation. For higher voltage conditions in 32-point systems, load distribution depends on temperature and installation setup. The IC200MDL640M is designed for robust industrial reliability, ensuring consistent performance under defined environmental conditions.
Revisions

Revision Part #

Also known as

IC200MDL640C
IC200MDL640-C, Series C, Rev C
IC200MDL640D
IC200MDL640-D, Series D, Rev D
IC200MDL640E
IC200MDL640-E, Series E, Rev E
IC200MDL640F
IC200MDL640-F, Series F, Rev F
IC200MDL640H
IC200MDL640-H, Series H, Rev H
IC200MDL640J
IC200MDL640-J, Series J, Rev J
IC200MDL640K
IC200MDL640-K, Series K, Rev K
IC200MDL640L
IC200MDL640-L, Series L, Rev L
Alternative Names
IC200MDL640 IC200MDL650 C200MDL640G IC200MDL650G IC200MDL640F IC200MDL650F IC200MDL640E IC200MDL650E IC200MDL640D IC200MDL650D IC200MDL640C IC200MDL650C IC200MDL640A IC200MDL650A
Technical notes
General Electric IC200MDL640M VersaMax 24VDC discrete input module with 16 points in two 8-point groups, input voltage 0–30VDC nominal 24VDC, on-state 15–30VDC, off-state 0–5VDC, on-state current 2.0–5.5mA, off-state current 0–0.5mA, input impedance max 10kOhms, response time 0.5ms with selectable filter times 0ms, 1.0ms, 7.0ms for total 0.5ms, 1.5ms, 7.5ms, isolation 250VAC continuous and 1500VAC for 1 minute between input to logic and group-to-group, powered from backplane with CPU or NIU processing, LED indicators for each input and OK status, Class I Division 2 hazardous location suitability with defined installation warnings.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What type of input signals can IC200MDL640M handle?
It supports 24VDC discrete input signals with a voltage range from 0 to +30VDC.
Why does the IC200MDL640M use configurable filter times?
To reduce the impact of noise spikes and switch bounce in industrial signal environments.
How does the IC200MDL640M achieve input isolation?
It uses optical isolation between user input, logic, and frame ground.
What is the response time of IC200MDL640M?
The base response time is 0.5ms, adjustable up to 7.5ms depending on filter settings.
