    Apter Power provides the GE DS200SLCCG3AFG LAN Communication Card for reliable maintenance and lifecycle support of legacy Mark V turbine control systems.

DS200SLCCG3AFG

/ 4.9
1001 reviews | Need a Specific Revision?

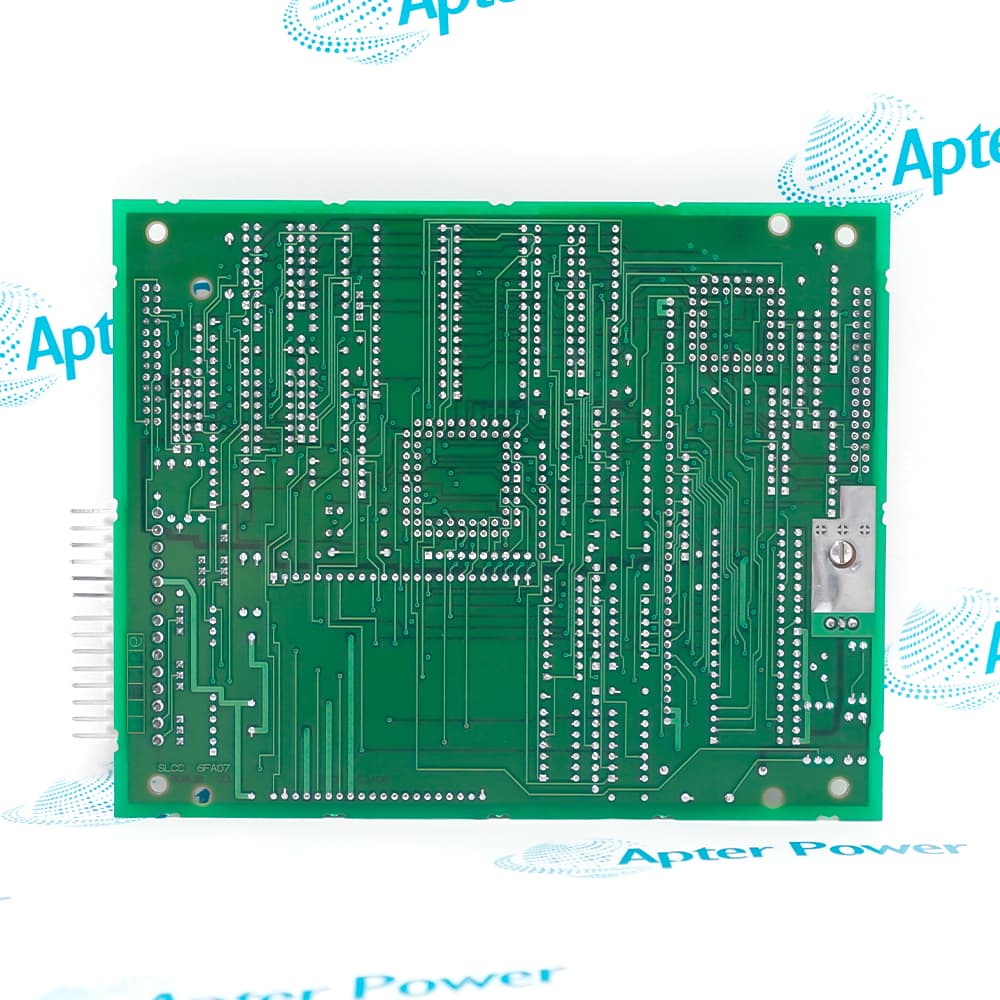

General Electric DS200SLCCG3AFG is an SLCC LAN communications card identified by its complete board marking for GE drive-control maintenance.
In Stock
Ships by Tuesday, September 29
Fast Shipping Available
Get a quick price for DS200SLCCG3AFG
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DS200SLCCG3AFG

  • Manufacturer:
    General Electric
  • Part Number:
    DS200SLCCG3AFG
  • Product Family:
    General Electric
  • Product Type:
    LAN Communications Card
  • Stock:
    1
  • Board Series:
    DS200
  • Card Family:
    SLCC
  • Board Identifier Suffix:
    G3AFG
  • Local Indication:
    Alphanumeric display/controller
  • Board Format:
    Plug-in printed wiring board assembly
  • Condition:
    New Original ready stock
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Board Identity Local Interface Replacement Control Product Applications

Features:

  • Complete DS200SLCCG3AFG board identification for precise maintenance records
  • SLCC LAN communications-card function for a GE drive-control assembly
  • Local alphanumeric indication and plug-in interconnections for service checks
The full G3AFG identifier keeps quotation and maintenance records specific to the supplied board.

Local indication gives technicians a board-level reference, while system diagnostics remain necessary to prove communication across the installed path.

A recorded connector map and jumper configuration support comparison with the applicable drive documentation during removal and replacement.

Apter Power can support documentation, quotation, and procurement requests for the General Electric DS200SLCCG3AFG LAN Communications Card.
General Electric DS200SLCCG3AFG LAN Communications Card Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • The complete identifier is DS200SLCCG3AFG.
  • G3AFG is retained as an uninterpreted board-identifier suffix.
  • Connector locations provide a physical reference for the installed board record.
  • Installed jumper or switch positions form part of the documented hardware configuration.
  • The SLCC family provides a LAN communications-card function in GE drive-control hardware.
  • An alphanumeric display/controller supports local board indication and service interaction.
  • Plug-in interconnections link the card to the surrounding control assembly and external cable path.
  • Local indication must be interpreted with the applicable system diagnostics, not as a stand-alone proof of data exchange.
  • Isolate the applicable drive power and follow the site's stored-energy procedure before touching or disconnecting the board.
  • Use static-sensitive handling and retain the card in an antistatic bag or box outside the assembly.
  • Record connector destinations and installed jumper or switch positions before removal.
  • After installation, verify the complete board identity, cable seating, recorded configuration, local indication, and data exchange.
  • LAN communication service in GE drive-control assemblies that specify an SLCC card.
  • Communication between the SLCC card and the associated drive control board through the documented internal connections.
  • Connection to the terminal-board and external cable path identified for the host drive.
  • Local board indication during diagnosis of the installed drive communication path.
Description
General Electric DS200SLCCG3AFG is an SLCC LAN Communications Card for a GE drive-control board assembly. Its complete board marking gives sourcing and maintenance teams a precise identity for the supplied printed wiring assembly.

General Electric DS200SLCCG3AFG combines an alphanumeric display/controller with plug-in interconnections used by the surrounding control assembly. The display supports local board-level indication, while successful end-to-end communication still depends on connector seating, the external cable path, and the installed configuration.

For service work, General Electric DS200SLCCG3AFG benefits from a traceable configuration record. Recording connector destinations and installed jumper or switch positions before removal supports comparison with the applicable drive documentation, while ESD-safe handling protects the printed wiring assembly.
Technical notes
General Electric DS200SLCCG3AFG should be matched by its complete board identifier, not by the SLCC acronym or board outline alone. GE's SLCC documentation distinguishes groups and configurable hardware, so connector layout and installed jumper positions must be checked against the host equipment record; stop the replacement if the identifier or hardware arrangement differs.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What should be verified after DS200SLCCG3AFG is reinstalled?
Restore the recorded connector and jumper or switch configuration, then confirm local indication and use the applicable drive diagnostics to verify data exchange across the installed communication path.
What does the alphanumeric display on DS200SLCCG3AFG confirm during diagnosis?
It provides local board-level indication that can guide a service check. It does not by itself prove data exchange through the external cable path, so the displayed state must be interpreted with the applicable drive diagnostics.
What should be done before disconnecting DS200SLCCG3AFG?
Isolate the applicable drive power and follow the site's stored-energy procedure. Before removal, record the connector map and every installed jumper or switch position so the hardware configuration can be checked during reinstallation.
What should be checked if DS200SLCCG3AFG powers up but communication remains unavailable?
Begin with connector seating, the external cable path, and the recorded jumper configuration, then use the applicable drive diagnostics to confirm whether data exchange is restored.
Which details help prevent a wrong DS200SLCCG3AFG quotation?
Provide the complete DS200SLCCG3AFG marking, the installed-equipment reference, and clear images of both board sides and connector positions. Stop the match if the offered hardware layout conflicts with those records.
How should DS200SLCCG3AFG be stored after removal?
Place the board in an antistatic bag or box as soon as it is outside the assembly. Keep its complete board identification with the stored card.
