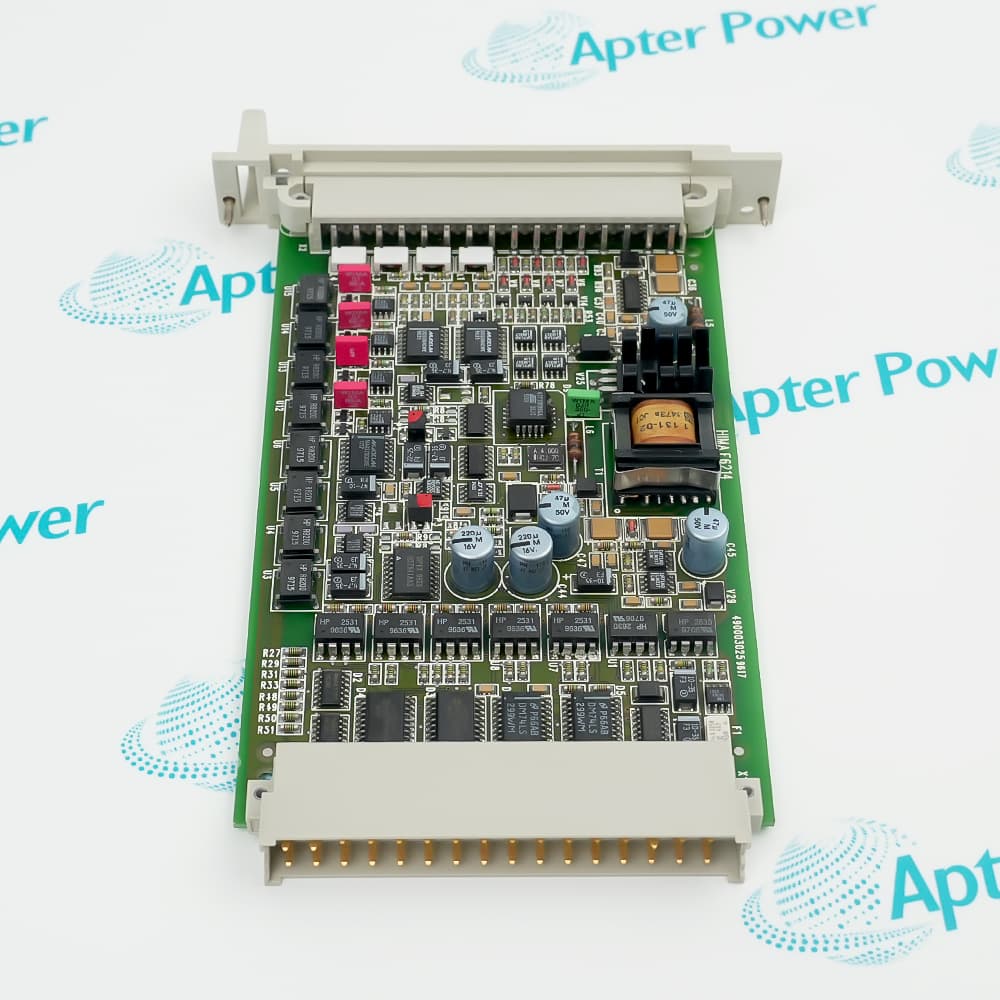

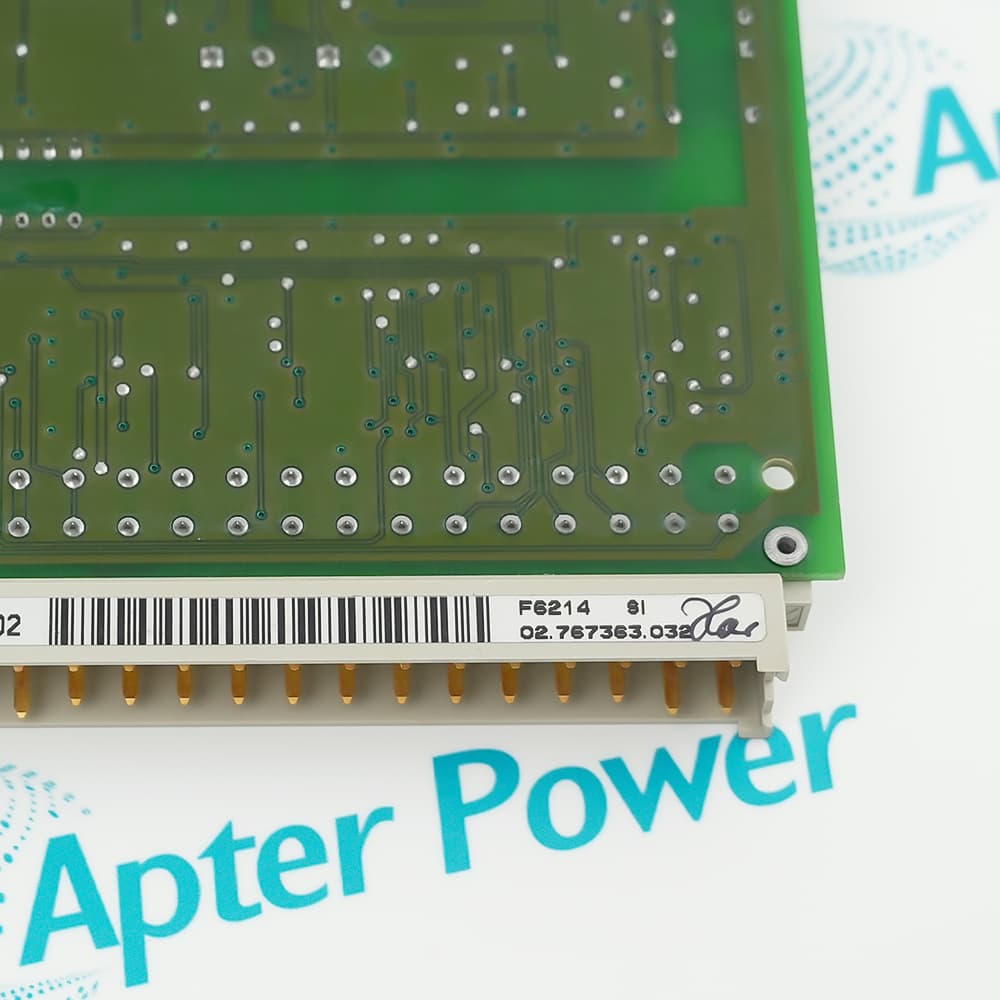

        HIMA F6214
        HIMA F6214
        HIMA F6214
        HIMA F6214
        HIMA F6214
        HIMA F6214
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Discontinued / Obsolete by OEM
          Apter power distributes genuine replacement hima safety modules, maintaining your long-term emergency shutdown infrastructure.

        F6214

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The F6214 is a 4-channel, safety-related analog input module designed for use with transmitters in a two-wire technique. It supports various input types (4-20 mA, 0-20 mA, 0/1/5/10 V) with safety isolation.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for F6214
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for F6214

        • Manufacturer:
          HIMA
        • Part Number:
          F6214
        • Product Family:
          HIMA HIMatrix system
        • Product Type:
          Analog Input Module
        • Stock:
          3
        • Safety Standard:
          Requirement Class AK 1 ... 6
        • Input Types:
          4-20 mA (2-wire), 0-20 mA, 0-1/5/10 V
        • Resolution:
          12 bits
        • Input Impedance:
          1 MΩ
        • Input Filter Time Constant:
          ~10 ms
        • External Shunt (for Current):
          50 Ω, 0.05%, 0.125 W, T<10 ppm/K
        • Transmitter Supply:
          25 V ... 20 V, 0 ... 22 mA
        • Short-Circuit Current:
          25 mA
        • Max Load Impedance:
          900 Ω
        • Max Scan Time (4 ch.):
          100 ms
        • Weight:
          0.16 kg
        • Estimated shipping dimensions:
          2x19x12.8cm
        • Tariff Code:
          8537101190
        • Country of origin:
          Gemany
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Application Protection Features Wiring Constraints

        Features:

        • Delivers ±0.25% accuracy for precise industrial pressure monitoring.
        • Supports 4-20 mA, HART, and Modbus protocols for flexible system integration.
        • Durable design for demanding industrial environments.
        The F6214 provides high-accuracy pressure measurement with typical accuracy of ±0.25% of span, ensuring precise and reliable pressure data for critical industrial applications. The F6214 offers a broad pressure range capability, from vacuum to high pressures, making it suitable for a wide variety of applications. Its high accuracy makes the F6214 ideal for process control, hydraulic and pneumatic systems, and other demanding pressure monitoring applications where measurement precision is essential.

        The F6214 supports multiple output signals, including 4-20 mA, HART, and Modbus protocols, providing flexible integration with various industrial control systems. This versatility allows the F6214 to be easily integrated into existing automation architectures without requiring additional signal converters. The F6214's communication capabilities enable remote configuration, diagnostics, and monitoring, improving system efficiency and reducing maintenance costs.

        The F6214 features a robust design with a stainless steel case, ensuring durability and reliable performance in harsh industrial environments. The F6214's construction is designed to withstand vibration, temperature extremes, and corrosive media, making it suitable for demanding applications in industries such as oil and gas, chemical processing, power generation, and water treatment. The F6214 is manufactured in Germany to WIKA's stringent quality standards.

        The F6214 HIMA Analog Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

        HIMA F6214 Analog Input Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        HIMA F6214 Analog Input Module Specs

        General

        • Manufacturer HIMA
        • Model F6214
        • Condition New Original ready stock
        • Product Family F6217,F6205,F6215,F6251
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Emergency Shutdown (ESD) Systems: Monitors critical pressure transmitters, emergency gas levels, and process temperatures in oil, gas, and chemical refineries.
        • Burner Management Systems (BMS): Tracks continuous combustion parameters, fuel-to-air flow ratios, and furnace draft pressures in large-scale utility boilers.
        • Fire and Gas (F&G) Loops: Processes continuous analog signals from flammable or toxic gas detectors and optical flame sensor arrays.
        • Two-Wire Transmitter Integration: Built-in 24V DC short-circuit-proof loop power (25 mA max) simplifies interfacing with field transmitters using standard 2-wire setups.
        • Onboard Self-Testing: The module executes microcode-driven internal test routines every cycle (with a max 100 ms scan time for all 4 channels).
        • Safe Galvanic Isolation: Features comprehensive structural isolation rated up to 250 V against Ground (GND), ensuring external electrical noise or lightning surges cannot breach the backplane bus.
        • Transmitter Short-Circuit Defense: Individual transmitter supply channels are limited to a maximum of 25 mA short-circuit current, preventing field wiring faults from damaging the card electronics.
        • Space and Mechanical Requirements: Mounts into standard HIMA I/O rack backplanes, occupying a physical width of 4 TE (Terminals).
        • Mandatory Channel Termination: All unused channels must be terminated using a 50 Ω high-precision shunt resistor (0.05% tolerance, 0.125 W) or equivalent configuration. Leaving an input open breaks the internal diagnostic routine, triggering a module system fault.
        • Online Swap Capability: Supports hot-swapping (on-line plugging and unplugging), allowing maintenance personnel to replace a faulty module while the rest of the safety rack remains active.
        Description
        The F6214 is a specialized 4-channel analog input module engineered for safety-critical applications within industrial control systems. Designed to interface with transmitters using the two-wire technique, the F6214 offers versatile input signal compatibility, including 4 to 20 mA current loops, voltage inputs of 0-1 V, 0-5 V, and 0-10 V, as well as current inputs of 0-20 mA.

        In terms of electrical performance and configuration, the F6214 delivers reliable and accurate signal acquisition. It provides power for connected two-wire transmitters, with a supply voltage that ranges from 25 V down to 20 V, capable of delivering up to 22 mA, and features a short-circuit current limit of 25 mA.

        The operational accuracy and timing of the F6214 are defined by key parameters. The module exhibits a basic error of 0.2% at 25°C, and its operating error remains within 0.3% across a temperature range of 0 to +60°C.

        Constructed for robust industrial integration, the F6214 requires a compact 4 TE (terminal element) space in a rack. It consumes 150 mA from a 5 V DC supply and 250 mA from a 24 V DC supply. The module provides electric strength of 250 V against ground (GND).
        Alternative Names
        F62I4 F6705 F6205 F6251 F6215 F6216 F6217 F6218
        Technical notes
        The WIKA F6214 is a pressure transmitter from the F62 series, designed for high-accuracy pressure measurement in demanding industrial applications. It features a robust design with a stainless steel case and offers various output signals, including 4-20 mA, HART, and Modbus protocols.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What types of input signals can the F6214 safety analog input module handle?
        The F6214 is a versatile safety-related module designed to accept a range of standard industrial signals. It supports 4 to 20 mA transmitters in two-wire technique, general 0 to 20 mA current inputs, and voltage inputs of 0-1 V, 0-5 V, and 0-10 V. All inputs are processed with safety isolation and a 12-bit resolution to meet the precision requirements of safety systems up to requirement class AK 6.
        How do I configure the F6214 for current measurement, and what are its accuracy specifications?
        For current measurement, the F6214 requires an external precision shunt resistor (50 Ohm, 0.05%, 0.125 W, part-no: 00 0710500). The module itself guarantees a basic error of 0.2% at 25°C, which degrades to a maximum operating error of 0.3% across the full temperature range of 0 to +60°C. It features an input filter with a ~10 ms time constant and a maximum scan time of 100 ms for all four channels.
        What are the power supply and output capabilities of the F6214 for connected field transmitters?
        The F6214 provides a transmitter supply ranging from 25 V down to 20 V, capable of sourcing up to 22 mA to power connected two-wire devices. It is protected by a short-circuit current limit of 25 mA. The maximum permissible load impedance for the loop is 900 Ohms. The module itself requires a 5 V / 150 mA and a 24 V / 250 mA supply for its own operation.
        What are critical installation and configuration considerations for the F6214 module?
        Two critical rules apply to the F6214. First, all unused channels must be terminated to prevent electrical noise and ensure stable operation. Second, when the F6214 is used in conjunction with zener barriers, it is strongly recommended to earth (ground) the analog GND of the F6214 module. This prevents potential cross-talking in case of a short circuit between a transmitter supply line and a cable screen, maintaining the integrity of the safety-related measurement chain.
