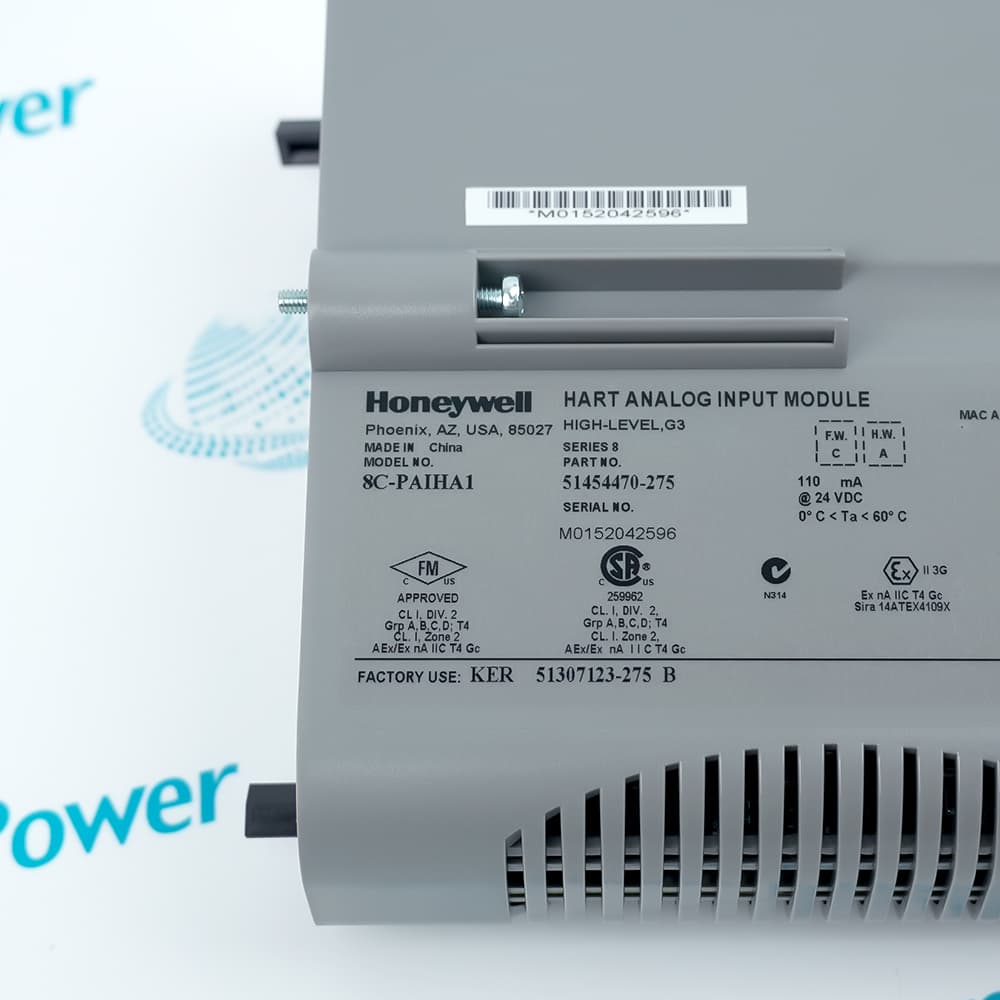

Honeywell 8C-PAIHA1 51454470-275 is a coated Series 8 analog input module with HART and 16 single-ended 4-20 mA channels.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 8C-PAIHA1 51454470-275
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 8C-PAIHA1 51454470-275

  • Manufacturer:
    Honeywell
  • Part Number:
    8C-PAIHA1 51454470-275
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    Series 8 Analog Input with HART Module
  • Stock:
    1
  • Input Channels:
    16 single-ended
  • Input Type:
    2-wire or self-powered
  • Input Range:
    4-20 mA
  • Input Resistance:
    250 ohms
  • Resolution:
    16-bit
  • Input Voltage:
    24 VDC
  • Module Current:
    110 mA
  • Common-Mode Rejection:
    70 dB
  • Common-Mode Voltage:
    -6 to +5 V peak
  • Normal-Mode Rejection:
    19 dB
  • Input Filter:
    -3 dB at 6.5 Hz
  • Maximum Input Voltage:
    +/-30 V
  • Crosstalk:
    -60 dB
  • Update Time:
    50 ms
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    6 x 15.6 x 14.3 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications HART Integration IOTA Review Ordering Review

Features:

  • HART input: Sixteen single-ended analog inputs with HART.
  • Loop support: Two-wire and self-powered 4-20 mA transmitters.
  • Input resolution: Sixteen-bit conversion through 250 ohms.

8C-PAIHA1 51454470-275 collects sixteen field current loops in a coated Series 8 module.

HART requirements, transmitter powering and channel configuration should be documented before commissioning.

The complete module code and IOTA arrangement must be checked when sourcing a replacement.

Availability is subject to Apter Power's current inventory and sourcing confirmation.

Verified resources for Honeywell 8C-PAIHA1 51454470-275:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • ManufacturerHoneywell
  • Model8C-PAIHA1 51454470-275
  • ConditionNew Original ready stock
  • Product FamilyHoneywell Series 8 I/O Modules

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

HART Integration

  • HART support: Confirm the project requires digital HART communication.
  • Loop type: Identify two-wire or self-powered transmitters.
  • Asset records: Preserve verified device and channel assignments.

IOTA Review

  • IOTA type: Match the installed termination assembly.
  • Channel wiring: Check polarity and field-loop supply.
  • Removal procedure: Follow the approved Series 8 maintenance process.

Ordering Review

  • Order number: Match 8C-PAIHA1 51454470-275 exactly.
  • Coating: Confirm the coated module requirement.
  • System record: Compare the offered unit with the installed Experion documentation.
Description
The 8C-PAIHA1 51454470-275 is a coated Honeywell Series 8 analog input module with HART for 16 single-ended current inputs.

Official documentation for 8C-PAIHA1 51454470-275 specifies 4-20 mA operation through 250 ohms, 16-bit resolution, and support for two-wire or self-powered transmitters.

Before ordering 8C-PAIHA1 51454470-275, confirm the complete module code, IOTA arrangement, HART requirement, and channel wiring against the installed Honeywell system.
Alternative Names
Honeywell 8C-PAIHA1 51454470-275 Honeywell Series 8 8C-PAIHA1 51454470-275 HART input Honeywell 8C-PAIHA1 8C-PAIHA1 51454470-275 8CPAIHA1 51454470275 Series 8 HART analog input module
Technical notes
8C-PAIHA1 51454470-275 is the coated Series 8 HART analog input configuration for sixteen single-ended current channels. Before installation, confirm the corresponding IOTA, transmitter power arrangement, channel wiring, HART requirement, and retained control configuration; another Series 8 input module should not be treated as a direct replacement without official system confirmation.
