CC-SDOR01 51308380-175

/ 4.9
1001 reviews | Need a Specific Revision?

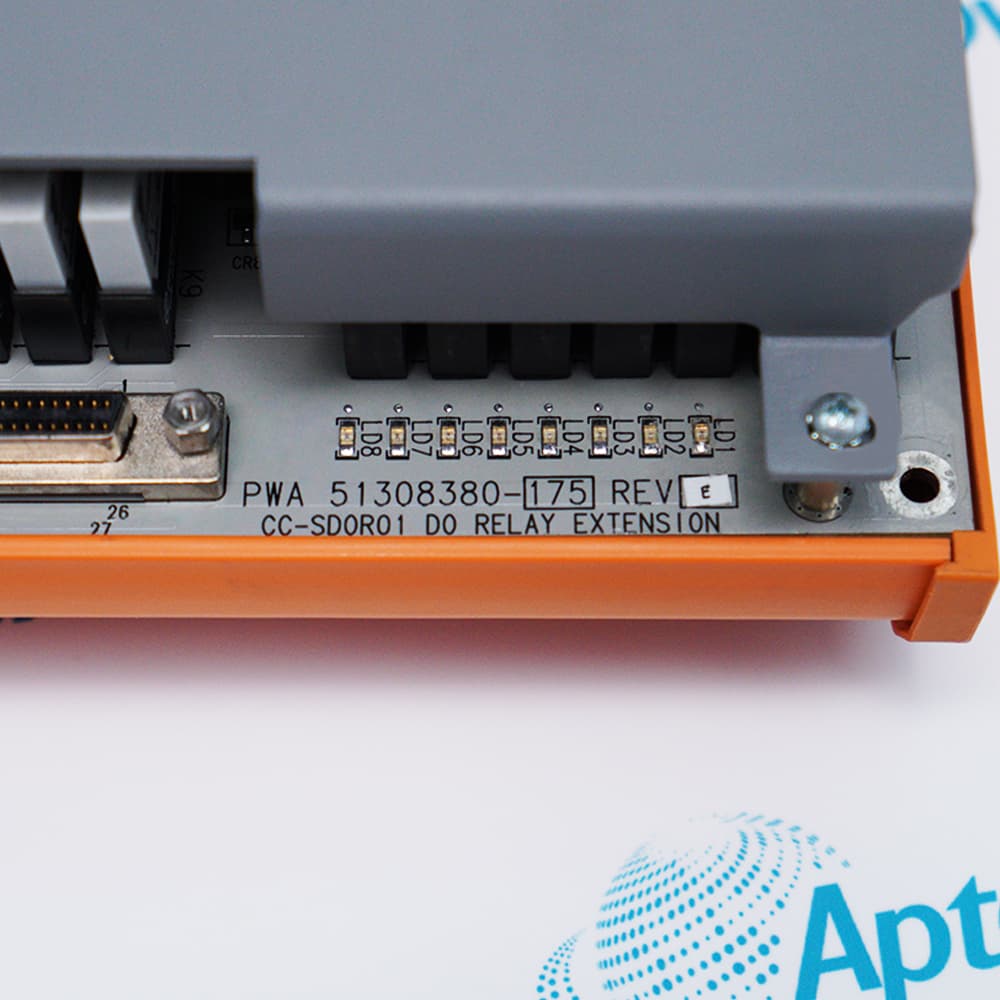

The Honeywell CC-SDOR01 51308380-175 is a 12-inch digital output relay expansion board designed specifically for the Experion Series C platform. When used with the CC-PDOB01 IOM, it provides 32 isolated dry contact outputs. This module is a reliable solution for driving high-voltage/high-current loads (such as solenoid valves, alarms, and contactors) in Honeywell DCS systems.
Get a quick price for CC-SDOR01 51308380-175
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CC-SDOR01 51308380-175

  • Manufacturer:
    Honeywell
  • Part Number:
    CC-SDOR01 51308380-175
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    digital output relay expansion board
  • Form Factor:
    12 inches (304 mm) – for Redundant Configuration
  • Output Channels:
    32 isolated outputs
  • Contact Type:
    Form A (SPST-NO) or Form B (SPST-NC), jumper-selectable per channel
  • Contact Materia:
    AgSnO2 (Silver Tin Oxide)
  • Maximum Load Voltage:
    250 VAC (RMS) / 125 VDC
  • Minimum Load Requirement:
    12 VDC / 100 mA
  • Maximum Inrush Current:
    10A for 4 seconds, 10% duty cycle
  • Coil Surge Suppression:
    120Ω + 0.033μF per channel
  • Mechanical Life:
    5,000,000 cycles (@ 180 cycles/min)
  • Electrical Life:
    50,000 cycles (@ 6A, 6 cycles/min)
  • Operating Temperature:
    -40°C to +70°C (module ambient)
  • Storage Temperature:
    -40°C to +85°C
  • Weight:
    1.2 kg
  • Estimated shipping dimensions:
    29.8x13x8.8cm
  • Tariff Code:
    8471499100
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Operating Monitoring & Control

Features:

  • Flexible and configurable isolated dry contact outputs
  • Comprehensive protection mechanisms and high reliability
  • Compact IOTA integrated architecture
Each output channel supports 1500 VAC electrical isolation and can be configured with normally open (NO) or normally closed (NC) contacts via independent jumpers, easily adapting to various field devices such as alarms, solenoid valves, and indicator lights.

Built-in RC buffer circuit effectively suppresses back EMF generated by inductive load switching, reducing electromagnetic interference. The "fuse-free" short-circuit protection design quickly disconnects the channel in the event of a fault and automatically restarts after the fault is recovered, significantly reducing maintenance costs.

Utilizing Honeywell's innovative IOTA technology, I/O modules, field terminals, and redundancy functions are integrated into one unit. Redundancy configuration can be easily achieved without additional chassis or complex external wiring, saving rack space and simplifying field installation.

The CC-SDOR01 51308380-175 Honeywelldigital output relay expansion board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell CC-SDOR01 51308380-175 digital output relay expansion board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell CC-SDOR01 51308380-175 digital output relay expansion board

General

  • Manufacturer Honeywell
  • Model CC-SDOR01 51308380-175
  • Condition New Original ready stock
  • Product Family CC-TDOR01,CC-TDOR11,CC-PDOB01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Oil & Gas / Petrochemical – Remote control of shutdown valves, solenoid valves, and alarm annunciators in Experion-based DCS systems.
  • Power Generation – BOP (Balance of Plant) applications including coal handling, ash removal, and water treatment systems.
  • Pulp & Paper – Driving contactors and relays for motor controls in continuous production lines.
  • High-Voltage Load Switching – Directly driving 120 VAC, 220 VAC, or 125 VDC field devices such as large solenoids and audible/visual alarms.
  • Wide Temperature Range – Fanless operation from -40°C to +70°C, suitable for harsh outdoor or high-temperature environments.
  • Redundancy Support – Hot-standby IOM redundancy with 0ms bumpless switchover for uninterrupted control.
  • Dust & Humidity Tolerance – IOTA enclosed design isolates electronics from field wiring, protecting against contaminants.
  • EMC Robustness – Built-in snubber circuits and 1500 VAC isolation ensure reliable operation near VFDs, large motors, and other EMI sources.
  • Real-Time Channel Status – View ON/OFF status of each output on Experion operator displays for quick process monitoring.
  • Diagnostic Alarms – Automatic generation of module error and "Channel Soft Failure" alerts for short circuits, open wires (with external circuit), or internal faults.
  • FAILOPT Configuration – Per-channel fail-safe behavior configurable as "Hold Last Value" or "Shed to Safe Value" via C300 controller, ensuring safe field device states upon loss of communication or power.
  • Predictive Maintenance – Implement cycle counting logic to track relay operations. Proactively schedule maintenance when approaching the 50,000-cycle electrical life limit, minimizing unplanned downtime.
Description
The Honeywell CC-SDOR01 51308380-175 is an important member of the Honeywell Experion Series C I/O family, used as a Relay Extension Board. It must be used in conjunction with the CC-PDOB01 digital output I/O module and the CC-TDOR01/11 IOTA (input/output terminal block) to form a complete 32-channel relay output solution. Its 12-inch physical size is designed for redundant configurations, meeting the high availability requirements of process industries.

The Honeywell CC-SDOR01 51308380-175 provides 32 fully isolated single-pole single-throw (SPST) dry contact outputs, each of which can be independently configured as normally open (Form A, NO) or normally closed (Form B, NC) via onboard jumpers. In terms of electrical performance, this module supports load voltages up to 250 VAC or 125 VDC, with a rated contact current of 3A @ 250 VAC under resistive loads and a surge withstand capability of 10A/4s, easily handling the starting impact of inductive loads such as motors and solenoid valves.

Regarding installation and maintenance, the Honeywell CC-SDOR01 51308380-175 utilizes Honeywell's innovative IOTA integrated architecture. Field wiring connects directly to the base screw terminals, achieving redundancy without the need for additional racks or complex jumper cables. The module incorporates a coil back EMF suppression circuit (120Ω + 0.033μF) and provides a 1500 VAC isolation voltage, ensuring stable operation in harsh industrial electromagnetic environments.

Alternative Names
CC-SDOR01 CC SDOR01 51308380-175 CC SDOR01 51308380 175
Technical notes
When using Honeywell CC-SDOR01 51308380-175, please note that the minimum load requirement is 12 VDC / 100mA. Lowering this value may affect contact reliability. Its mechanical life is 5 million cycles, and its electrical life (@6A) is 50,000 cycles. It is recommended to include contact life monitoring in the periodic maintenance plan.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What are the typical applications of Honeywell CC-SDOR01 51308380-175?
It is widely used in process industries such as oil & gas, chemical, power generation, and pulp & paper. Typical applications include driving alarms, solenoid valves, motor starters, and interposing relays within Honeywell Experion DCS systems, especially for high-voltage (up to 250 VAC) or high-current loads.
My output channel does not switch when controlling a low-power signal (e.g., 5V/10mA). Why?
The module has a minimum load requirement of 12 VDC / 100 mA. Below this threshold, the contact resistance may prevent reliable switching. For very low-power signals, please consider solid-state output modules instead.
Can the CC-SDOR01 operate in harsh temperature environments?
Yes. It is designed for industrial environments and complies with Honeywell Series C platform specifications, supporting an operating temperature range of -40°C to +70°C, making it suitable for outdoor cabinets or tropical plants.
What is the relay contact life expectancy? How does it affect my maintenance plan?
Mechanical life is 5 million cycles; electrical life is 50,000 cycles at rated 6A load. For frequently cycled valves or devices, Honeywell recommends incorporating cycle counting logic into your control strategy and scheduling preventive maintenance before reaching the electrical life limit.
