8C-TAIDB1 51307133-175

/ 4.9
1001 reviews | Need a Specific Revision?

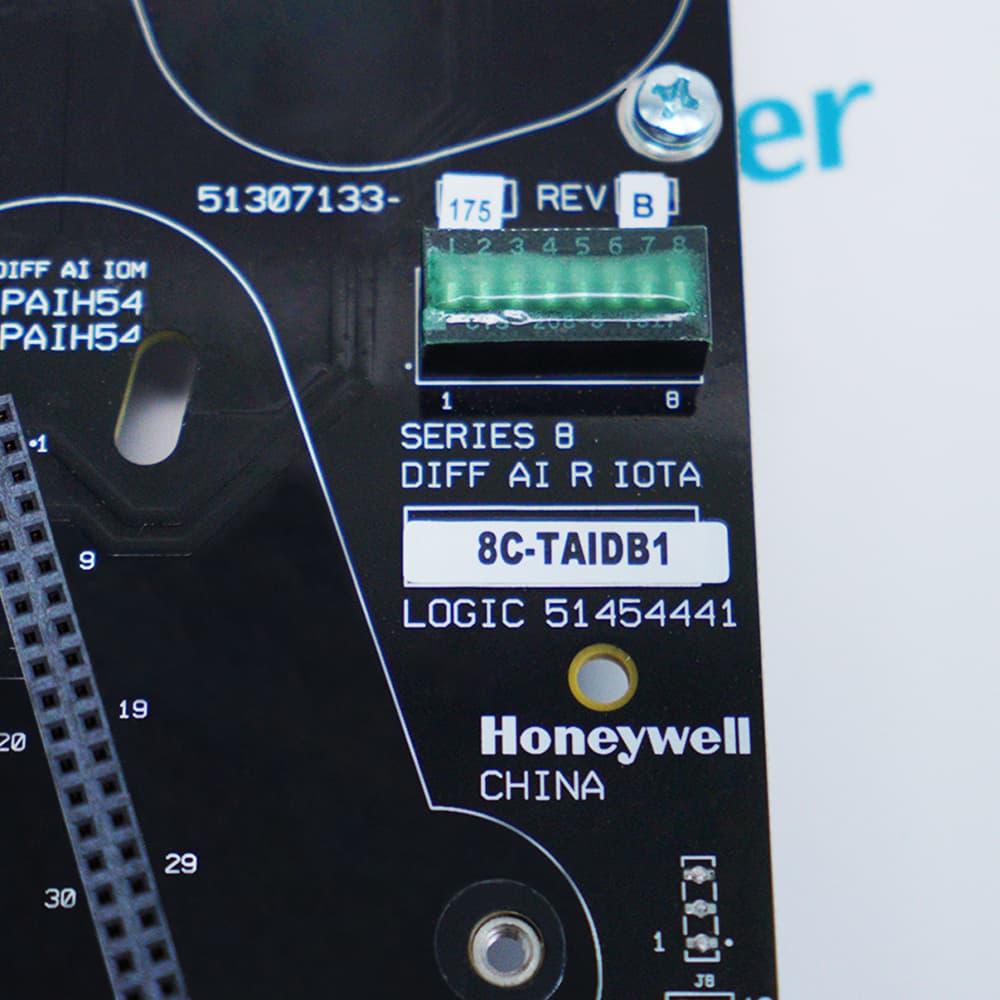

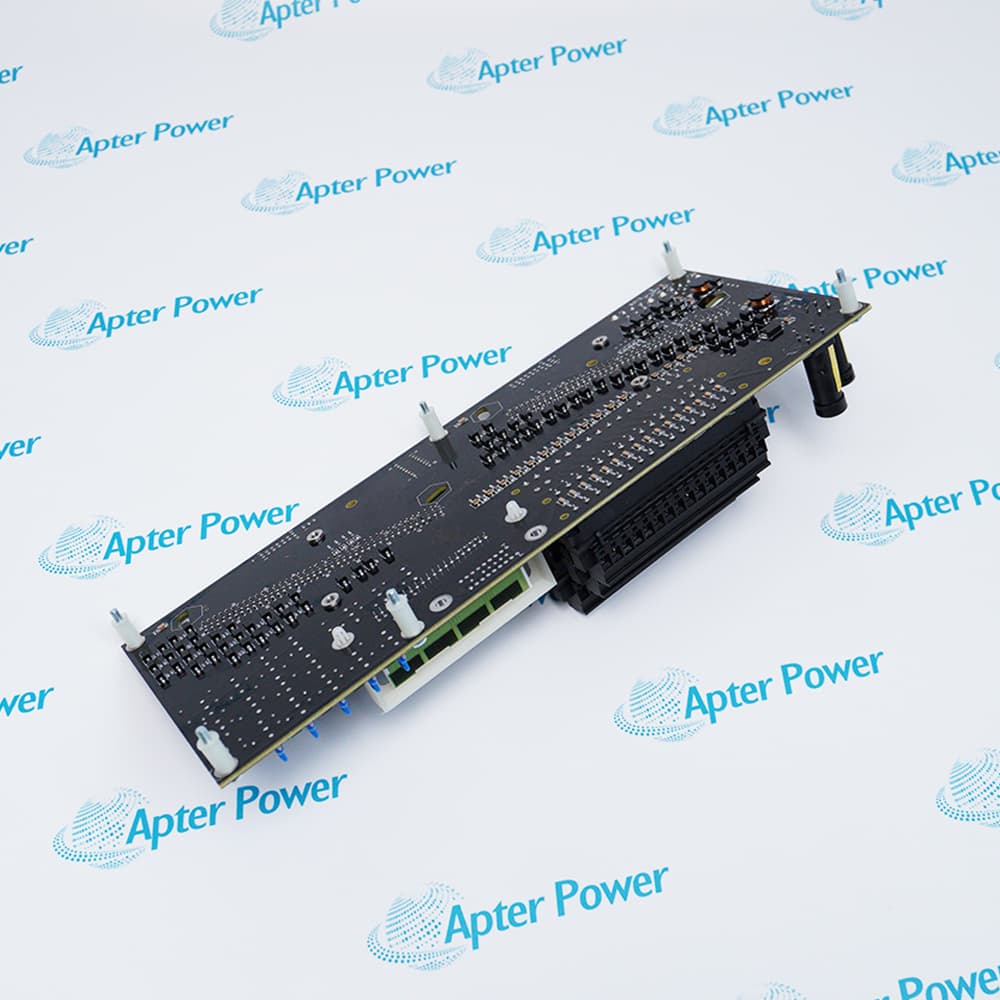

The Honeywell 8C-TAIDB1 51307133-175 is an AI IOTA Redundant Module specifically engineered for the Experion Series 8 and C300 distributed control systems.
Get a quick price for 8C-TAIDB1 51307133-175
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 8C-TAIDB1 51307133-175

  • Manufacturer:
    Honeywell
  • Part Number:
    8C-TAIDB1 51307133-175
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    AI IOTA Redundant Module
  • Number of Channels:
    16 Channels
  • Input Signal Range:
    4-20 mA (via 250 Ω resistor) or 1-5 VDC
  • A/D Converter Resolution:
    16-bit
  • Scan Rate:
    50 ms (per channel)
  • Communication Protocol:
    HART-capable (Supports multivariable devices)
  • Input Impedance:
    > 10 MΩ (Voltage mode)
  • Operating Voltage:
    24 VDC (Nominal)
  • Redundancy Type:
    1:1 Dual Redundant Path
  • Weight:
    0.38 kg
  • Estimated shipping dimensions:
    29.5x12x7.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Configuration & Programming Environmental Ratings

Features:

  • Interface Between the Analog Field Instruments and C300 Controller Backplane
  • Integrates 16-Channel Differential AI Acquisition with Redundant IOTA Support
  • Functions in Conjunction with the Series 8 and C300 Process Control Systems
The 8C-TAIDB1 51307133-175 operates as the AI IOTA Redundant Module in a C300 rack, providing reliable analog input signal conditioning and conversion for all channels within the module. It continuously accepts incoming analog signals (1–5 VDC voltage or 4–20 mA current via 250 Ω resistor) and converts these to digital data with a 16-bit ADC, distributing this data through the IOTA backplane to support steady state operation of the C300 controller and associated I/O modules. Seamless channel operation is standard with the 8C-TAIDB1, and the redundant IOTA architecture allows seamless switchover to a backup path in the event of a primary signal path failure. The 8C-TAIDB1 51307133-175 has incorporated G3-grade conformal coating and universal differential input capability within the Series 8 IOTA rack.

The 8C-TAIDB1 51307133-175 provides essential analog input functions common to the entire IOTA assembly, and is a critical component of the control loop path, directly affecting the proper, normal operation of the overall process control system. One or two 8C-TAIDB1 51307133-175 modules are deployed per IOTA base depending on the desired redundancy level. The 8C-TAIDB1 occupies a 12-inch redundant IOTA slot in the rack and is always mounted on the dedicated AI IOTA base.

For Dual Redundant IOTA applications, the C300 System requires a second 8C-TAIDB1 51307133-175 module installed in the redundant slot. In addition to standard single module operation, the redundant configuration also performs automatic switchover. The C300 dual IOTA configuration executes failover using the internal circuitry specified in the IOTA options. Using this method, the redundant IOTA system continually monitors the health of both modules. If the system detects that the primary 8C-TAIDB1 51307133-175 is no longer providing stable output (outside configured accuracy/tolerance levels), it will automatically transfer the load to the secondary module and place an event in the System Event List.

The 8C-TAIDB1 51307133-175 Honeywell AI IOTA Redundant Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell 8C-TAIDB1 51307133-175 AI IOTA Redundant Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell 8C-TAIDB1 51307133-175 AI IOTA Redundant Module Specs

General

  • Manufacturer Honeywell
  • Model 8C-TAIDB1 51307133-175
  • Condition New Original ready stock
  • Product Family 8C-TAIDA1,8C-PAIH54,8C-TAIXB1
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Critical Process Monitoring: Used for standard 4-20 mA current loops or 1-5 V voltage signals from field transmitters in industries like oil and gas, power generation, or chemical processing.
  • High-Availability Applications: The redundant "12-inch" form factor allows two I/O modules to work as a pair, ensuring continuous operation if one module fails.
  • HART Device Integration: Facilitates the collection of digital HART protocol data from smart field devices for advanced diagnostics and asset management.
  • Channel Setup: Each of the 16 channels can be independently configured for Single Ended or Differential analog inputs.
  • Input Ranges: Supports software-selectable ranges including 0–5 V, 1–5 V, 0.4–2 V, and 4-20 mA (via a 250 Ω resistor).
  • Engineering Tool: Users define control strategies using standard function blocks or Custom Algorithm Blocks (CABs) within the Control Execution Environment (CEE).
  • Redundancy Pairing: Redundancy is enabled by mounting two I/O modules onto this single 12-inch IOTA.
  • Operating Temperature:0 °C to 60 °C (32 °F to 140 °F).
  • Storage Temperature:-40 °C to +85 °C (-40 °F to 185 °F).
  • Relative Humidity:5% to 95% RH, non-condensing.
  • Coating Type:G3 Conformal Coated (Harsh Environment).
Description
The Honeywell 8C-TAIDB1 51307133-175 is a high-performance 16-channel Analog Input I/O Termination Assembly (IOTA) designed specifically for the Experion PKS Series 8 and C300 control systems. This 8C-TAIDB1 51307133-175 module serves as a redundant interface that supports differential analog inputs, ensuring that critical field data is accurately captured and transmitted to the controller. With its G3 conformal coating and 16-bit resolution, the 8C-TAIDB1 51307133-175 provides a robust and precise foundation for managing complex industrial signals in demanding environments.

In large-scale continuous process industries like oil refineries or chemical plants, this 8C-TAIDB1 51307133-175 is purpose-built to handle the challenge of signal loss and system downtime. The 8C-TAIDB1 51307133-175 is designed to address the risk of single-point failures in critical monitoring loops; by providing a redundant hardware path, it solves the problem of unexpected process interruptions. This ensures that even if one module path fails, the 8C-TAIDB1 51307133-175 maintains continuous data flow from sensors, effectively preventing costly emergency shutdowns and safety hazards.

Furthermore, the 8C-TAIDB1 51307133-175 excels in scenarios involving sophisticated field instrumentation, such as HART-capable multivariable transmitters. This 8C-TAIDB1 51307133-175 was engineered to manage the complexity of simultaneous digital and analog communication over 4-20mA loops. By integrating this 8C-TAIDB1 51307133-175 into the control architecture, operators solve the difficulty of accessing deep device diagnostics while maintaining high-speed control. The 8C-TAIDB1 51307133-175 thus streamlines maintenance workflows and enhances overall asset reliability through its advanced redundant architecture.
Alternative Names
8C-TAIDA1 8C-PAIH54 8C-TAIXB1
Technical notes
The 8C-TAIDB1 51307133-175 delivers high-precision signal acquisition with a 16-bit analog-to-digital converter and a scan rate of 50 ms per channel. At 23.5 °C, the module achieves an accuracy of ±0.075% of full scale, while over the full operating temperature range of 0 °C to 60 °C, accuracy remains within ±0.15% FS. The module exhibits a common-mode rejection ratio of 70 dB at 500 Ω imbalance and a normal-mode rejection ratio of 19 dB at 60 Hz, effectively suppressing electrical noise commonly found in industrial plant environments. Channel-to-channel crosstalk is rated at –60 dB, and the maximum input withstand voltage is ±30 V, providing robust protection against field wiring faults and transient overvoltages.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the Honeywell 8C-TAIDB1 51307133-175?
The Honeywell 8C-TAIDB1 51307133-175 is an AI IOTA Redundant Module designed for the Experion Series 8 and C300 distributed control systems. It is a 12-inch redundant I/O termination assembly that supports high-availability analog signal acquisition in critical industrial environments. Its G3-grade conformal coating ensures dependable performance in harsh conditions involving dust, humidity, and corrosive contaminants.
How many channels does the 8C-TAIDB1 support?
The module provides 16 differential analog input channels. These channels can be configured for both single-ended and differential signal inputs, allowing flexible integration with a wide range of process instruments.
Why is redundancy important in the 8C-TAIDB1?
Redundancy ensures high availability in mission-critical operations. If the primary input path fails, the secondary path immediately takes over without interrupting the control loop. This eliminates single points of failure and supports fault-tolerant process control strategies, reducing the risk of downtime and operational disruption.
How does the module handle electrical noise?
The 8C-TAIDB1 offers strong noise rejection capabilities. It features a common-mode rejection ratio of 70 dB and a normal-mode rejection ratio of 19 dB at 60 Hz. These specifications help suppress electrical interference commonly encountered in industrial plants, ensuring cleaner and more reliable measurements.
