DC-TAIL51 51307601-176

/ 4.9
1001 reviews | Need a Specific Revision?
The Honeywell DC-TAIL51 51307601-176 Low Level Analog Input IOTA terminates sixteen isolated thermocouple or RTD channels for Experion Series C I/O.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for DC-TAIL51 51307601-176
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DC-TAIL51 51307601-176

  • Manufacturer:
    Honeywell
  • Part Number:
    DC-TAIL51 51307601-176
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    Low Level Analog Input IOTA
  • Stock:
    1
  • Supported Sensors:
    Thermocouple and RTD
  • Channel Count:
    16
  • Channel Isolation:
    Fully isolated channels
  • Input Scan Rate:
    1 second
  • Input Bandwidth:
    0 to 4.7 Hz (-3 dB)
  • Common-Mode Voltage:
    ±250 VDC or VAC RMS maximum
  • Tariff Code:
    8538900000
  • Country of origin:
    China
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Sensor Inputs Isolation Design Signal Limits Measurement Accuracy

Features:

  • Low Level Analog Input field termination
  • Series C Input Output Termination Assembly format
  • Separate termination and plug-in electronics arrangement
DC-TAIL51 51307601-176 forms the fixed wiring interface for low-level analog channels in a Series C cabinet.

The IOTA layout of DC-TAIL51 51307601-176 keeps field conductors landed while the associated LLAI electronic module is handled as a separate component.

DC-TAIL51 51307601-176 must be identified by the complete PWA number because nearby LLAI assemblies can use different connector or electronics combinations.

The Honeywell DC-TAIL51 51307601-176 Low Level Analog Input IOTA is listed as Discontinued / Obsolete by OEM. Apter Power can support sourcing, documentation, and exact-part review.
Honeywell DC-TAIL51 51307601-176 Low Level Analog Input IOTA Manuals, Datasheets, Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Temperature-sensor termination

  • Thermocouples: DC-TAIL51 51307601-176 accepts low-level thermocouple signals through the LLAI path.
  • RTDs: Resistance temperature detectors are supported by the same sixteen-channel IOTA.
  • Module pairing: The IOTA is documented for use with the CC-PAIL51 input module.
  • Millivolt range: The nominal thermocouple span is -20 mV to +100 mV.

Per-channel electrical separation

  • Isolation count: All sixteen DC-TAIL51 51307601-176 channels are fully isolated.
  • Common-mode limit: The maximum published value is ±250 VDC or VAC RMS.
  • Input loading: Thermocouple channels present 1 MΩ impedance at dc.
  • Channel structure: Isolation is maintained individually rather than by a single shared input group.

Input response boundaries

  • Scan interval: DC-TAIL51 51307601-176 acquires each input on a one-second schedule.
  • Passband: The published response extends from dc to 4.7 Hz at -3 dB.
  • TC protection: Thermocouple inputs tolerate -10 V to +10 V without damage.
  • RTD protection: RTD inputs tolerate -1 V to +2 V at 100 mA without damage.

Published error characteristics

  • Gain error: DC-TAIL51 51307601-176 is specified at 0.050% of full scale maximum.
  • Temperature stability: The maximum published coefficient is ±20 ppm/°C.
  • Long-term drift: Honeywell lists a 500 ppm long-term drift value.
  • Measurement context: These limits apply to the documented low-level analog input path, not to unrelated Series C modules.
Description

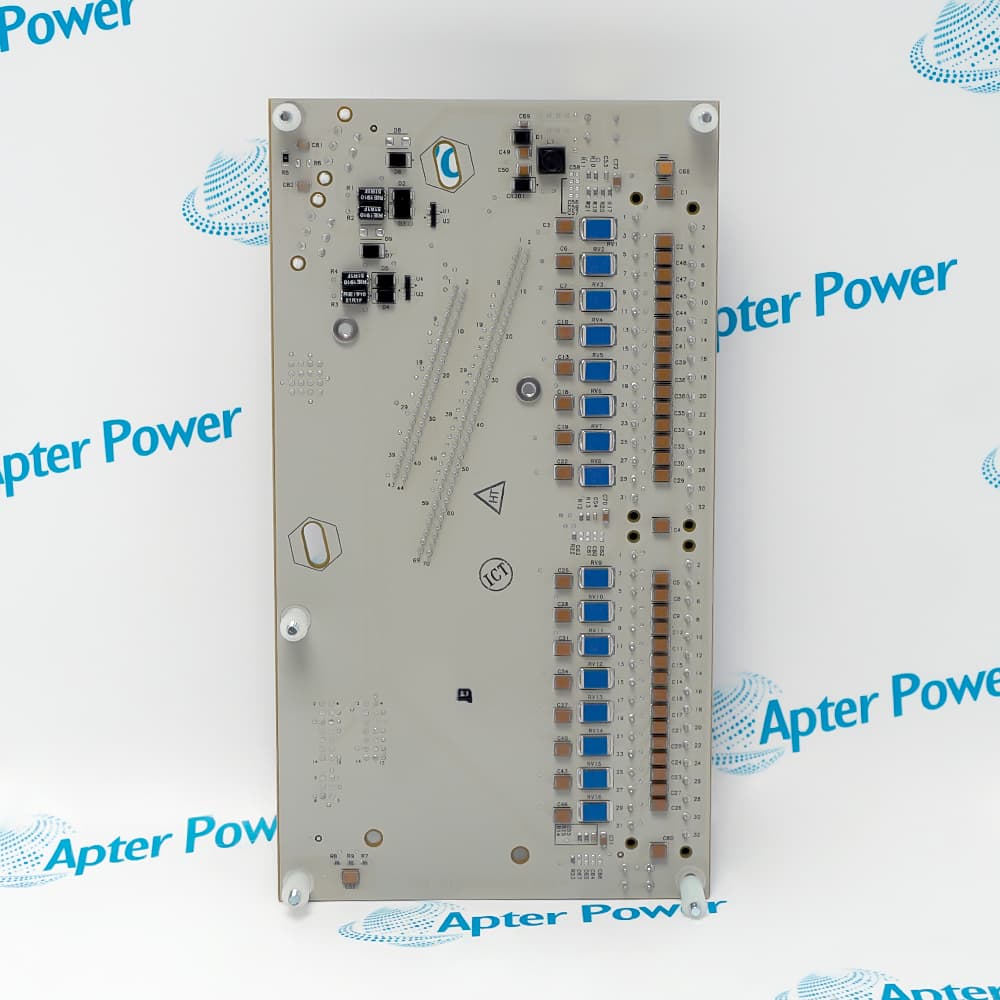

The DC-TAIL51 51307601-176 is the Low Level Analog Input IOTA used to terminate low-amplitude field signals before they enter the associated Series C input electronics. It provides the cabinet-side connection point for the LLAI signal path.

Field wiring remains on DC-TAIL51 51307601-176 while the matching electronic module supplies signal processing and diagnostics. This modular arrangement lets the termination assembly and plug-in electronics remain separate serviceable elements.

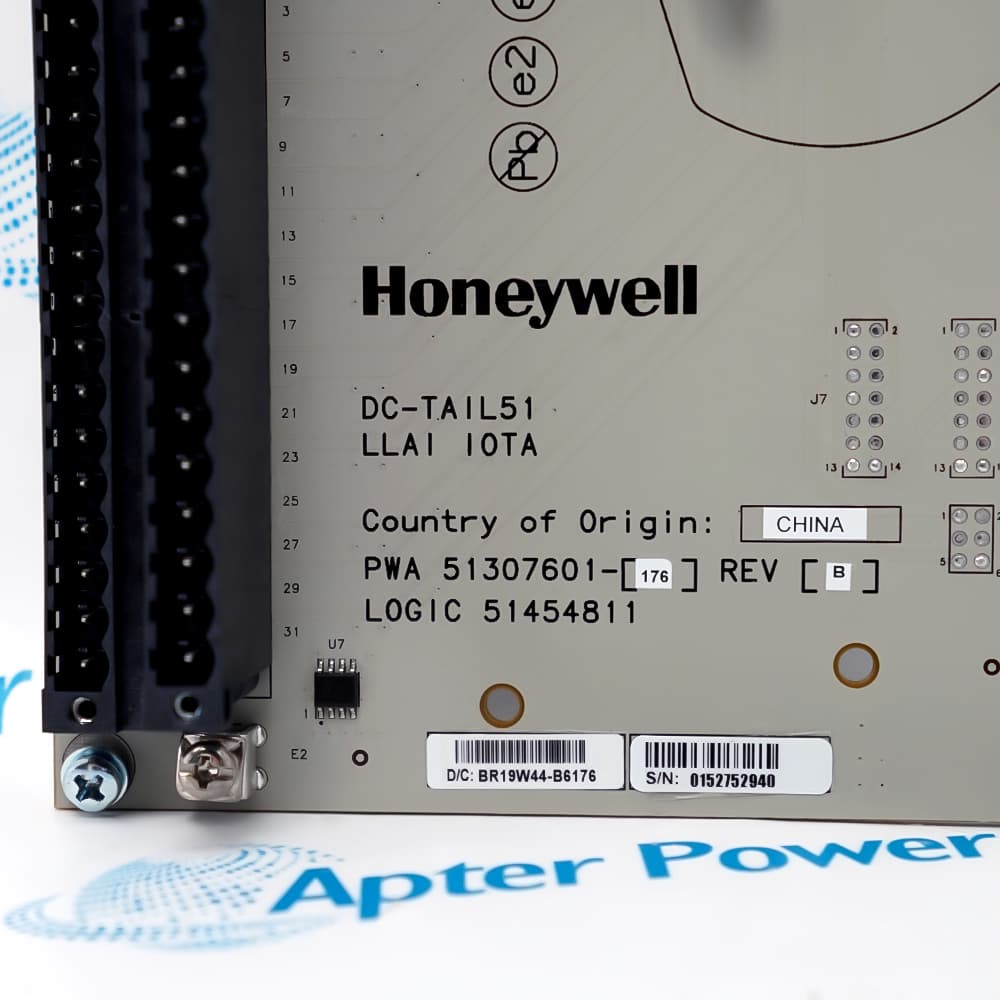

The complete DC-TAIL51 51307601-176 identity applies to the IOTA printed-wiring assembly rather than to the removable input module. Connector layout, IOTA position, and the paired LLAI electronics therefore have to correspond to the existing Series C installation.
Alternative Names
DC TAIL51 51307601 176 DCTAIL51 51307601176 DC-TAIL51 51307601176 DC TAIL51 51307601-176 Honeywell DC-TAIL51 51307601-176 LLAI DC-TAIL51 51307601-176 DC-TA1L51 513O76O1-176 DC-TAIL5I 5I3O76OI-I76
Technical notes
DC-TAIL51 51307601-176 is an LLAI IOTA; match its exact PWA number and paired electronic module before replacing the termination assembly.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which sensors can connect through Honeywell DC-TAIL51 51307601-176?
Honeywell DC-TAIL51 51307601-176 supports low-level inputs from thermocouples and resistance temperature detectors on the documented LLAI path.
How many channels does Honeywell DC-TAIL51 51307601-176 provide?
Honeywell DC-TAIL51 51307601-176 provides sixteen fully isolated low-level analog input channels.
How quickly does Honeywell DC-TAIL51 51307601-176 scan its inputs?
Honeywell DC-TAIL51 51307601-176 scans each of its sixteen input channels once per second.
What thermocouple range is specified for Honeywell DC-TAIL51 51307601-176?
Honeywell DC-TAIL51 51307601-176 has a nominal thermocouple input range of -20 mV to +100 mV.
What common-mode voltage can Honeywell DC-TAIL51 51307601-176 tolerate?
Honeywell DC-TAIL51 51307601-176 supports a maximum common-mode voltage of ±250 VDC or VAC RMS.
Which input module is associated with Honeywell DC-TAIL51 51307601-176?
Honeywell DC-TAIL51 51307601-176 is the IOTA associated with the CC-PAIL51 Low Level Analog Input module in Honeywell Series C I/O.
What identity details should be matched for Honeywell DC-TAIL51 51307601-176?
For Honeywell DC-TAIL51 51307601-176, match the DC-TAIL51 type, PWA 51307601-176, IOTA role, sensor wiring, and China label origin.
