TK-PRS022 51404305-575

/ 4.9
1001 reviews | Need a Specific Revision?

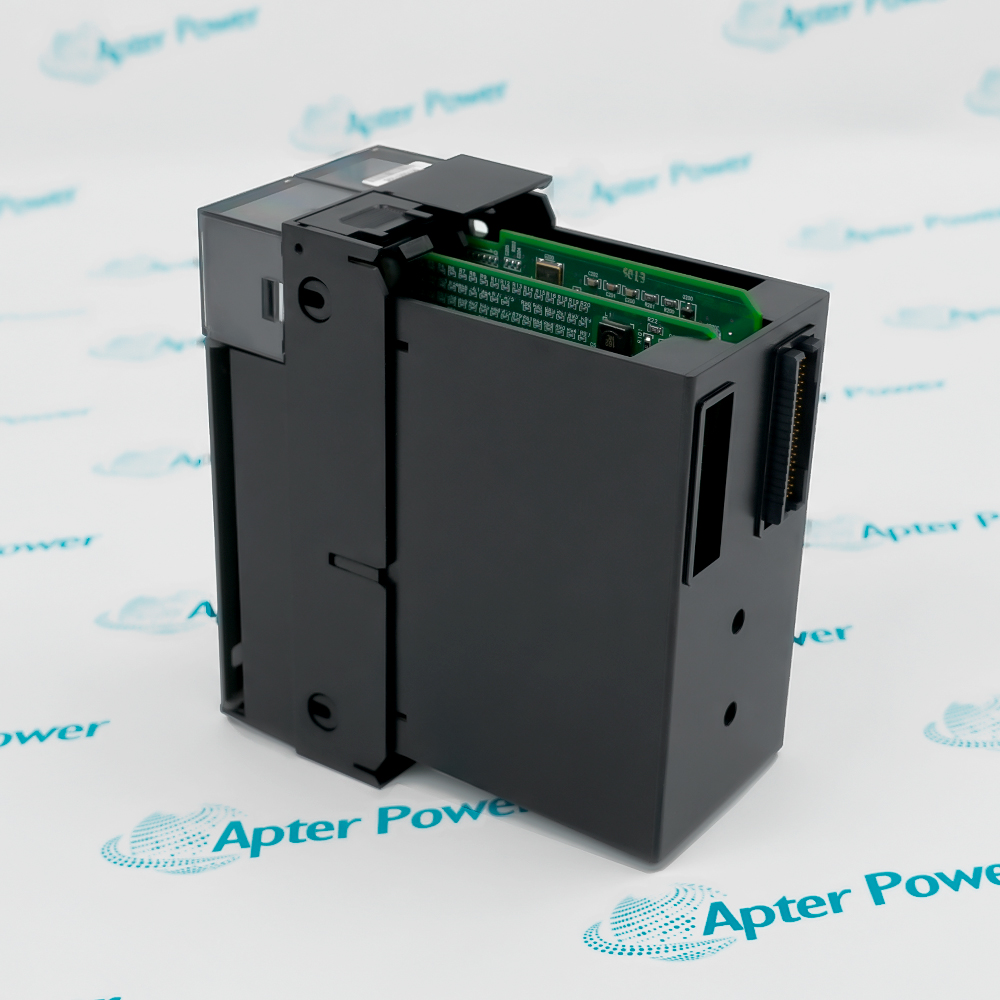

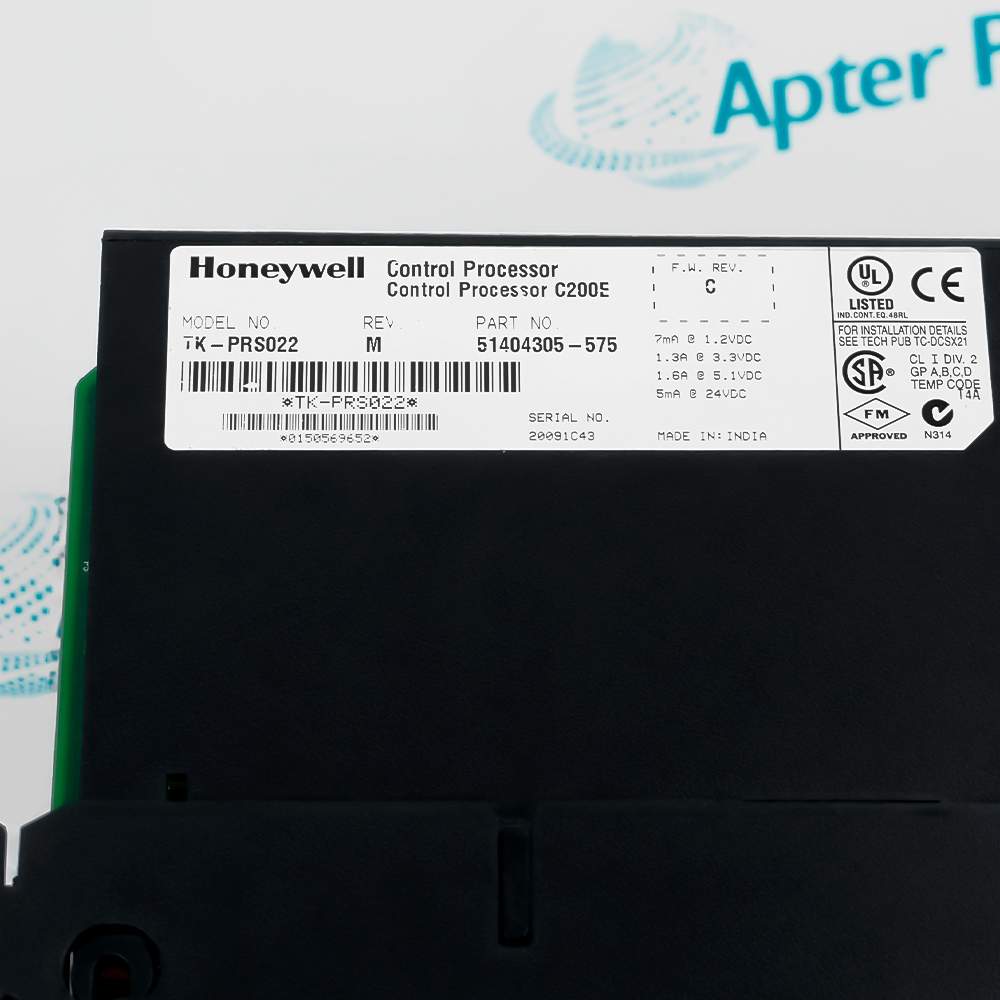

Honeywell TK-PRS022 51404305-575 is a Experion PKS C200E Control Processor. It executes deterministic Experion PKS control strategies in the CEE.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for TK-PRS022 51404305-575
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TK-PRS022 51404305-575

  • Manufacturer:
    Honeywell
  • Part Number:
    TK-PRS022 51404305-575
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    Control Processor
  • Stock:
    1
  • Control environment:
    Deterministic Control Execution Environment (CEE)
  • Configuration:
    Single or fully redundant controller implementation
  • Supported I/O families:
    Series A I/O, Rail A I/O, Rail H I/O and Process Manager I/O
  • Supported protocols:
    FOUNDATION Fieldbus, PROFIBUS, DeviceNet and HART through the documented system interfaces
  • Supported I/O modules:
    64
  • Operating temperature:
    0 to 60 deg C
  • Storage temperature:
    -40 to 85 deg C
  • Power requirements:
    +3.3 V DC at 1 A and +5 V DC at 1.5 A
  • Installation altitude:
    -300 to 3000 m
  • Relative humidity:
    5 to 95%, noncondensing
  • Execution periods:
    50 to 2000 ms, configurable
  • Tagged control blocks:
    Up to 4095 for C200E; 1023 for C200
  • Processing units:
    3600 nonredundant or 1600 redundant
  • Memory units:
    16000 for C200E; 4000 for C200
  • RAM retention:
    120 h with rechargeable battery or 144 h with replaceable battery
  • Conformal coating:
    G2/G3 environment execution documented
  • Standards:
    ATEX, C-Tick, CE, CSA, EMC, FM, RIUP and UL 508 Class I Division 2
  • Weight:
    0.97 lbs (0.44 kg)
  • Estimated shipping dimensions:
    7 x 14 x 14.5 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Performance Efficiency Environmental Ratings

Features:

  • Executes deterministic Experion PKS control strategies in the CEE.
  • Supports single or fully redundant controller configurations.
  • Coordinates multiple Honeywell I/O families and industrial protocols.
The C200E executes Experion PKS control strategies in the CEE, using a library of control, data-acquisition and calculation function blocks for continuous and batch applications.

The configured CEE is loaded into controller memory and schedules each strategy on a constant, predictable cycle. Embedded alarm and maintenance attributes remain associated with their function blocks during execution.

Because Honeywell has phased out the C200/C200E family, replacement planning should preserve the CEE strategy database and verify the supported migration path to C300 or UOC before hardware substitution.

Availability is reviewed against the exact TK-PRS022 51404305-575 order identity and requested supply condition; manufacturer lifecycle status: Discontinued / Obsolete by OEM.
Verified resources for Honeywell TK-PRS022 51404305-575:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • C200E extends the original C200 platform with additional memory and capability, including support for Experion Batch Manager and ISA S88.01 batch control in a redundant controller arrangement.
  • The processor coordinates the configured I/O and communications families through the Experion architecture. Exact chassis, redundancy module, firmware release and I/O mapping must match the installed node.
  • Is officially phased out with C300 or UOC identified as the migration path.
  • Deterministic CEE cycles schedule each control strategy at predictable execution intervals.
  • Embedded alarm and maintenance attributes remain associated with their configured function blocks.
  • Supports continuous and batch control through standard calculation and acquisition functions.
  • Draws 1 A at 3.3 V DC and 1.5 A at 5 V DC.
  • C200/C200E hardware reached phase-out, with C300 or UOC identified for migration.
  • Operates as the C200E Control Processor within the Experion control environment.
  • Executes control applications inside the deterministic Control Execution Environment.
  • Supports operation from 0 to 60 deg C.
  • Storage temperature spans -40 to 85 deg C for protected hardware.
Description
Honeywell TK-PRS022 51404305-575 The C200E executes Experion PKS control strategies in the CEE, using a library of control, data-acquisition and calculation function blocks for continuous and batch applications. The configured CEE is loaded into controller memory and schedules each strategy on a constant, predictable cycle. Embedded alarm and maintenance attributes remain associated with their function blocks during execution.

C200E extends the original C200 platform with additional memory and capability, including support for Experion Batch Manager and ISA S88.01 batch control in a redundant controller arrangement. The processor coordinates the configured I/O and communications families through the Experion architecture. Exact chassis, redundancy module, firmware release and I/O mapping must match the installed node.

Because Honeywell has phased out the C200/C200E family, replacement planning should preserve the CEE strategy database and verify the supported migration path to C300 or UOC before hardware substitution.
Alternative Names
TK-PRS022 51404305-575 TK PRS022 51404305 575 TKPRS02251404305575 TK-PRS022-51404305-575 Honeywell TK-PRS022 51404305-575 Honeywell TK PRS022 51404305 575 Honeywell TKPRS02251404305575 Honeywell Experion PKS C200E Control Processor
Technical notes
Replacement planning for Honeywell TK-PRS022 51404305-575 must retain the CEE strategy database and confirm the approved C200/C200E migration path before any move to C300 or UOC hardware.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which CEE workloads can Honeywell TK-PRS022 51404305-575 execute?
The C200E executes Experion PKS control strategies in the CEE, using a library of control, data-acquisition and calculation function blocks for continuous and batch applications.
Why must Honeywell TK-PRS022 51404305-575 retain its CEE configuration?
The manufacturer data specifies Control environment as Deterministic Control Execution Environment (CEE); the installed arrangement must match that exact value.
How are strategies scheduled in Honeywell TK-PRS022 51404305-575?
The configured CEE is loaded into controller memory and schedules each strategy on a constant, predictable cycle. Embedded alarm and maintenance attributes remain associated with their function blocks during execution.
What must be preserved when replacing Honeywell TK-PRS022 51404305-575?
Because Honeywell has phased out the C200/C200E family, replacement planning should preserve the CEE strategy database and verify the supported migration path to C300 or UOC before hardware substitution.
What does the discontinued status mean for Honeywell TK-PRS022 51404305-575?
The page records Discontinued / Obsolete by OEM. Apter Power reviews the exact order identity and condition without presenting this as an OEM delivery promise.
Which project records support a Honeywell TK-PRS022 51404305-575 quotation?
Submit the complete nameplate, Supported I/O modules (64), installed system evidence, condition, quantity and destination so the document and quotation match TK-PRS022 51404305-575.
