The Honeywell TK-OAV061 is a 6-channel, non-isolated 0-10V analog output module belonging to the Honeywell C200/C200E controller family, designed specifically for the Experion PKS process control system.
Get a quick price for TK-OAV061
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TK-OAV061

  • Manufacturer:
    Honeywell
  • Part Number:
    TK-OAV061
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    analog output module
  • Number of Channels:
    6
  • Output Signal Type:
    0-10V DC (Voltage only – 4-20mA NOT supported)
  • Isolation:
    Non-Isolated (No "Isolated" marking on official label)
  • Hardware Revision:
    Rev C01
  • Firmware Revision:
    FW 1.9
  • Power Supply:
    24VDC / 5.1VDC (Dual supply)
  • Current Consumption:
    175mA @ 24VDC, 250mA @ 5.1VDC
  • Total Power Dissipation:
    Approx. 5.5W
  • Operating Temperature:
    -20°C to +70°C
  • Compatible Terminal Block:
    TC-TBNH, 20-position
  • Weight:
    0.28 kg
  • Estimated shipping dimensions:
    3.5x14x14.5cm
  • Tariff Code:
    8471499100
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Firmware & Updates Monitoring & Control Applications

Features:

  • 6-Channel 0-10V Voltage Output
  • Low-Power Industrial-Grade Design
  • Seamless System Integration
The Honeywell TK-OAV061 provides six independent analog output channels, each outputting a standard industrial voltage signal of 0-10V. This allows direct driving of various field devices that accept voltage control commands, such as valve positioners, frequency converters, and recorders.

The Honeywell TK-OAV061 consumes approximately 5.5W of power and supports a wide operating temperature range of -20°C to +70°C. It employs dual power supplies (24VDC and 5.1VDC), making it suitable for continuous and stable operation in harsh industrial environments such as petroleum, chemical, and power industries.

As a Series A I/O module, the Honeywell TK-OAV061 can be directly installed in the C200/C200E controller rack. It can be configured and diagnosed using the Experion PKS system software and is used with the TC-TBNH terminal block, simplifying field wiring and maintenance.

The TK-OAV061 Honeywellanalog output module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell TK-OAV061 analog output module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell TK-OAV061 analog output module

General

  • Manufacturer Honeywell
  • Model TK-OAV061
  • Condition New Original ready stock
  • Product Family TK-IAH061,TK-OAH061,TC-OAV061
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Firmware Version Confirmed: Verified on physical unit – FW 1.9 (Rev C01)
  • System Compatibility: Firmware compatible with Experion PKS releases R300 through R500 series
  • Online Configuration: Parameters configurable and diagnosable via Honeywell Configuration Studio
  • Lifecycle Notice: Product is phased-out; no new firmware releases from Honeywell – maintain existing configuration
  • Output Status Monitoring: Real-time readout of channel voltage values and health status via Experion PKS
  • Fail-Safe Preset: Configurable output hold mode (last value or preset safe voltage) upon communication loss
  • Synchronous Channel Update: All 6 channels update simultaneously with typical 25ms cycle time
  • Load Matching: Ensure driven device input impedance is compatible with 0-10V output for signal integrity
  • Oil & Gas: Valve position control for pipeline regulators via 0-10V signal
  • Power Generation: Voltage reference signals for excitation systems in generator control
  • Water Treatment: VFD speed control for chemical dosing pumps
  • General Manufacturing: Heater power control for injection molding and extrusion machines
Description

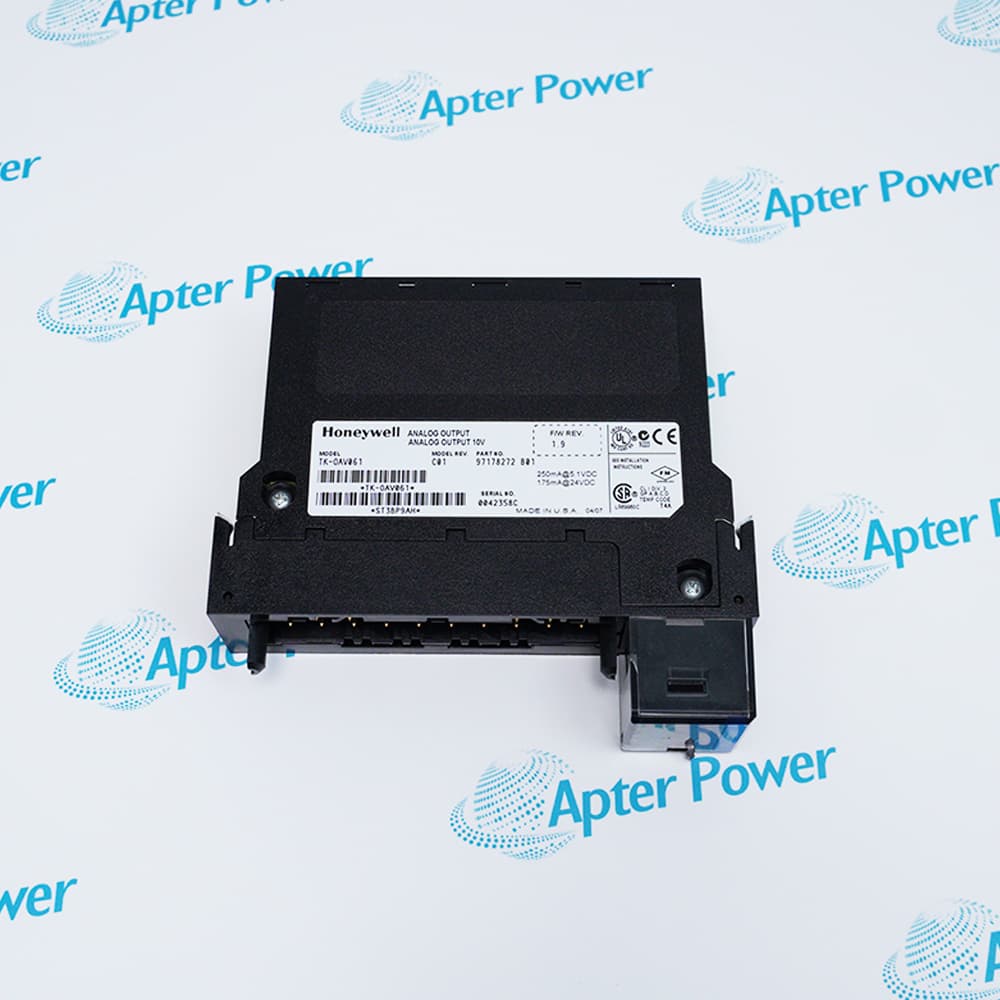

Honeywell TK-OAV061 is a 6-channel, non-isolated analog output module designed specifically for the Experion PKS distributed control system. It delivers 0-10V output signals to drive valves, VFDs, actuators, and other field devices requiring precise voltage control.

Part of the C200/C200E controller family and Series A I/O line, Honeywell TK-OAV061 offers seamless integration into Honeywell control systems. It draws only 5.5W of power and operates reliably across a -20°C to +70°C temperature range, making it suitable for demanding industrial environments.

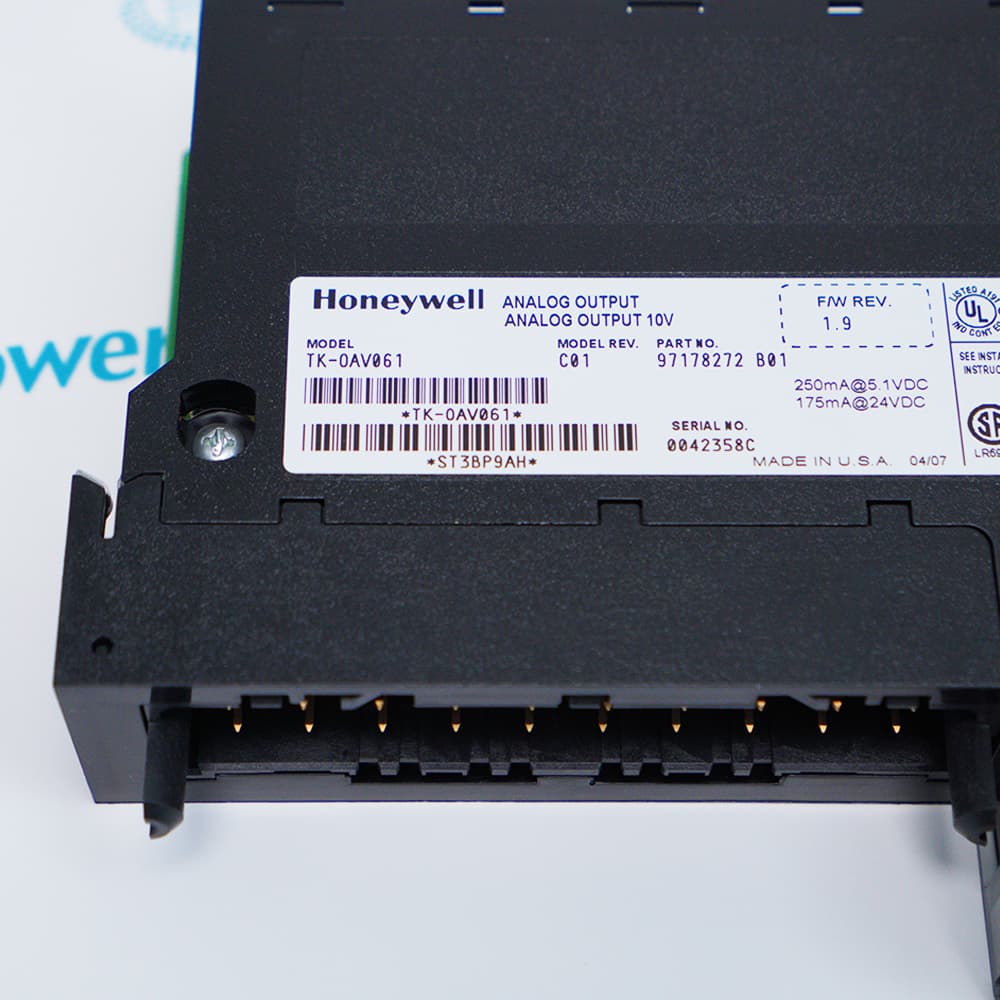

Built in the USA (April 2007, Rev C01 / FW 1.9), the TK-OAV061 connects to field wiring via the TC-TBNH 20-position terminal block. For users migrating to newer controllers, Honeywell provides upgrade paths (C300 + FTE Bridge or UOC/vUOC) that retain existing TK-OAV061 modules and field wiring.
Alternative Names
TK OAV061 TC-OAV061 TC OAV061
Technical notes
Honeywell TK-OAV061 is a non-isolated 6-channel analog output module providing 0-10V voltage signals only (4-20mA current output is not supported). Honeywell TK-OAV061 has entered the Phase-out lifecycle stage since December 31, 2020; users should verify hardware revision and firmware version (e.g., Rev C01 / FW 1.9) via the product label before integration.
