Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Discontinued / Obsolete by OEM
    Apter Power supports documentation, sourcing coordination and migration matching for Honeywell TK-IOLI01.

TK-IOLI01

/ 4.9
1001 reviews | Need a Specific Revision?

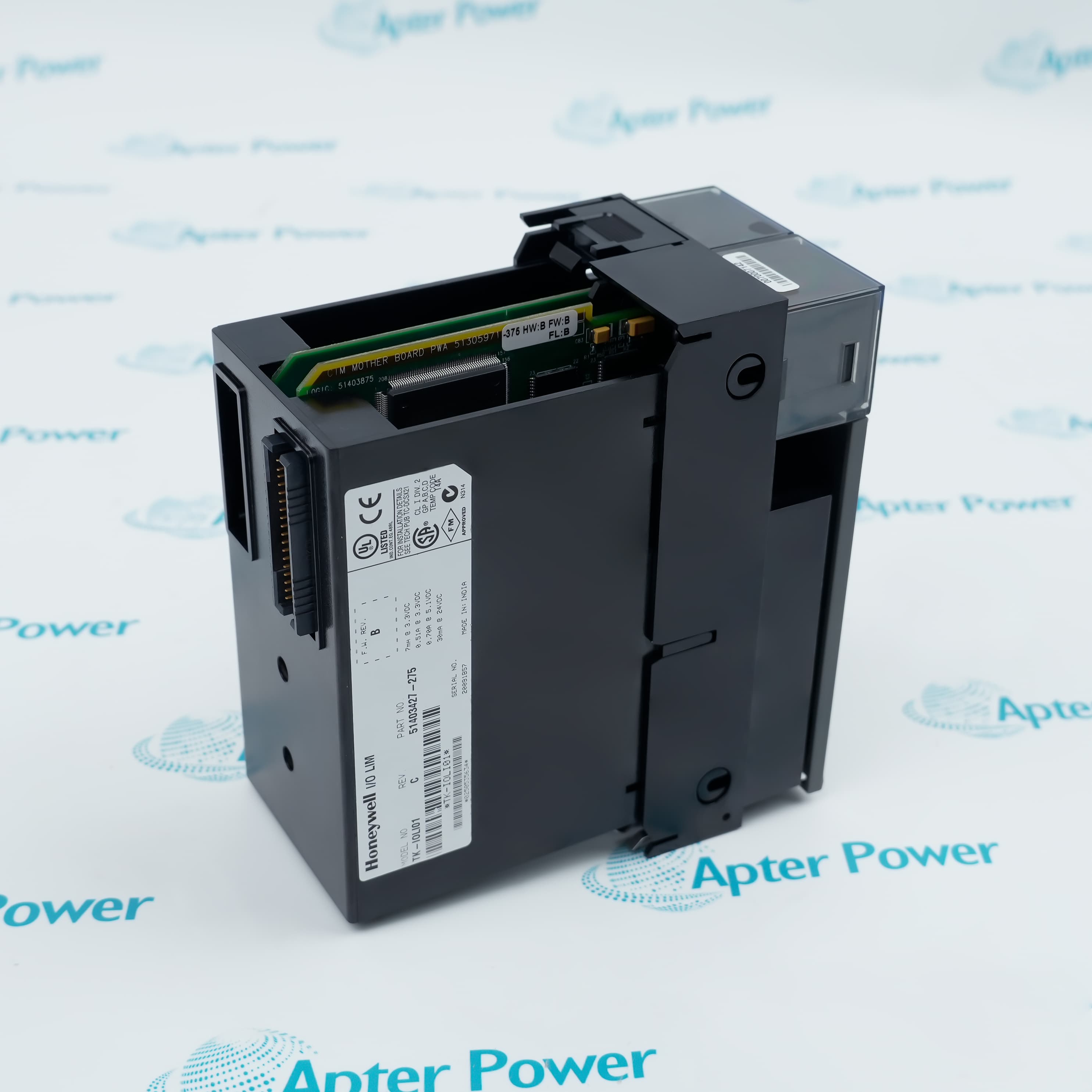

The Honeywell TK-IOLI01 is an I/O Link Interface Module used by C200/C200E systems to connect Process Manager I/O and occupies two chassis slots.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for TK-IOLI01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TK-IOLI01

  • Manufacturer:
    Honeywell
  • Part Number:
    TK-IOLI01
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    I/O Link Interface Module
  • Stock:
    1
  • Module Designation:
    IOLIM
  • Interface Function:
    I/O Link interface for PMIO
  • Chassis Requirement:
    Two slots
  • Control Context:
    C200/C200E with Process Manager I/O
  • System Platform:
    Experion LS C200/C200E
  • I/O Family:
    Process Manager I/O (PMIO)
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals PMIO Interface Migration Planning Compatibility & Interoperability Applications

Features:

  • Provides the I/O Link Module interface for Process Manager I/O
  • Uses the documented IOLIM module designation
  • Occupies two slots in a compatible control-system chassis
The interface role connects C200/C200E control hardware with the established PMIO I/O Link arrangement.

IOLIM is the hardware designation used in the official module table, separating this item from controller and power-module entries.

Two adjacent slot positions must be accounted for when the module is placed in the compatible chassis layout.

The Honeywell TK-IOLI01 I/O Link Interface Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell TK-IOLI01 I/O Link Interface Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

I/O Link Role

  • Interface purpose: The module provides the I/O Link connection used for Process Manager I/O.
  • Hardware identity: IOLIM is the documented functional designation for TK-IOLI01.
  • Cabinet position: The interface is installed as part of the compatible Experion LS chassis arrangement.
  • Link boundary: The model is identified as an interface module rather than an I/O power or controller module.

C200/C200E Upgrade Context

  • Migration path: Honeywell documents a C200/C200E-to-C300 approach for systems connected to PMIO through IOLIMs.
  • I/O retention: The C300 upgrade method can retain the installed PMIO modules and field wiring.
  • Strategy transfer: Existing control strategies can be imported to the C300 engineering environment with minimal change.
  • Network requirement: The supervisory network must be upgraded to Fault Tolerant Ethernet for this migration approach.

System-Matching Boundaries

  • PMIO role: Compatibility starts with a requirement for the Process Manager I/O link interface.
  • Module code: The replacement record should specify IOLIM, not only a generic I/O module.
  • Slot usage: The target chassis must accommodate the documented two-slot footprint.
  • Platform context: Selection should be checked against the installed C200/C200E cabinet configuration.

Control-Cabinet Uses

  • PMIO interfacing: Links Process Manager I/O into the compatible C200/C200E hardware arrangement.
  • Cabinet service: Provides an exact model reference when restoring an existing IOLIM position.
  • Expansion planning: Supports chassis planning where a two-slot I/O Link interface is required.
  • Configuration control: Gives maintenance records a specific interface identity for PMIO-related work.
Description
Within C200/C200E control hardware, Honeywell TK-IOLI01 provides the I/O Link Module interface used with Process Manager I/O. Its two-slot chassis requirement gives planners a clear space allowance when preparing an interface addition or service replacement.

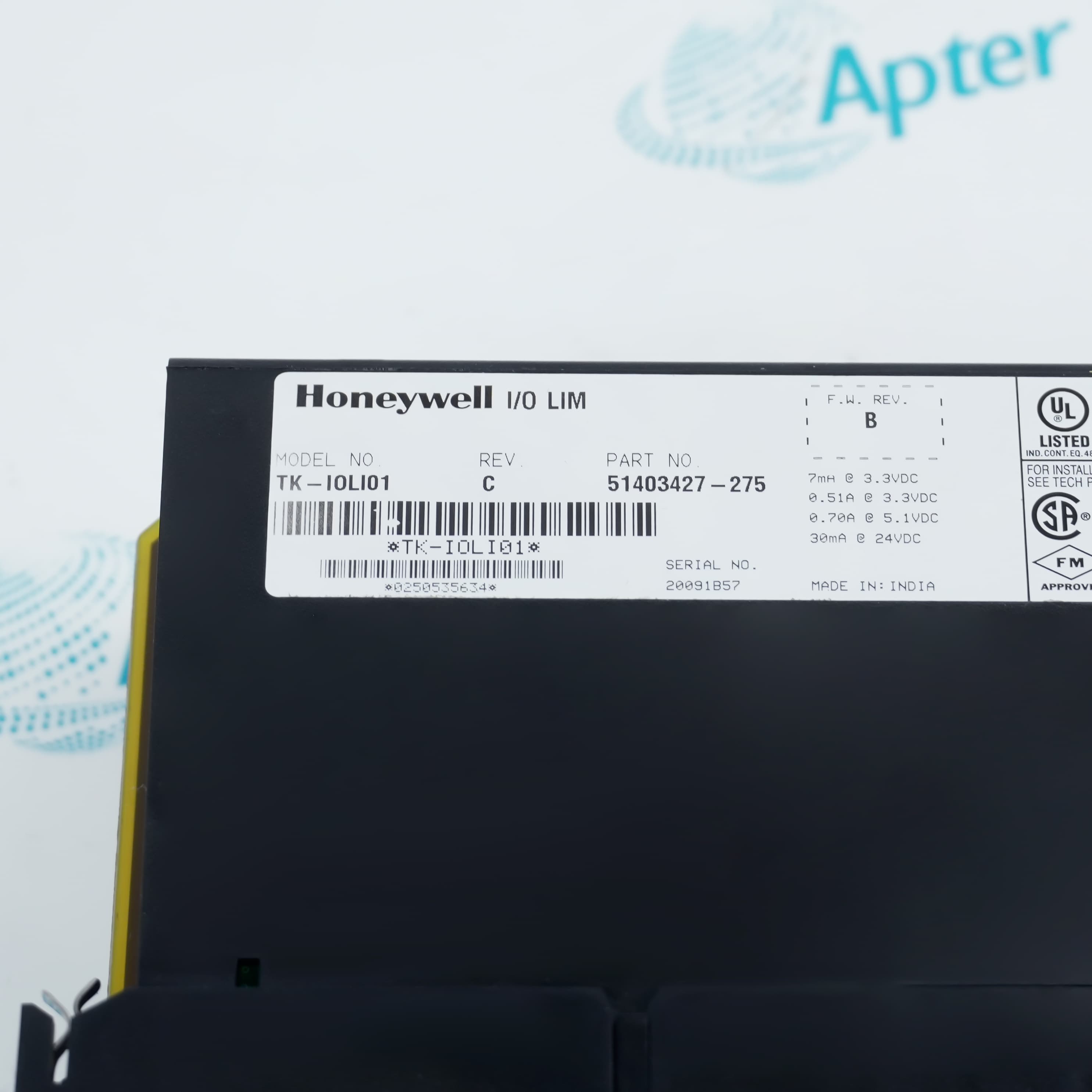

Maintenance teams can identify Honeywell TK-IOLI01 by the IOLIM designation instead of relying on a visually similar Series-A module. Confirming the model label and PMIO role helps prevent an unrelated controller or I/O power component from being selected.

During cabinet work, Honeywell TK-IOLI01 should be matched to the existing C200/C200E chassis arrangement and PMIO link role. Recording the occupied slots and connected I/O Link before removal makes the restored configuration easier to verify.
Alternative Names
TK-IOLI01 Honeywell TK-IOLI01 TK IOLI01 TKIOLI01 HONEYWELL TKIOLI01 Honeywell IOLIM TK-IOLI01 TK-IO-LI01 TK-I0LI01
Technical notes
Honeywell TK-IOLI01 is designated IOLIM and provides the I/O Link interface for PMIO. The module requires two chassis slots in the documented Experion LS hardware arrangement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can a controls engineer confirm that Honeywell TK-IOLI01 is the required interface for existing PMIO hardware?
Check the cabinet documentation for an IOLIM serving the Process Manager I/O link; Honeywell TK-IOLI01 is the model assigned to that interface role.
Why must chassis space be reviewed before fitting Honeywell TK-IOLI01?
Honeywell TK-IOLI01 occupies two chassis slots, so nearby modules and the planned slot allocation must leave the documented amount of space.
What information should be captured before Honeywell TK-IOLI01 is disconnected?
Record the full Honeywell TK-IOLI01 label, both occupied slot positions and the connected PMIO link so the cabinet arrangement can be checked after service.
Could a visually similar Experion module be used in place of Honeywell TK-IOLI01?
Appearance alone is not a compatibility test; the replacement must retain the Honeywell TK-IOLI01 model, IOLIM designation, PMIO interface role and two-slot requirement.
How does Honeywell TK-IOLI01 affect planning for a C200/C200E-to-C300 migration?
Honeywell identifies C200/C200E systems connected to PMIO through IOLIMs such as Honeywell TK-IOLI01 as candidates for the C300 migration approach that retains I/O modules and field wiring.
When an I/O Link stops communicating, what should be checked around Honeywell TK-IOLI01 before module exchange?
Verify Honeywell TK-IOLI01 seating, its two assigned slots, the PMIO-side link and the recorded C200/C200E cabinet configuration before concluding that the interface module is at fault.
