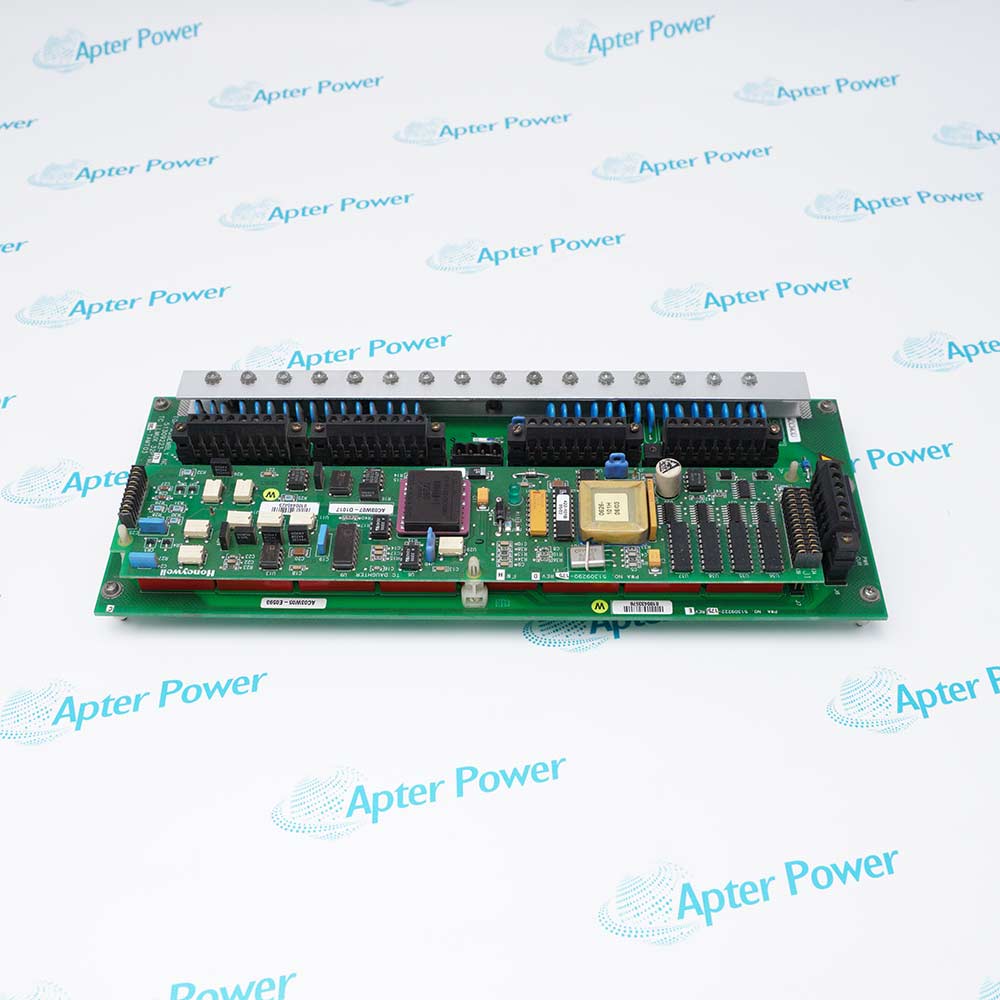

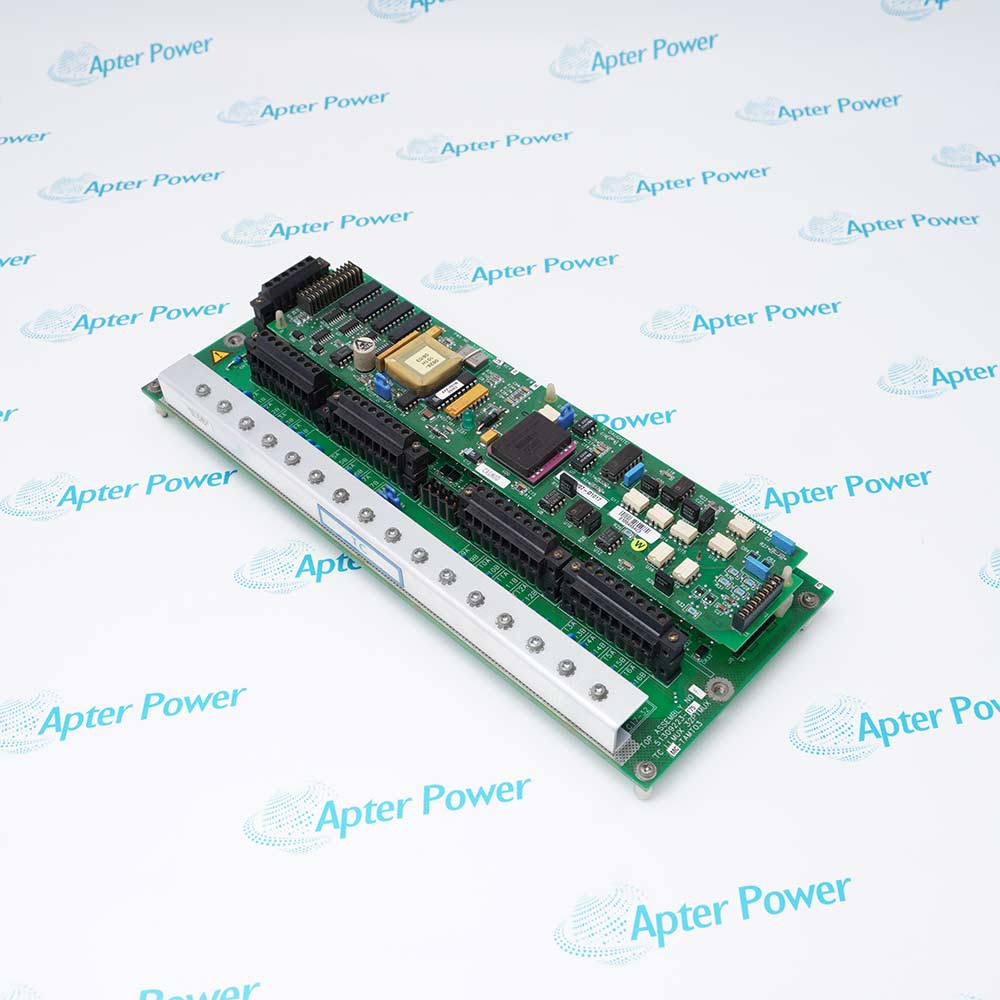

MC-TAMT03 51309223-175

/ 4.9
1001 reviews | Need a Specific Revision?
The MC-TAMT03 51309223-175 is designed to handle thermocouple signal termination and conditioning, solving the problem of accurate temperature measurement in distributed control systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for MC-TAMT03 51309223-175
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MC-TAMT03 51309223-175

  • Manufacturer:
    Honeywell
  • Part Number:
    MC-TAMT03 51309223-175
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    LLMUX2 Thermocouple (TC) Field Termination Assembly
  • Stock:
    1
  • Channels / Input:
    16-Channel Differential with 1.2.6] local CJR
  • Range / Accuracy:
    -20 to +100 mV input, improved OTD (1 sec)
  • Connections:
    Compression Terminals
  • Environment:
    Conformally Coated
  • Power Supply:
    24 Vdc (15-30 Vdc range)
  • Max Power / Temp:
    2.25 Watts / 0 to 50 °C Operating
  • Compliance:
    CE Mark and CSA Class 1, Div 2
  • Weight:
    0.98 kg
  • Estimated shipping dimensions:
    30.7x12x6.8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Environmental Ratings Compatibility & Interoperability

Features:

  • Bridge Between Thermocouple Field Wiring and xPM/Experion PMIO Systems
  • Integrates Local Cold Junction Reference with Solid-State Channel Multiplexing
  • Works Together with xPM and Experion PMIO in LLMUX2 Configurations
The MC-TAMT03 51309223-175 functions as the LLMUX2 Thermocouple (TC) Field Termination Assembly in a PMIO system, providing reliable thermocouple signal conditioning and termination for all channels within the module. It continuously processes incoming thermocouple signals through dedicated A/D converters per channel and distributes conditioned data through the single IOP interface to support accurate temperature monitoring of all connected field devices. Rapid open thermocouple detection is standard with the MC-TAMT03 51309223-175, and its improved loop resistance capability allows longer thermocouple wiring runs to the field without signal degradation. The MC-TAMT03 51309223-175 has made improvements in several areas over previous LLMUX FTA designs in addition to incorporating solid-state technology and on-board diagnostic capability within the PMIO system.

The MC-TAMT03 51309223-175 provides essential signal termination and conditioning functions common to the entire LLMUX2 assembly, and is a critical component of the temperature measurement path, directly affecting the proper, normal operation of the overall monitoring system. The MC-TAMT03 51309223-175 occupies the FTA position in the assembly and interfaces directly with the associated IOP module.

For replacement applications, the LLMUX2 system requires the MC-TAMT03 51309223-175 to replace legacy LLMUX FTAs that are no longer being manufactured. In addition to standard thermocouple signal handling, the MC-TAMT03 51309223-175 configuration also performs enhanced open thermocouple detection. The MC-TAMT03 51309223-175 executes diagnostics using the on-board circuitry specified in the FTA design. Using this method, the diagnostic system continually monitors the health of all channels. If the system detects that a thermocouple channel is no longer providing a valid signal (open circuit condition), it will report the fault within one second and enable rapid maintenance response.

The MC-TAMT03 51309223-175 HONEYWELL LLMUX2 Thermocouple (TC) Field Termination Assembly may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
HONEYWELL MC-TAMT03 51309223-175 LLMUX2 Thermocouple (TC) Field Termination Assembly Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
HONEYWELL MC-TAMT03 51309223-175 LLMUX2 Thermocouple (TC) Field Termination Assembly Specs

General

  • Manufacturer HONEYWELL
  • Model MC-TAMT03 51309223-175
  • Condition New Original ready stock
  • Product Family MU-TAMT02,MU-TAMT03,MC-TAMT02
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • System Upgrades: Replacing legacy LLMUX FTAs (mercury-wetted relay models) with newer solid-state LLMUX2 technology to improve reliability.
  • Long-Distance Wiring: Utilizing improved loop resistance to allow for longer thermocouple cable runs from the field to the control room.
  • Industrial Automation Sectors: Widely deployed in oil and gas, petrochemical, metallurgy, and water treatment environments where precise thermal process control is critical.
  • Operating Temperature: Generally rated for -40°C to +60°C (-40°F to +140°F).
  • Storage Temperature: -40°C to +66°C (-40°F to +150°F).
  • Humidity: Supports up to 85% relative humidity, continuous and non-condensing.
  • Protection: Often provided with conformal coating to resist moisture and corrosive atmospheric contaminants.
  • Honeywell Systems: Fully compatible with Experion PKS, TPS (TotalPlant Solution), and TDC 3000 architectures, specifically designed for use with xPM and Experion PMIO.
  • Network Integration: Interfaces directly with Honeywell’s Universal Control Network (UCN).
  • Legacy Replacement: Functions as a direct replacement for both CE-compliant and non-CE-compliant older LLMUX TC FTAs.
  • Cross-Platform Migration: Can be integrated into non-Honeywell systems, such as Foxboro DCS, via specific migration modules that maintain existing field interface and wiring.
Description
The Honeywell MC-TAMT03 51309223-175 is a high-performance Low Level Multiplexer 2 (LLMUX2) Thermocouple Field Termination Assembly (FTA) designed for use with xPM and Experion PMIO systems. This specific model, MC-TAMT03 51309223-175, features a Local Cold Junction Reference (CJR), compression terminals, and a single IOP interface, all while being conformally coated for enhanced durability in harsh environments. As a direct replacement for discontinued legacy LLMUX units, the MC-TAMT03 51309223-175 provides a modern solution for new installations, capacity upgrades, or the replacement of failed equipment.

This Honeywell MC-TAMT03 51309223-175 is specifically designed to handle the challenges of high-precision temperature monitoring in industrial processes, solving the reliability issues associated with older mercury-wetted relay technology. By utilizing advanced solid-state technology, the MC-TAMT03 51309223-175 eliminates maintenance concerns related to mechanical wear and environmental hazards. In application scenarios requiring rapid fault response, the MC-TAMT03 51309223-175 addresses the need for immediate safety by providing open thermocouple detection within just one second, ensuring system integrity and preventing process downtime.

Furthermore, the MC-TAMT03 51309223-175 is engineered to solve limitations in field wiring distance and signal accuracy. With an improved loop resistance, the MC-TAMT03 51309223-175 allows for significantly longer thermocouple wiring runs to the field without compromising signal quality. By incorporating a separate A/D converter per channel and on-board diagnostic capabilities, the MC-TAMT03 51309223-175 ensures precise data acquisition and simplified troubleshooting, making it an essential component for optimizing complex thermal processing environments.
Alternative Names
MC-TAMTO3 513O9223-175 MC-TAMT03 5I309223-I75 MC-TAMT02 MU-TAMT12 MC-TAMT12 MU-TAMT13 MU-TAMT03 MU-TAMT02
Technical notes
The MC-TAMT03 51309223-175 utilizes a separate A/D converter per channel, delivering improved measurement accuracy and resolution. The MC-TAMT03 51309223-175 provides enhanced open thermocouple detection within one second, enabling rapid fault identification and minimizing process downtime.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the MC-TAMT03 51309223-175?
The MC-TAMT03 51309223-175 is an LLMUX2 Thermocouple Field Termination Assembly (FTA) developed by Honeywell. It is designed for industrial process control systems to handle thermocouple signal termination and conditioning with high accuracy.
What systems is the MC-TAMT03 51309223-175 compatible with?
This module is specifically engineered for use with xPM and Experion PMIO systems, making it suitable for both new installations and upgrades within Honeywell distributed control environments.
What problem does the MC-TAMT03 51309223-175 solve?
The MC-TAMT03 addresses the challenge of accurate temperature measurement in distributed control systems by providing reliable thermocouple signal processing, ensuring precise and stable readings across industrial applications.
Can the MC-TAMT03 51309223-175 replace older modules?
Yes, it is designed to replace legacy LLMUX FTAs that are no longer manufactured. It can be used to upgrade existing systems, expand capacity, or replace failed units while offering improved functionality.
