    Honeywell lifecycle context: Honeywell announced that C200 and C200E would enter the Phased-out lifecycle phase on December 31, 2020 and identified Series A I/O as remaining in Legacy support through 2022. TC-FXX102 appears in the affected-hardware list; current repair, exchange, migration and support availability must therefore be reconfirmed.

TC-FXX102

/ 4.9
1001 reviews | Need a Specific Revision?
Honeywell TC-FXX102 is a 10-slot, 13 A chassis listed in Honeywell’s system hardware reference for compatible control-system assemblies.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for TC-FXX102
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TC-FXX102

  • Manufacturer:
    Honeywell
  • Part Number:
    TC-FXX102
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    10-Slot Chassis
  • Stock:
    1
  • Module Slots:
    10
  • Chassis Current Rating:
    13 A
  • Minimum Enclosure Depth:
    20.3 cm
  • Minimum Chassis-to-Cabinet Vertical Clearance:
    15.2 cm
  • Minimum Chassis-to-Cabinet Horizontal Clearance:
    10.2 cm
  • Minimum Chassis-to-Chassis Vertical Clearance:
    20.3 cm
  • Minimum Chassis-to-Chassis Horizontal Clearance:
    10.2 cm
  • Operating Temperature:
    0–60 °C
  • Storage Temperature:
    −40–85 °C
  • Relative Humidity:
    5–95%, non-condensing
  • Operating Altitude:
    −300 to +3,000 m
  • Mechanical Shock:
    5 g maximum for 30 ms
  • Dimensions:
    39.7 x 4.5 x 17.2 cm
  • Weight:
    1.35 kg
  • Tariff Code:
    4415100090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Catalog Identity Lifecycle Context Migration Boundary Application
  • Identifies the exact Honeywell 10-slot, 13 A chassis rather than the TC-FXX101 10-slot rack
  • Keeps the uncoated TC-FXX102 identity separate from the coated TK-FXX102 chassis
  • Requires lifecycle and migration review when retained in a C200 or C200E installation

Honeywell TC-FXX102 is the 10-slot, 13 A chassis entry in Honeywell’s Series A I/O hardware list.

Honeywell separately lists TC-FXX101 as a 10-slot rack and TK-FXX102 as the coated 10-slot, 13 A chassis, so these catalog numbers must not be treated as interchangeable.

Honeywell includes TC-FXX102 in the C200/C200E lifecycle context and describes migration paths that may retain Series A I/O hardware. Verify installed controller, CNI, power and project requirements before retention or replacement.

Availability, condition, price, and shipping time for TC-FXX102 are confirmed during quotation.

Honeywell TC-FXX102 10-Slot 13 A Chassis Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Honeywell lists TC-FXX102 as a 10-slot chassis rated at 13 A
  • TC-FXX101 is listed separately as a 10-slot rack
  • TK-FXX102 is the separately identified coated 10-slot, 13 A chassis
  • Honeywell announced the C200 and C200E transition to the Phased-out lifecycle phase on December 31, 2020
  • Honeywell identified Series A I/O as remaining in Legacy support through 2022
  • Current repair, exchange and migration availability must be reconfirmed for TC-FXX102
  • A C200 or C200E migration can retain the existing Series A I/O chassis in the documented architecture
  • The controller is replaced and the CNI connectivity changes to the applicable FTE Bridge
  • Verify controller, network-interface, power and project requirements before retaining TC-FXX102
  • Existing Honeywell C200 and C200E systems using Series A I/O
  • C200 or C200E-to-C300 migration projects retaining Series A I/O hardware
  • UOC or vUOC migration projects evaluated for retention of the installed Series A I/O chassis
Description
Honeywell TC-FXX102 is listed by Honeywell as a 10-slot, 13 A Series A I/O chassis for C200 and C200E systems.

Honeywell distinguishes TC-FXX102 from TC-FXX101, which is listed separately as a 10-slot rack, and from TK-FXX102, the coated 10-slot, 13 A chassis.

Honeywell includes TC-FXX102 in its C200/C200E lifecycle and migration documentation. Current support, repair, exchange and retention in a migration project must be reconfirmed against the installed controller, CNI, power and project configuration.
Alternative Names
TC-FXX102 TC FXX102 TCFXX102 Honeywell TC-FXX102 Honeywell TC FXX102 Honeywell TCFXX102
Technical notes
Honeywell TC-FXX102 is the uncoated 10-slot, 13 A chassis entry; it is not the TC-FXX101 10-slot rack or the coated TK-FXX102 chassis. Honeywell places TC-FXX102 within the C200/C200E lifecycle and migration boundary, so current support and retention must be reconfirmed for the installed system.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is Honeywell TC-FXX102 the same item as a 10-slot rack?
No. The Honeywell list distinguishes TC-FXX102 as a chassis and TC-FXX101 as a rack. Confirm the required mechanical item from the system bill of materials.
What lifecycle status applies when Honeywell TC-FXX102 remains in a C200 or C200E system?
Honeywell announced that C200 and C200E would enter the Phased-out lifecycle phase on December 31, 2020 and identified Series A I/O as remaining in Legacy support through 2022. TC-FXX102 appears in the affected-hardware list, so its current support must be reconfirmed.
Can Honeywell TC-FXX102 remain installed during a C200 or C200E-to-C300 migration?
Honeywell describes migration arrangements in which existing Series A I/O hardware can remain while the controller is replaced and CNI connectivity changes to an FTE Bridge. The exact power, network and project configuration must be reviewed before retaining TC-FXX102.
Does Honeywell TC-FXX102 include controller modules?
The chassis catalog entry does not establish included controllers, I/O, power supplies, or communications. Confirm the supplied scope in the quotation.
Can Honeywell TC-FXX102 be replaced by TK-FXX102 solely because both are 10-slot, 13 A chassis?
No. Honeywell identifies TK-FXX102 as the coated variant and TC-FXX102 as the corresponding uncoated entry. Confirm the environmental and coating requirement before ordering either version.
Why should coated variants not be assumed for Honeywell TC-FXX102?
Honeywell uses separate catalog designations for some coated hardware. Do not infer coating, environmental approval, or material treatment from the base chassis code.
What information should be provided when ordering Honeywell TC-FXX102?

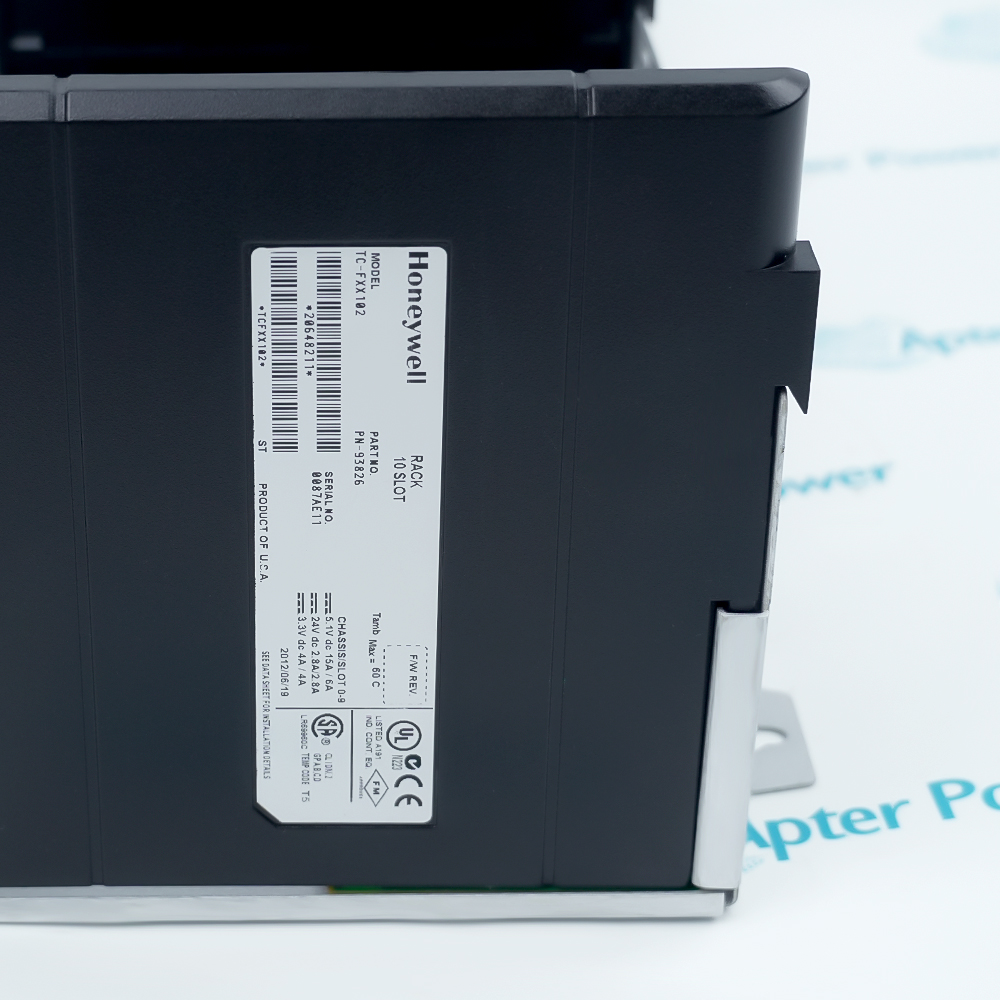

Provide the complete TC-FXX102 nameplate, installed controller and CNI catalog numbers, chassis coating requirement, power arrangement and migration status. This distinguishes the chassis from TC-FXX101 and TK-FXX102 and allows current lifecycle support to be checked.
