Honeywell 51196653-100 is a power supply module specifically designed for industrial automation control systems. The 51196653-100 features a 5-slot (5 SLOT) architecture, providing stable and reliable power distribution to connected system components.
Get a quick price for 51196653-100
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 51196653-100

  • Manufacturer:
    Honeywell
  • Part Number:
    51196653-100
  • Product Family:
    Honeywell TPS Series
  • Product Type:
    P/S 5 SLOT (EC)

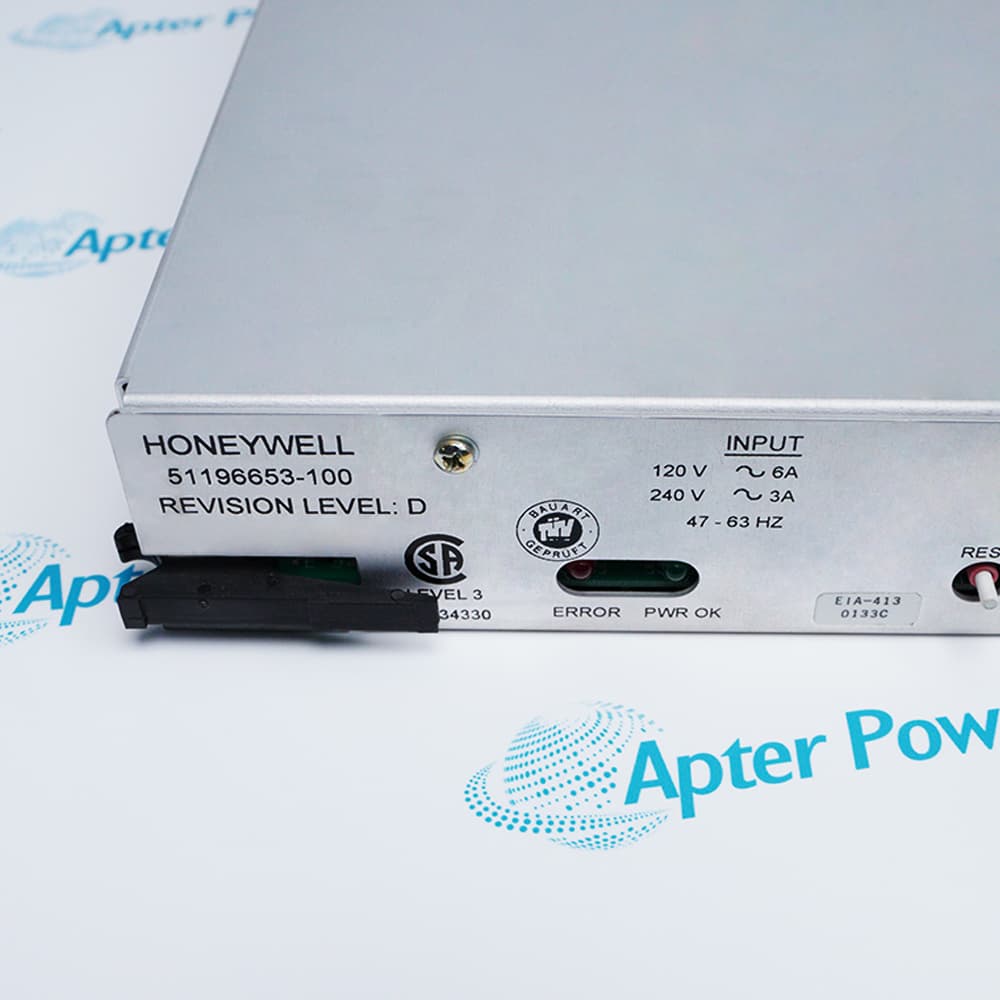

  • Input Voltage (Auto-Ranging):
    120 VAC (nominal) / 240 VAC (nominal)
  • Input Current:
    6.0 Amps @ 120 VAC / 3.0 Amps @ 240 VAC
  • Input Frequency:
    47 Hz to 63 Hz
  • Output Voltage 1:
    +5.1 VDC @ 30.0 Amps
  • Output Voltage 2:
    +12.25 VDC @ 10.0 Amps
  • Output Voltage 3:
    -12.25 VDC @ 1.0 Amp
  • Output Voltage 4:
    +27.0 VDC @ 1.2 Amps
  • Compliance Rating:
    EC (CE Mark) Certified
  • Connector Type:
    3-Pin Power Connector
  • Weight:
    3.82 kg
  • Estimated shipping dimensions:
    36.6x37x5.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Compatibility & Interoperability Operating Environment

Features:

  • Primary power source for the Honeywell TDC 3000 five-slot file chassis
  • Universal AC input capability supporting 120V/240V at 47-63 Hz
  • EC revision design for enhanced reliability and system compatibility
The 51196653-100 operates as the Five-slot File Power Supply in a Honeywell TDC 3000 rack, providing reliable DC power to all modules within the five-slot chassis. It continuously converts incoming universal AC power (120V/240V, 47-63 Hz) to regulated DC voltages and distributes this power through the rack backplane to support steady-state operation of all connected monitors, I/O modules, and processors. Seamless power delivery is standard with the 51196653-100; the EC (Engineering Change) revision incorporates design improvements over previous power supply versions, including CE compliance and a standard 3-pin connector for enhanced integration within the TDC 3000 environment.

The 51196653-100 provides essential power functions common to the entire five-slot rack and is a critical component of the control path, directly affecting the proper, normal operation of the overall TDC 3000 system. One 51196653-100 power supply is required per five-slot file chassis to maintain adequate power delivery. The 51196653-100 occupies the dedicated power supply position within the rack, ensuring organized cable routing and reliable power distribution to all five available slots.

For systems requiring enhanced power reliability, the TDC 3000 architecture supports configurations with additional power supply modules installed alongside the 51196653-100. In addition to standard single-supply operation, these multi-supply configurations provide supplementary power capacity and monitoring redundancy. The system power management functions continually monitor the health of all installed supplies, including the 51196653-100. If the system detects that the 51196653-100 is no longer providing stable output within configured voltage and tolerance levels, it will initiate appropriate protective measures and place an event in the System Event List.

The 51196653-100 Honeywell P/S 5 SLOT (EC) may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell 51196653-100 P/S 5 SLOT (EC) Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell 51196653-100 P/S 5 SLOT (EC) Specs

General

  • Manufacturer Honeywell
  • Model 51196653-100
  • Condition New Original ready stock
  • Product Family 51196694-350,51196694-901,51197085-200
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Process Control: Managing real-time data and system components in automated environments.
  • Energy and Resources: Extensively used in oil and gas refineries, power generation plants, and mining infrastructure (e.g., rock drills, excavators, and conveyors).
  • Infrastructure: Manufacturing, pharmaceuticals, and water and wastewater treatment facilities.
  • System Integration: It is purpose-built for the Honeywell TDC 3000 DCS platform and integrates seamlessly with its file modules.
  • Connector Standards: It features a standard 3-pin connector. Note that if it is used with original 5-slot chassis that have an older 8-pin power connector, a replacement cable is required for compatibility.
  • Clock Configuration: The unit is typically shipped pinned for internal line frequency clock. However, if Sequence of Events (SOE) functionality is required, it can be re-pinned for an external clock using a clearly marked (EXT/INT) jumper on the PCB.
  • Electrical Input: Features auto-ranging capabilities for input voltages ranging from 102 to 264 RMS (120/240 VAC) at a frequency of 47–63 Hz.
  • Thermal Management: The unit includes an integrated cooling fan controlled by ambient temperature and +5V output load, which helps reduce noise while maintaining safe operating temperatures.
  • Environmental Ratings: It is designed for operational temperatures between –30°C and +70°C.
  • Standards & Safety: It is CE-compliant and meets EC safety standards, featuring enhancements like Power Factor Correction (PFC).
Description
The Honeywell 51196653-100 is a specialized 5-slot file power supply module engineered specifically for the Honeywell TDC 3000 Distributed Control System (DCS). This power supply is an "EC" (CE-compliant) version, designed to provide stable and reliable DC power to system components housed within a 5-slot chassis. The 51196653-100 features auto-ranging input capabilities, supporting 120/240 VAC, and delivers multiple output voltages including +5 VDC, +12 VDC, -12 VDC, and +27 VDC to support various control hardware requirements.

This Honeywell 51196653-100 is designed specifically for handling power consistency issues in critical industrial automation environments, such as oil refineries, chemical plants, and power generation facilities. It solves the problem of voltage fluctuations and electrical noise that can lead to system downtime or data corruption within the TDC 3000 architecture. By providing a clean, regulated power source to the 5-slot file, the 51196653-100 ensures that the underlying control modules remain operational under varying load conditions.

To maintain system longevity, the 51196653-100 incorporates intelligent thermal management, utilizing an internal cooling fan that adjusts its speed based on the +5V output load and ambient temperature. This Honeywell 51196653-100 also addresses compatibility hurdles in legacy upgrades; while it uses a 3-pin connector, it can replace older 8-pin power supplies when paired with the appropriate adapter cable. In high-precision scenarios like Sequence of Events (SOE) monitoring, the 51196653-100 can be jumper-configured to support external clocking, solving synchronization issues across complex network nodes.
Alternative Names
51196694-350 51196694-901 51197085-200
Technical notes
Honeywell 51196653-100 is engineered to address the challenge of power management in complex industrial environments where multiple control modules require simultaneous and consistent electrical supply. The 51196653-100 solves the problem of insufficient or unstable power delivery that can lead to system downtime, data loss, or equipment malfunction in process control applications. This 51196653-100 power supply module is specifically designed for handling the demanding power requirements of distributed control systems (DCS), programmable logic controllers (PLCs), and other industrial automation equipment.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary role of the 51196653-100?
The 51196653-100 provides continuous electrical supply to modules installed within a control chassis. Its main role is to ensure uninterrupted operation of processors, I/O modules, and communication interfaces, supporting the overall reliability of the automation system.
Why is the 5-slot architecture important?
The 5-slot configuration allows the module to support several connected system components within a single chassis. This makes it suitable for distributed control systems, programmable logic controllers, and other automation platforms where multiple modules must operate simultaneously under reliable power conditions.
How does the 51196653-100 improve operational reliability?
By ensuring stable power delivery, the 51196653-100 reduces the risk of unexpected shutdowns and protects critical control infrastructure from electrical inconsistencies. This is especially valuable in continuous process operations where even brief interruptions can result in costly production losses or safety concerns.
