10209/2/1

/ 4.9
1001 reviews | Need a Specific Revision?

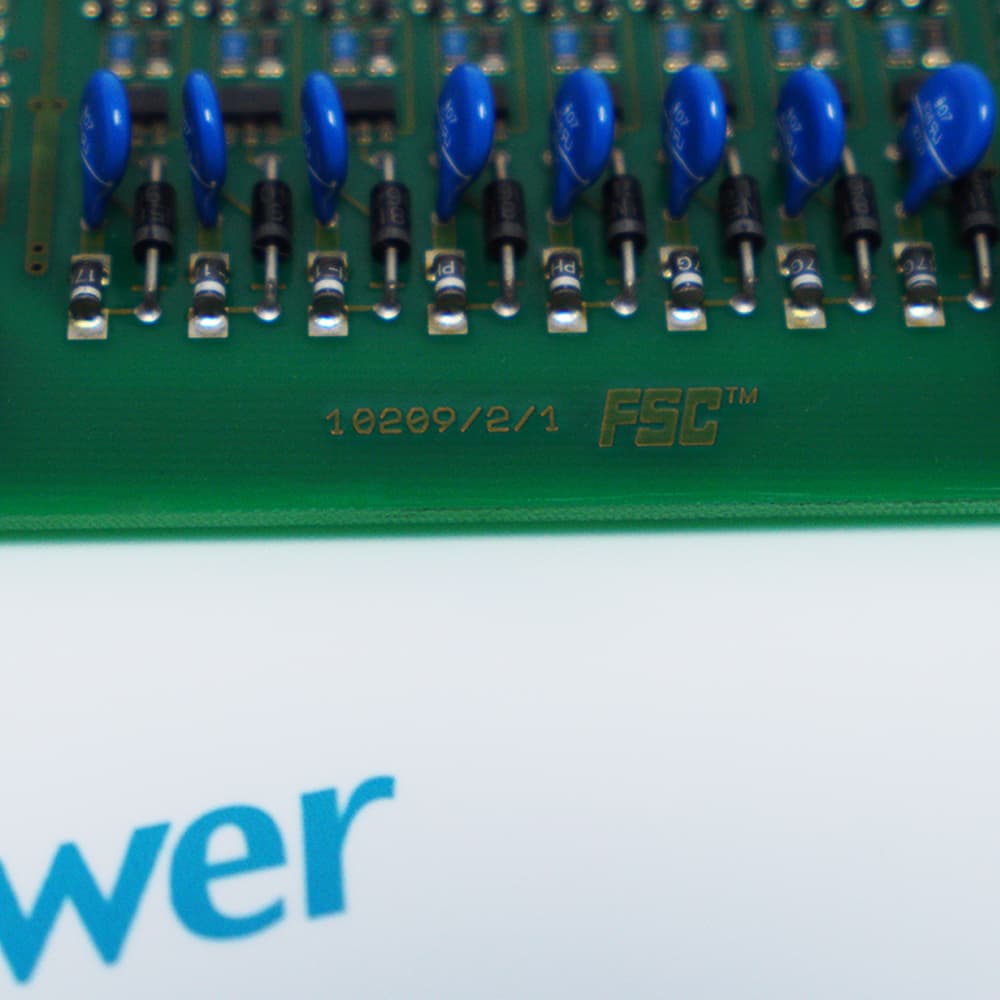

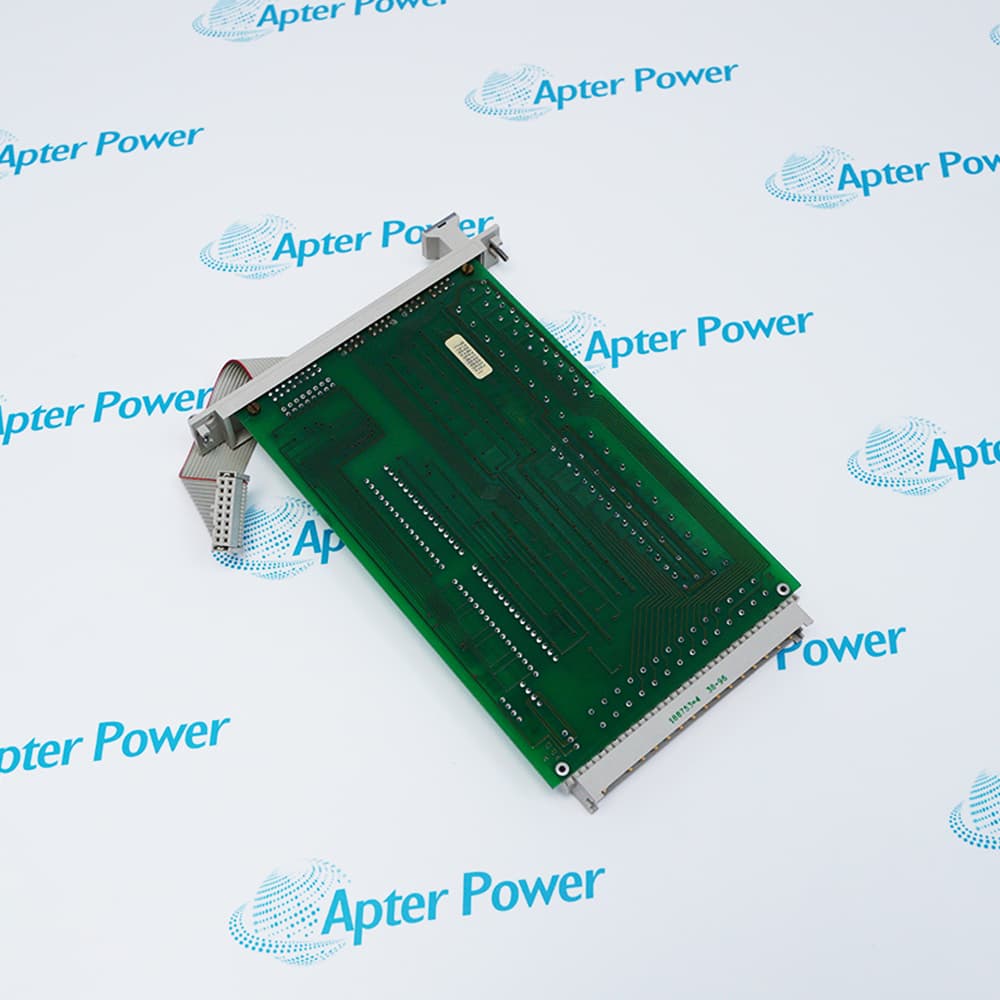

Honeywell 10209/2/1 is a 16-channel, 24 V DC source-output module for legacy Fail Safe Controller systems. Selection must follow the installed cabinet and safety documentation.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 10209/2/1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 10209/2/1

  • Manufacturer:
    Honeywell
  • Part Number:
    10209/2/1
  • Product Family:
    Honeywell FSC Series
  • Product Type:
    16-channel Digital Output Module
  • Stock:
    1
  • Output Channels:
    16
  • Output Type:
    24 V DC source outputs
  • Rated Output Current:
    100 mA per channel
  • Maximum Load:
    2.5 W per channel
  • Supported Loads:
    Resistive and inductive loads
  • Inductive-load Protection:
    Suppression diode
  • Output Test Status:
    Non-tested outputs
  • Watchdog Behavior:
    Outputs de-energize when watchdog is not refreshed
  • Key Coding:
    A9/C21
  • Module Width:
    4 TE
  • Module Height:
    3 HE
  • 5 V Supply Current:
    35 mA
  • 24 V Supply Current:
    85 mA with no field load
  • System Platform:
    Honeywell Fail Safe Controller
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    4x18.5x12.8cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Module Role Safety Boundaries Replacement Checks Product Applications

Features:

  • Sixteen 24 V DC source-output channels for legacy Honeywell FSC systems.
  • 100 mA per channel with a maximum 2.5 W channel load.
  • A9/C21 key coding and 4 TE by 3 HE module format.
The module provides field-output switching within an installed Fail Safe Controller cabinet.

Inductive loads use suppression diodes, while the module watchdog removes output drive when it is not refreshed.

The outputs are not tested outputs; application suitability depends on the documented safety architecture and channel assignment.

Apter Power supports legacy FSC spare-part review using the exact module number, cabinet documentation and field-load details.
Honeywell 10209/2/1 Digital Output Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Provides sixteen 24 V DC source outputs in an installed FSC cabinet.
  • Switches documented field loads under the control of the FSC application.
  • De-energizes outputs when the module watchdog is not refreshed.
  • The outputs are non-tested and must not be treated as tested safety outputs.
  • Inductive loads require the documented suppression and wiring arrangement.
  • Safety behavior must be evaluated from the complete FSC application, not the module alone.
  • Confirm 10209/2/1, A9/C21 key coding and the assigned rack position.
  • Compare channel allocation, load current, polarity and cabinet drawings before rewiring.
  • Record the replacement against the original safety-system documentation and test plan.
  • Legacy Honeywell Fail Safe Controller output cabinets.
  • Documented 24 V DC field loads within existing FSC applications.
  • Maintenance programs requiring exact-module spares for discontinued FSC systems.
Description
10209/2/1 is a Honeywell Fail Safe Controller digital output module with sixteen 24 V DC source outputs. Each channel is specified for 100 mA with a maximum 2.5 W load.

10209/2/1 uses suppression diodes for inductive loads and de-energizes its outputs when the module watchdog is not refreshed. The outputs are not tested outputs and must not be assigned a fail-safe function that requires tested output diagnostics.

10209/2/1 is identified by key coding A9/C21 and a 4 TE by 3 HE module format. Replacement work should compare the slot, field wiring, load type and FSC application documentation before installation.
Alternative Names
Honeywell 10209/2/1 10209-2-1 10209 2 1 1020921 10209/21 10209/2/I
Technical notes
10209/2/1 is a non-tested 16-channel source-output module for Honeywell Fail Safe Controller systems. Verify A9/C21 key coding, load type, channel allocation and the cabinet safety documentation; do not assign tested-output behavior that the module does not provide.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 10209/2/1 be selected only by its 24 V DC rating?
No. Confirm the full module number, A9/C21 key coding, slot assignment, field wiring and FSC application documentation.
Are the 10209/2/1 outputs suitable for every safety function?
No. The manual identifies them as non-tested outputs; the safety design must account for that limitation.
What should be checked for an inductive field load?
Verify load current, suppression requirements, wiring polarity and the applicable FSC cabinet drawing before connection.
What happens if the module watchdog is not refreshed?
The module de-energizes its outputs, so the process response must be reviewed in the installed application.
Can a visually similar FSC output module be substituted directly?
No. Compare output type, channel assignment, key coding and the original safety-system configuration first.
What support is available for a discontinued FSC module?
Apter Power can support spare-part quotation, technical-document requests and compatibility review for the installed legacy system.
