Features:
- 8 changeover relay channels
- Isolated changeover contacts
- Matched with compatible Safety Manager relay output module

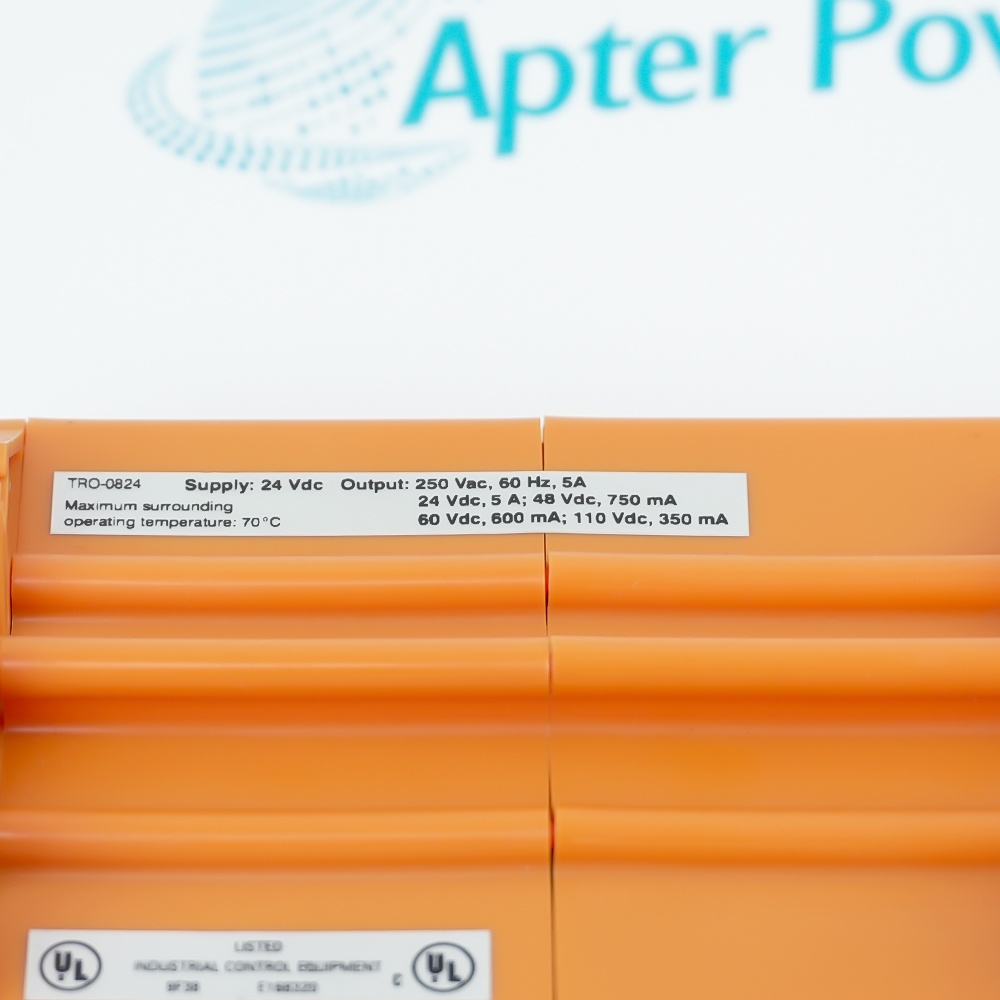

FS-TRO-0824 provides relay termination for switched field circuits in a Honeywell Safety Manager installation.
Its standard fs construction and the documented isolated changeover contacts must match the cabinet and field design.
Verify contact selection, load suppression and relay state and the complete connected path before the equipment is released to operation.
The Honeywell FS-TRO-0824 8-Channel Changeover Relay Output FTA is available for quotation and technical support from Apter Power.
Verified resources for FS-TRO-0824:
Signal Data:
- 8 changeover relay channels
- isolated changeover contacts
- System role: relay termination for switched field circuits
Use the documented FS-TRO-0824 electrical limits when calculating the complete connected circuit.
Diagnostics:
- Contact selection, load suppression and relay state
- Check channel and system alarms
- Document normal and fault-state results
Resolve all FS-TRO-0824 wiring, power, communication and system diagnostics before release to operation.
Compatibility:
- Matched hardware: compatible Safety Manager relay output module
- Construction: Standard FS construction
- Confirm firmware and hardware revision
Match FS-TRO-0824 to the approved cabinet, cable, termination and field-device arrangement.
Installation Check:
- Verify power, polarity and grounding
- Confirm terminal allocation and cable identification
- Prove the complete end-to-end function
Record the final configuration and all functional-test results after installing FS-TRO-0824.
