FC-RUSLS-3224

/ 4.9
1001 reviews | Need a Specific Revision?

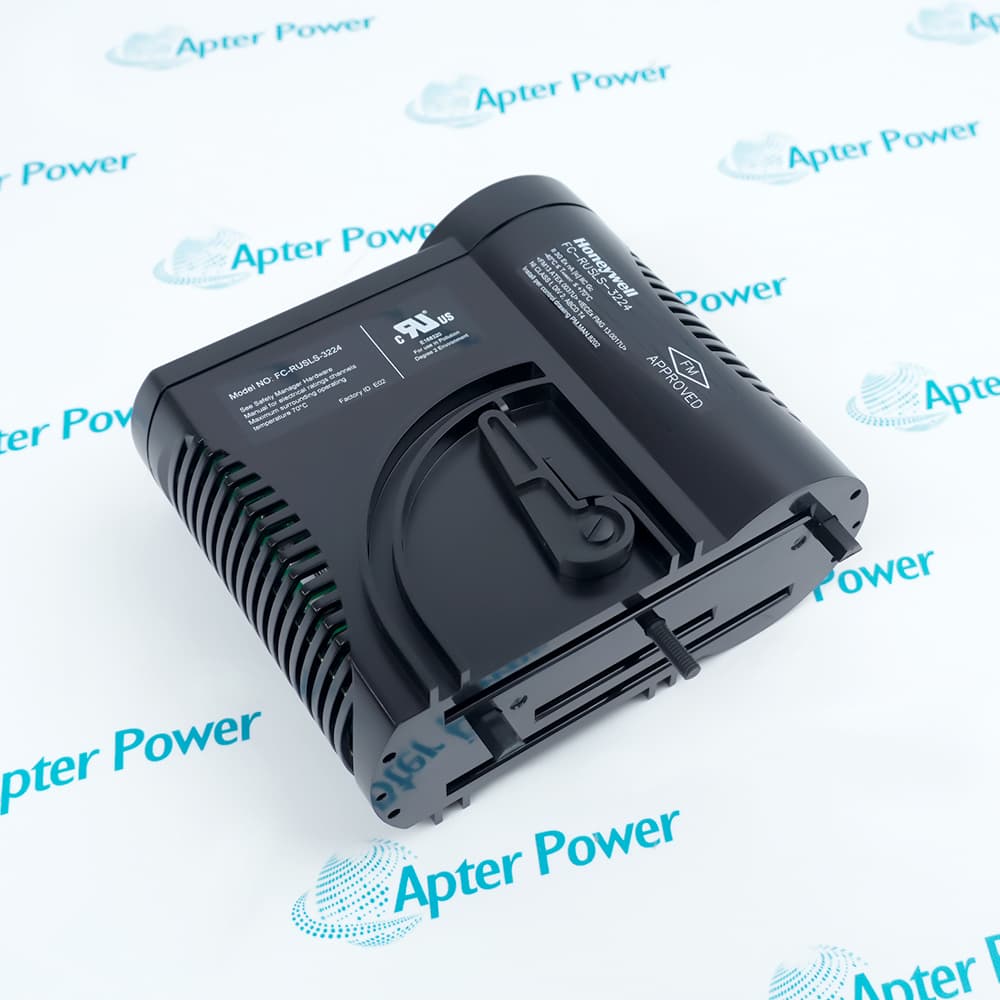

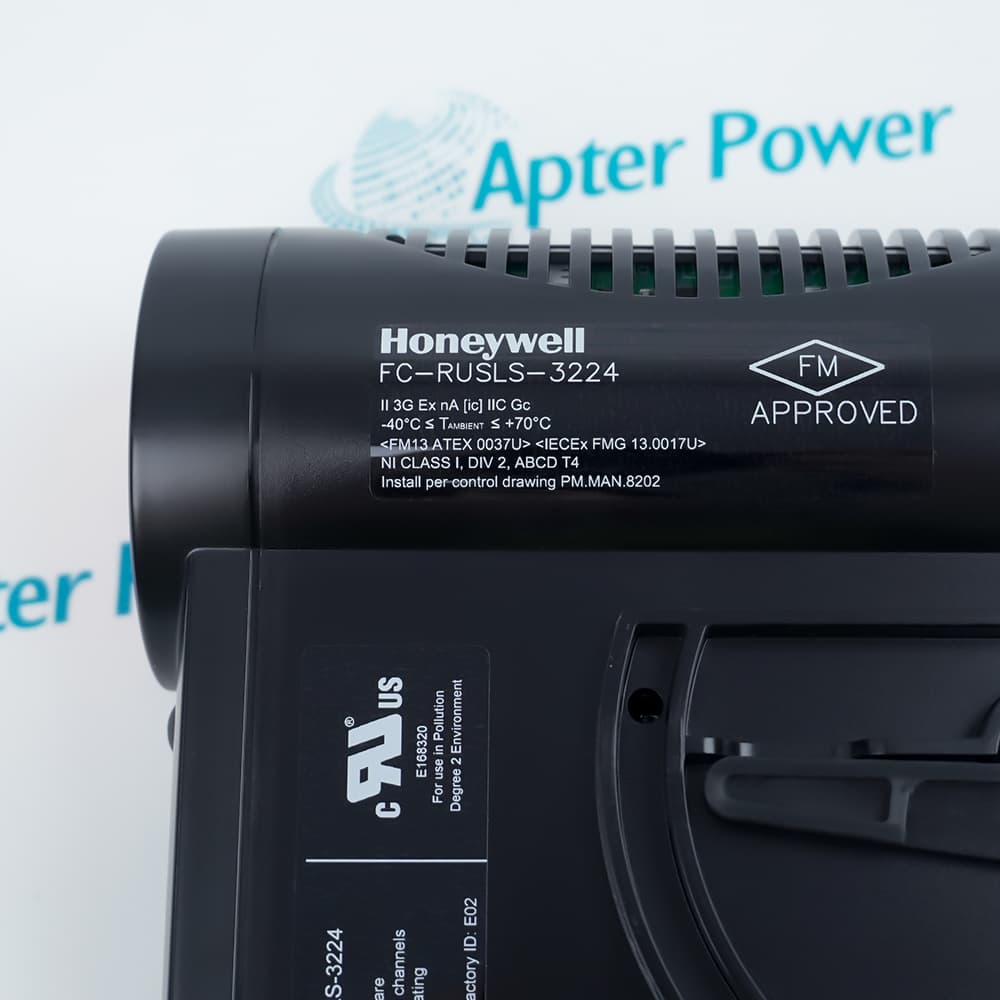

Honeywell FC-RUSLS-3224 is a 32-channel Universal Safe I/O and logic-solving module for Safety Manager systems, supporting configurable digital and analog safety signals with SIL 3 redundant operation.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for FC-RUSLS-3224
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for FC-RUSLS-3224

  • Manufacturer:
    Honeywell
  • Part Number:
    FC-RUSLS-3224
  • Product Family:
    Honeywell Safety Systems
  • Product Type:
    Universal Safe I/O and Logic Solver
  • Stock:
    1
  • Safety Architecture:
    Universal Safe I/O and Logic Solver
  • Safe I/O Channels:
    32, software configurable
  • Supported Channel Functions:
    DI, ESD input, AI, DO and AO
  • Supply Voltage:
    24 VDC (-15% to +30%)
  • Current Consumption:
    Maximum 300 mA without field load
  • Controller Links:
    Two 100 Mbaud Ethernet links
  • Ambient Conditions:
    -40 to +70 degrees C; 10 to 95% RH, non-condensing
  • Weight:
    0.66 kg
  • Estimated shipping dimensions:
    14.5x16.5x7.2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Slovakia
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Operating Environment Configuration Diagnostics & Protection

Features:

  • Provides 32 software-configurable universal safe I/O channels for digital and analog safety signals.
  • Combines local safety logic solving with dual 100 Mbaud links to the Safety Manager Controller.
  • Supports simplex operation or a two-module redundant configuration for higher SIL 3 availability.
The current ordering configuration is Honeywell FC-RUSLS-3224, a Universal Safe I/O and Logic Solver installed on the matching Series C IOTA.

It processes configured DI, ESD input, AI, DO and AO functions locally, then exchanges safety data with the Safety Manager Controller through two Ethernet links.

Before commissioning, verify the Safety Builder channel assignments, IOTA and FTA selection, output load limits, field wiring and simplex or redundant architecture.

Availability is subject to Apter Power inventory and confirmation of the complete Safety Manager configuration.

Honeywell FC-RUSLS-3224 manuals and reference links:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Honeywell FC-RUSLS-3224 General Specifications

General

  • ManufacturerHoneywell
  • ModelFC-RUSLS-3224
  • ConditionNew original ready stock
  • Product FamilySafety Manager Series C
  • The official ambient operating range outside the enclosure is -40 to +70 degrees C for the documented module configuration.
  • The specified storage temperature range is -40 to +85 degrees C when the module is stored under the stated conditions.
  • Relative humidity is specified at 10 to 95 percent non-condensing, with pollution degree 2 or better required.
  • Each of the 32 channels is assigned in Safety Builder as a digital input, ESD input, analog input, digital output or analog output.
  • Safety Builder derives module and channel configuration data and performs consistency checks before the configuration is downloaded.
  • I/O channel 32 can be configured as the dedicated ESD input with line monitoring for the documented shutdown arrangement.
  • Redundant processors, memories and power paths continuously compare results and supervise the health of the safety module.
  • Internal temperature monitoring and watchdog functions detect abnormal hardware operation before it affects configured safety logic.
  • Module and channel LEDs provide local status indication for controller communication, activity and field-connection conditions.
Description
Honeywell FC-RUSLS-3224 provides 32 software-configurable universal safe I/O channels on a Series C IOTA, with each channel assignable as digital input, ESD input, analog input, digital output or analog output.

It performs local safety logic and exchanges data with the Safety Manager Controller over dual 100 Mbaud Ethernet connections; two identical modules are used for a redundant configuration.

Before installation, verify the Safety Builder configuration, IOTA and FTA selection, channel type, field-load limits and required simplex or redundant topology.
Alternative Names
FC-RUSLS-3224 FC RUSLS 3224 FCRUSLS3224 Honeywell FC-RUSLS-3224 Honeywell Universal Safe I/O Module Honeywell Universal Safe I/O and Logic Solver Honeywell Safety Manager Universal Safe I/O Honeywell Series C Universal Safe I/O
Technical notes
FC-RUSLS-3224 supports up to 32 universal safe channels; a redundant Safety Manager configuration requires two identical modules.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How many universal safe I/O channels does FC-RUSLS-3224 provide?
It provides 32 software-configurable safe channels on the matching Series C IOTA.
Which signal functions can be assigned to FC-RUSLS-3224 channels?
Safety Builder can assign documented channels as DI, ESD input, AI, DO or AO functions.
Does FC-RUSLS-3224 support a redundant Safety Manager configuration?
Yes. Honeywell specifies two identical FC-RUSLS-3224 modules for the redundant arrangement.
How does FC-RUSLS-3224 communicate with the Safety Manager Controller?
The module uses two 100 Mbaud Ethernet links to exchange safety data with the controller.
What should be verified before replacing FC-RUSLS-3224?
Confirm the IOTA and FTA, channel assignments, field wiring, output loads and simplex or redundant architecture.
What environmental limits apply to FC-RUSLS-3224?
The official table specifies -40 to +70 degrees C ambient operation and 10 to 95% non-condensing relative humidity.
