    Maintain system stability with this authentic Honeywell FC-PSU-UNI2450U, provided by Apter Power to support your critical power infrastructure.

FC-PSU-UNI2450U V1.0

/ 4.9
1001 reviews | Need a Specific Revision?

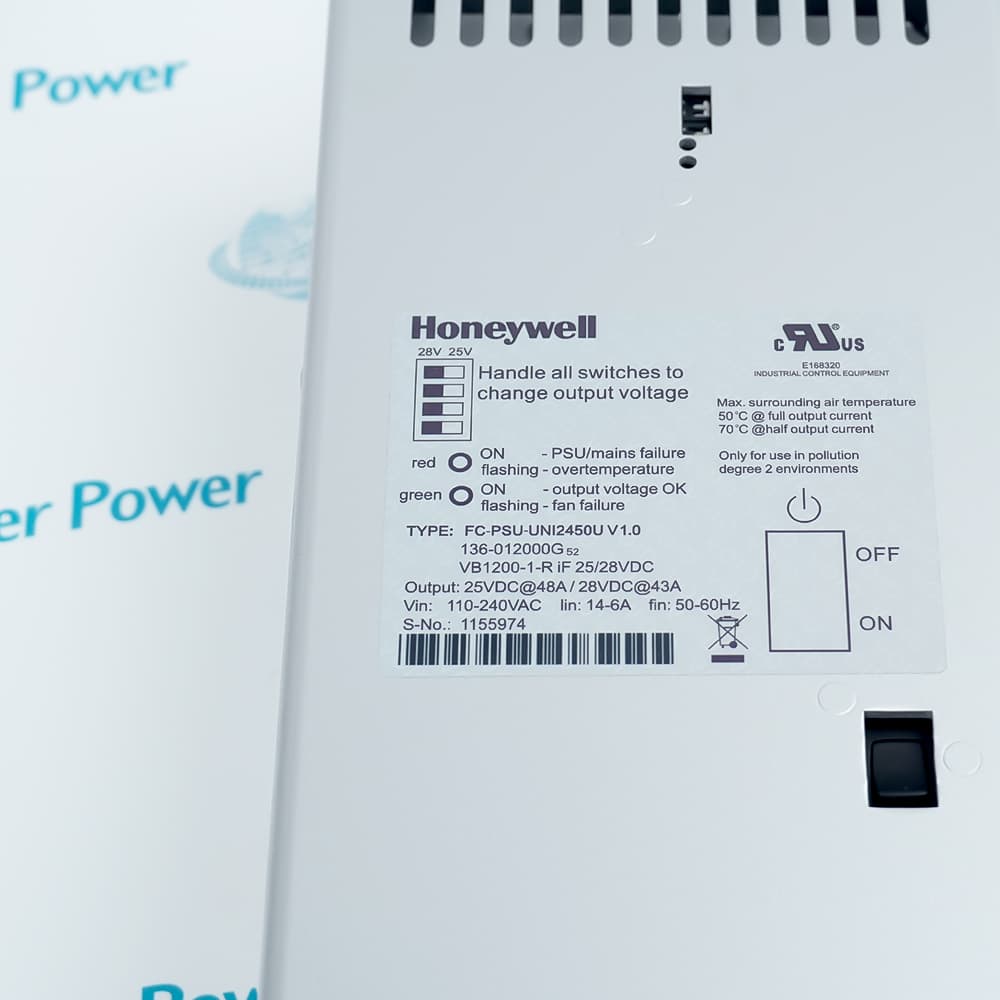

Honeywell FC-PSU-UNI2450U V1.0 is a 1200 W switched-mode DC power supply providing 25 VDC/48 A or 28 VDC/43 A output with high efficiency and dual over-voltage protection.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for FC-PSU-UNI2450U V1.0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for FC-PSU-UNI2450U V1.0

  • Manufacturer:
    Honeywell
  • Part Number:
    FC-PSU-UNI2450U V1.0
  • Product Family:
    Honeywell Safety Systems
  • Product Type:
    Power Supply Unit
  • Stock:
    4
  • Approvals:
    TUV
  • Power requirements:
    110-240 V AC (operating limits: 93-253 V AC)
  • Power consumption at no load:
    13 W
  • Power factor:
    Close to 1
  • Input frequency range:
    47- 63 Hz
  • Storage temperature:
    -25 °C to +85 °C (-13 °F to +185 °F)
  • Operating temperature:
    -5 °C to +70 °C (23°F to +158°F)
  • Inrush current:
    < 15A
  • Input power:
    <1400VA(rated voltage 220-240 V AC); <1500VA(rated voltage 110-120 V AC).
  • Input current:
    <7.5 A(rated voltage 220-240 V AC); <16A(rated voltage 110-120 V AC).
  • Output voltage:
    25 VDC or 28 VDC; dual overvoltage protection
  • Ripple and noise:
    < 40 mVpp
  • Output current (25 V DC):
    48 Aat-5 °C to +50 °C (23 °F to +122 °F)
  • Output current (28 V DC):
    43 Aat-5 °C to +50 °C (23 °F to +122 °F)
  • Derating output current:
    Starting at 50 °C (122 °F): 30 W/°C
  • Hold-up time:
    100 msat full load
  • Output voltage setting:
    25 VDC
  • Efficiency:
    >85%(rated voltage 220-240 V AC); >80%(rated voltage 110-120 V AC).
  • Input to output:
    3750 Vrms (1 min.)
  • Input to case:
    2500 Vrms (1 min.)
  • Output to case:
    500 VDC
  • AC input:
    IEC 60320 C20 inlet type socket, 16 A with retaining clip
  • DC output:
    2 xPhoenix PCV6-16/2-G1F-10,163, With locking screws.
  • Cable connector:
    Phoenix PC 16/2-STF-10,162
  • Min. wire size:
    0.75 mm2
  • Max. wire size:
    16 mm2
  • Strip length:
    12 mm
  • Alarm contact:
    3 pole Phoenix socket type MC 1,5/3-G-3,81
  • Cable connector:
    Phoenix MC 1,5/3-ST-3,81
  • Contact rating:
    100 mA/30V
  • Undervoltage alarm contact:
    Relay de-energizes when output voltage drops below 22 V DC.
  • Weight:
    4.4 kg
  • Estimated shipping dimensions:
    42x14x9cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Installation Certifications Application Scenarios

Features:

  • High-efficiency 1200 W power conversion with selectable 25 VDC or 28 VDC output and universal 93–253 VAC input.
  • Integrated functional safety features including dual over-voltage protection, under-voltage alarm, current limiting, overload protection, and short-circuit protection.
  • Service-friendly construction with isolated AC/DC connectors, recessed power switch, flexible mounting orientation, and support for online replacement.
Honeywell FC-PSU-UNI2450U V1.0 provides stable DC power for industrial automation and safety control systems where dependable power delivery is essential. Its universal AC input capability allows installation across facilities using different utility voltages without additional configuration. High conversion efficiency helps reduce energy consumption while maintaining continuous operation under demanding industrial conditions.

The unit combines multiple protection mechanisms with practical operating features to improve overall system availability. Users can select either a 25 VDC or 28 VDC output according to application requirements, while integrated monitoring functions provide clear indication of abnormal operating conditions. Parallel operation support through the output diode further increases flexibility when designing redundant power architectures.

Honeywell FC-PSU-UNI2450U V1.0 is suitable for control cabinets requiring straightforward installation and simplified maintenance. Vertical or horizontal mounting options allow adaptation to available cabinet space, although vertical installation offers the most effective cooling performance. Compatibility with the optional PSU-FLTR2450 common mode filter also enables enhanced electromagnetic performance in installations with demanding electrical environments.

The FC-PSU-UNI2450U V1.0 Honeywell Power Supply Unit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FC-PSU-UNI2450U V1.0 Power Supply Unit Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell FC-PSU-UNI2450U V1.0 Power Supply Unit Specs

General

  • Manufacturer Honeywell
  • Model FC-PSU-UNI2450U V1.0
  • Condition New Original ready stock
  • Product Family FA-PSU-UNI2450U,FC-PSU-UNI4825U,FC-PSU-UNI6020U
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Rail Mounting: The FC-PSU-UNI2450U V1.0 uses heavy-duty standard rack rail mounting. Sufficient ventilation space must be provided above and below.
  • Wiring Specifications: Strictly distinguish between the 110-240 Vac input and the 25/28 Vdc output terminals during wiring to prevent high-voltage backflow from burning out the equipment.
  • Redundancy Configuration: In a dual-redundant power supply system, the two modules must be connected to different busbars via independent fuses to achieve uninterrupted load balancing.
  • Hot-Swapping Operation: The module supports hot-swapping while powered on. Before operation, the AC circuit breaker on the panel must be turned off to smoothly slide it out of the rack.
  • Safety Level: This power supply has passed Level 1-3 functional safety tests and fully complies with the SIL3 high safety level system power supply standard for industrial automation.
  • Explosion-proof Certification: Certified by international ATEX and Class I Div 2 hazardous areas, allowing deployment in flammable and explosive gas environments such as petrochemical plants.
  • Electromagnetic Compatibility: Possesses stringent CE and FCC industrial-grade electromagnetic compatibility certifications, maintaining extremely low output ripple even under high-frequency, high-voltage interference.
  • Green and Environmentally Friendly: Hardware manufacturing fully complies with RoHS environmental standards, and the internal circuitry integrates high-efficiency energy conversion control chips with over 87% efficiency.
  • Safety Management System: Specifically designed as the core power supply for the Honeywell Safety Manager safety instrumented system, driving high-density ESD emergency shutdown modules.
  • Petrochemical Central Control: Widely deployed in large oil refineries and natural gas pipeline control cabinets, providing continuous and uninterrupted power to complex fieldbus protocol networks.
  • Distributed Power Control: Suitable for DCS system control cabinets in large thermal and nuclear power plants, ensuring the core processor does not restart under extreme voltage fluctuations.
  • Critical Asset Monitoring: Serving as a power source in mechanical health monitoring systems operating in harsh environments such as offshore drilling platforms, ensuring the accurate operation of various early warning sensors.
Description
Honeywell FC-PSU-UNI2450U V1.0 is a UL508-approved switched-mode DC power supply developed to provide stable and efficient power conversion for industrial automation systems. The unit accepts a universal AC input range from 93 to 253 VAC with an operating frequency of 47 to 63 Hz, allowing operation in different power environments. With an efficiency exceeding 85% at 220–240 VAC and over 80% at 110–120 VAC, FC-PSU-UNI2450U V1.0 minimizes energy loss while maintaining dependable performance.

Supporting selectable output voltages of 25 VDC or 28 VDC, Honeywell FC-PSU-UNI2450U V1.0 supplies up to 48 A at 25 VDC or 43 A at 28 VDC, with total output power limited to 1200 W through an integrated current limit feature. Dual built-in over-voltage protection helps satisfy the functional safety requirements of IEC 61508, while ripple and noise remain below 40 mVpp for clean DC power delivery. A hold-up time of 100 ms at full load further improves system stability during temporary input disturbances.

Operational reliability is enhanced through several integrated protection and monitoring functions. FC-PSU-UNI2450U V1.0 includes an under-voltage alarm that activates when the output falls below 22 VDC, a fan alarm, continuous overload and short-circuit protection, an output diode for parallel operation, and an alarm contact rated at 100 mA/30 V. An output adjustment selector switch allows users to select either 25 VDC or 28 VDC according to application requirements.

Maintenance has been simplified with a recessed power switch together with isolated AC and DC connectors. This arrangement allows the power supply to be switched off before disconnecting cables, enabling on-line replacement without generating sparks or voltage spikes on the electrical grid. The AC input uses an IEC 60320 C20 inlet with a retaining clip, while DC output connections employ Phoenix connectors with locking screws supporting conductor sizes from 0.75 mm² to 16 mm².

Honeywell FC-PSU-UNI2450U V1.0 operates within temperatures from -5°C to +70°C and can be mounted either vertically or horizontally. Vertical installation is recommended because convection cooling performs most efficiently when the power and fan input face downward. At least 100 mm of free space should be maintained around the unit to ensure proper airflow and cooling performance. For applications requiring additional electromagnetic noise suppression, the PSU-FLTR2450 common mode filter can be directly installed on FC-PSU-UNI2450U V1.0 without major modifications.
Alternative Names
FC-PSU-UN12450U V1.0 FC-PSU-UNI245OU V1.O FCPSUUNI2450U V1.0 FA-PSU-UNI2450U FC-PSU-UNI4825U FC-PSU-UNI6020U FC-PSU-UNI11011U FC-PSU-UNI12010U
Technical notes
Featuring strict ATEX and SIL3 high-safety compliances, the Honeywell FC-PSU-UNI2450U V1.0 power supply ensures non-stop automation control within extreme industrial environments, offering adjustable 25 or 28 Vdc field outputs.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What output options does Honeywell FC-PSU-UNI2450U V1.0 provide?
Honeywell FC-PSU-UNI2450U V1.0 supports two selectable output settings: 25 VDC with up to 48 A or 28 VDC with up to 43 A, delivering a maximum output power of 1200 W.
How does Honeywell FC-PSU-UNI2450U V1.0 support maintenance?
A recessed ON/OFF power switch and isolated AC and DC connectors allow cables to be disconnected safely after power is switched off, reducing the possibility of sparks or electrical spikes during replacement.
Can FC-PSU-UNI2450U V1.0 operate with different AC supply voltages?
Yes. FC-PSU-UNI2450U V1.0 accepts an operating input range from 93 VAC to 253 VAC with an input frequency of 47 to 63 Hz, making it suitable for universal AC power systems.
Does Honeywell FC-PSU-UNI2450U V1.0 provide alarm functions?
Besides supplying regulated DC power, Honeywell FC-PSU-UNI2450U V1.0 includes an under-voltage alarm, a fan alarm, and an alarm contact rated at 100 mA/30 V for system monitoring.
Which mounting orientation works best for FC-PSU-UNI2450U V1.0?
Vertical installation is preferred because convection cooling is most effective with the power and fan input facing downward. A minimum clearance of 100 mm should be maintained for proper airflow.
