    Honeywell hardware documentation identifies FC-IOCHAS-0001S for conformal-coated non-redundant Safety Manager I/O installations.

FC-IOCHAS-0001S

/ 4.9
1001 reviews | Need a Specific Revision?

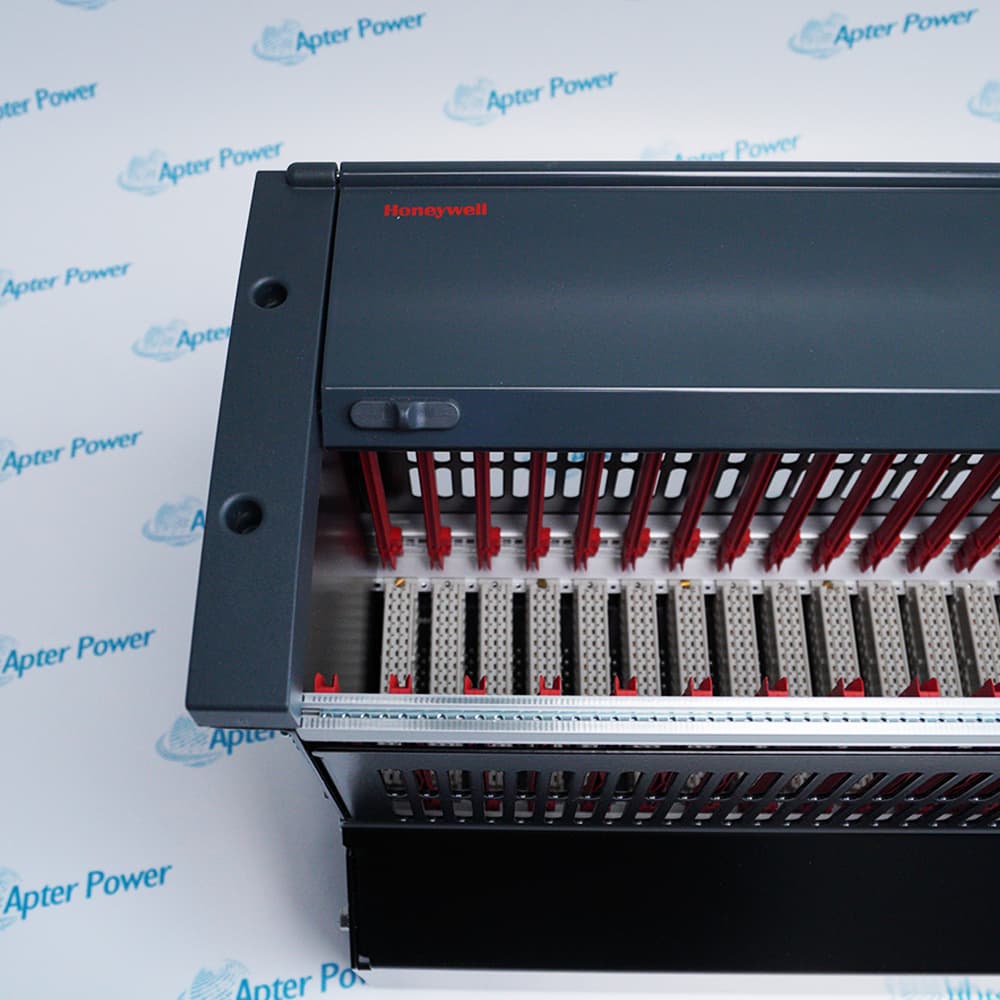

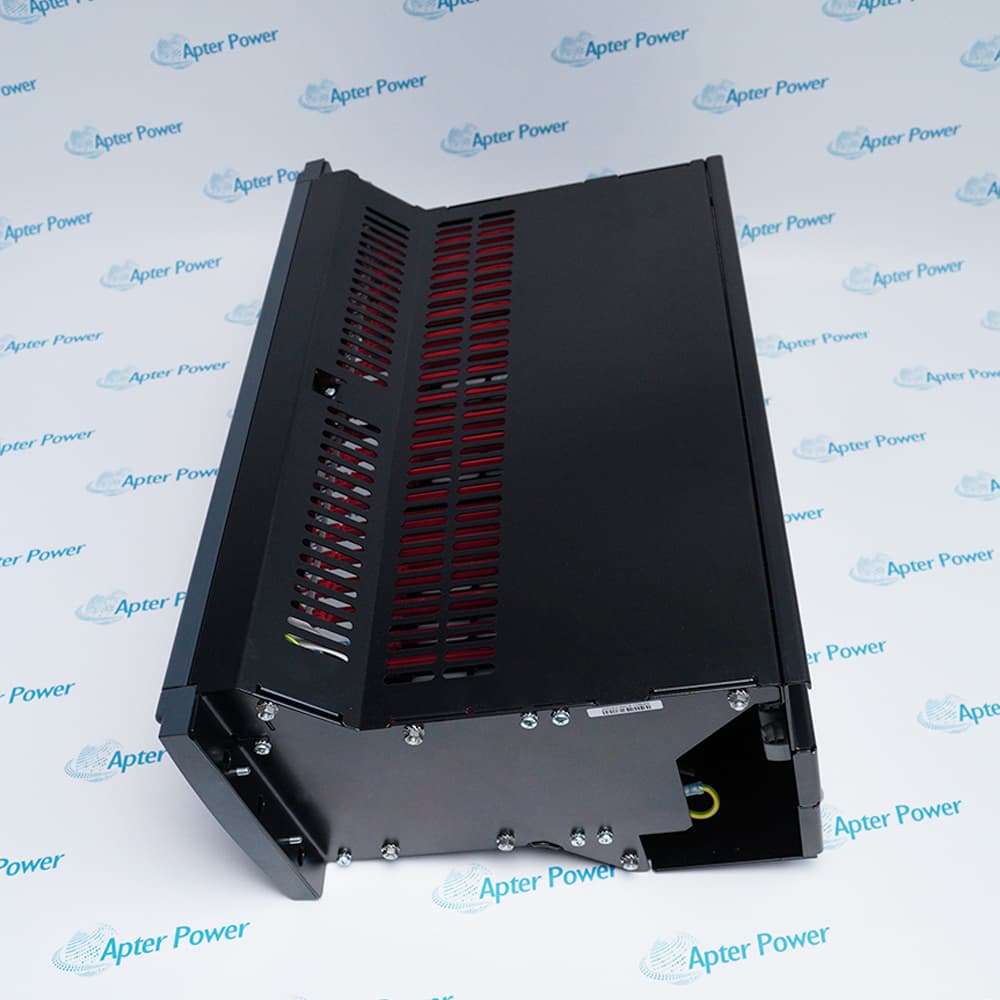

FC-IOCHAS-0001S is a conformal-coated non-redundant i/o chassis for Honeywell Safety Manager systems.
In Stock
Ships by Saturday, October 31
Fast Shipping Available
Get a quick price for FC-IOCHAS-0001S
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for FC-IOCHAS-0001S

  • Manufacturer:
    Honeywell
  • Part Number:
    FC-IOCHAS-0001S
  • Product Family:
    Honeywell Safety Systems
  • Product Type:
    Non-redundant I/O chassis
  • Stock:
    1
  • Configuration:
    Non-redundant Safety Manager I/O chassis
  • Rack format:
    19-inch, 21-slot housing
  • I/O capacity:
    18 I/O modules
  • I/O slots:
    Slots 1–18
  • Extender position:
    IO-0001 in slot 21
  • Dimensions:
    482.6 mm wide × 280 mm deep
  • Approximate weight:
    8.5 kg
  • Coating:
    Conformal-coated FC version
  • Weight:
    8.36 kg
  • Estimated shipping dimensions:
    48.3x29.5x23.5cm
  • Tariff Code:
    8517795000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Safety & Compliance Performance & Efficiency

Product overview:

  • Conformal-coated non-redundant I/O chassis
  • 18 Safety Manager I/O module positions
  • Single IO-0001 extender in slot 21

FC-IOCHAS-0001S provides a single-path Safety Manager I/O expansion chassis with conformal-coated construction.

Its backplane, horizontal bus and extender arrangement are specific to the S configuration and should be verified as a complete chassis assembly.

Verified resources for FC-IOCHAS-0001S:

Verified specifications for FC-IOCHAS-0001S:

  • Configuration: Non-redundant Safety Manager I/O chassis
  • Rack format: 19-inch, 21-slot housing
  • I/O capacity: 18 I/O modules
  • I/O slots: Slots 1–18
  • Extender position: IO-0001 in slot 21
  • Dimensions: 482.6 mm wide × 280 mm deep
  • Approximate weight: 8.5 kg
  • Coating: Conformal-coated FC version

Typical applications:

  • Conformal-coated single-path I/O cabinets
  • Safety Manager non-redundant I/O expansion
  • Industrial installations requiring coated chassis hardware

The chassis supports non-redundant field channels where the environmental specification calls for the FC hardware variant.

Safety and compliance:

  • Documented approvals: CE, UL, CSA, TÜV and FM
  • Single IO-0001 communication path
  • Conformal-coated chassis construction

Installation should follow the approved chassis, power and I/O module schedule defined for the Safety Manager project.

Performance and efficiency:

  • Eighteen usable I/O slots
  • 35 mA extender load from the 5 V-R rail
  • 19-inch rack format with 280 mm depth

The FC chassis combines full non-redundant I/O capacity with the coating level specified for the installation environment.

Description

FC-IOCHAS-0001S is a conformal-coated non-redundant i/o chassis for the Honeywell Safety Manager platform. FC-IOCHAS-0001S provides 21 chassis positions, with slots 1 through 18 available for I/O modules and one IO-0001 extender module installed in slot 21.

The FC version is selected when the non-redundant Safety Manager I/O arrangement also requires conformal-coated hardware. Confirm the matched IOB-0001S backplane, IOBUS-HBS assembly, extender module, power wiring and 19-inch cabinet dimensions before installation.

Alternative Names
FC-IOCHAS-0001S FC IOCHAS 0001S Honeywell FC-IOCHAS-0001S Honeywell FC IOCHAS 0001S Safety Manager FC-IOCHAS-0001S FC-IOCHAS-0001S Non-redundant I/O chassis FCIOCHAS0001S Non-redundant I/O chassis Honeywell Safety Manager FC-IOCHAS-0001S
Technical notes
FC-IOCHAS-0001S is the conformal-coated non-redundant Safety Manager I/O chassis for 18 I/O modules. One IO-0001 extender occupies slot 21.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How is FC-IOCHAS-0001S integrated into a Safety Manager configuration?
Use it with conformal-coated project hardware, one IO-0001 extender, IOB-0001S backplane and IOBUS-HBS horizontal bus.
Which technical interfaces or ratings define FC-IOCHAS-0001S?
The key documented points are Configuration: Non-redundant Safety Manager I/O chassis; Rack format: 19-inch, 21-slot housing; I/O capacity: 18 I/O modules; I/O slots: Slots 1–18. Confirm these values against the installed chassis and project hardware list.
Which compatibility checks are required before installing FC-IOCHAS-0001S?
Confirm FC coating, non-redundant S topology, module positions, backplane and bus versions, extender slot, power distribution and cabinet space.
Which slot, bus position or chassis location is specified for FC-IOCHAS-0001S?
Install it in a 19-inch cabinet, fit I/O modules in slots 1–18 and reserve slot 21 for the IO-0001 extender.
What diagnostic symptoms can indicate a FC-IOCHAS-0001S connection or hardware problem?
An incorrect slot map, extender position, backplane connection or power distribution in FC-IOCHAS-0001S can interrupt several I/O channels or defeat the intended redundant/non-redundant architecture. Check the affected slot group and processor path first.
Can FC-IOCHAS-0001S replace a related FS, FC, S or R version directly?
A redundant R chassis or non-coated FS chassis requires a project compatibility review and should not be treated as an automatic replacement.
Which commissioning checks should be completed after fitting FC-IOCHAS-0001S?
Confirm chassis address, module slot allocation, IO-0001 position, backplane and horizontal-bus type, 5 V supply path and controller diagnostics after installation.
Which engineering data is needed to match and quote FC-IOCHAS-0001S?
Provide the complete FC-IOCHAS-0001S reference, controller and chassis type, Safety Manager release, slot or bus arrangement, coating requirement, existing hardware revision, required quantity and project approval requirements.
