FC-QPP-0002 V1.0

/ 4.9
1001 reviews | Need a Specific Revision?

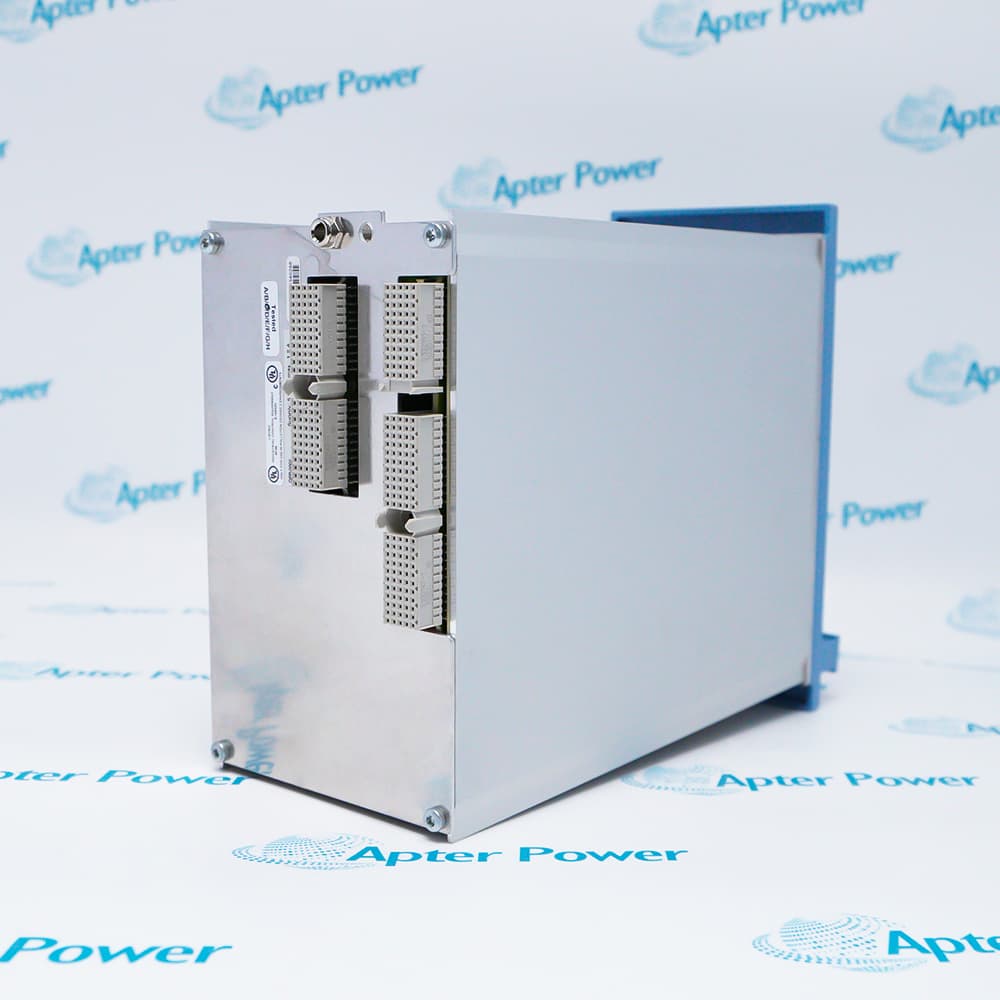

FC-QPP-0002 V1.0 is a dual-sync 1oo2D quad processor pack with redundant links and self-checking watchdog for high-integrity control.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for FC-QPP-0002 V1.0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for FC-QPP-0002 V1.0

  • Manufacturer:
    Honeywell
  • Part Number:
    FC-QPP-0002 V1.0
  • Product Family:
    Honeywell Safety Systems
  • Product Type:
    Quad Processor Pack
  • Stock:
    2
  • outside module temperature:
    –5°C—+70°C (+23°F—+158°F)
  • inside module temperature:
    –5°C—+70°C (+23°F—+158°F)
  • Storage temperature:
    –40°C—+85°C (–40°F—+185°F)
  • Relative humidity:
    10—95% (non condensing)
  • Approvals:
    CE, UL, CSA, TUV, FM
  • Power 24 V supply voltage:
    24 Vdc –15%—+30%
  • 24 V supply current:
    max. 25 mA
  • 5 V supply voltage:
    5 Vdc ± 5%
  • 5 V supply current:
    max 1.2 A
  • Weight:
    1.28 kg
  • Estimated shipping dimensions:
    8.8x22.7x17.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Diagnostic & Protection Installation & Upgrade

Features:

  • The FC-QPP-0002 V1.0 is a specialized Fieldbus Power Supply designed specifically to power Foundation Fieldbus H1 (31.25 kbit/s) segments
  • This module delivers up to 500mA of conditioned current per segment
  • The unit includes LED status indicators for power and fault conditions
The FC-QPP-0002 V1.0 is specifically engineered to power Foundation Fieldbus H1 networks, which operate at 31.25 kbit/s. Unlike standard industrial power supplies that can corrupt sensitive fieldbus communications with electrical noise, this module is precisely designed for the unique voltage and current requirements of a Fieldbus segment. It connects to the H1 trunk, providing the necessary energy for multiple field devices (such as transmitters, valves, and analyzers) connected to the same segment.

A key specification of the FC-QPP-0002 V1.0 is its ability to supply up to 500mA of conditioned current per Fieldbus segment. This high current capacity allows a single power supply to support a substantial number of field devices on one H1 trunk, reducing the number of required power supplies and associated wiring. The "conditioned" aspect is critical: the module contains an integrated impedance network that isolates the raw DC power source from the fieldbus signal.

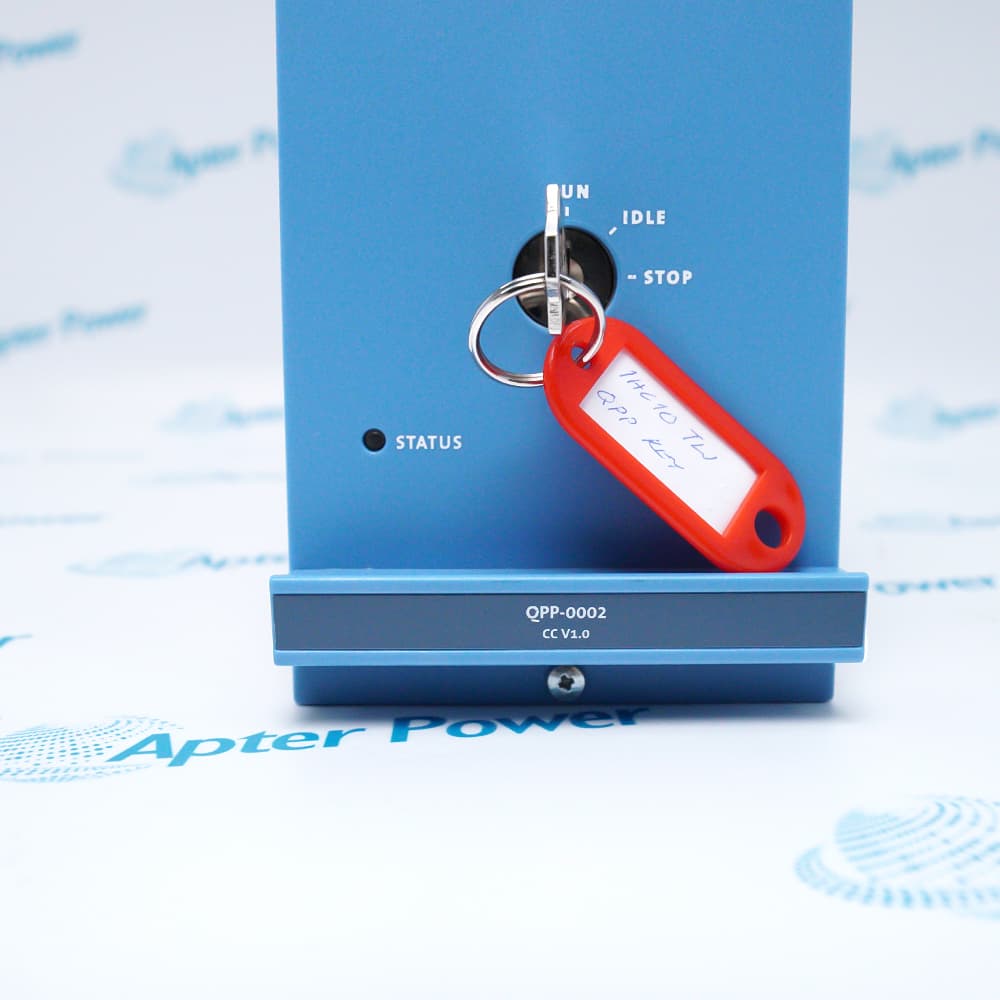

The FC-QPP-0002 V1.0 is designed for reliability and easy troubleshooting in industrial environments. Its front panel is equipped with LED status indicators that provide immediate visual confirmation of the module's operational status, including power output presence and fault conditions. This allows maintenance technicians to quickly identify power supply issues without needing a handheld communicator or access to the DCS. Furthermore, the module incorporates built-in protection circuitry, including short-circuit and overload protection.

The FC-QPP-0002 V1.0 Honeywell Quad Processor Pack may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FC-QPP-0002 V1.0 Quad Processor Pack Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell FC-QPP-0002 V1.0 Quad Processor Pack Specs

General

  • Manufacturer Honeywell
  • Model FC-QPP-0002 V1.0
  • Condition New Original ready stock
  • Product Family FC-QPP-0001 V1.3
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Emergency Shutdown Systems (ESD): Provides real-time safety monitoring and rapid processing for critical interlocks in oil, gas, and petrochemical plants.
  • Burner Management Systems (BMS): Manages safe ignition, flame monitoring, and fuel gas shut-off sequence control for industrial boilers and furnaces.
  • Fire and Gas Systems (F&G): Continuously analyzes toxic or flammable gas concentrations and flame detectors to trigger fire suppression networks.
  • High-Integrity Process Control (HIPPS): Protects downstream pipelines and reaction vessels from overpressure conditions.
  • Dual-Processor Hardware Comparison: Inside the module, two microprocessor channels run concurrently. A dedicated hardware comparator checks all operations on every clock cycle. If a mismatch occurs, the watchdog is triggered to safely freeze outputs.
  • Quadruple Modular Redundancy (2oo4D): When configured in a redundant setup, two FC-QPP-0002 packs operate in tandem to achieve a 2oo4D (2-out-of-4 with diagnostics) voting architecture, balancing ultimate safety with maximum plant availability.
  • Background Self-Testing: The module performs continuous background diagnostics on the memory (RAM/Flash), ALU, and I/O communication buses without affecting the application's scan time.
  • Dedicated Slots: The FC-QPP-0002 must only be installed in the dedicated controller slots of a Safety Manager Controller Chassis (such as CPCHAS-0001 or CPCHAS-0002).
  • Securing the Module: Slide the module smoothly into the top and bottom chassis guides until the rear connectors seat firmly. Secure it in place using the quarter-turn quick-lock screws located near the handle.
  • Backward Compatibility: The FC-QPP-0002 acts as a direct, form-fit-function replacement for the older first-generation QPP-0001 modules.
Description
FC-QPP-0002 V1.0 is an Enhanced Performance Quad Processor Pack with conformal coating. It centers on a 1oo2D architecture of two synchronously running processors, integrates primary and backup Flash for system and application code, and provides battery-backed RAM (battery located in BKM-0001). A redundant communication link—supported by its own dedicated RAM—maintains real-time data exchange with the partner control processor.

FC-QPP-0002 V1.0 embeds data comparators that continuously verify processor and memory consistency. A fully testable watchdog supervises execution time windows, memory errors, 24 V and 5 V rails, offers an emergency shutdown 24 V input, and drives one output for non-redundant I/O and one for redundant I/O. Temperature monitors, a real-time clock, and a diagnostic display complete the onboard supervision.

FC-QPP-0002 V1.0 also furnishes four IObus drivers for high-speed data exchange with its communication modules, providing comprehensive support for high-integrity process control.
Alternative Names
FC-QPP-OOO2 V1.O FC-QPP-0002 VI.0 FCQPP0002 V1.0 FC-QPP-0001 V1.3 FC-TERM-0002 FC-SSWM01 FC-TCNT11 FC-PDB-0824P
Technical notes
The Honeywell FC-QPP-0002 V1.0 Quad Processor Pack serves as the central brain for safety-critical systems, certified for SIL3 applications to deliver reliable, high-integrity control.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How much current does Honeywell FC-QPP-0002 V1.0 consume?
The module draws a maximum of 25 mA from the 24 V supply and up to 1.2 A from the 5 V supply.
Can Honeywell FC-QPP-0002 V1.0 operate in elevated temperatures?
Normal operation of Honeywell FC-QPP-0002 V1.0 is supported with outside and inside module temperatures from –5°C to +70°C (+23°F to +158°F).
Which environmental conditions are suitable for Honeywell FC-QPP-0002 V1.0?
Honeywell FC-QPP-0002 V1.0 is intended for environments with relative humidity between 10% and 95% non-condensing.
Does Honeywell FC-QPP-0002 V1.0 tolerate harsh storage conditions?
Storage temperatures for Honeywell FC-QPP-0002 V1.0 range from –40°C to +85°C (–40°F to +185°F), allowing the module to withstand demanding warehouse conditions.
Where can Honeywell FC-QPP-0002 V1.0 be applied?
Honeywell FC-QPP-0002 V1.0 is suitable for industrial control and Safety Manager installations requiring reliable processor performance and certified hardware.
Which certifications are available for Honeywell FC-QPP-0002 V1.0?
Compliance approvals for Honeywell FC-QPP-0002 V1.0 include CE, UL, CSA, TUV, and FM, supporting use in a wide range of industrial applications.
