    Apter Power can help review fuse selection, output mapping, DIN-rail fit and the connected 24 VDC field loads.

FC-PDB-0824P V1.0

/ 4.9
1001 reviews | Need a Specific Revision?

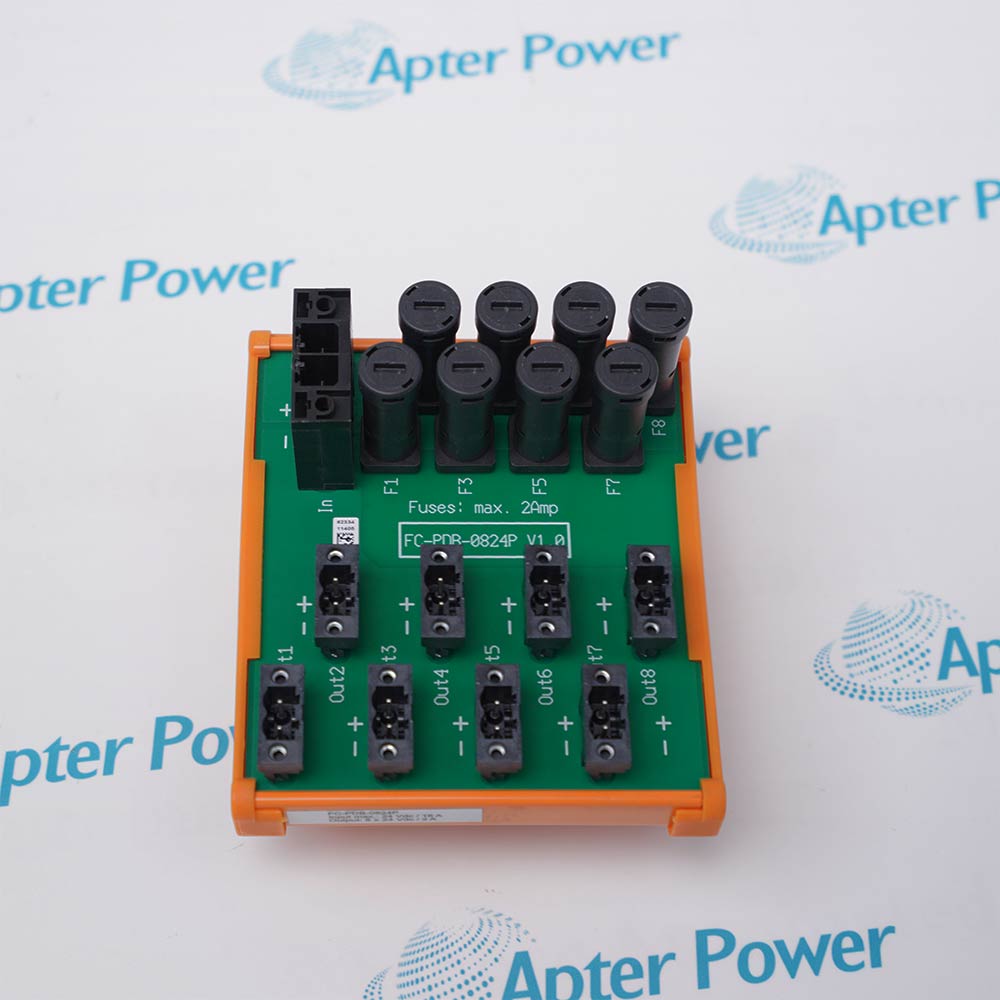

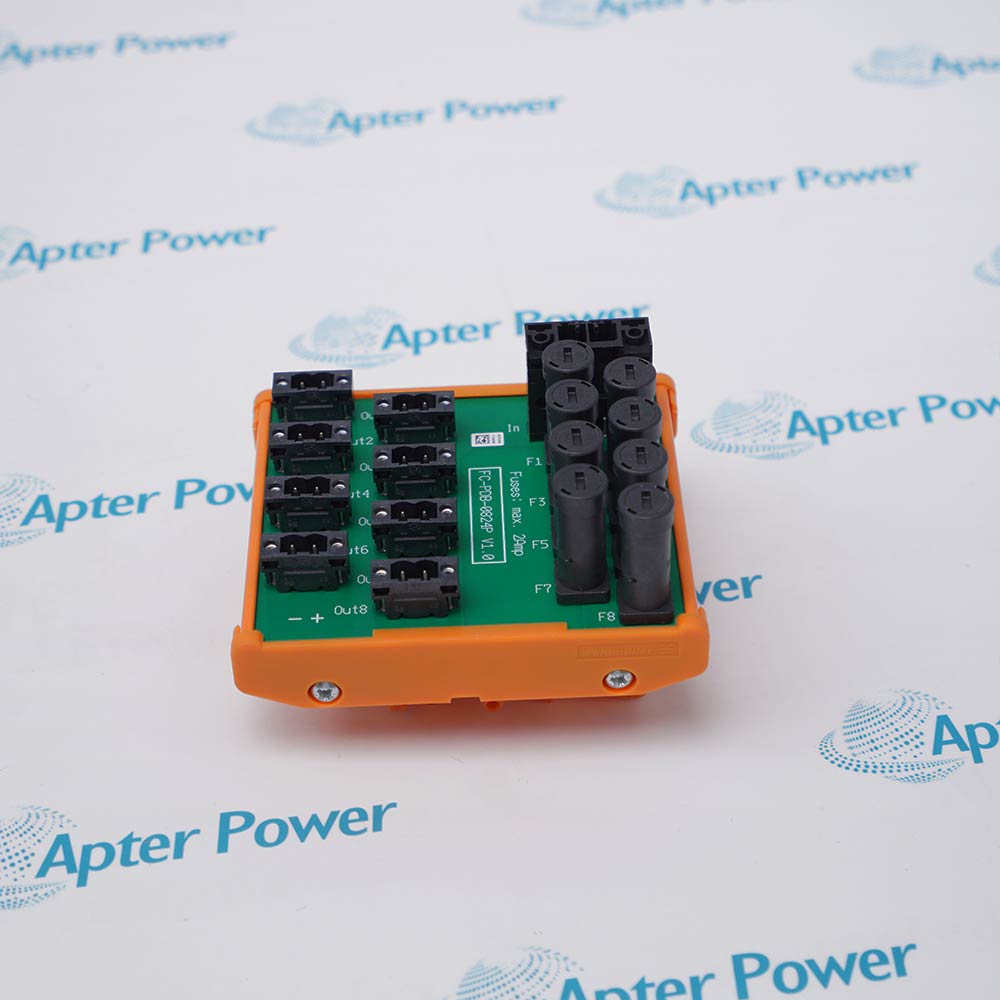

The Honeywell FC-PDB-0824P V1.0 distributes one 24 VDC cabinet supply through eight individually fused field-power outputs on a DIN-rail board.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for FC-PDB-0824P V1.0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for FC-PDB-0824P V1.0

  • Manufacturer:
    Honeywell
  • Part Number:
    FC-PDB-0824P V1.0
  • Product Family:
    Honeywell Safety Systems
  • Product Type:
    Eight-Channel 24 VDC Power Distribution Board
  • Stock:
    1
  • Distribution Function:
    Eight fused 24 VDC output paths
  • Input:
    Single 24 VDC cabinet supply
  • Fuse Current Rating:
    2 A per output
  • Fuse Dimensions:
    5 x 20 mm
  • Fuse Voltage Rating:
    250 VAC / 300 VDC
  • Temperature Derating:
    2 A at 25 degrees C to 1.4 A at 70 degrees C
  • Input Connection:
    2-pole keyed header
  • Field Connections:
    2-pole socket blocks
  • DIN Rail Compatibility:
    TS32 or TS35 x 7.5
  • Used Rail Length:
    95 mm
  • Estimated shipping dimensions:
    94 x 109 x 71 mm
  • Tariff Code:
    8537109090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Power Distribution Fuse Selection Installation Checks Product Applications

Features:

  • Eight individually fused 24 VDC output paths
  • 2 A, 5 x 20 mm branch fuses with temperature derating
  • TS32 or TS35 x 7.5 DIN-rail mounting
FC-PDB-0824P V1.0 divides one incoming 24 VDC cabinet supply into eight protected field-power branches.

Each outgoing path has its own fuse so a field-circuit fault can be isolated without removing power from every connected load.

The keyed connector arrangement and DIN-rail form keep supply, fuse and field wiring accessible for cabinet service.

The Honeywell FC-PDB-0824P V1.0 Eight-Channel 24 VDC Power Distribution Board is listed as Active / Available from OEM. Apter Power supports fuse, rail and field-load matching.

Honeywell FC-PDB-0824P V1.0 Power Distribution Board Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Eight Protected Paths

  • Input supply: One incoming 24 VDC cabinet supply
  • Protected outputs: Eight separately fused outgoing circuits
  • Connector separation: Keyed connectors separate input and field wiring

Branch Protection

  • Rated current: 2 A fuse rating at 25 degrees C
  • Fuse size: 5 x 20 mm fuse body
  • High-temperature derating: Current derates to 1.4 A at 70 degrees C

Rail and Wiring Review

  • Rail profile: Confirm TS32 or TS35 x 7.5 rail profile
  • Required space: Reserve 95 mm of rail plus connector access
  • Output identification: Label every fused field output before transfer

Product Applications

  • Cabinet distribution: Fused 24 VDC distribution inside Safety Manager cabinets
  • Field-device protection: Branch protection for multiple field-powered devices
  • Replacement use: Replacement of an installed eight-output distribution board
Description
Honeywell FC-PDB-0824P V1.0 is an eight-output 24 VDC power distribution board for Honeywell Safety Manager cabinet hardware. It takes one incoming cabinet supply and separates it into individually fused field-power paths.

Honeywell FC-PDB-0824P V1.0 protects each outgoing path with a 2 A, 5 x 20 mm fuse. The fuse current must be derated as module ambient temperature rises, so the cabinet thermal condition is part of circuit loading rather than an unrelated installation detail.

Honeywell FC-PDB-0824P V1.0 uses keyed input and field connector blocks to keep the incoming supply and distributed outputs organized. It mounts on TS32 or TS35 x 7.5 DIN rail and occupies 95 mm of rail length.

Honeywell FC-PDB-0824P V1.0 should be commissioned by tracing each fused output to its field load, checking polarity and confirming that replacement fuses match the required dimensions and interrupting voltage. The board does not replace branch-circuit design or cabinet-level supply protection.
Alternative Names
Honeywell FC-PDB-0824P V1.0 FCPDB0824P FC PDB 0824P FC-PDB0824P FC PDB-0824P FC-PDB-0824P V1.0 PDB FC-PDB-0824P V1.0 Power Board FC-PDB-0824P V1.0 Distribution Board
Technical notes
FC-PDB-0824P V1.0 distributes eight fused 24 VDC paths; verify fuse type, temperature derating, polarity, DIN-rail clearance and each field-load assignment before energizing.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should replacement fuses be selected for FC-PDB-0824P V1.0?
Use 2 A, 5 x 20 mm fuses with the required 250 VAC or 300 VDC voltage rating, then confirm that the field load remains within the temperature-derated current limit.
Why can an FC-PDB-0824P V1.0 output carry less current in a hot cabinet?
The published fuse derating falls from 2 A at 25 degrees C to 1.4 A at 70 degrees C. Review cabinet temperature before assigning field loads.
What should be recorded before moving wiring to FC-PDB-0824P V1.0?
Label every fused output, record polarity and field destination, and photograph the keyed input and output connectors before disconnecting the existing board.
Which DIN rails can be used with FC-PDB-0824P V1.0?
The board supports TS32 and TS35 x 7.5 rails and uses 95 mm of rail length. Allow additional clearance for connector access and fuse replacement.
What information helps match an FC-PDB-0824P V1.0 replacement?
Provide the complete board label, incoming 24 VDC supply details, fuse types, field-load list, DIN-rail profile and clear photographs of both connector sides.
