51402797-200

/ 4.9
1001 reviews | Need a Specific Revision?

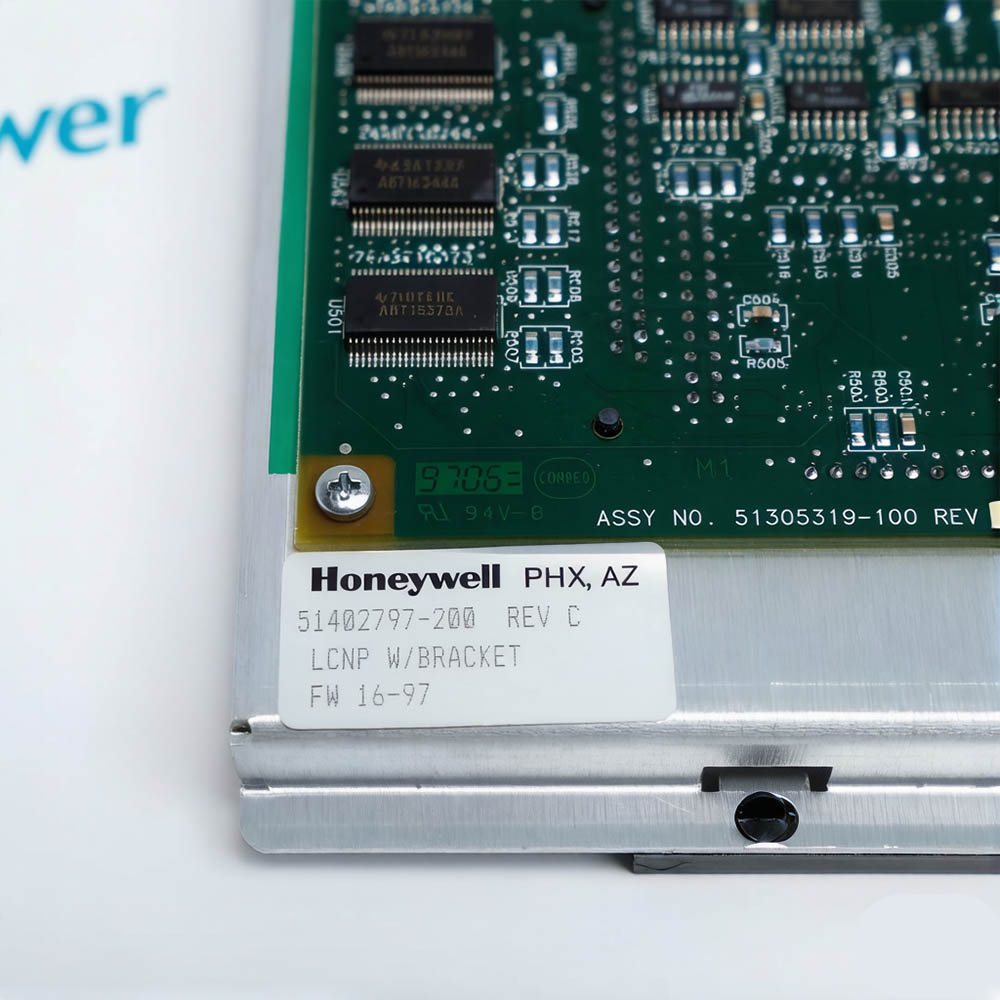

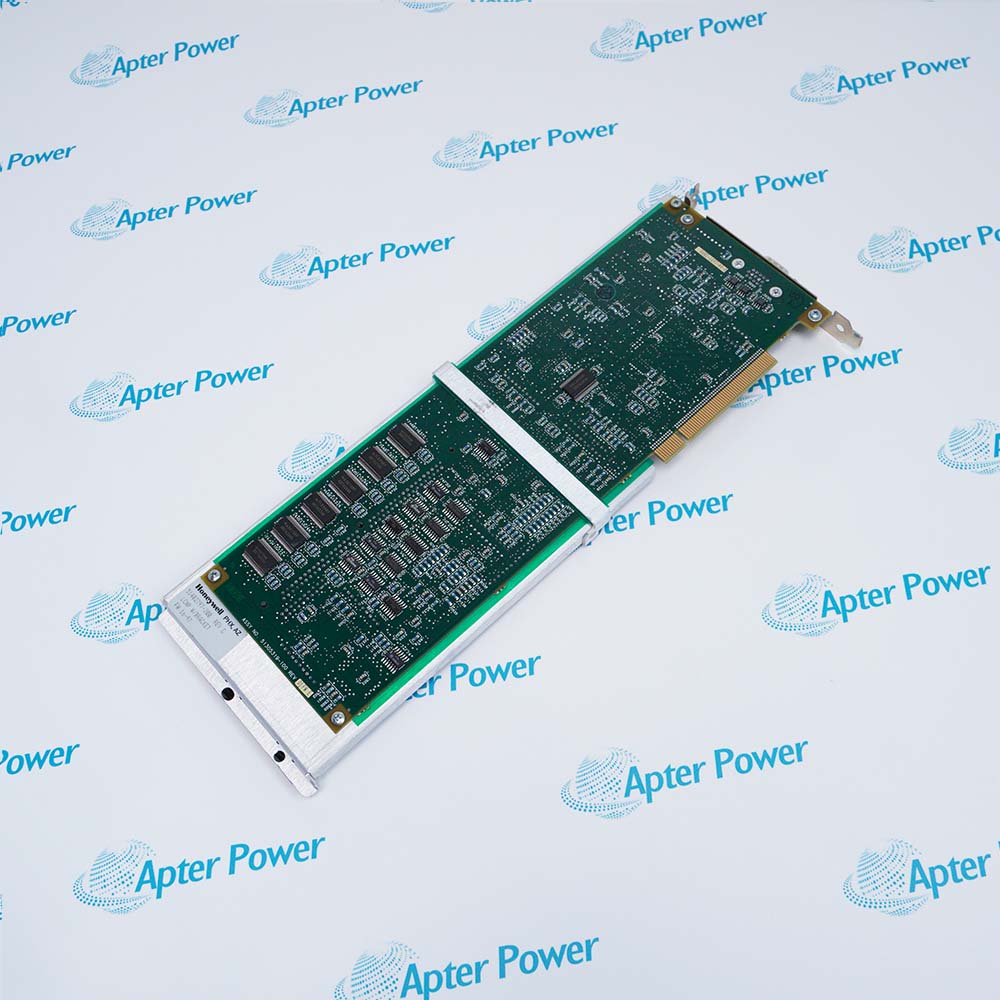

Honeywell 51402797-200 is a legacy control board assembly supplied with its mounting bracket for exact-match service. Host node, connector arrangement and bracket geometry must be verified together.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 51402797-200
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 51402797-200

  • Manufacturer:
    Honeywell
  • Part Number:
    51402797-200
  • Product Family:
    Honeywell TPS Series
  • Product Type:
    LCNP Board with Bracket
  • Stock:
    1
  • LCN Interface Technology:
    LCNP electronics
  • Network Medium:
    LCN coaxial network
  • Host Node Class:
    Windows-based user-interface node
  • Documented Function:
    Connects user-interface nodes to LCN COAX
  • Migration Context:
    LCNP electronics are removed during LCN COAX-to-FTE conversion
  • Weight:
    0.34 kg
  • Estimated shipping dimensions:
    2.2x35.2x13.2cm
  • Tariff Code:
    7216339000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communication & Connectivity Compatibility Operating Environment

Features:

  • Identifies the replacement assembly by Honeywell part number 51402797-200.
  • Retains the supplied mounting bracket as part of the service configuration.
  • Requires host-node and connector verification before installation.
The ordering identity covers the board assembly and bracket configuration associated with part number 51402797-200.

Within a legacy Honeywell control installation, the assembly supports maintenance of an existing node rather than a change to the system architecture.

Record the removed board position, bracket orientation and connected harnesses before exchange so the replacement can be matched without disturbing adjacent hardware.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Honeywell 51402797-200: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Supports like-for-like maintenance of documented Honeywell TPS control hardware.
  • Helps restore a service position when an installed board and bracket require replacement.
  • Provides a traceable spare for lifecycle planning in legacy process-control cabinets.
  • Preserve the existing LCN connector arrangement and cable routing recorded before removal.
  • Confirm every backplane and external connector against the installed node documentation.
  • Recheck shield and grounding continuity after the replacement board is seated.
  • Match the complete Honeywell part number before treating the assembly as interchangeable.
  • Compare bracket geometry, connector keying and host-slot position with the removed unit.
  • Validate the node hardware revision and maintenance records before commissioning.
  • Operate the assembly only within the enclosure limits specified for the host control cabinet.
  • Protect exposed circuitry from electrostatic discharge, moisture and conductive contamination.
  • Allow safe de-energization and controlled handling during removal and installation.
Description
The Honeywell 51402797-200 is an LCNP (Local Control Network Processor Card) built with a Motorola MC68040 CPU running at 33 MHz and equipped with 32 MB DRAM. It is designed as a plug-in processor board operating on a 24 VDC power supply, ensuring compatibility with Honeywell TDC 3000 and TPS systems.

This module is primarily used to establish communication between PC or GUS operator workstations and the Local Control Network (LCN). Within distributed control environments, the Honeywell 51402797-200 supports data exchange and system interaction between operator interfaces and process control networks.

The Honeywell 51402797-200 is supplied in a form factor designed for mounting with a bracket or card guide, allowing stable installation within system hardware racks. It is engineered to operate under industrial temperature conditions ranging from -10°C to +55°C, with storage capability from -40°C to +70°C.
Alternative Names
51402797-200 Honeywell 51402797200 Honeywell 51402797 200 Honeywell 51402797-200 Honeywell LCNP 51402797-200 51402797-200 LCNP Board Honeywell 51402797-200 LCNP Board with Bracket Honeywell TPS 51402797-200
Technical notes
Honeywell 51402797-200 should be compared as a complete board-and-bracket assembly; record connector routing and the installed node position before any replacement work.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why must the bracket remain part of Honeywell 51402797-200 identification?
The current service configuration is recorded as a board assembly with bracket, so mechanical fit must be checked with the electronics.
Which label comparison is required for Honeywell 51402797-200?
Match the complete part number on the board and confirm that the bracket belongs to the same removed assembly.
How should connector orientation be documented for Honeywell 51402797-200?
Photograph the installed connectors and cable approach before removal, then mark each harness by its original position.
What node record helps validate Honeywell 51402797-200 installation?
Use the cabinet location, host node designation and maintenance history as the baseline for the replacement.
Can a bare board automatically replace Honeywell 51402797-200 with its bracket?
Not without verification. Mechanical mounting, grounding, connector access and the exact ordering identity must still be compared.
What should be sent when requesting Honeywell 51402797-200 availability?
Provide the full part number, bracket photographs, host-system details, quantity and required delivery location.
