The Honeywell MU-TSDM02 51303932-277 is a Serial Device Interface (SDI) Field Termination Assembly (FTA) that enables up to four Honeywell MU-MASX02 Manual/Auto Stations to communicate with a High-Performance Process Manager (HPM) via an RS-422/485 asynchronous serial link.
Get a quick price for MU-TSDM02 51303932-277
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MU-TSDM02 51303932-277

  • Manufacturer:
    Honeywell
  • Part Number:
    MU-TSDM02 51303932-277
  • Product Family:
    Honeywell TPS Series
  • Product Type:
    Serial Device Interface (SDI) Field Termination Assembly (FTA)
  • Connector Type:
    5-terminal compression connector
  • Baud Rate:
    19.2 Kbps (fixed)
  • Input Scan Rate:
    4 updates per second per point
  • Communication Distance (FTA to Device):
    Up to 1200 meters (4000 ft) with appropriate cable
  • Communication Distance (IOP to FTA):
    Up to 50 meters (164 ft)
  • Current Consumption (24 Vdc):
    165 mA
  • Surge Withstand Capability:
    ANSI/IEEE C37.90.1-1978
  • ESD Protection:
    IEC 801.2
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    15.1x12x8cm
  • Tariff Code:
    8471499100
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Applications Manuals Specifications Applications Monitoring & Control Performance & Efficiency

Features:

  • Multidrop Serial Communication
  • Dedicated Manual/Auto Station Interface
  • Industrial-Grade Electrical Protection
Functions as a Serial Device Interface (SDI) Field Termination Assembly (FTA) enabling up to four Honeywell Manual/Auto Stations to communicate with a High-Performance Process Manager (HPM) via a single EIA-485 multidrop link.

Specifically designed to support Honeywell Manual/Auto Stations, with each FTA accommodating up to 4 stations and each station transmitting 8-character Tag IDs and Engineering Unit limits (EUHI/EULO).

Certified with 250 Vac rms / ±250 Vdc common mode voltage, 1500 Vac rms dielectric strength, surge withstand per ANSI/IEEE C37.90.1-1978, and ESD protection per IEC 801.2.

The MU-TSDM02 51303932-277 Honeywell Serial Device Interface (SDI) Field Termination Assembly (FTA) may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell MU-TSDM02 51303932-277 Serial Device Interface (SDI) Field Termination Assembly (FTA) Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell MU-TSDM02 51303932-277 Serial Device Interface (SDI) Field Termination Assembly (FTA)

General

  • Manufacturer Honeywell
  • Model MU-TSDM02 51303932-277
  • Condition New Original ready stock
  • Product Family MU-TSDT02,MU-TSDU02,MU-MASX02
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Honeywell TPS (TotalPlant Solution) and HPM Systems: Interfaces directly with the High-Performance Process Manager (HPM) via the MU-PSDX02 IOP and MU-TLPA02 Power Adapter.
  • Manual/Auto Station Integration: Connects up to four MU-MASX02 Manual/Auto Stations to a central control system for local backup control.
  • Multidrop Fieldbus Networks: Operates on a half-duplex, asynchronous, EIA-485 multidrop physical interface using a 5-terminal compression connector.
  • Retrofit and Legacy System Support: Designed for existing Honeywell PM/APM/HPM cabinets, with internal or external cabling up to 300 m (from power adapter to FTA) and up to 1.2 km from FTA to device.
  • Asynchronous Data Transfer: Supports bidirectional, half-duplex transmission at a fixed baud rate of 19.2 Kbps with bit-serial asynchronous mode.
  • Data Integrity Validation: Employs single-bit character parity and message block checksum to ensure message validity.
  • Downloadable Control Parameters: The controller downloads 8-character Tag IDs and Engineering Unit limits (EUHI/EULO) to each Manual/Auto Station.
  • Scan Rate Capability: Provides an input scan rate of 4 updates per second per point for real-time monitoring.
  • High Channel Density per IOP: Each Serial Device Interface IOP supports 2 FTAs (e.g., MU-TSDM02), delivering a total capacity of up to 8 Manual/Auto Stations per IOP (4 stations per FTA).
  • Efficient Point Utilization: Supports 1 to 16 array points per IOP, with 1 to 8 points per FTA, enabling flexible system scaling.
  • Low Power Consumption: Consumes only 165 mA at 24 Vdc, making it energy-efficient for large I/O cabinets.
  • Extended Communication Distance: Allows FTA-to-device cabling up to 1.2 km (4000 ft) with appropriate cable, reducing the need for remote I/O enclosures.
Description
The Honeywell MU-TSDM02 51303932-277 is a dedicated Field Termination Assembly (FTA) designed for the Honeywell HPM (High-Performance Process Manager) and TPS (TotalPlant Solution) systems. Its primary function is to act as a communication gateway, connecting up to four MU-MASX02 Manual/Auto Station devices to the central control system through an EIA-422/485 (RS-422/485) multidrop interface. This module is part of the Serial Device Interface (SDI) family and must be used with the MU-PSDX02 IOP and MU-TLPA02 Power Adapter.

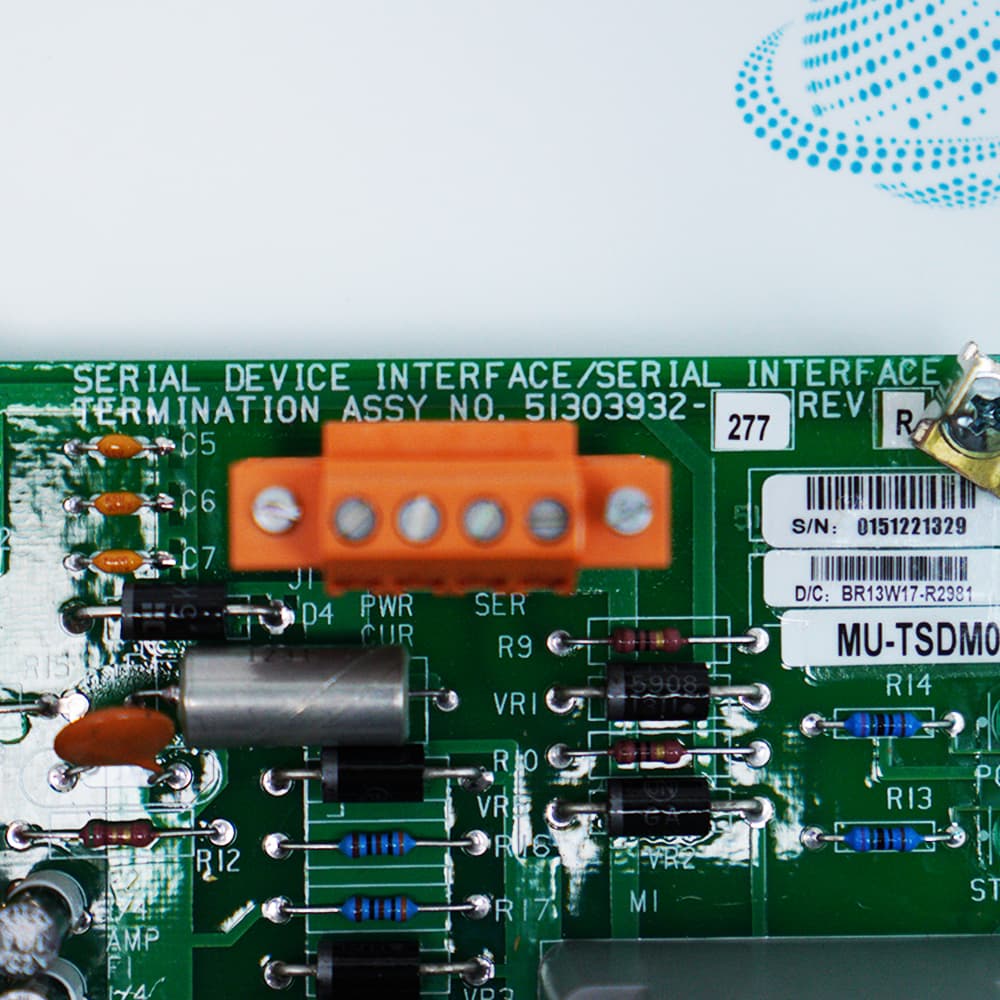

Honeywell MU-TSDM02 51303932-277 is built on a universal FTA board, and its specific function as a Manual/Auto Station interface is determined by the firmware loaded on its M1 plug-in module. It features a 5-terminal compression connector for field wiring and supports a fixed baud rate of 19.2 Kbps. The Honeywell MU-TSDM02 51303932-277 is characterized by its industrial-grade reliability, including surge withstand capability and ESD protection, making it suitable for demanding process control environments.

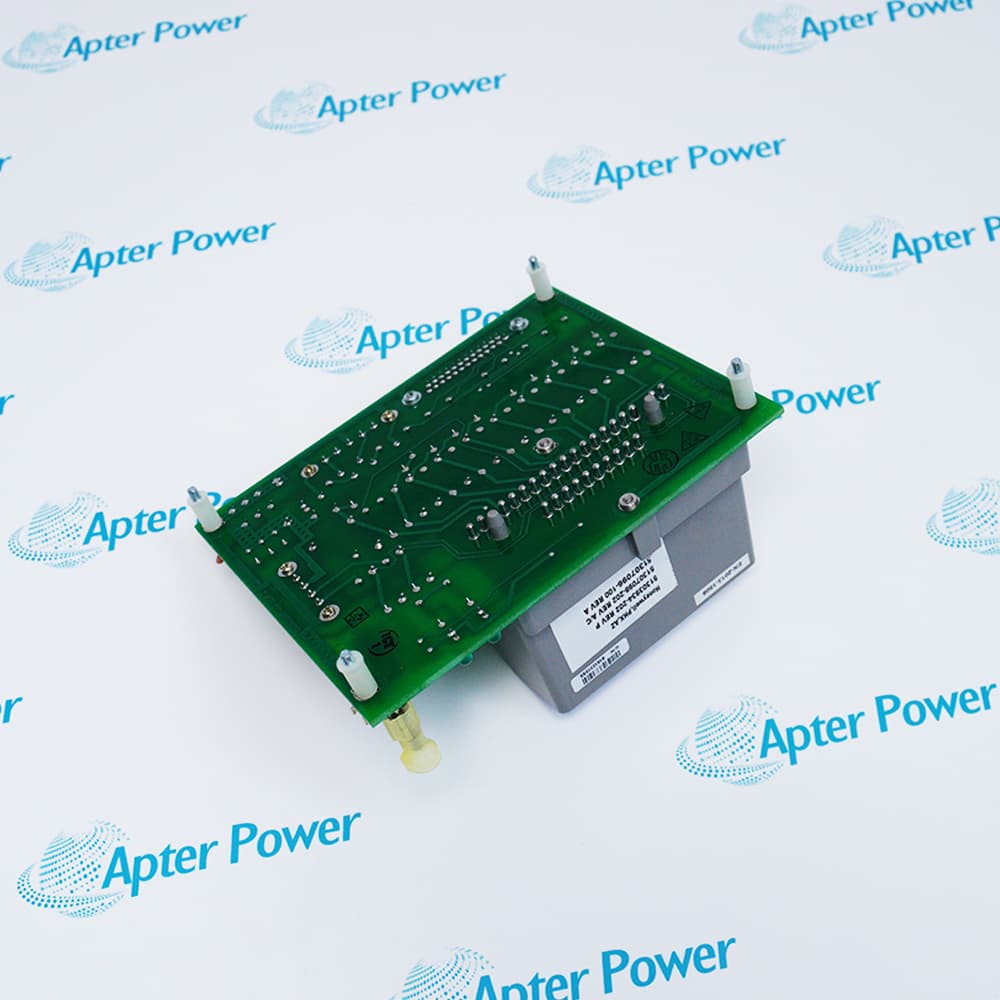

Physically classified as an A-size FTA (152.4 mm x 120.7 mm), the Honeywell MU-TSDM02 51303932-277 consumes 165 mA of 24 Vdc power. It is designed to be mounted on an FTA mounting channel within a Honeywell cabinet. The module supports parameter downloads such as Tag ID (8 characters) and engineering unit limits (EUHI/EULO), and it scans each connected point at a rate of four times per second.
Alternative Names
MU TSDM02 51303932-277 MU-TSDM02 51303932 277 MU TSDM02 51303932 277 MU-TSDM02 51303932-277
Technical notes
The Honeywell MU-TSDM02 51303932-277 is a legacy Serial Device Interface (SDI) FTA that operates exclusively at a fixed baud rate of 19.2 Kbps and requires the MU-PSDX02 IOP and MU-TLPA02 Power Adapter for proper functionality.
