Features:
- Motorola 68040 processing architecture ensures coordinated logic and communication handling
- 8MW memory structure supports system-level data processing within LCN environment
- Standard LCN integration with defined network frequency and software compatibility

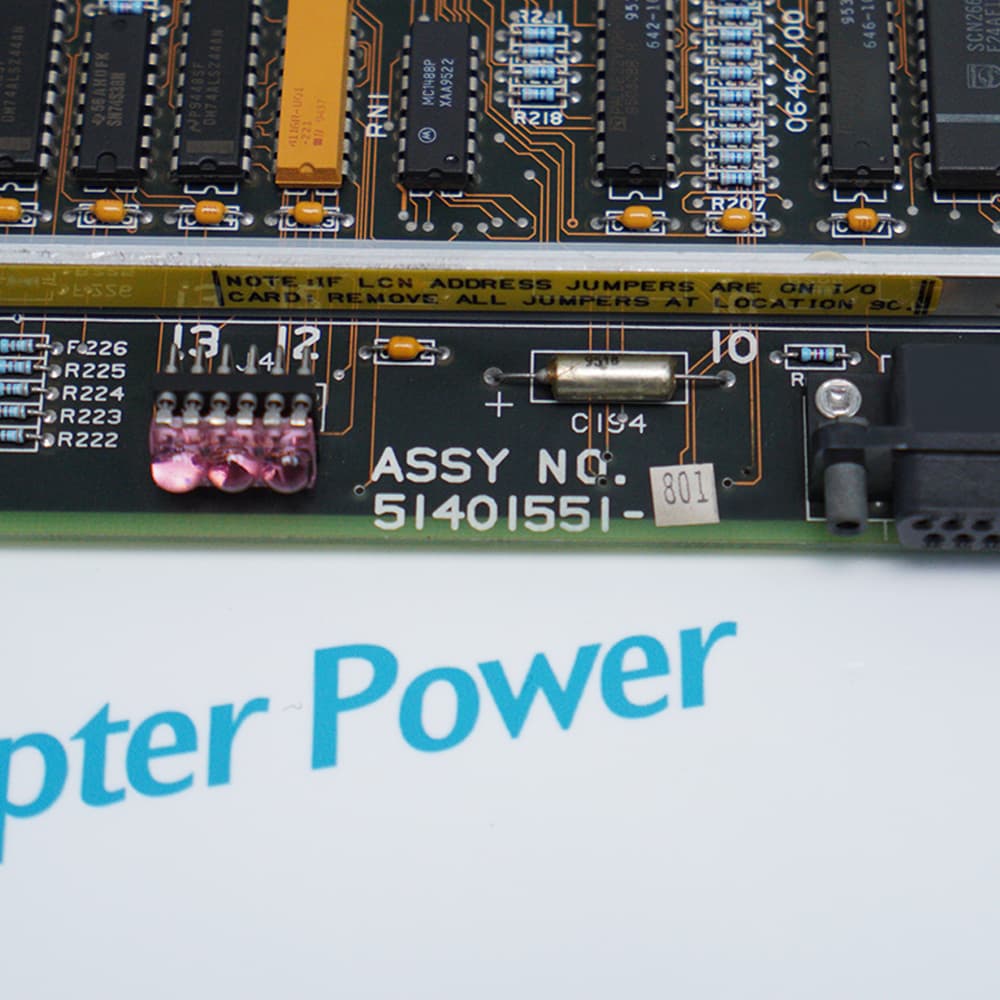

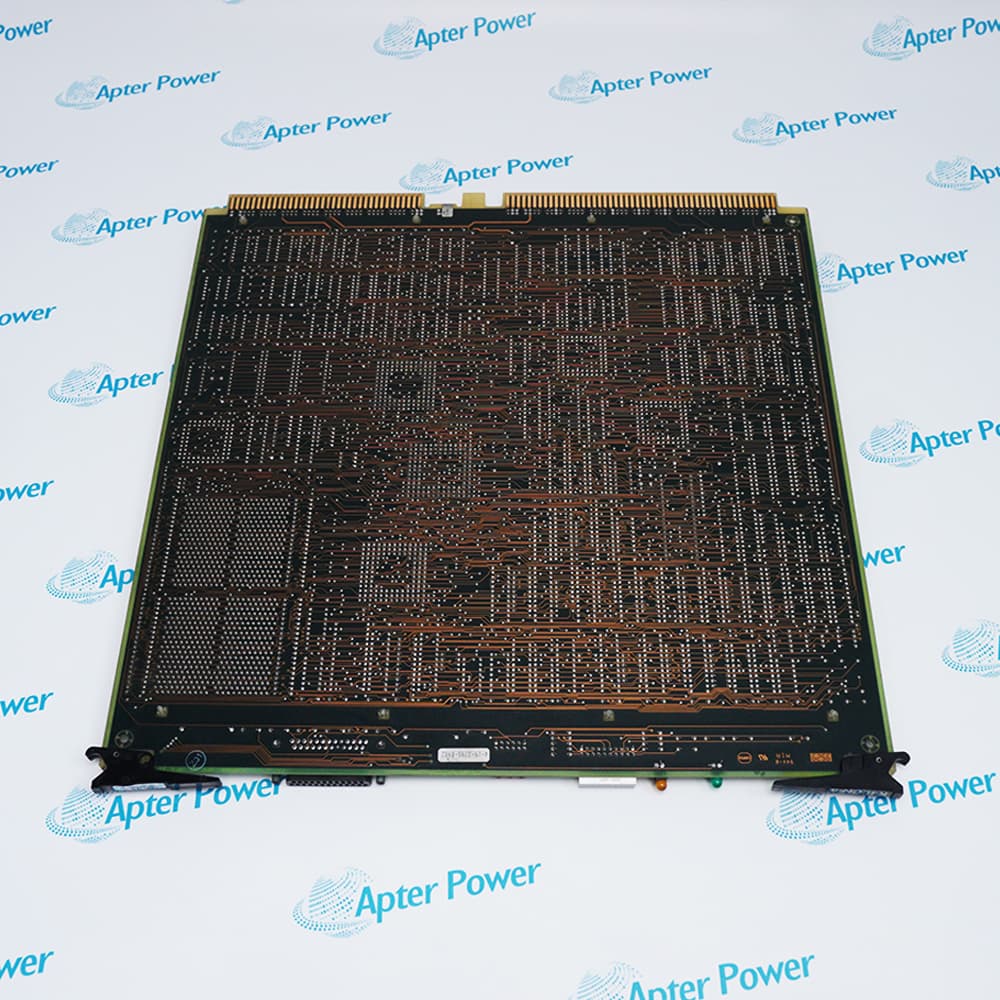

The Honeywell K4LCN-8 51401551-801 is an LCN card used in Honeywell TDC 3000 and TPS distributed control systems. It serves as a central processing and communication component within the Local Control Network architecture. The Honeywell K4LCN-8 51401551-801 is responsible for managing data exchange and logical operations across system nodes.
Within system architectures, the Honeywell K4LCN-8 51401551-801 operates as an 8MW processor card built on a Motorola 68040 processor. It supports network communication at a 5 MHz LCN standard frequency and is compatible with R500 or higher software environments. The Honeywell K4LCN-8 51401551-801 is integrated into LCNP4 and related LCN-based configurations for system-level coordination.
The Honeywell K4LCN-8 51401551-801 is designed for stable operation under industrial conditions, including defined electrical and environmental limits. It operates on +5V DC power with typical current consumption of 4.5A and supports temperature ranges from 0°C to 50°C. The Honeywell K4LCN-8 51401551-801 also includes structural options such as a standard dual-layer board design and optional G3 coating for environmental protection.
The K4LCN-8 51401551-801 Honeywell LCN Card may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell K4LCN-8 51401551-801 LCN Card Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell K4LCN-8 51401551-801 LCN Card Specs
General
- Manufacturer Honeywell
- Model K4LCN-8 51401551-801
- Condition New Original ready stock
- Product Family K4LCN 51401946-100,KLCN CA 51304542,KLCN CB 51304544
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- In-Site Upgrade and Replacement: Fully backward compatible with earlier K2LCN series boards, allowing for performance improvements without changing the existing physical architecture.
- Multi-System Interoperability: Supports stable operation in control systems at different stages, including TDC 3000, TDC 3000X, and Experion LCN (ELCN).
- Software Version Compatibility: Supports at least R500 version software environment, a crucial hardware foundation for the system to advance to higher version control logic.
- Standardized Interface: Complies with the LCN network protocol, enabling seamless integration with NIM (Network Interface Module), AM (Application Module), and other nodes on the network.
- Node Processing Center: Serves as the main processing board for LCN network nodes (such as operator stations and historical modules), responsible for running system software and managing local network communication.
- High-Performance Station Support: Essential hardware for general-purpose operator stations running "Engineer Personality" software, providing an 8MW memory environment.
- High-Load System Optimization: Recommended for use when the UCN network is heavily loaded or connected to a High-Performance Process Manager (HPM) to enhance data processing capabilities.
- Clock Synchronization Management: Capable of generating and receiving 5 MHz digital clock synchronization data frames according to the LCN standard, ensuring time synchronization across the entire plant control system.
- Integrated Architecture: Integrates the previously separate processor core (Kernel) and LCN interface (LCNI) functions onto a single card, significantly improving internal data forwarding efficiency.
- Large-Capacity High-Speed Memory: Equipped with 8 megabytes (8MW) of memory, it can quickly cache and process large-scale historical trend and alarm data, reducing system response time.
- Significantly Enhanced Computing Power: Utilizes the Motorola 68040 processor, offering significantly higher computing throughput compared to its predecessor, capable of handling more complex control algorithms.
- Easy Maintenance and Installation: Employs a standard pluggable card design, reducing downtime during system upgrades or fault replacements and lowering maintenance costs.
