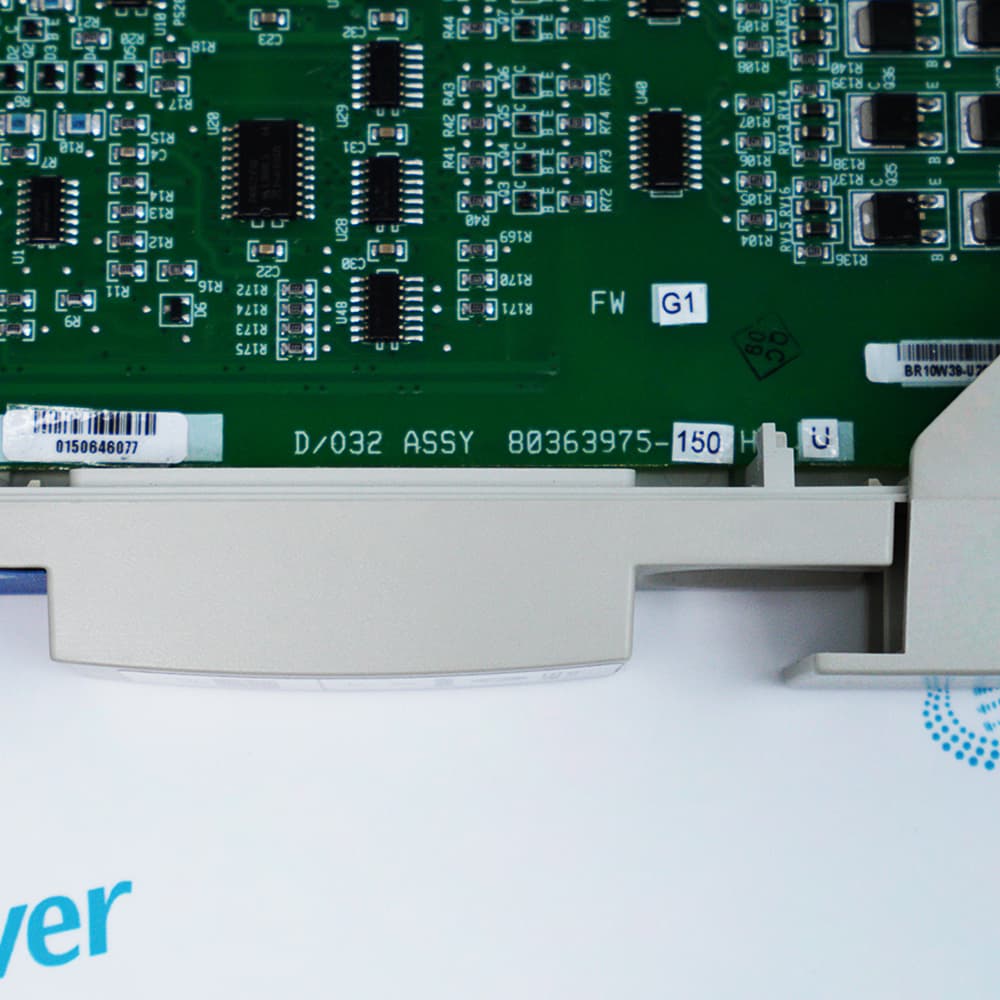

MC-PDOY22 80363975-150

/ 4.9
1001 reviews | Need a Specific Revision?

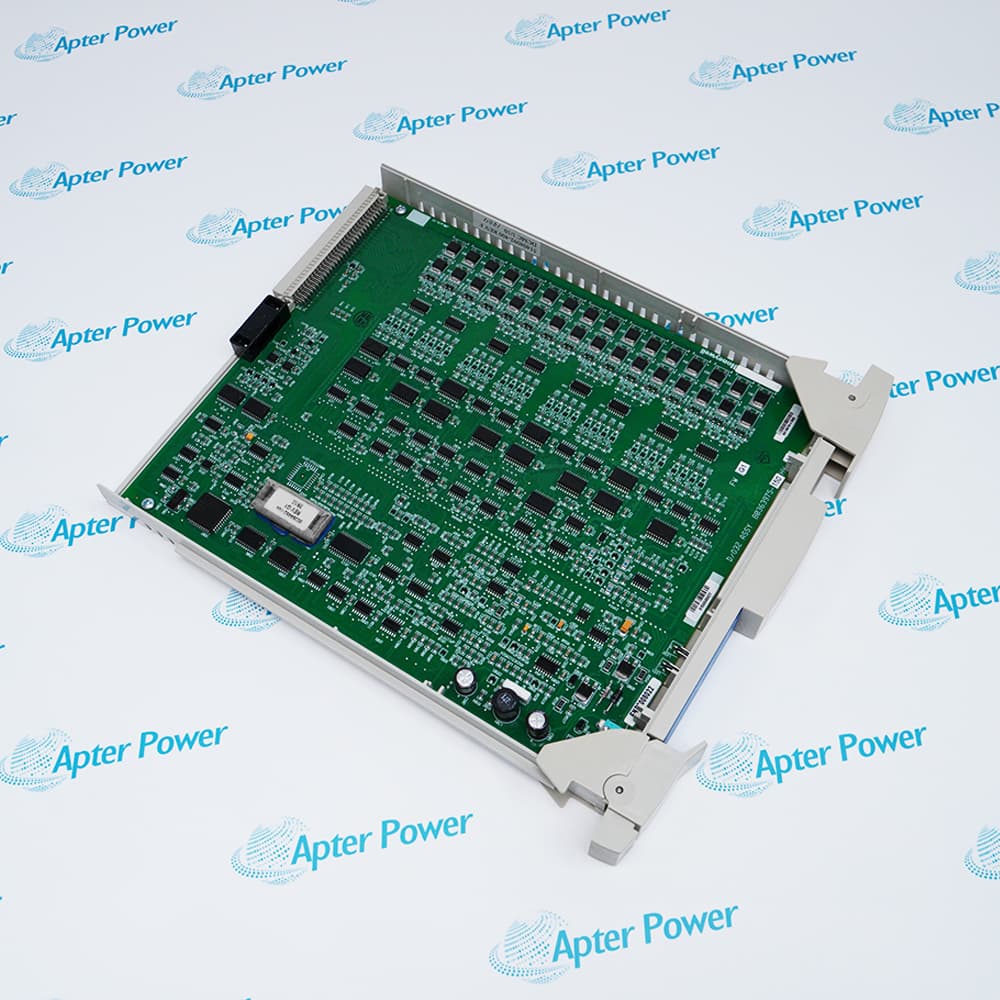

The Honeywell MC-PDOY22 80363975-150 is a 32-channel digital output processor used in Honeywell distributed control systems to manage switching outputs for industrial automation. It provides controlled 24 Vdc digital output signals for system-level process execution.
Get a quick price for MC-PDOY22 80363975-150
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MC-PDOY22 80363975-150

  • Manufacturer:
    Honeywell
  • Part Number:
    MC-PDOY22 80363975-150
  • Product Family:
    Honeywell TPS Series
  • Product Type:
    Digital Output 32 Processor (32 Outputs)
  • Channels:
    32 Digital Outputs (DO).
  • Rated Voltage:
    Standard 24 Vdc.
  • Operating voltage range:
    15 Vdc to 30 Vdc.
  • Current:
    0.5A maximum per channel, 5A maximum total.
  • Leakage Current:
    Maximum detached leakage current of 0.5 mA in "Off" state.
  • Response:
    Less than 5 milliseconds.
  • Protection:
    1500V electrical isolation with anti-corrosion coating.
  • Output Structure:
    Open collector (Current Sinking) NPN transistor output.
  • Mounting:
    Hot-swappable, compatible with TDC 3000 / Experion systems.
  • Weight:
    0.58 kg
  • Estimated shipping dimensions:
    32x27.9x2.9cm
  • Tariff Code:
    3912310000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Signals & Timing Compatibility Application Scenarios

Features:

  • 32-channel digital output structure enables multi-point control in distributed systems
  • High-speed switching with defined electrical protection and stable output behavior
  • Industrial-grade design supporting hot-swappable installation and system compatibility
The Honeywell MC-PDOY22 80363975-150 is a 32-channel digital output processor used in Honeywell distributed control systems. It provides controlled digital output signals for industrial automation and process execution tasks. The Honeywell MC-PDOY22 80363975-150 supports multiple output channels for coordinated system control functions.

In system operation, the Honeywell MC-PDOY22 80363975-150 delivers digital outputs based on a 24 Vdc rated supply with an operating range of 15 Vdc to 30 Vdc. Each channel is designed to support up to 0.5A current, with a total output capacity of 5A. The Honeywell MC-PDOY22 80363975-150 ensures stable switching performance with a response time of less than 5 milliseconds.

The Honeywell MC-PDOY22 80363975-150 integrates electrical isolation of 1500V and includes anti-corrosion protection for industrial environments. It uses an open collector NPN transistor output structure for current sinking operation. The Honeywell MC-PDOY22 80363975-150 is compatible with TDC 3000 and Experion systems and supports hot-swappable installation in control system architectures.

The MC-PDOY22 80363975-150 Honeywell Digital Output 32 Processor (32 Outputs) may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell MC-PDOY22 80363975-150 Digital Output 32 Processor (32 Outputs)Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell MC-PDOY22 80363975-150 Digital Output 32 Processor (32 Outputs) Specs

General

  • Manufacturer Honeywell
  • Model MC-PDOY22 80363975-150
  • Condition New Original ready stock
  • Product Family MC-PDIX02 51304485-150,MC-PAOX03 51309152-175,MC-PAOY22 80363969-150
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Response Time: The delay time from the controller to the physical output is < 5 ms.
  • Isolation Protection: 1500 Vac electrical isolation is provided between the channel and the system bus.
  • Status Indication: The module panel provides power status, communication status, and individual LED on/off indicators for 32 channels.
  • Fault Safety: Built-in watchdog timer; outputs can be configured to "preset value" or "remain unchanged" in case of communication failure.
  • Compatible FTA: Compatible with MU-TDOD12, MU-TDOD22 (non-isolated), or MU-TDOD23 (relay output type).
  • System Platform: Supports TDC 3000, TPS, and Experion PKS (Series A/M) architectures.
  • Reverse Osmosis Water Treatment: Precise control of the start/stop logic of high-pressure pump sets and the switching sequence of multiple backwash solenoid valves.
  • Boiler Ignition Control: Manages the gas control valves and scavenging fans of the combustion system to ensure the ignition process meets safety time chain requirements.
  • Paper Drying Department Management: Controls the drain valves of the main drying cylinders and the operation of the circulating motors in the condensate recovery system.
  • Port Bulk Cargo Handling: Coordinates the logical linkage of belt conveyors, unloader grabs, and dust suppression spray systems.
Description
The Honeywell MC-PDOY22 80363975-150 is a 32-channel digital output processor designed for use in Honeywell distributed control system environments. It is responsible for providing digital output control signals across multiple channels for industrial process operation. The Honeywell MC-PDOY22 80363975-150 supports 32 digital outputs (DOs) for system-level actuation functions.

In electrical performance, the Honeywell MC-PDOY22 80363975-150 operates with a rated voltage of 24 Vdc and an operating range from 15 Vdc to 30 Vdc. Each channel supports a maximum current of 0.5A with a total maximum current of 5A across all outputs. The Honeywell MC-PDOY22 80363975-150 includes a maximum off-state leakage current of 0.5 mA for controlled output stability.

From a design perspective, the Honeywell MC-PDOY22 80363975-150 provides a response time of less than 5 milliseconds for fast switching performance. It features 1500V electrical isolation combined with anti-corrosion coating for environmental protection. The Honeywell MC-PDOY22 80363975-150 uses an open collector (current sinking) NPN transistor output structure for digital switching applications.

The Honeywell MC-PDOY22 80363975-150 is designed for hot-swappable installation and is compatible with Honeywell TDC 3000 and Experion systems. It functions as a key component within distributed control system architectures. The Honeywell MC-PDOY22 80363975-150 is identified as a 32-channel digital output processor used for structured control output management.
Alternative Names
MC-PDOX02 51304487-150 MC-PPIX02 51304386-150 MC-PSDX02 51304362-250 MC-PSIM11 51304362-350
Technical notes
Honeywell MC-PDOY22 80363975-150 digital output 32-channel processor, 32 digital outputs (DOs), rated voltage 24 Vdc, operating voltage range 15 Vdc to 30 Vdc, current 0.5A maximum per channel and 5A maximum total, leakage current 0.5 mA maximum in off state, response time less than 5 milliseconds, 1500V electrical isolation with anti-corrosion coating, open collector current sinking NPN transistor output structure, hot-swappable mounting compatible with TDC 3000 and Experion systems.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does MC-PDOY22 use 32 output channels?
The 32-channel design allows simultaneous control of multiple actuators and switching devices in industrial systems.
How does the module handle output voltage requirements?
It operates with a 24 Vdc rated voltage and supports an operating range of 15 Vdc to 30 Vdc.
What ensures safe operation of the output channels?
Each channel is designed with a maximum current of 0.5A and total system current limitation of 5A.
What type of output structure is used in this module?
It uses an open collector (current sinking) NPN transistor output structure for digital switching control.
