T8270

/ 4.9
1001 reviews | Need a Specific Revision?

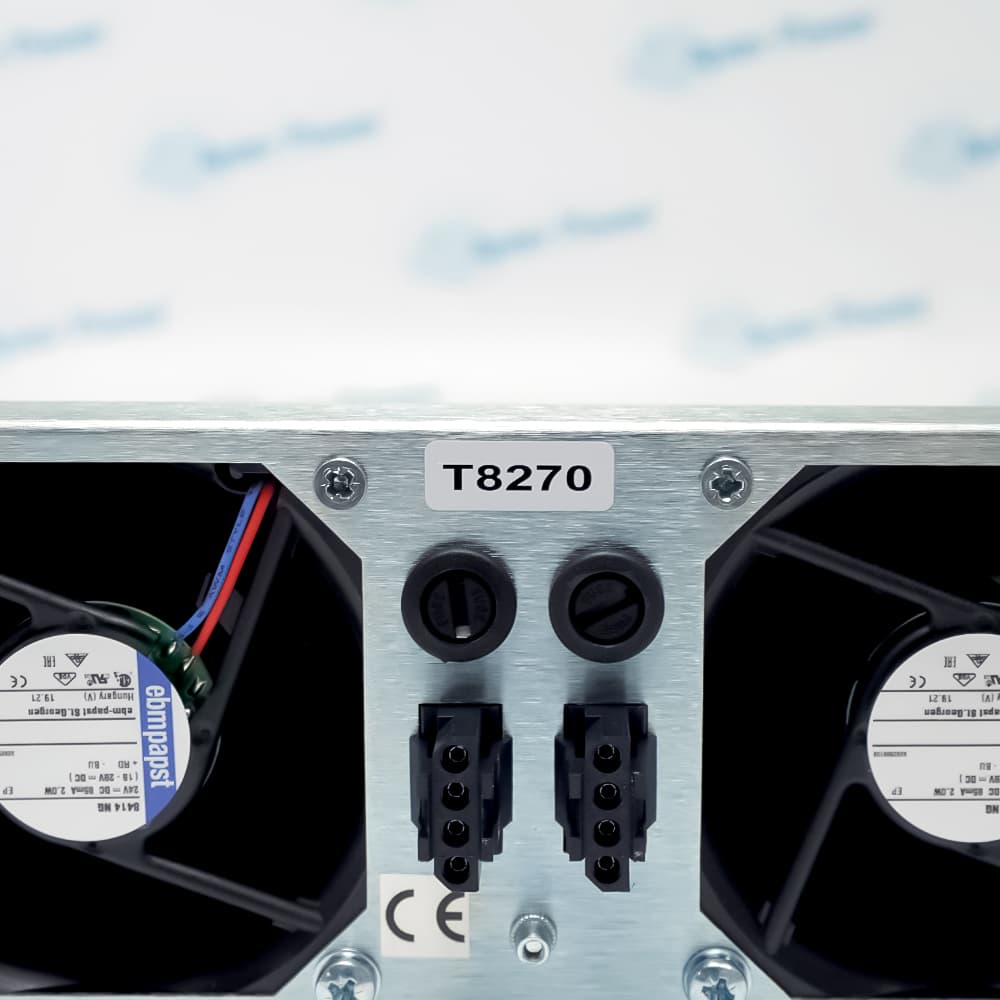

The ICS Triplex T8270 Trusted 24 Vdc Fan Assembly Rack Mounted provides forced cooling for each Trusted module chassis through a four-fan, 24 Vdc rack assembly.
In Stock
Ships by Tuesday, September 29
Fast Shipping Available
Get a quick price for T8270
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for T8270

  • Manufacturer:
    ICS Triplex
  • Part Number:
    T8270
  • Product Family:
    Trusted Triple Modular Redundant
  • Product Type:
    Trusted 24 Vdc Fan Assembly Rack Mounted
  • Stock:
    1
  • Voltage Range:
    18 Vdc to 28 Vdc
  • Fan Quantity and Type:
    4 x Papst Type 8414NG
  • Internal Fusing:
    250 mA anti-surge
  • Power Consumption:
    2 x 4 W
  • Air Flow at 3100 rpm:
    69 m3/h (40.6 ft3/min)
  • Operating Temperature:
    0°C to +60°C (+32°F to +140°F)
  • Non-operating Temperature:
    -20°C to +70°C (-4°F to +158°F)
  • Relative Humidity:
    10% to 95%, non-condensing
  • Weight:
    1.86 kg
  • Estimated shipping dimensions:
    48.1x28x8.8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Mechanical Layout Circuit Protection Airflow Power Connections

Features:

  • Four Papst Type 8414NG fans are mounted vertically in the 2U tray.
  • Rated airflow is 69 m3/h (40.6 ft3/min) at 3100 rpm.
  • One fan tray is assigned to each Trusted module chassis.
The fan tray directs air through a module chassis and exhausts it upward into the chassis installed above.

A fixed baffle separates the two airflow paths so the lower tray does not disturb cooling from the next assembly.

T8270 connects to the Trusted power distribution arrangement through TC-011-01 fan power cabling.

The ICS Triplex T8270 Trusted 24 Vdc Fan Assembly Rack Mounted is listed as Active / Available from OEM. Contact Apter Power for official documentation and configuration review.
ICS Triplex T8270 Trusted 24 Vdc Fan Assembly Rack Mounted Manuals, Datasheets, Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Rack construction details

  • Form factor: The assembly occupies 2U in a standard Trusted rack.
  • Fan arrangement: Four fans are mounted vertically within the tray.
  • Air separation: The integral baffle keeps adjacent chassis airflow paths independent.
  • Rack allocation: The hardware is fitted on a one-tray-per-module-chassis basis.

Independent circuit safeguards

  • Internal fuse: Each supply path uses 250 mA anti-surge protection.
  • Overload response: Electronic protection is provided separately for each fan circuit.
  • Polarity defense: Reverse-polarity protection is applied at the individual fan level.
  • Fault containment: Independent circuits prevent one electrical fault from removing every airflow path.

Published cooling performance

  • Rotor speed: The specified airflow point is measured at 3100 rpm.
  • Volume flow: Rated delivery is 69 m3/h, equivalent to 40.6 ft3/min.
  • Chassis duty: Forced airflow is directed through a single Trusted module chassis.
  • Continuous use: The four-fan arrangement distributes cooling across the rack width.

Fan-tray electrical connections

  • Input range: The accepted supply is 18 Vdc to 28 Vdc.
  • Consumption: The tray is specified at 2 x 4 W.
  • Cable: TC-011-01 provides the Trusted fan power connection.
  • Distribution: The tray interfaces with the designated Trusted 24 Vdc power distribution equipment.
Description

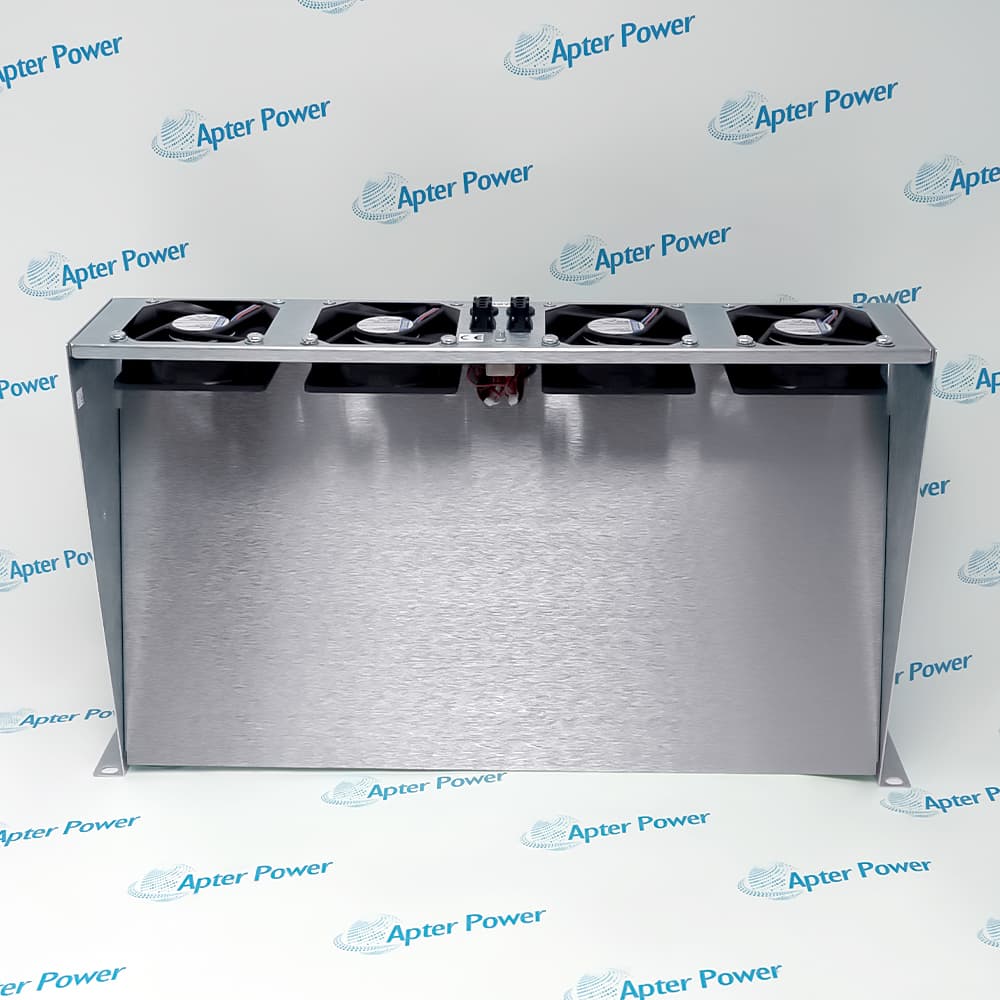

The T8270 fan tray is arranged as one cooling assembly per Trusted module chassis. Four vertically mounted Papst 8414NG fans move air through the rack while the tray baffle prevents its airflow from disturbing the chassis installed above.

Each T8270 fan receives power through its own circuit from the dual 24 Vdc input arrangement. Internal 250 mA anti-surge fusing and individual overload and reverse-polarity protection isolate electrical faults within the cooling assembly.

At 3100 rpm, the T8270 delivers 69 m3/h (40.6 ft3/min) of airflow. The published supply range is 18 Vdc to 28 Vdc, and total consumption is specified as 2 x 4 W.

The rack-mounted T8270 occupies 2U and connects through Trusted fan power cable TC-011-01. Its operating range is 0°C to +60°C with 10% to 95% non-condensing relative humidity.
Revisions

Revision Part #

Also known as

T8270 Ser B
T8270 Series B, Rev B
Alternative Names
T 8270 T-8270 T827O T82 70 ICS T8270 ICS Triplex T 8270 Trusted T8270 Rockwell T8270
Technical notes
T8270 uses independent fan circuits so one electrical fault does not disable every cooling path; each module chassis requires its own tray.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should ICS Triplex T8270 cooling be distributed in a Trusted rack?
ICS Triplex T8270 is installed on a one-per-module-chassis basis so each Trusted chassis receives dedicated forced airflow.
What airflow does ICS Triplex T8270 provide at its rated fan speed?
ICS Triplex T8270 moves 69 m3/h (40.6 ft3/min) at the published 3100 rpm operating point.
Which supply range is required by ICS Triplex T8270?
ICS Triplex T8270 operates from 18 Vdc to 28 Vdc and consumes 2 x 4 W through its dual-feed arrangement.
How are the four fans protected inside ICS Triplex T8270?
Each ICS Triplex T8270 fan circuit includes overload and reverse-polarity protection, with internal 250 mA anti-surge fusing.
Which cable connects ICS Triplex T8270 to rack power?
ICS Triplex T8270 uses the Trusted TC-011-01 fan power cable with the designated 24 Vdc power distribution equipment.
What ambient range applies while ICS Triplex T8270 is operating?
ICS Triplex T8270 is specified for 0°C to +60°C operation and 10% to 95% non-condensing relative humidity.
What should be checked when one ICS Triplex T8270 fan stops?
For ICS Triplex T8270, isolate the affected feed and inspect its fuse, connector, cable, and individual fan protection before replacement.
