ICS Triplex T8842 is a 40-channel Trusted Versatile Field Termination Assembly for 2-wire or 3-wire field devices.
Get a quick price for T8842 PP45563
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for T8842 PP45563

  • Manufacturer:
    ICS Triplex
  • Part Number:
    T8842 PP45563
  • Product Family:
    Trusted Triple Modular Redundant
  • Product Type:
    Trusted Versatile Field Termination Assembly
  • Channels:
    40 configurable input or output channels
  • Field Wiring:
    2-wire or 3-wire devices
  • Field Supply:
    18 to 28 VDC
  • Field-Power Groups:
    5 groups of 8 channels
  • Maximum Current:
    2.52 A per power group
  • Recommended Operating Current:
    220 mA per channel
  • Signal Input Range:
    0 to 20 mA
  • Operating Temperature:
    0 to 60 °C
  • Product Dimensions:
    110 × 360 × 68 mm
  • Product Weight:
    950 g
  • Weight:
    2.1 lbs (0.95 kg)
  • Estimated shipping dimensions:
    1.1x3.6x6.8cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    United Kingdom
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Compatibility Installation Configuration

Features:

  • 40 configurable input or output termination channels.
  • Supports 2-wire or 3-wire field devices.
  • Five independently fused field-power groups.
T8842 PP45563 is the ordering reference for the Trusted Versatile Field Termination Assembly used with configurable field input and output circuits.

The assembly distributes 18 to 28 VDC field power and supports documented Trusted Zone Interface and Valve Monitor applications.

Define each channel function, fuse value, current demand, wiring method, and field-power grouping before connecting the FTA.

Availability is subject to Apter Power stock and PP45563 ordering-reference confirmation.
ICS Triplex T8842 PP45563 manuals and reference links: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ICS Triplex T8842 PP45563 Versatile Field Termination Assembly

General

  • Manufacturer ICS Triplex
  • Model T8842 PP45563
  • Condition New and factory sealed
  • Product Family Trusted Triple Modular Redundant
  • T8842 supports the documented Trusted T8448 Zone Interface application.
  • The same versatile FTA is also described for T8449 Valve Monitor use.
  • Confirm channel mode and companion-module requirements for the intended installation.
  • Mount the assembly with the specified rail and connector clearance for its 110 × 360 × 68 mm envelope.
  • Distribute channel loads across the five field-power groups without exceeding 2.52 A per group.
  • Select and fit the appropriate plug-in fuse for each configured circuit before energizing.
  • Assign each of the 40 terminations as an input or output for the connected field device.
  • Choose the documented 2-wire or 3-wire arrangement for each channel application.
  • Record fuse rating, signal type, current demand, and power-group allocation in the cabinet design.
Description

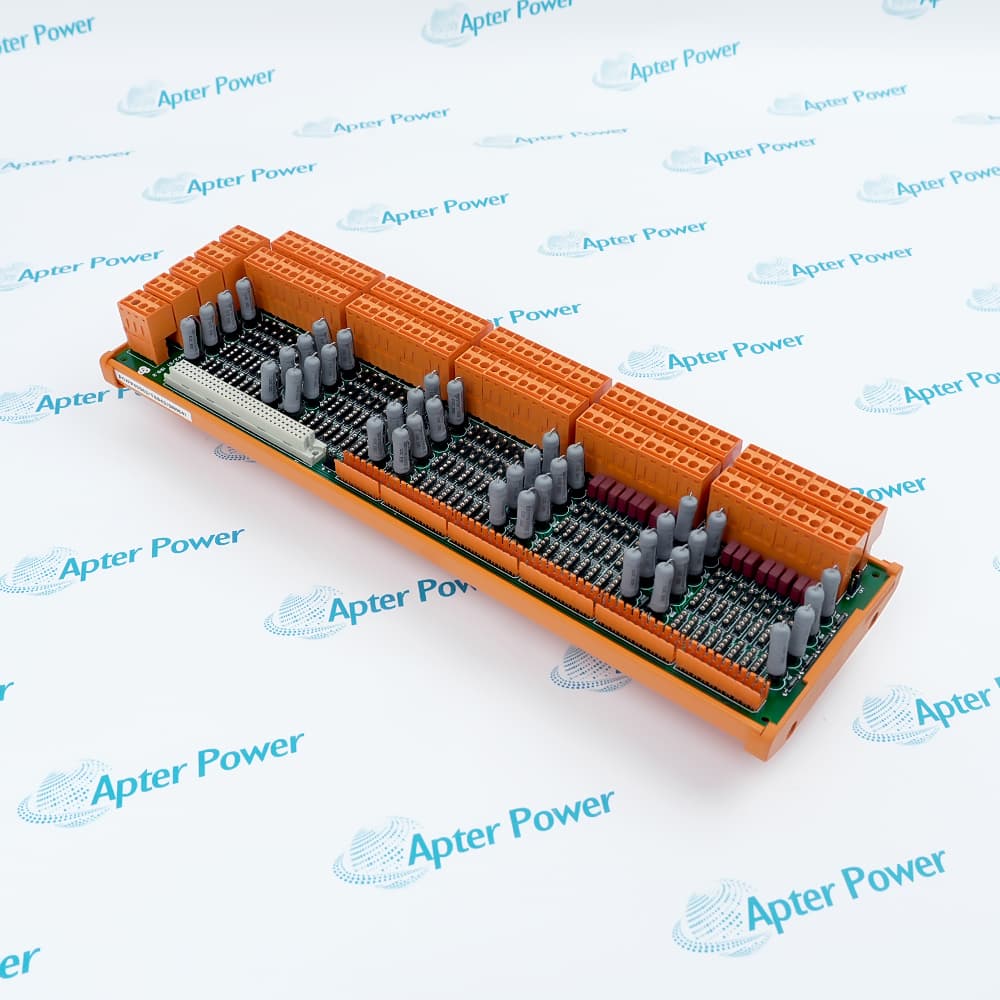

ICS Triplex T8842 PP45563 is a Trusted Versatile Field Termination Assembly that provides 40 configurable input or output channels for 2-wire or 3-wire field devices.

The assembly supports configurable field wiring, distributes 18 to 28 VDC field power in five groups of eight channels, and accommodates plug-in fusing for channel protection.

Use T8842 with the documented Trusted T8448 Zone Interface or T8449 Valve Monitor applications, and confirm channel function, fuse selection, field-power grouping, and PP45563 ordering identification before installation.
Alternative Names
T8842 ICS Triplex T8842 Trusted T8842 T8842 PP45563
Technical notes

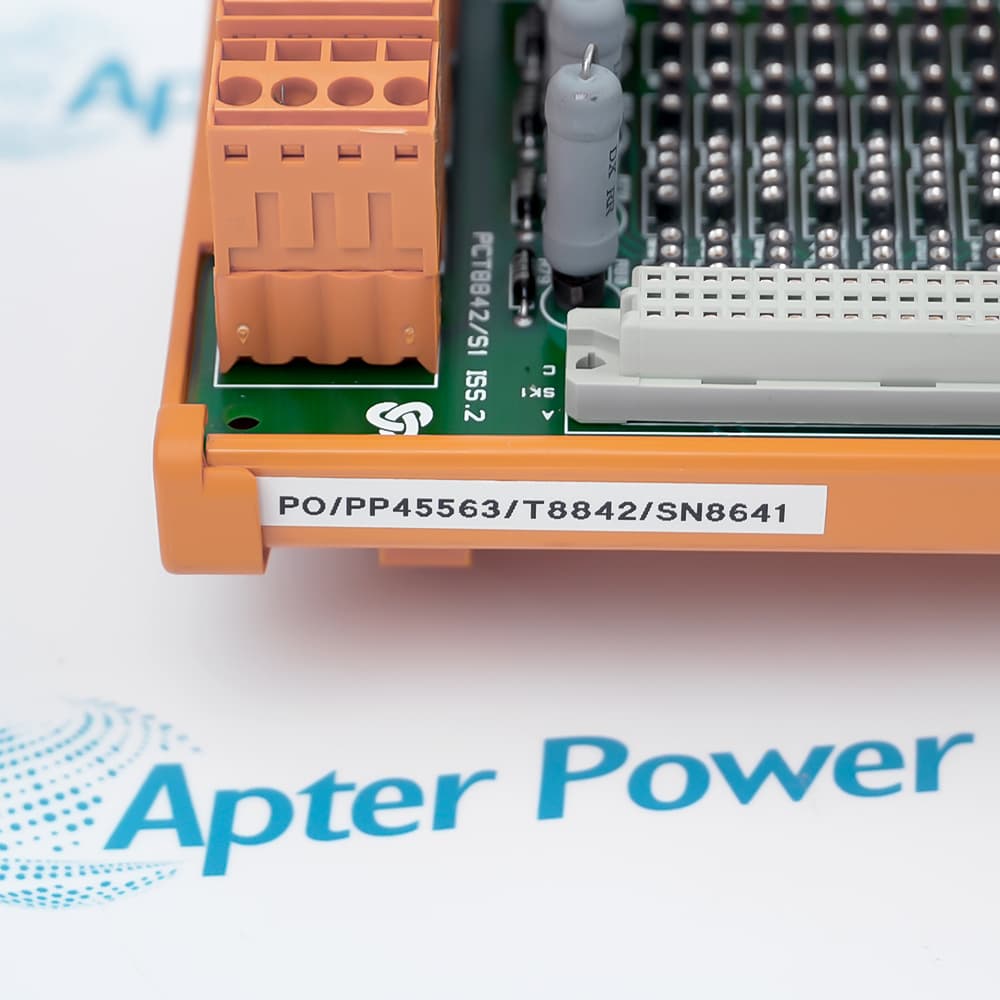

T8842 provides 40 configurable field-termination channels with five field-power groups. Confirm PP45563 against the nameplate or official order record.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How many channels does the T8842 field assembly provide?
It provides 40 channels that can be configured for input or output service.
Which field-device wiring formats are supported?
The assembly is designed for 2-wire or 3-wire field devices.
How is T8842 field power grouped?
The 40 channels are divided into five field-power groups of eight.
Which Trusted modules are documented with T8842?
The manual covers use with the T8448 Zone Interface and T8449 Valve Monitor applications.
What field-supply range is specified for T8842?
The documented field-supply range is 18 to 28 VDC.
What should be selected before a T8842 is installed?
Confirm each channel function, fuse value, field-power group, wiring arrangement, and ordering identifier.
