T8310

/ 4.9
1001 reviews | Need a Specific Revision?

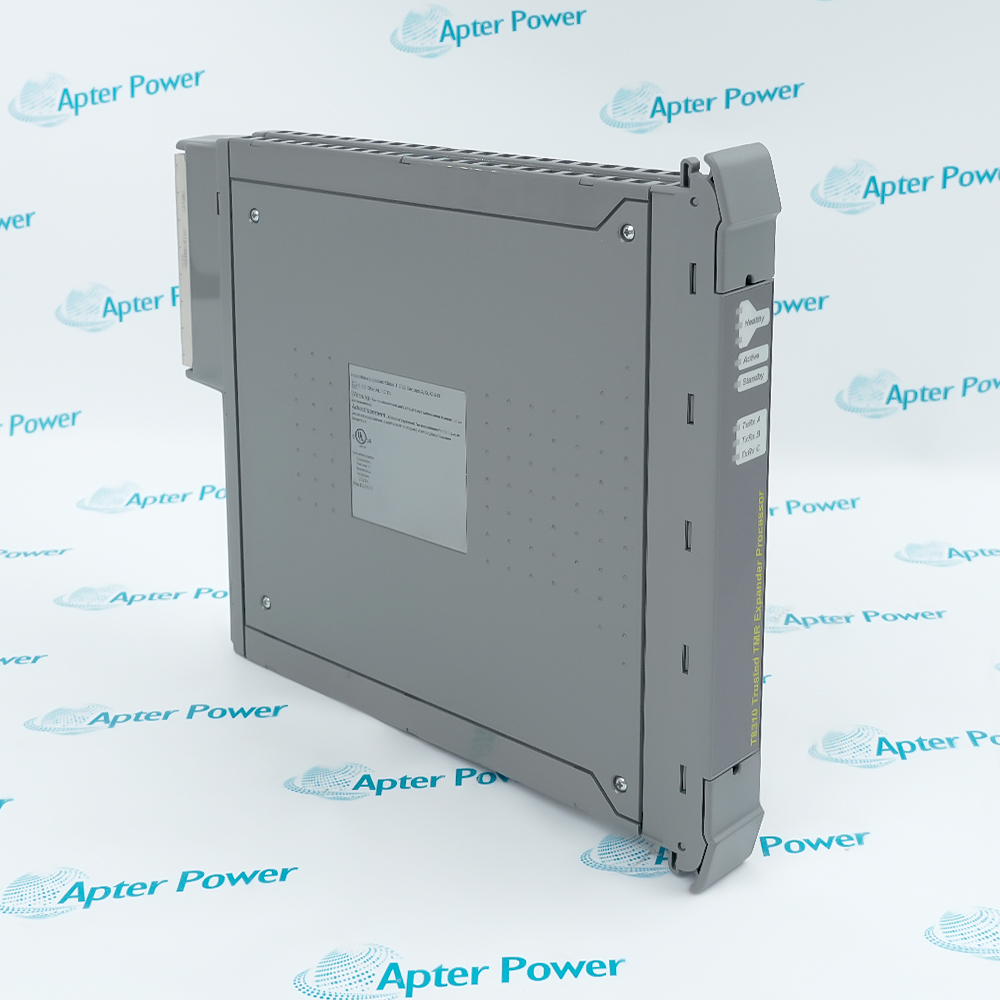

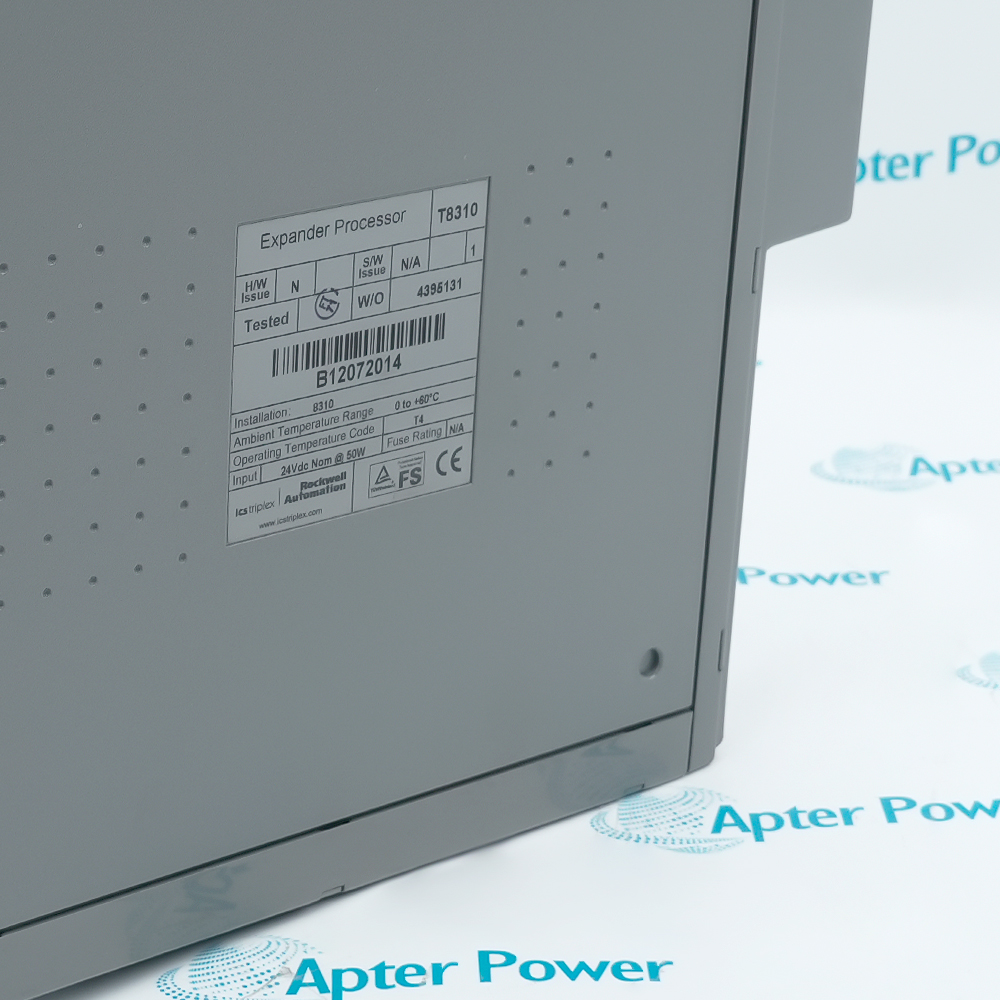

ICS Triplex T8310 is a Trusted TMR Expander Processor using TMR (3-2-0) and HIFT architecture for Trusted expander communication.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for T8310
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for T8310

  • Manufacturer:
    ICS Triplex
  • Part Number:
    T8310
  • Product Family:
    Trusted Triple Modular Redundant
  • Product Type:
    Trusted TMR Expander Processor
  • Stock:
    1
  • Architecture:
    TMR (3-2-0)
  • Design:
    HIFT
  • Backplane supply:
    20–32 VDC
  • Field supply:
    N/A
  • Power dissipation:
    45 W
  • Location:
    T8300 Expander Processor slot
  • Isolation:
    50 V basic insulation module-to-backplane
  • Fusing:
    not user-serviceable
  • Copper link:
    30 m maximum with TC-301
  • Fibre link:
    10 km maximum with T8314
  • Operating temperature:
    0…60 °C
  • Storage temperature:
    −25…70 °C
  • Humidity:
    10…95 %, non-condensing
  • Dimensions:
    26.6 x 3.1 x 30.3 cm
  • Weight:
    1.33 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Expander interface Expander communications Maintenance and recovery Application
  • Trusted TMR Expander Processor for the Trusted Expander Chassis
  • Provides the interface between the Expander Bus and the Expander Chassis backplane
  • HIFT TMR architecture with fault containment, diagnostics, and hot-replacement support

ICS Triplex T8310 is a Trusted TMR Expander Processor installed in the processor slots of a Trusted Expander Chassis.

The module provides the slave interface between the Expander Bus and the chassis backplane. The Expander Bus supports multiple-chassis systems over unshielded twisted-pair connections while retaining the fault-tolerant, high-bandwidth Inter-Module Bus capabilities.

Before replacement, confirm the expander-chassis slot arrangement, companion processor, T8311 Expander Interface modules, bus cabling, firmware, and SYSTEM.INI configuration. The physical module layout must match the configured Trusted system layout.

Availability, condition, price, and shipping time for ICS Triplex T8310 are confirmed during quotation.

ICS Triplex T8310 Trusted TMR Expander Processor Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Install T8310 only in the two documented processor positions of the T8300 Trusted Expander Chassis.
  • Interconnect the two processor positions with the specified Cable Hood Assembly before commissioning.
  • For a local expansion path, connect T8312 to T8310 with the approved TC-301 cable and observe the documented ESD precautions.
  • The local path uses TC-301 from the T8312 Expander Interface Adapter Unit to T8310, with a documented maximum copper distance of 30 m.
  • The controller-side remote path uses TC-302 from T8312 to the T8314 Fibre TX/RX Unit.
  • The remote-chassis path uses TC-303 from T8314 to T8310; the documented fibre expansion distance is up to 10 km.
  • T8310 has no module-specific System.INI entry; its existence is assumed for each Expander Chassis defined in the system configuration.
  • Identify the active and standby processors and confirm the standby path is healthy before any removal or replacement action.
  • Use the three channel Healthy indicators, role indication, Trusted diagnostics and communication error data to distinguish module, cable and interface faults.
  • Expansion of Trusted TMR safety and control systems across multiple chassis
  • Expander Bus communication between the controller chassis and T8300 Expander Chassis
  • Copper or fibre-optic Trusted Expander Bus network configurations
Description
ICS Triplex T8310 is identified in Rockwell Automation publication PD-T8310 as the Trusted TMR Expander Processor module used in the Trusted Expander Chassis.

The official description specifies TMR (3-2-0) fault-tolerant operation, HIFT architecture, expander-bus fault containment, diagnostics and front-panel status indication.

Installation selection must match the T8300 chassis slot, 20–32 VDC backplane supply, TC-301 copper or T8314 fibre communication path, environmental limits and the exact module execution.
Alternative Names
T8310 ICS Triplex T8310 Rockwell Automation T8310 ICS Triplex T8310 Module PD-T8310 T8310 PD-T8310
Technical notes
T8310 must be installed in the T8300 expander-processor slot with the correct TC-301 copper or T8314 fibre link and 20–32 VDC supply; communication distance and isolation are key risks.
