DM900WT

/ 4.9
1001 reviews | Need a Specific Revision?

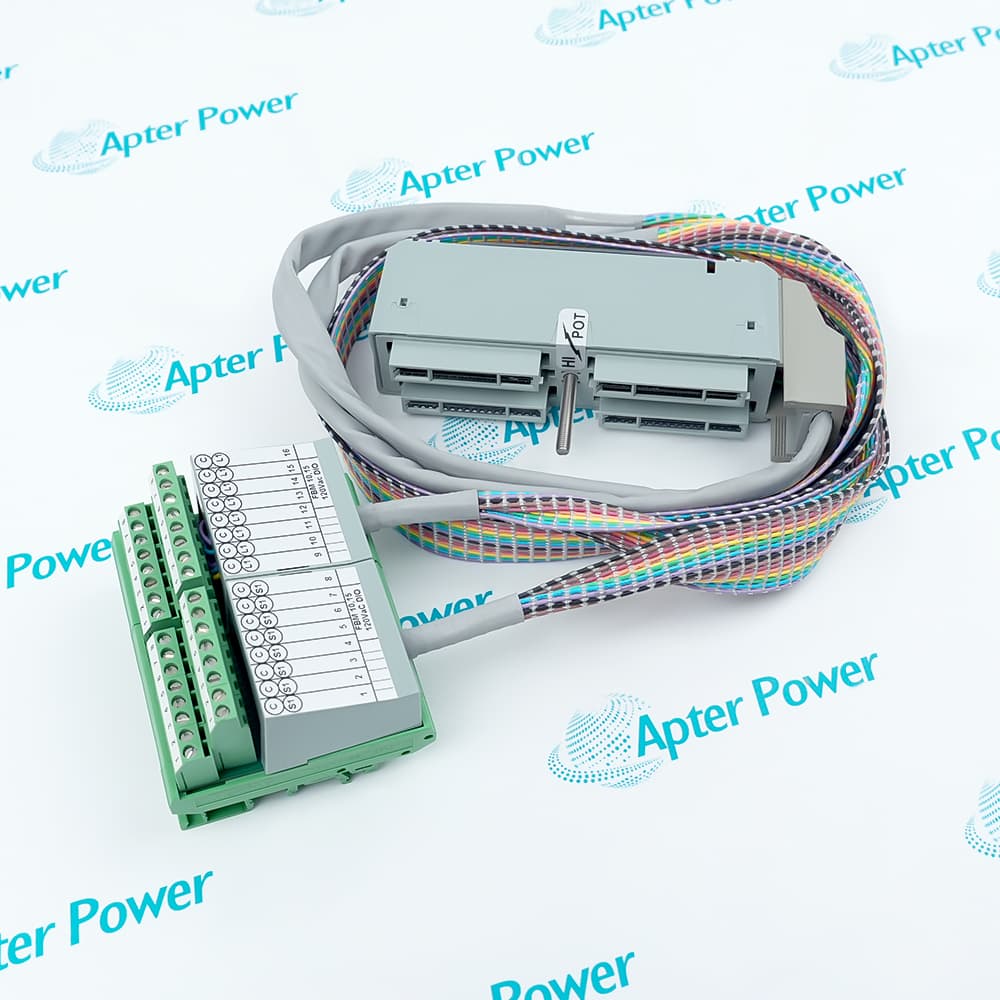

Foxboro DM900WT is an FBM10/15 plug termination assembly used for the designated cable connection in legacy Foxboro I/A Series hardware.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for DM900WT
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DM900WT

  • Manufacturer:
    Invensys
  • Part Number:
    DM900WT
  • Product Family:
    Foxboro
  • Product Type:
    FBM10/15 Plug Termination Assembly
  • Stock:
    1
  • Associated Module Positions:
    FBM10 and FBM15
  • Assembly Interface:
    Plug termination cable connection
  • System Context:
    Foxboro I/A Series
  • Estimated shipping dimensions:
    33.0 cm × 25.4 cm × 20.3 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Connections Identification Installation

Features:

  • Plug-connector termination format for FBM10 and FBM15 hardware
  • 120 V ac I/O module system context
  • Separate termination hardware for the main-and-expansion module arrangement
The FBM10 position is an expandable main module that connects independently to the redundant Fieldbus and can support one expansion module.

FBM15 is the expansion member and reaches the Fieldbus through its supporting expandable main module; it does not establish a standalone Fieldbus connection.

Each associated FBM10 or FBM15 module provides eight 120 V ac input channels and eight output channels. Those channel counts describe the electronic modules and must not be assigned to the Foxboro DM900WT assembly.

Apter Power supports sourcing and documentation requests for the Foxboro DM900WT FBM10/15 Plug Termination Assembly used in maintained I/A Series installations.
Foxboro DM900WT FBM10/15 Plug Termination Assembly Manuals, Datasheets, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Foxboro DM900WT FBM10/15 Plug Termination Assembly Specs

General

  • ManufacturerFoxboro
  • ModelDM900WT
  • ConditionNew Original ready stock
  • Product FamilyFoxboro I/A Series
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Termination path checks

  • Module Position: Verify whether the installed termination is associated with the FBM10 or FBM15 position.
  • Connector Match: Compare the complete connector arrangement before disconnecting the existing assembly.
  • Cable Route: Record the destination and routing so the replacement returns to the same termination path.

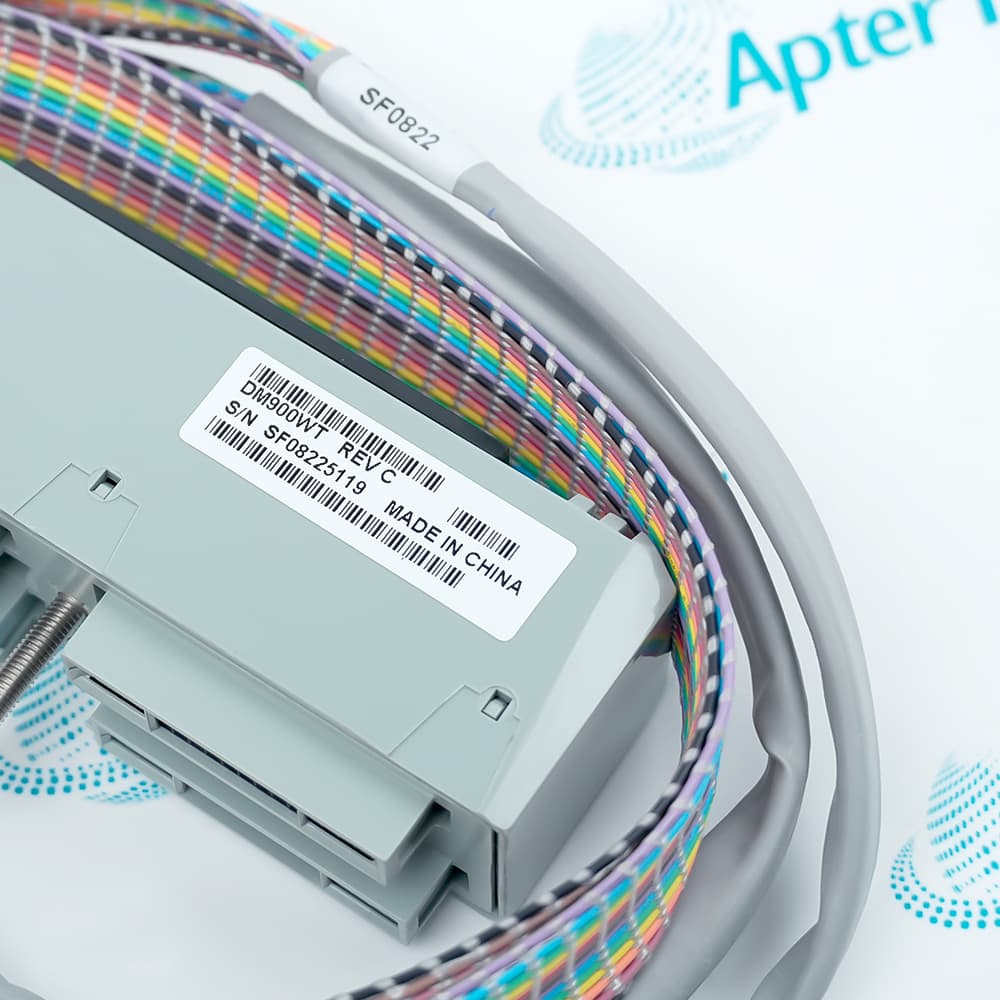

  • Label Check: Read every character of DM900WT from the installed label rather than relying on visual similarity.

Part-code verification

  • Product Role: DM900WT is treated as a plug termination assembly, not as an FBM controller or I/O module.
  • Brand Context: The part belongs to legacy Foxboro I/A Series hardware identification.
  • Code Integrity: Preserve the complete DM900WT code in quotations, documentation requests, and purchase records.
  • Adjacent Parts: Do not use neighboring Foxboro numbers as aliases unless an exact manufacturer relationship is documented.

Replacement preparation

  • De-energization: Follow the site procedure before disturbing an installed termination or cable connection.
  • Condition Review: Inspect plugs, cable jacket, strain relief, and termination points for visible damage.
  • Position Record: Photograph labels and connection positions before removal to support accurate restoration.
  • Final Match: Reconfirm the DM900WT marking and cable destination before the replacement is commissioned.
Description
Foxboro DM900WT is the plug termination assembly used with the plug-connector form of FBM10 and FBM15 hardware in an I/A Series system. The assembly provides the removable cable-side termination; it is not the fieldbus module that performs I/O processing.

The official FBM10/FBM15 hardware configuration uses direct connection blocks, plug connector blocks, or discrete wire blocks. DM900WT corresponds to the plug-termination arrangement, making the connection-block style a defining selection detail.

When replacing DM900WT, match the complete order code and plug-connector arrangement rather than selecting only by the FBM10 or FBM15 designation. This prevents a direct-connection or discrete-wire assembly from being treated as the required plug-termination hardware.
Alternative Names
Foxboro DM900WT Invensys Foxboro DM900WT Invensys DM900WT DM 900 WT DM900 WT DM900WT FBM10/15 DM900WT Termination Assembly Foxboro DM900WT Cable Assembly
Technical notes
Foxboro DM900WT is used in an FBM10/FBM15 environment where Input Filter Time, Fail Safe Configuration, Fail Safe Fallback, and output mode are module settings. These settings belong to the FBM application program, not to the Foxboro DM900WT termination assembly.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What should be checked if FBM15 hardware connected through Foxboro DM900WT is not communicating?
FBM15 depends on an expandable main module for its Fieldbus connection, so Foxboro DM900WT troubleshooting should include the supporting main-module relationship and plug-termination path.
Can Foxboro DM900WT operate as an FBM10 or FBM15 I/O module?
No. Foxboro DM900WT is the plug termination assembly; FBM10 and FBM15 are the electronic modules that perform signal conversion and I/O processing.
Why can a cable with similar ends still be incorrect for Foxboro DM900WT?
The FBM10/FBM15 hardware supports direct, plug-connector, and discrete-wire connection blocks, so Foxboro DM900WT must match the plug-termination arrangement.
Does Foxboro DM900WT itself provide eight inputs and eight outputs?
No. The eight input and eight output channels belong to each FBM10 or FBM15 module, not to the Foxboro DM900WT termination assembly.
Where are fail-safe and momentary-output settings configured when Foxboro DM900WT is installed?
Input Filter Time, Fail Safe Configuration, Fail Safe Fallback, and output mode are configured in the FBM application program, not in Foxboro DM900WT.
Can FBM15 use Foxboro DM900WT without an expandable main module?
No. FBM15 reaches the Fieldbus through a supporting expandable main module; Foxboro DM900WT provides the plug-termination connection and does not replace that dependency.
What must match when replacing Foxboro DM900WT in an existing panel?
Foxboro DM900WT replacement requires the complete order code, plug-connector block form, and the installed FBM10 or FBM15 position to agree.
