3101 (MP3101)

/ 4.9
1001 reviews | Need a Specific Revision?

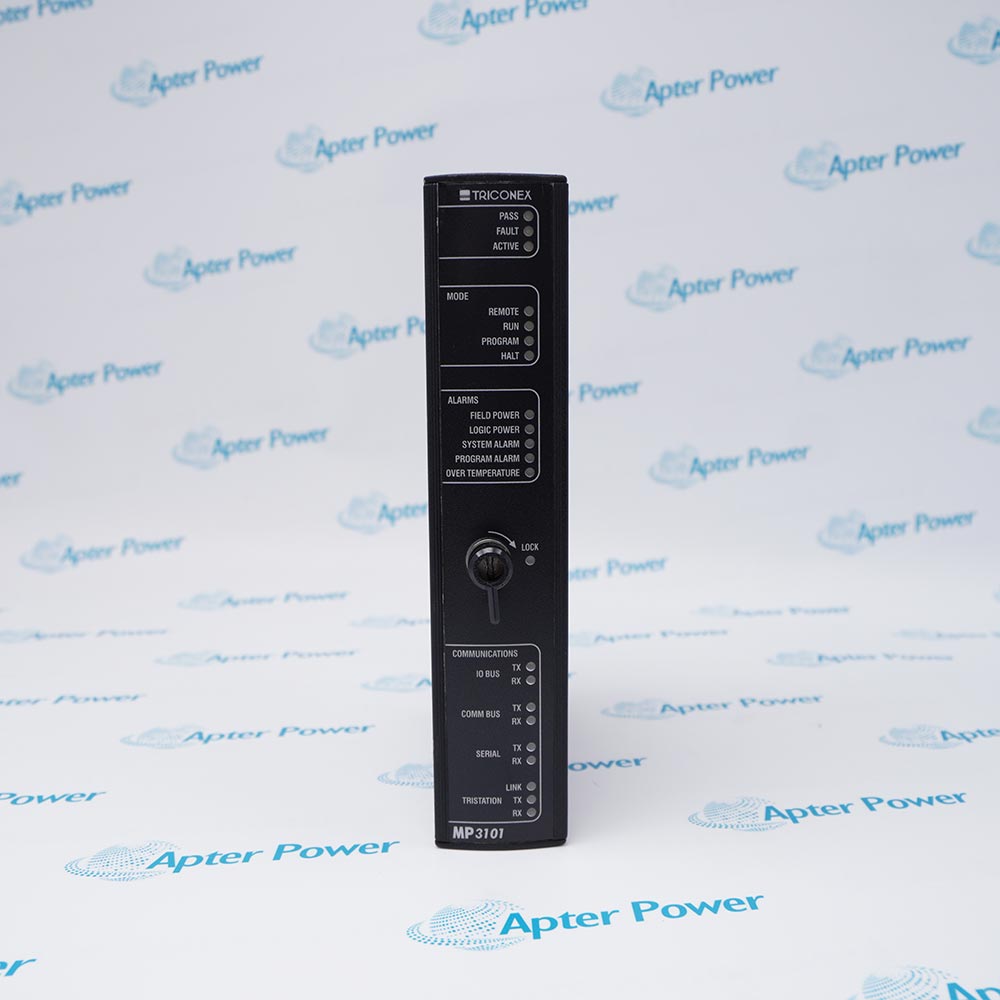

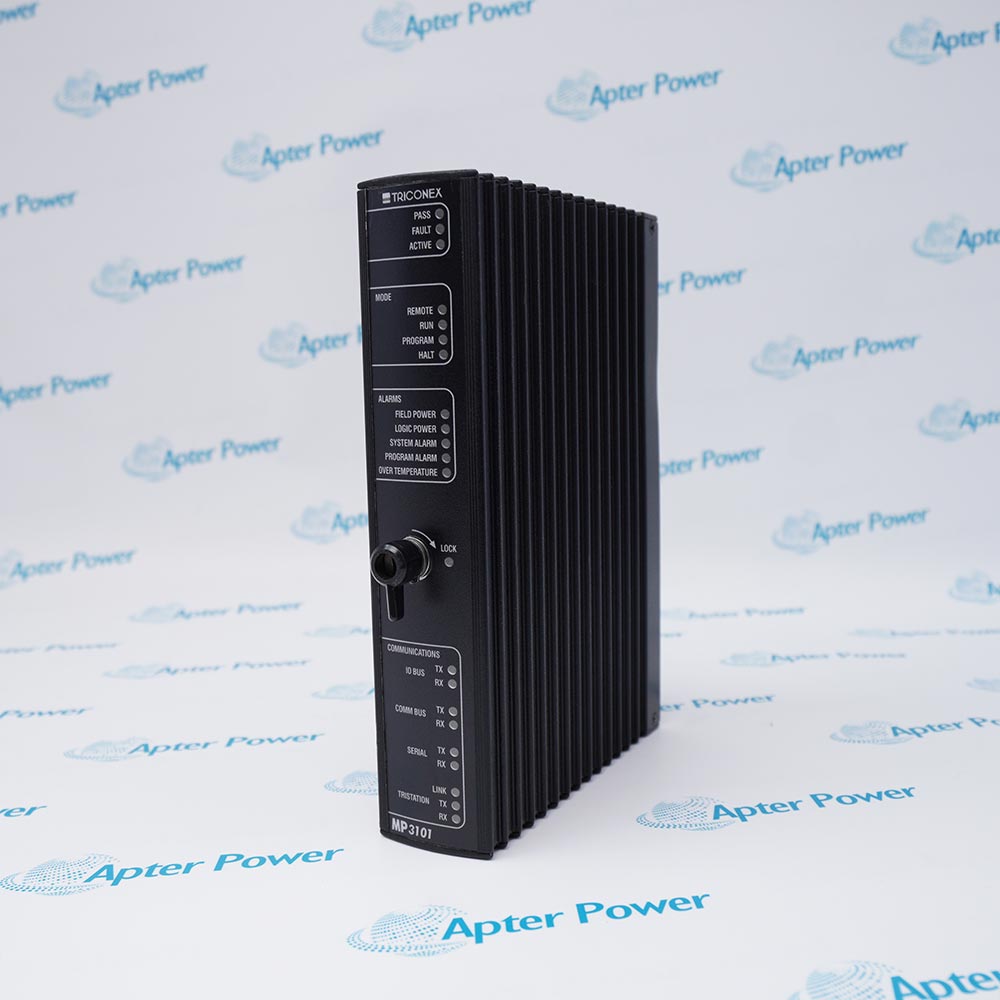

Invensys Triconex 3101 (MP3101) is a Trident main processor module that executes the control application, coordinates I/O communication, and participates in system voting and diagnostics.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 3101 (MP3101)
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3101 (MP3101)

  • Manufacturer:
    Invensys
  • Part Number:
    3101 (MP3101)
  • Product Family:
    Triconex
  • Product Type:
    Trident Main Processor Module
  • Stock:
    1
  • Module function:
    Trident main processor
  • Processor population:
    Three main processors in the MP baseplate
  • System Executive:
    Application execution, TriBus, voting, diagnostics and host communication
  • I/O Executive:
    I/O communication, control and diagnostics
  • System capacity:
    Up to 14 I/O modules in a Trident system
  • Weight:
    1.48 kg
  • Estimated shipping dimensions:
    4.5x18.8x21.8cm
  • Tariff Code:
    3101 0011.00
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Processor Set Execution Boundary Service Control Applications

Features:

  • Trident processing: Executes the control application within the three-processor architecture.
  • Coordinated voting: Works with peer processors to manage data voting and system diagnostics.
  • I/O supervision: Maintains the processor-side path to installed input and output modules.
The processor is one part of a coordinated set, so its identity and health should be reviewed with both peer modules.

System Executive and I/O Executive responsibilities help separate application, host, TriBus and I/O communication symptoms.

Firmware, project and event records are stronger replacement evidence than a front-panel indication alone.

Apter Power supports Invensys Triconex 3101 (MP3101) Trident Main Processor Module quotations, technical documents, and processor-set matching.
Invensys 3101 (MP3101) Trident Main Processor Module Manuals,Datasheets,Link
Important Notice: Manuals and supporting documents are provided for identification and engineering review. Confirm the complete product code before ordering.
  • Set identity: Record all three processor labels and their baseplate positions.
  • Peer status: Compare diagnostic and event evidence across the complete processor set.
  • Project control: Keep the approved control project linked to the installed hardware set.
  • Synchronization state: Confirm the processor set is synchronized before approved service work begins.
  • Application path: Separate control-program behavior from physical I/O symptoms.
  • Voting path: Use voting and fault records to identify a divergent processor channel.
  • Host path: Review TriStation and Modbus communication independently from application execution.
  • Firmware record: Preserve the qualified firmware and software environment.
  • Event history: Export recent diagnostics before disturbing the processor set.
  • Return to service: Confirm synchronization, communication and I/O health after approved exchange steps.
  • Execution continuity: Follow the OEM sequence so the running processor set is not interrupted.
  • Safety control: Executes Trident applications for fault-tolerant process protection.
  • I/O coordination: Controls communication with the installed Trident I/O population.
  • Legacy support: Provides an exact processor reference for established Trident systems.
Description
Control execution in a Trident chassis is handled by the Invensys Triconex 3101 (MP3101) Main Processor Module. The OEM architecture places three main processors in the processor baseplate so application execution, I/O data, voting and diagnostics remain coordinated across the system.

Two processing domains divide the work inside 3101 (MP3101): the System Executive manages the control program, TriBus, voting, diagnostics and host communication, while the I/O Executive manages communication with installed input and output modules. This separation makes project and event records important when a processor fault is investigated.

A controlled exchange of 3101 (MP3101) should preserve the complete processor set, firmware and project context, slot identity, communication settings and diagnostic history. Apter Power can support exact-model quotation, manufacturer documentation and Trident processor matching.
Alternative Names
3101 MP3101 MP3101 Triconex 3101 Invensys 3101 3101 main processor 3101-MP 3I01 MP3101 Trident MP3101
Technical notes
3101 (MP3101) should be reviewed as one member of a three-processor Trident set. Preserve the project, firmware, slot record, communication settings, diagnostic history, and peer-processor status. Application, TriBus, host, or I/O symptoms can cross processor boundaries, so the failing layer should be isolated before a module is exchanged.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What records should accompany a 3101 (MP3101) processor replacement?
Retain the approved project, firmware and software versions, processor-set identity, slot position, communication settings, event logs and recent diagnostics.
Why are three 3101 (MP3101) processors installed in the Trident baseplate?
The three-processor architecture coordinates application execution, I/O data and voting while supporting fault-tolerant operation.
Can one 3101 (MP3101) be assessed without the other processors?
A single module can be inspected, but set health and voting evidence should be reviewed because the processors operate as a coordinated group.
What does the I/O Executive do inside 3101 (MP3101)?
It manages communication with the installed input and output modules and participates in their control and diagnostic handling.
What can cause a communication symptom around 3101 (MP3101) besides processor hardware?
Project state, firmware alignment, TriStation settings, network configuration, baseplate connections and downstream I/O communication can produce similar symptoms.
What should be included in an RFQ for 3101 (MP3101)?
Provide the full label, processor-set details, firmware context, slot position, cabinet photos, quantity, destination and required documentation.
