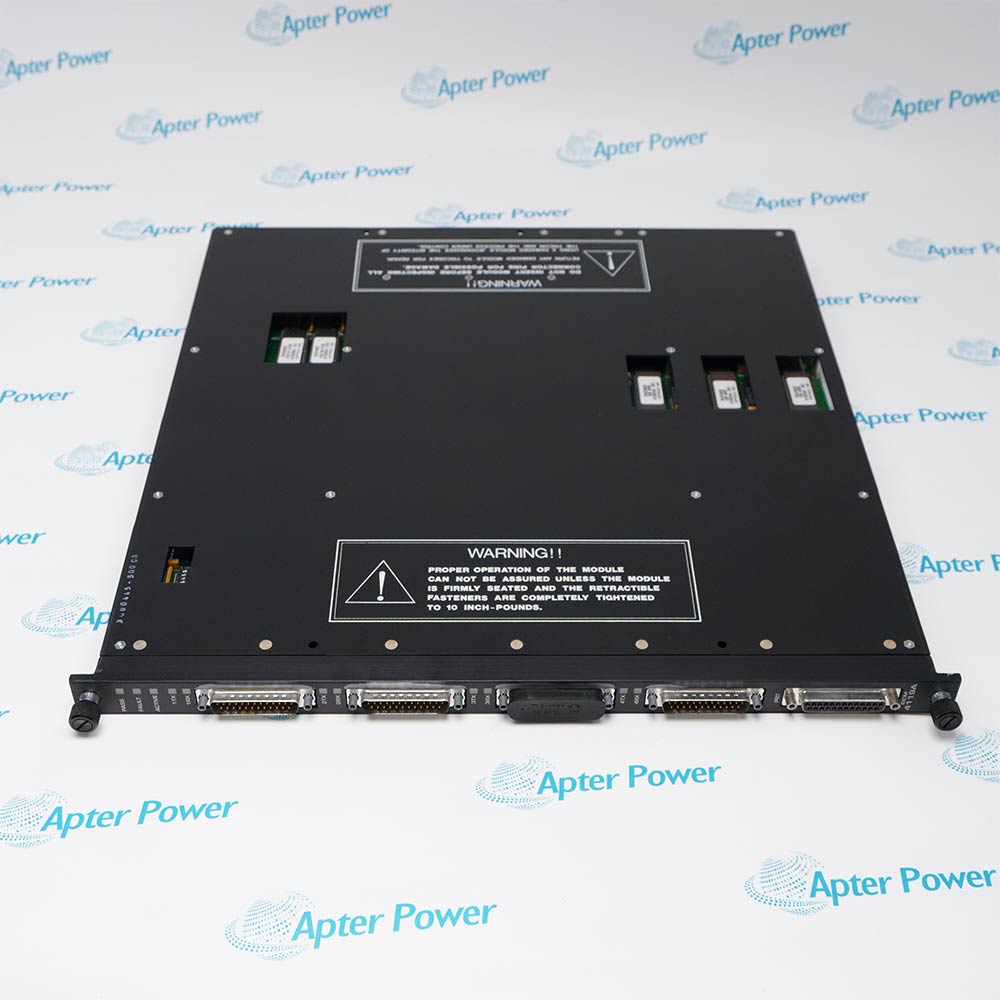

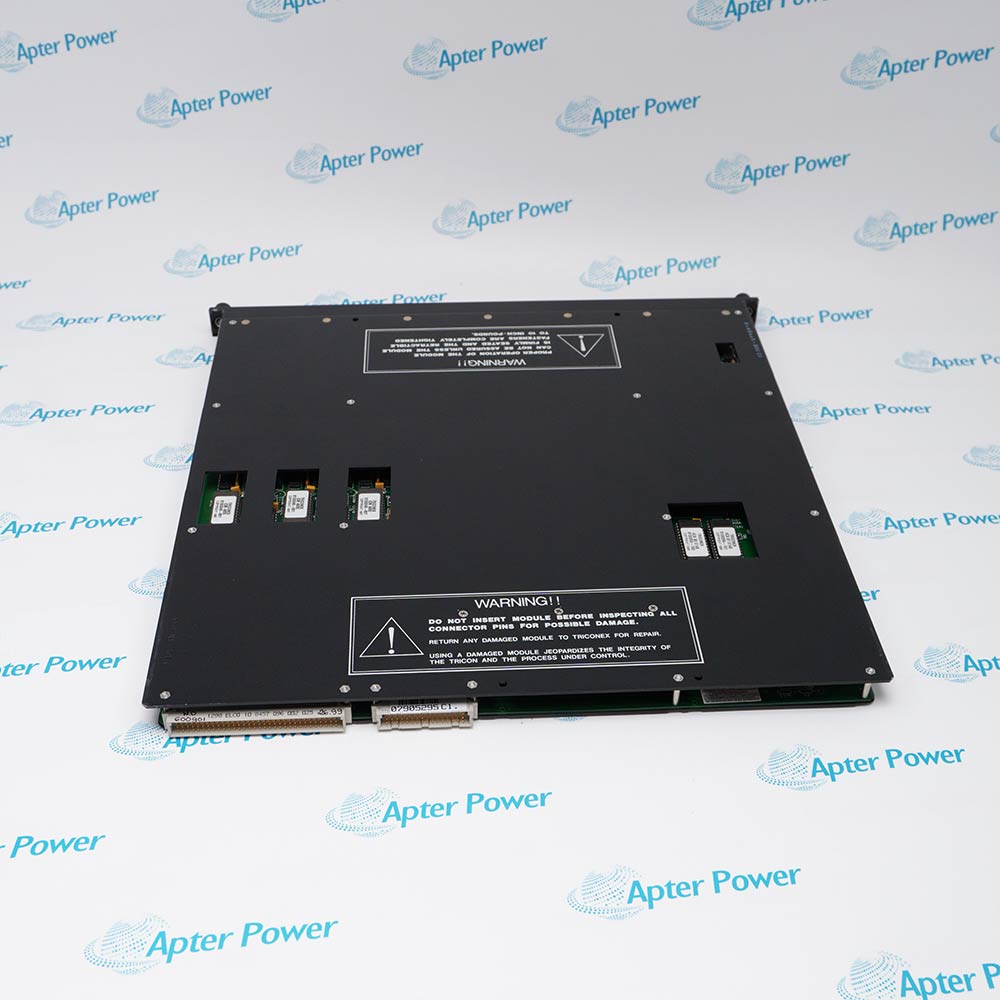

Triconex 4119A
Triconex 4119A
Triconex 4119A
Triconex 4119A
Triconex 4119A
Triconex 4119A
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Discontinued
    Discontinued date: 2010-01

4119A

/ 4.9
1001 reviews | Need a Specific Revision?
Triconex 4119A is an isolated Enhanced Intelligent Communication Module that connects Tricon v10.x or earlier controllers to Modbus devices, TriStation, and printers.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 4119A
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 4119A

  • Manufacturer:
    Invensys
  • Part Number:
    4119A
  • Product Family:
    Triconex
  • Product Type:
    Enhanced Intelligent Communication Module
  • Stock:
    1
  • Module Type:
    Enhanced Intelligent Communication Module (EICM)
  • System Version Compatibility:
    Tricon v10.x or earlier systems
  • Serial Ports:
    4, independently addressed
  • Serial Interfaces:
    RS-232, RS-422, or RS-485
  • Serial Port Isolation:
    500 V DC
  • Parallel Port:
    1 × isolated Centronics printer port
  • Parallel Port Isolation:
    500 V DC
  • Aggregate Serial Data Rate:
    57.6 kbit/s maximum across all four serial ports
  • RS-485 Maximum Trunk Length:
    4000 ft (1200 m), one or two twisted-pair wires
  • Maximum EICMs per Controller:
    2 modules in one logical slot
  • Maximum Modbus Masters:
    7 per Tricon chassis
  • Logic Power:
    Less than 10 W
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Interfaces Configuration Maintenance Application
  • Connects Tricon v10.x or earlier controllers to Modbus devices, TriStation, and printers
  • Provides four concurrent serial ports and one isolated Centronics parallel port
  • Supports online faulty-module replacement but does not provide hot-spare operation

Triconex 4119A is an isolated Enhanced Intelligent Communication Module designed for Tricon v10.x or earlier controller systems.

The EICM exchanges data with Modbus masters and slaves, communicates with a TriStation PC, and connects a Centronics-compatible printer through concurrently operating ports.

Before installation or replacement, verify the Tricon system version, logical-slot allocation, electrical interface, baud rate, Modbus mode, alias mapping, and saved communication configuration.

Availability, condition, price, and shipping time for Triconex 4119A are confirmed during quotation.

Triconex 4119A Enhanced Intelligent Communication Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • RS-232 supports a point-to-point connection between one master and one slave
  • RS-485 supports one master and up to 32 slaves over a trunk up to 4000 ft (1200 m)
  • The isolated Centronics parallel port connects a compatible printer
  • Each serial port is independently addressed and can use the Modbus or TriStation interface
  • Modbus communication can be configured for RTU or ASCII mode
  • Tricon variable names require numeric aliases before Modbus devices can read or write them
  • A Tricon High-Density controller supports up to two EICMs in one logical slot
  • Hot-spare operation is not available for the 4119A EICM
  • A faulty EICM can be replaced while the controller remains online
  • Communication between a Tricon controller and Modbus master or slave devices
  • Engineering and controller communication through a TriStation PC
  • Connection of a Centronics-compatible printer for Tricon system output
Description
Triconex 4119A is an isolated Enhanced Intelligent Communication Module for Tricon v10.x or earlier safety-controller systems.

The module provides four independently addressed serial ports for Modbus or TriStation communication and one isolated Centronics parallel printer port. Its serial ports operate concurrently and share a maximum aggregate data rate of 57.6 kilobits per second.

Before installation or replacement, confirm the complete 4119A model, Tricon system version, logical-slot arrangement, serial electrical interface, Modbus mode, baud rate, alias mapping, and saved controller configuration.
Alternative Names
4119A 4119 A Triconex 4119A Invensys Triconex 4119A Triconex EICM 4119A 4119A EICM
Technical notes
Triconex 4119A is the isolated EICM for Tricon v10.x or earlier systems; confirm alias mapping, logical-slot placement, and serial-port settings before replacement.
